Toyota YARIS 行李箱门和行李箱锁 — Figure 6105

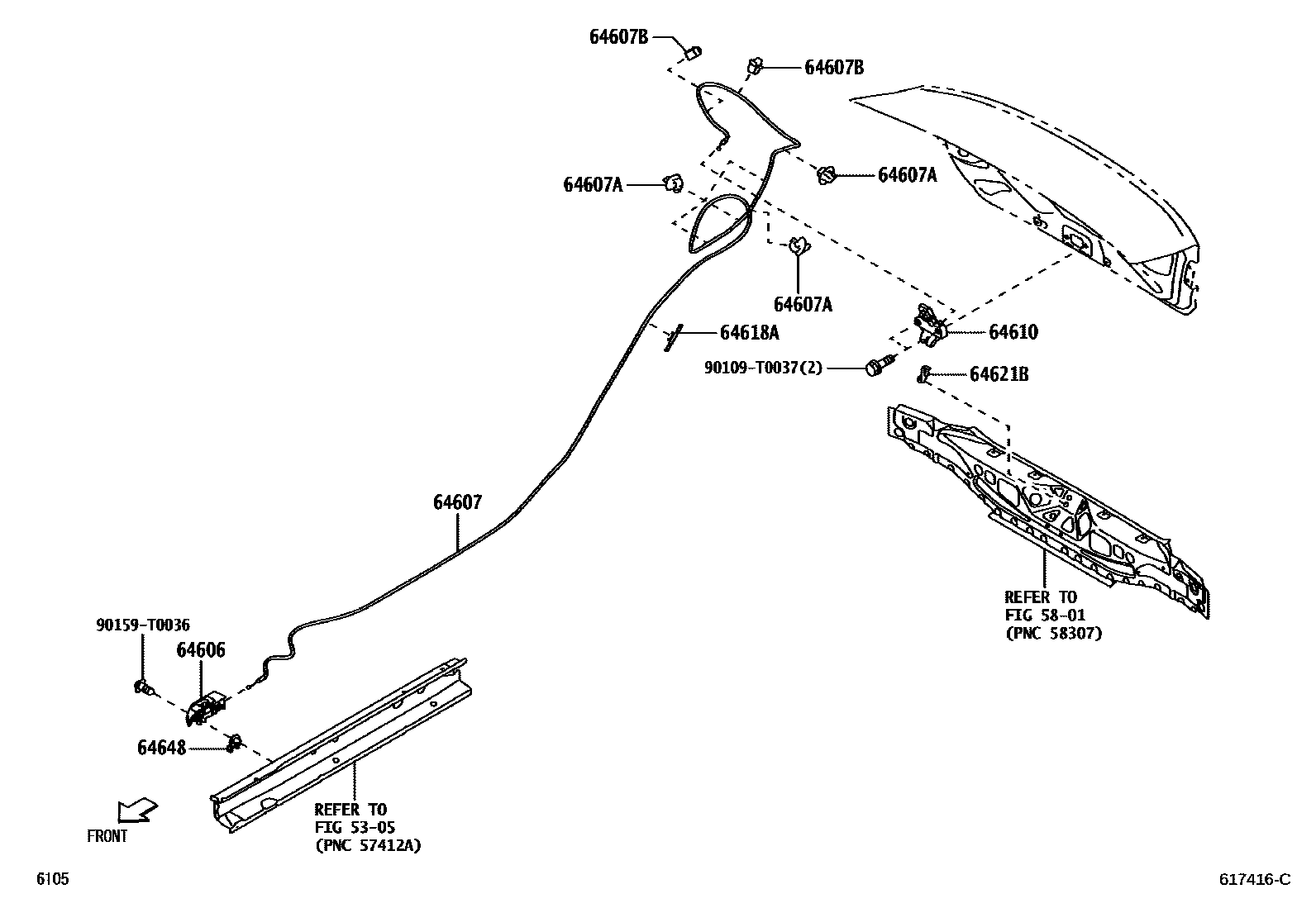

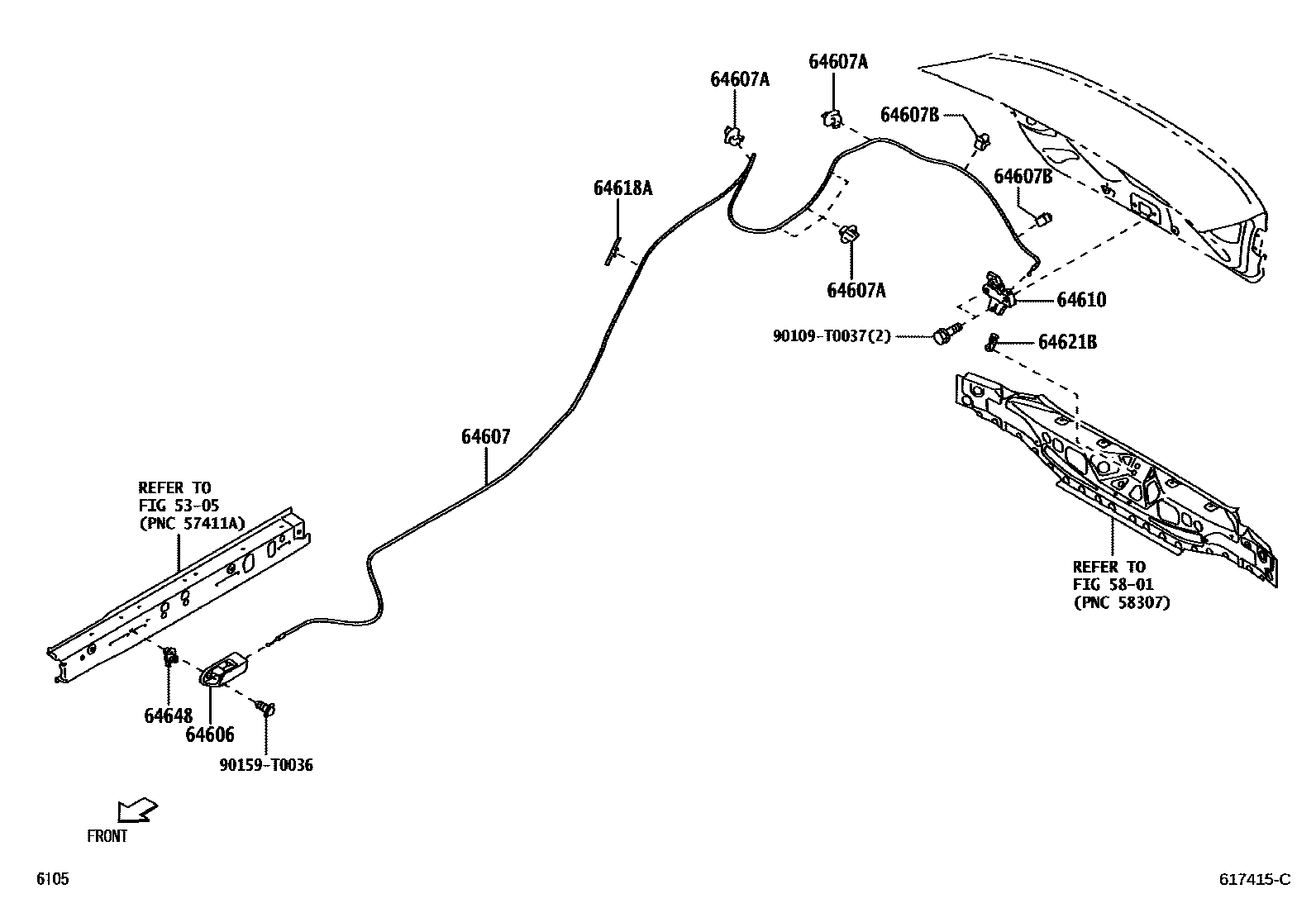

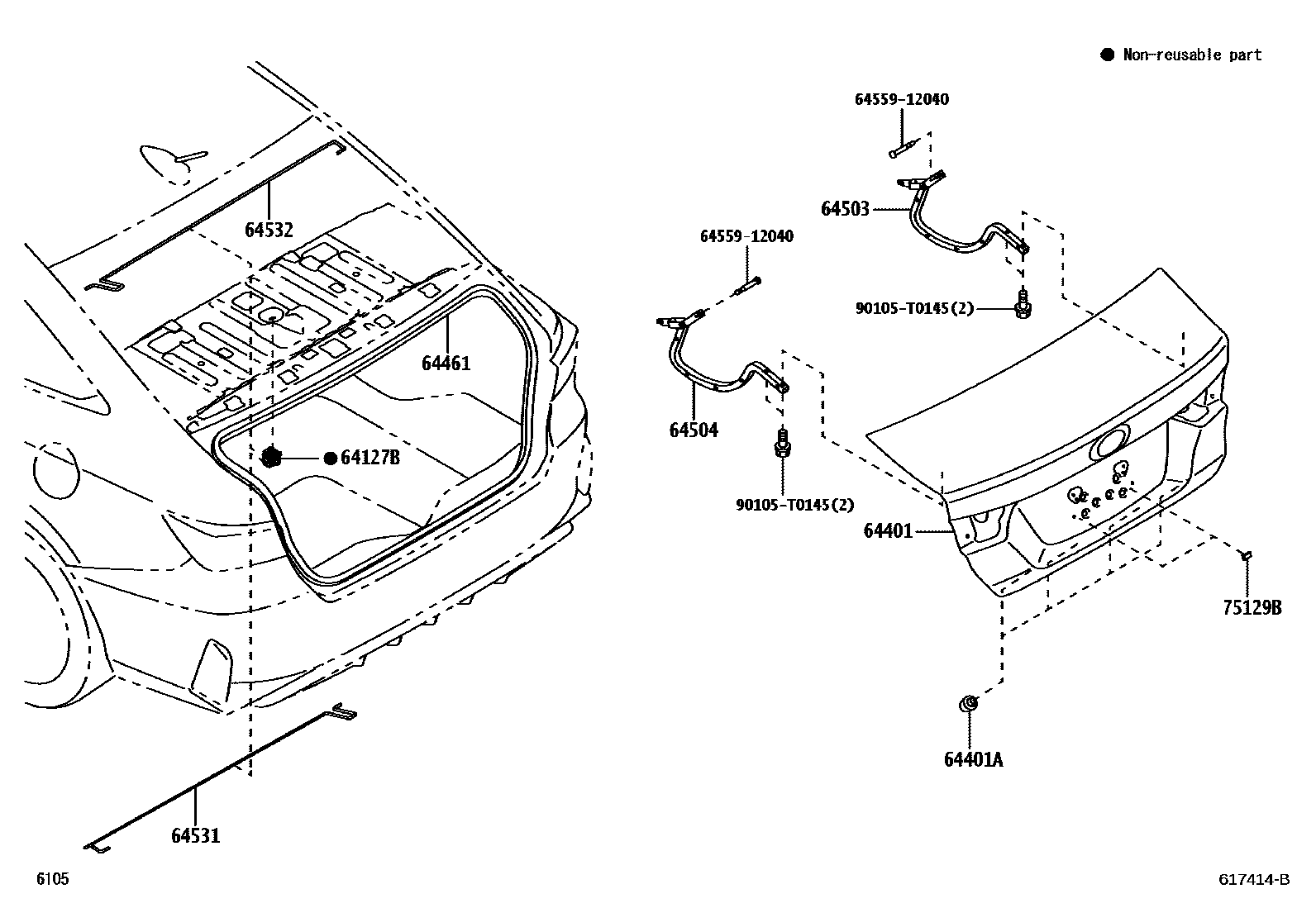

Toyota YARIS EPC diagram 6105, 行李箱门和行李箱锁, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-30150 |
| 64401 | Trunk door panel sub-assembly | 64401-BZ050 · 64401-BZ060 · 64401-BZ070 · 64401-BZ090 · 64401-BZ130 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09069 |
| 64461 | Trunk door seal | 64461-BZ031 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-BZ020 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-BZ020 |
| 64531 | Trunk door right hinge torsion bar | 64531-BZ040 · 64531-BZ050 · 64531-BZ060 |
| 64532 | Trunk door left hinge torsion bar | 64532-BZ040 · 64532-BZ050 · 64532-BZ060 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-0D130 · 64606-0D140 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-BZ100 · 64607-BZ120 · 64607-BZ130 |
| 64607A | Clip No. 1 (for trunk door lock control cable) | 90469-T0003 |
| 64607B | Clip No. 2 (for trunk door lock control cable) | 90959-T1001 |
| 64610 | Trunk door lock assembly | 64600-02080 · 64600-0D040 |
| 64618A | Trunk lock control cable clip | 82711-BZ220 · 82711-BZ460 |
| 64621B | Trunk door latch | 64621-06080 |
| 64648 | Trunk door lock opener seal | 64648-0D020 |
| 75129B | rear license plate cushion | 75129-0D030 |
