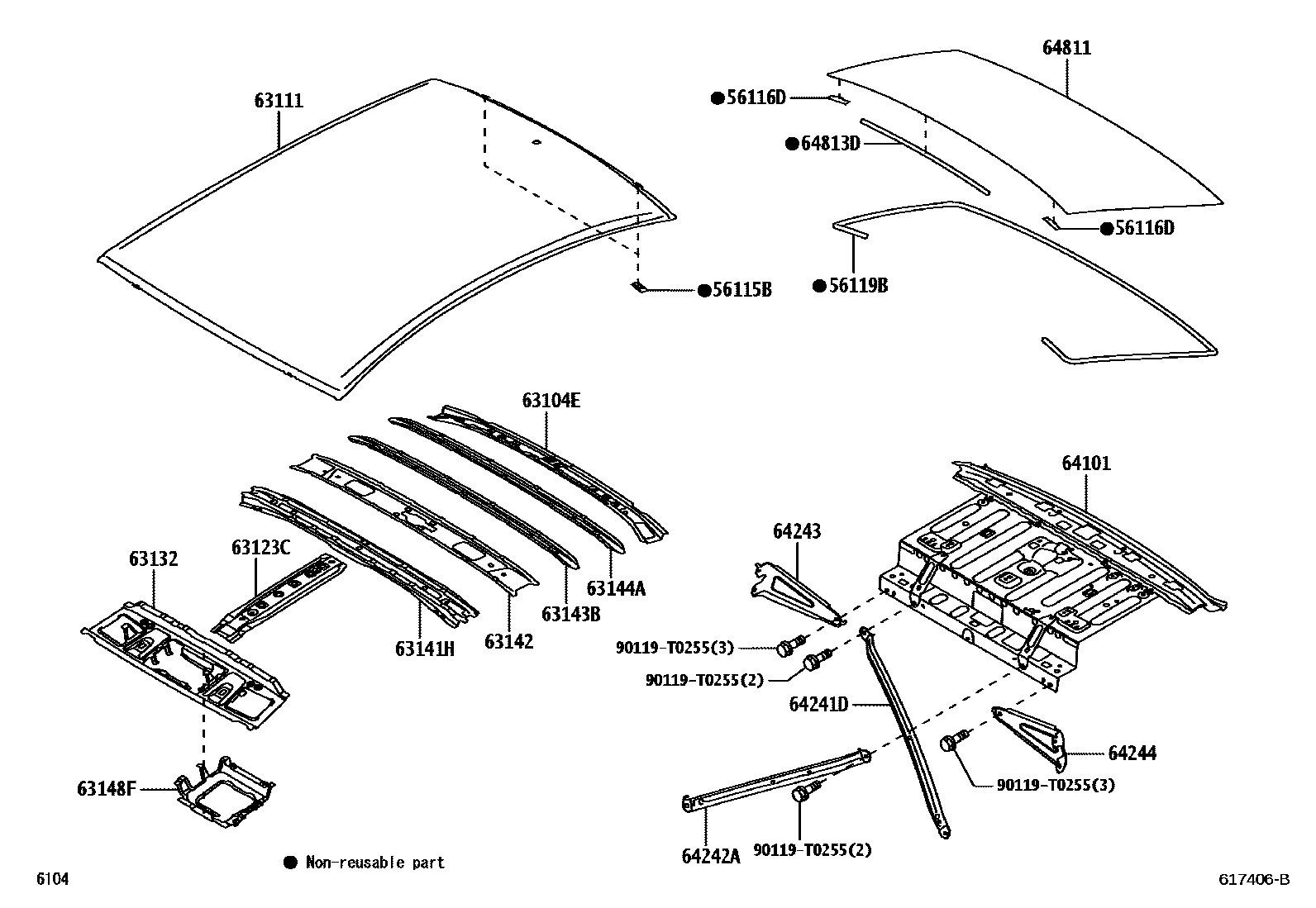

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 56119B | Back window glass adhesive seal | 64814-BZ010 |
| 63104E | Rear roof panel reinforcement sub-assembly | 63104-BZ020 |
| 63111 | roof panel | 63111-BZ360 |
| 63123C | Roof panel reinforcement | 63123-BZ010 |
| 63132 | Windshield inner roof panel | 63132-BZ300 |
| 63141H | Center roof panel reinforcement | 63141-BZ160 |
| 63142 | No. 2 roof panel reinforcement | 63142-BZ220 |
| 63143B | No. 3 roof panel reinforcement | 63143-BZ160 |
| 63144A | No. 4 roof panel reinforcement | 63144-BZ130 |
| 63148F | Interior light bracket | 63171-BZ040 |
| 64101 | Upper back panel sub-assembly | 64101-BZ330 · 64101-BZ340 |
| 64241D | compartment partition | 64241-BZ020 |
| 64242A | Left compartment partition | 64242-BZ020 |
| 64243 | No. 2 right compartment partition | 64243-BZ010 |
| 64244 | No. 2 left compartment partition | 64244-BZ010 |
| 64811 | back window glass | 64801-BZ010 · 64801-BZ020 · 64801-BZ060 |
| 64813D | Back window glass adhesive seal | 64813-BZ020 |
