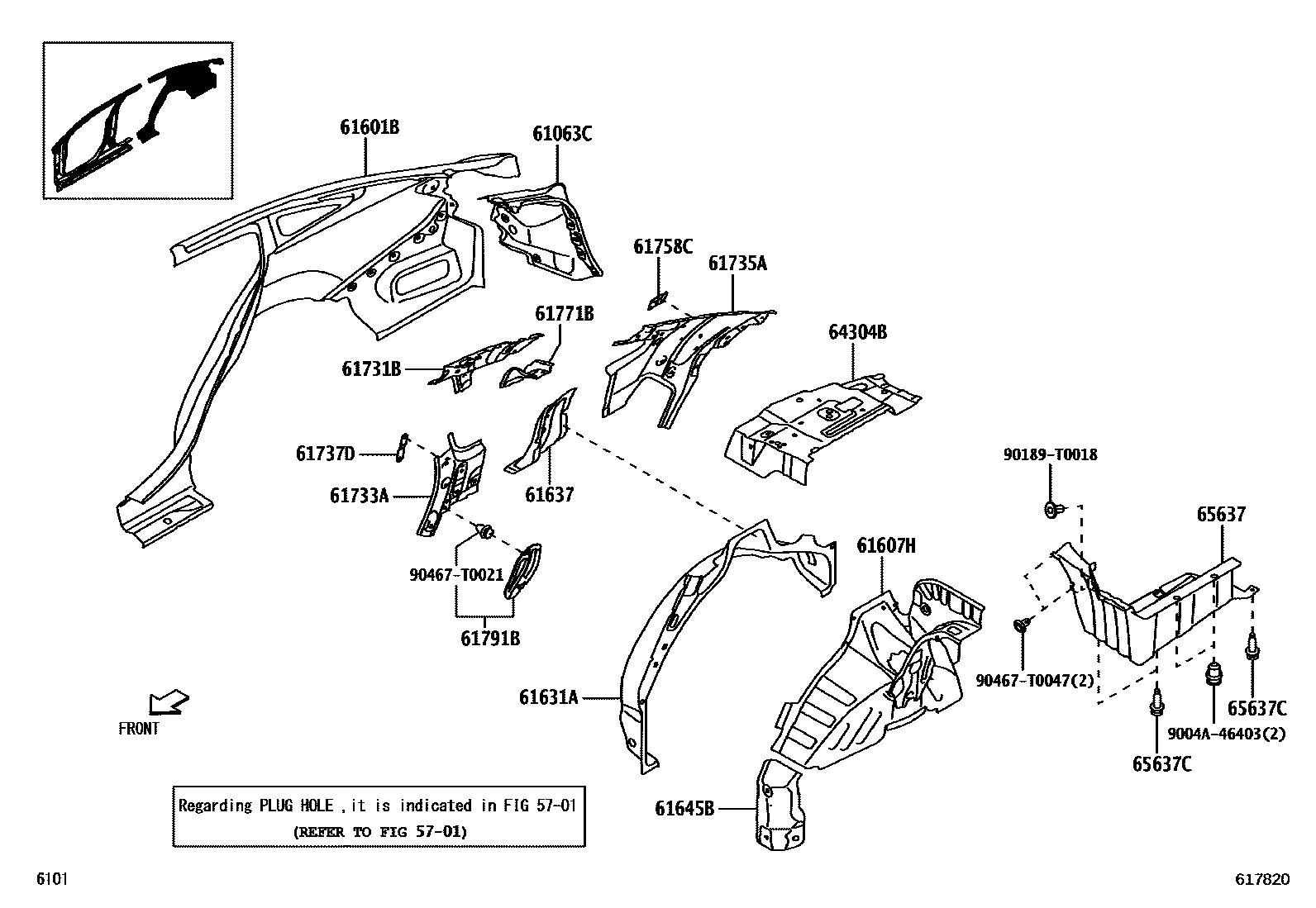

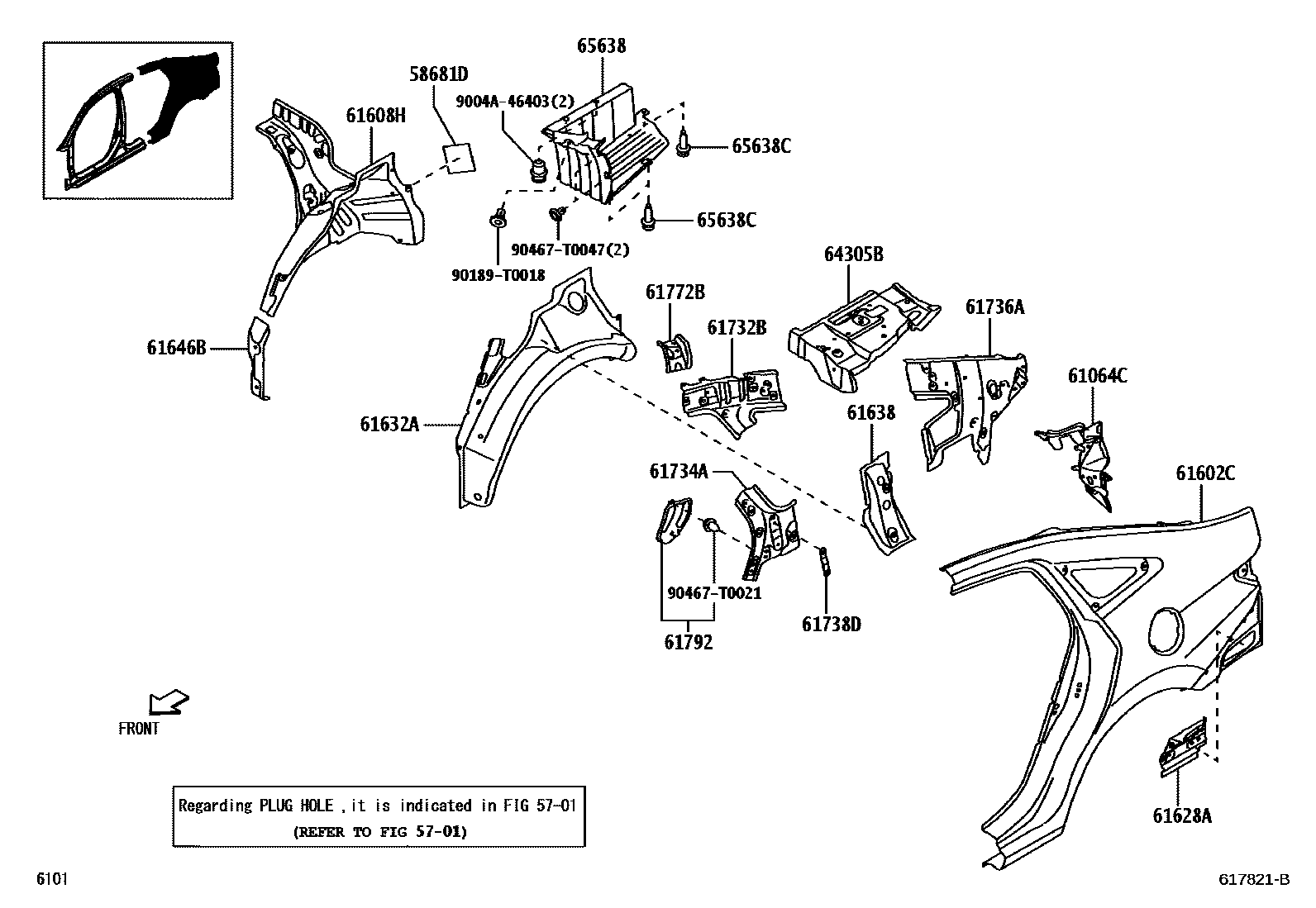

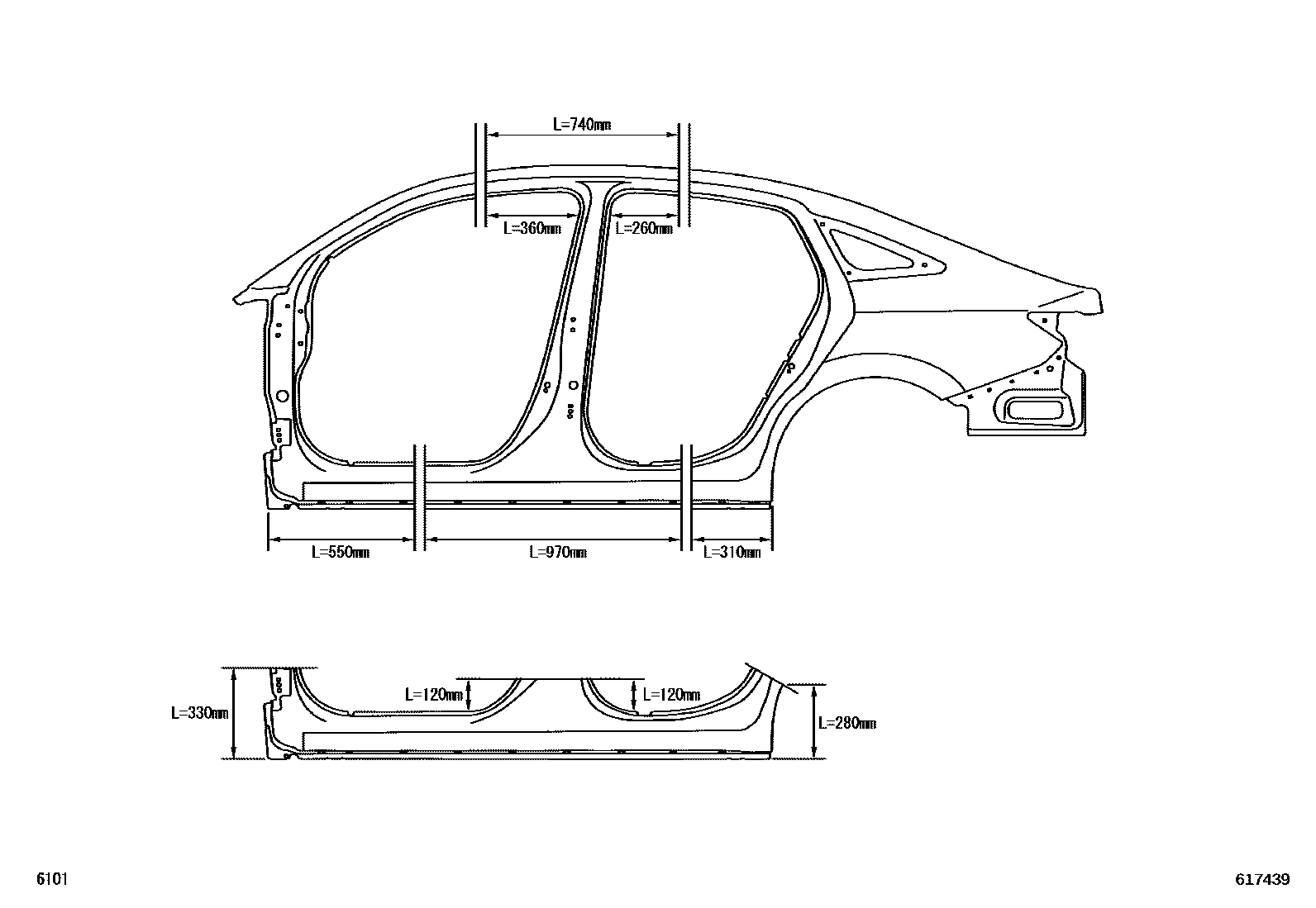

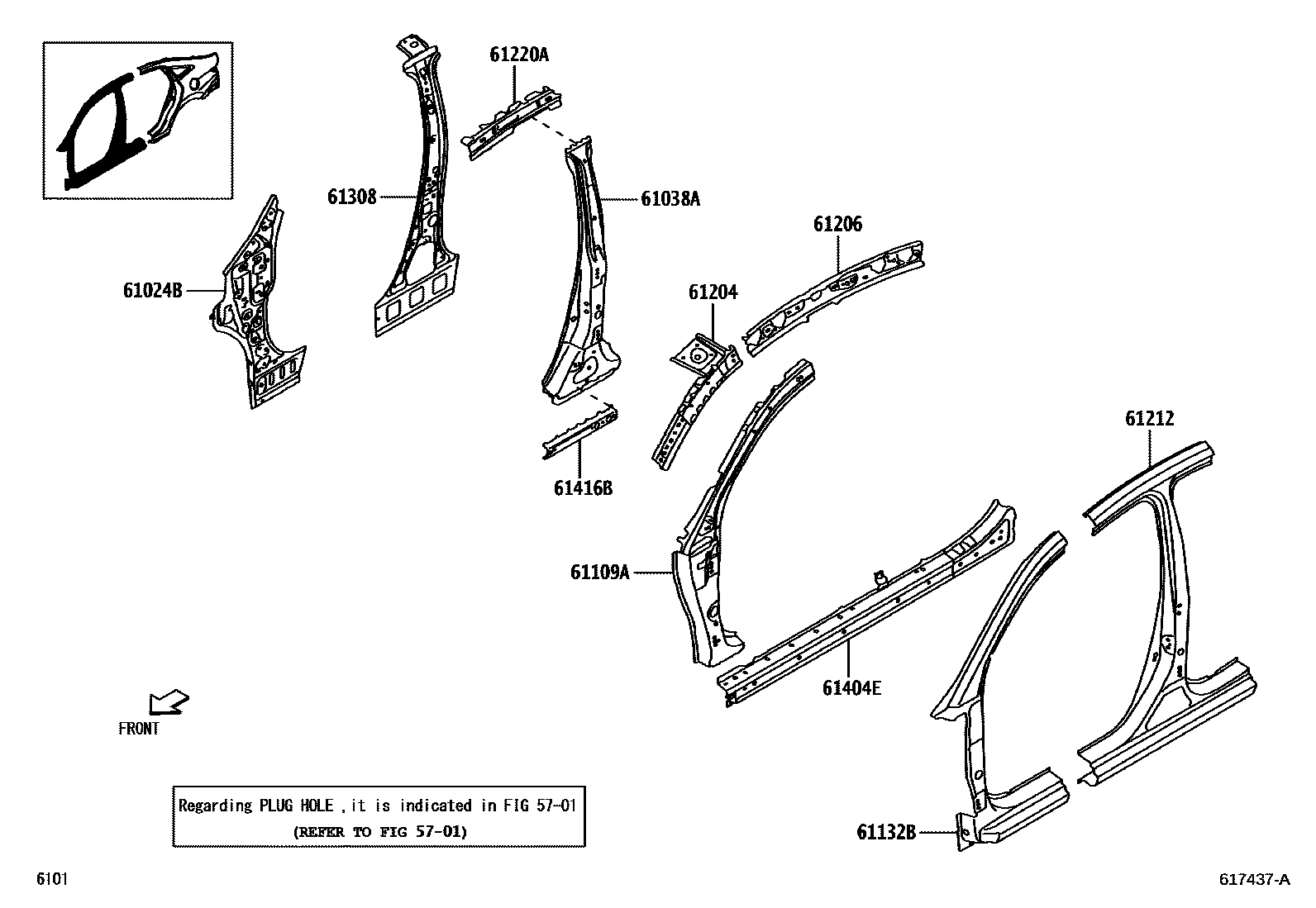

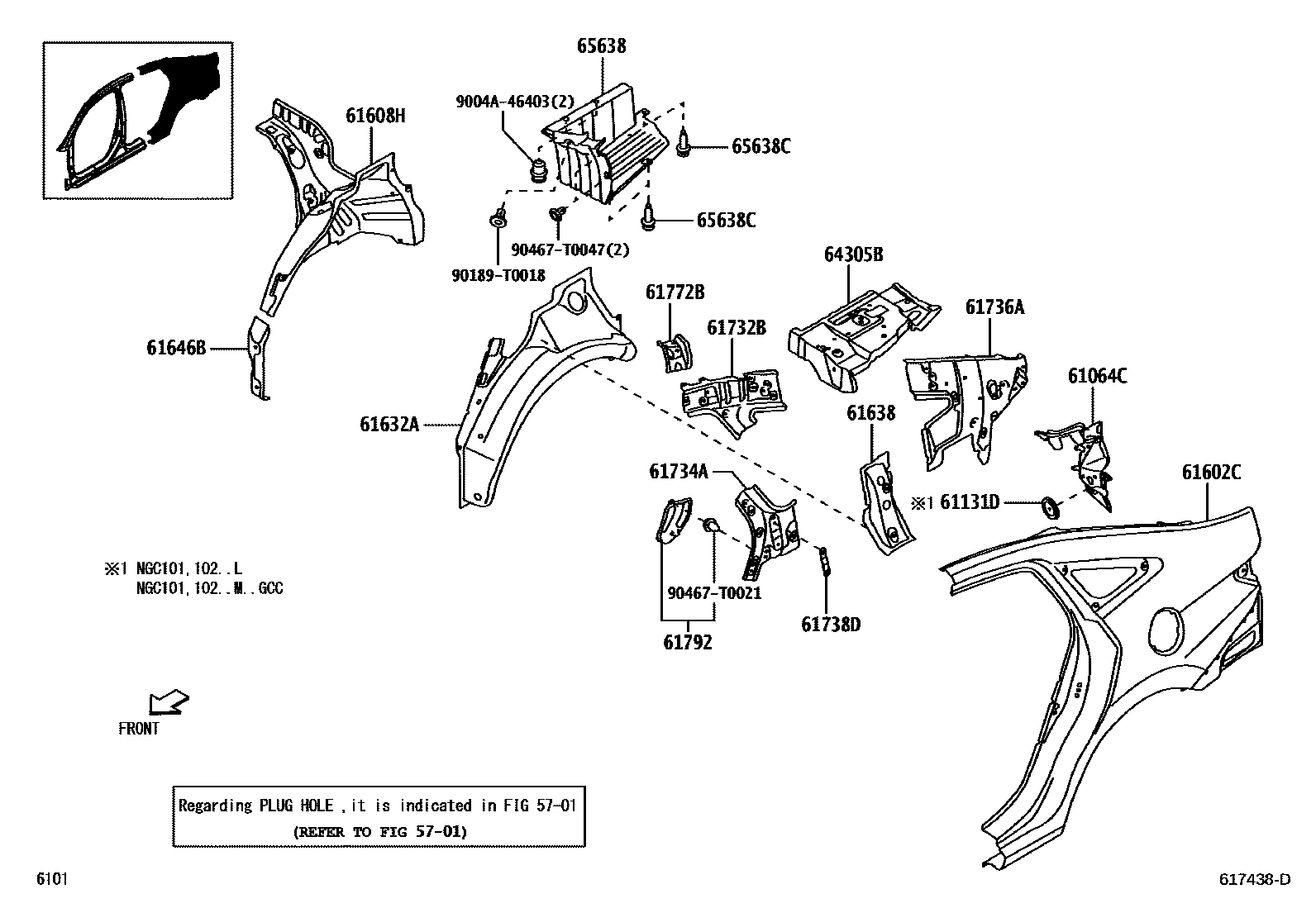

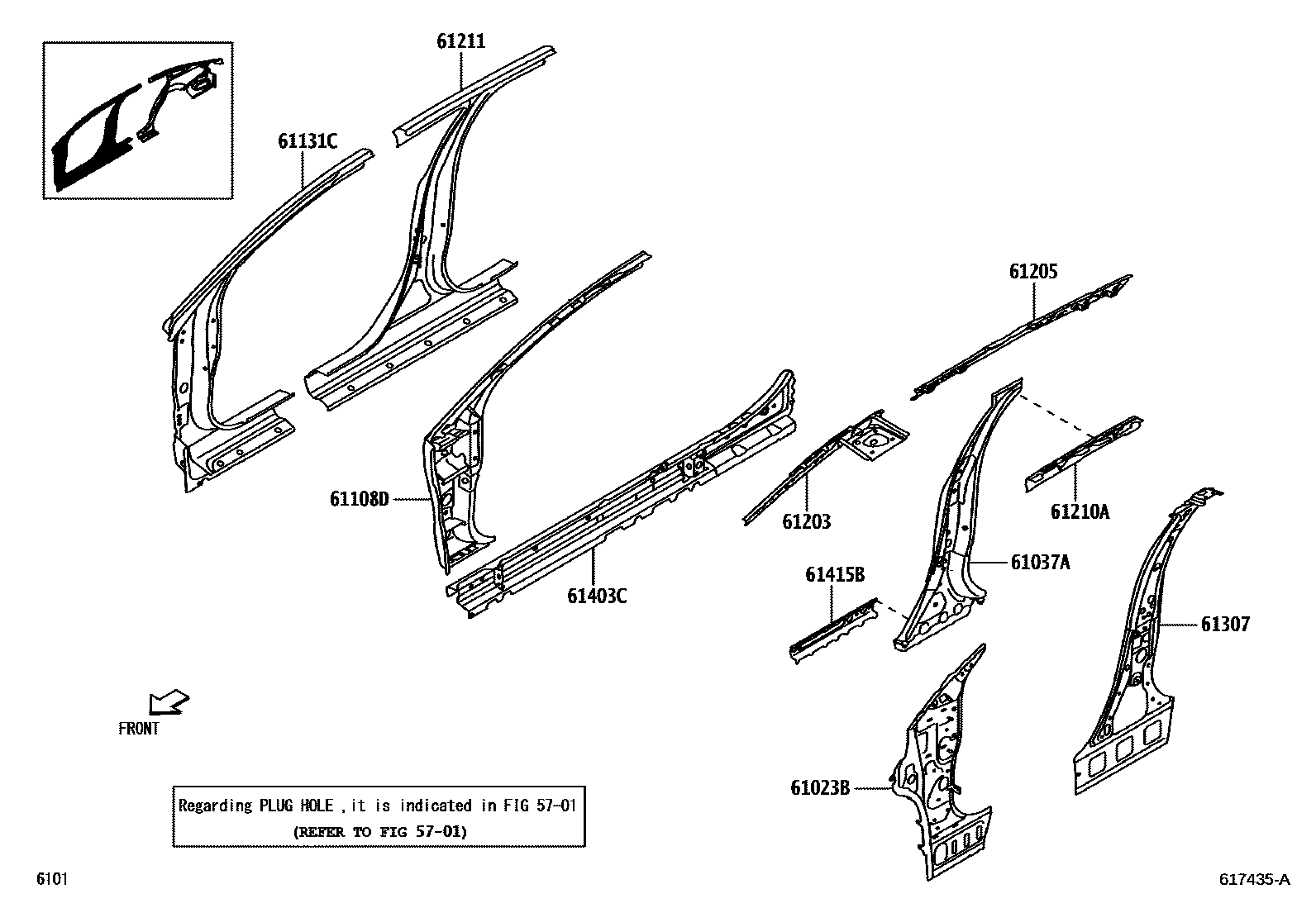

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 6 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58681D | No. 1 rear wheel cover silencer plate | 58681-BZ050 |
| 61023B | Right body inner front pillar sub-assembly | 61023-BZ470 · 61023-BZ480 |
| 61024B | Left body inner front pillar sub-assembly | 61024-BZ400 · 61024-BZ410 · 61024-BZ420 · 61024-BZ430 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-BZ430 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-BZ430 |
| 61063C | Trunk door right front opening slot sub-assembly | 61063-BZ070 |
| 61064C | Trunk door left front opening slot sub-assembly | 61064-BZ070 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-BZ900 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-BZ900 |
| 61131C | Right body outer front pillar | 61131-BZ570 · 61131-BZ660 |
| 61131D | hole plug | 90950-01978 |
| 61132B | Left body outer front pillar | 61132-BZ570 · 61132-BZ620 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-BZ160 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-BZ160 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-BZ030 · 61205-BZ040 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-BZ030 · 61206-BZ040 |
| 61210A | Roof right side longitudinal beam assembly | 61210-BZ900 |
| 61211 | Roof right outer longitudinal beam | 61211-BZ130 · 61211-BZ170 |
| 61212 | Roof left outer longitudinal beam | 61212-BZ130 · 61212-BZ170 |
| 61220A | Roof left side rail assembly | 61220-BZ900 |
| 61307 | Right body inner center pillar sub-assembly | 61307-BZ100 |
| 61308 | Left body inner center pillar sub-assembly | 61308-BZ140 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-BZ900 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-BZ900 |
| 61415B | Right door outer sill extension | 61415-BZ050 |
| 61416B | Left door outer sill extension | 61415-BZ050 |
| 61601B | Right side enclosure sub-assembly | 61601-BZ190 · 61601-BZ210 |
| 61602C | Left side enclosure sub-assembly | 61602-BZ170 · 61602-BZ190 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-BZ190 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-BZ190 |
| 61628A | Extension piece under left side hoarding | 61622-BZ180 |
| 61631A | Right wheel cover outer panel | 61631-BZ230 |
| 61632A | Left side wheel cover outer panel | 61632-BZ230 |
| 61637 | Right wheel cover bracket | 61637-BZ120 |
| 61638 | Left side wheel cover bracket | 61638-BZ090 |
| 61645B | Right rear side wheel housing corner panel | 61645-BZ120 |
| 61646B | Left rear side wheel housing corner panel | 61646-BZ150 |
| 61731B | Roof right inner panel | 61731-BZ270 |
| 61732B | Roof left inner panel | 61732-BZ260 |
| 61733A | Right front roof inner panel | 61733-BZ050 |
| 61734A | Left front roof inner panel | 61734-BZ050 |
| 61735A | Right rear roof inner panel | 61735-BZ140 |
| 61736A | Left rear roof inner panel | 61736-BZ130 |
| 61737D | Roof right inner reinforcement | 61737-BZ100 |
| 61738D | Roof left inner reinforcement | 61737-BZ100 |
| 61758C | Side panel inner panel bracket | 61758-BZ010 |
| 61771B | Opening frame on the upper right corner of the back door | 61771-BZ130 |
| 61772B | Opening frame at the upper left corner of the back door | 61772-BZ120 |
| 61791B | Inner roof access hole cover | 61791-BZ010 |
| 61792 | Inner roof access hole cover | 61792-BZ010 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-BZ010 · 64304-BZ011 · 64304-BZ051 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-BZ010 · 64305-BZ011 · 64305-BZ041 |
| 65637 | Right rear wheel house lining | 65637-BZ320 |
| 65637C | Rear wheel cover lining clip | 52161-0K040 |
| 65638 | Left rear wheel house lining | 65638-BZ310 |
| 65638C | Rear wheel cover lining clip | 52161-0K040 |
