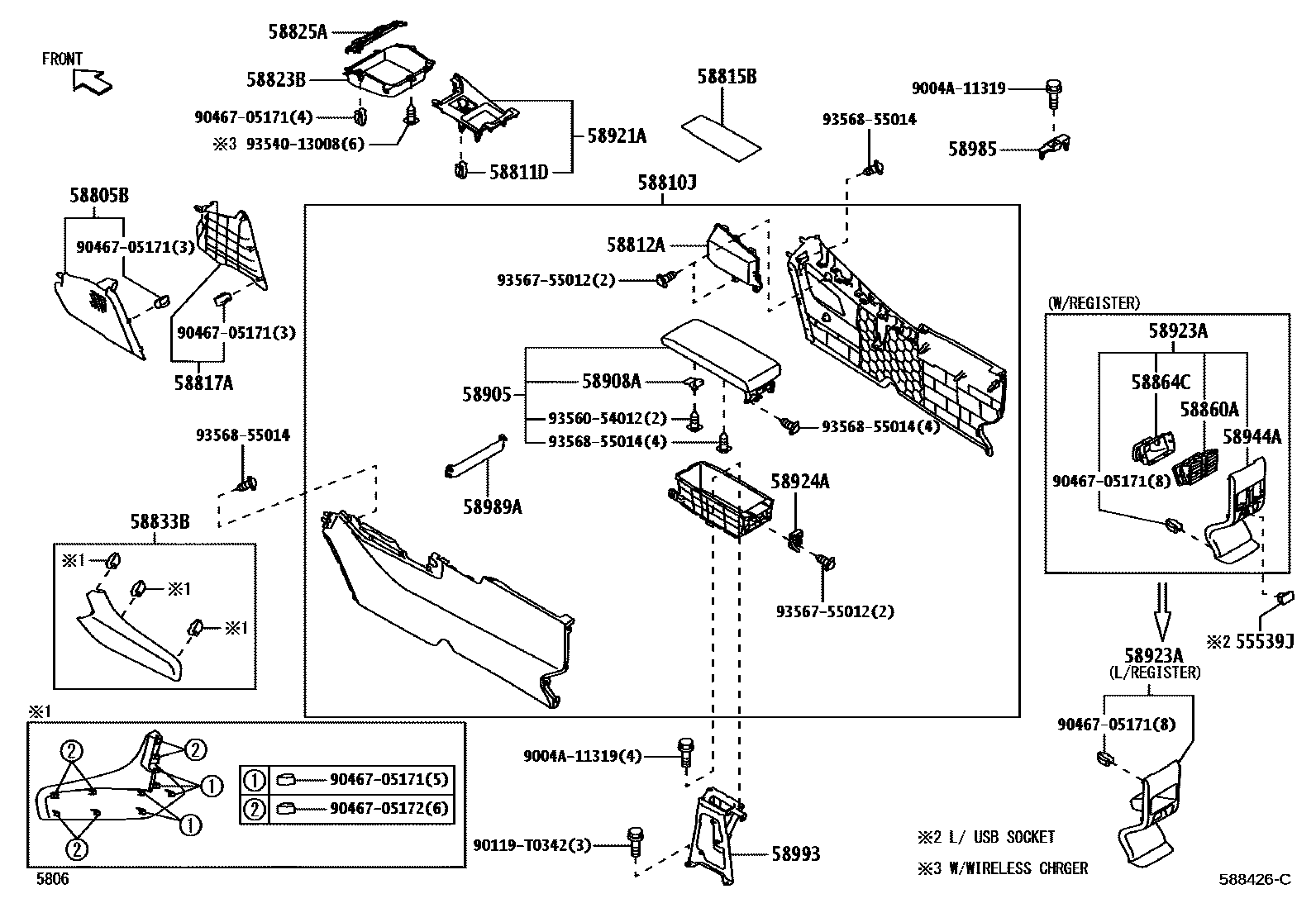

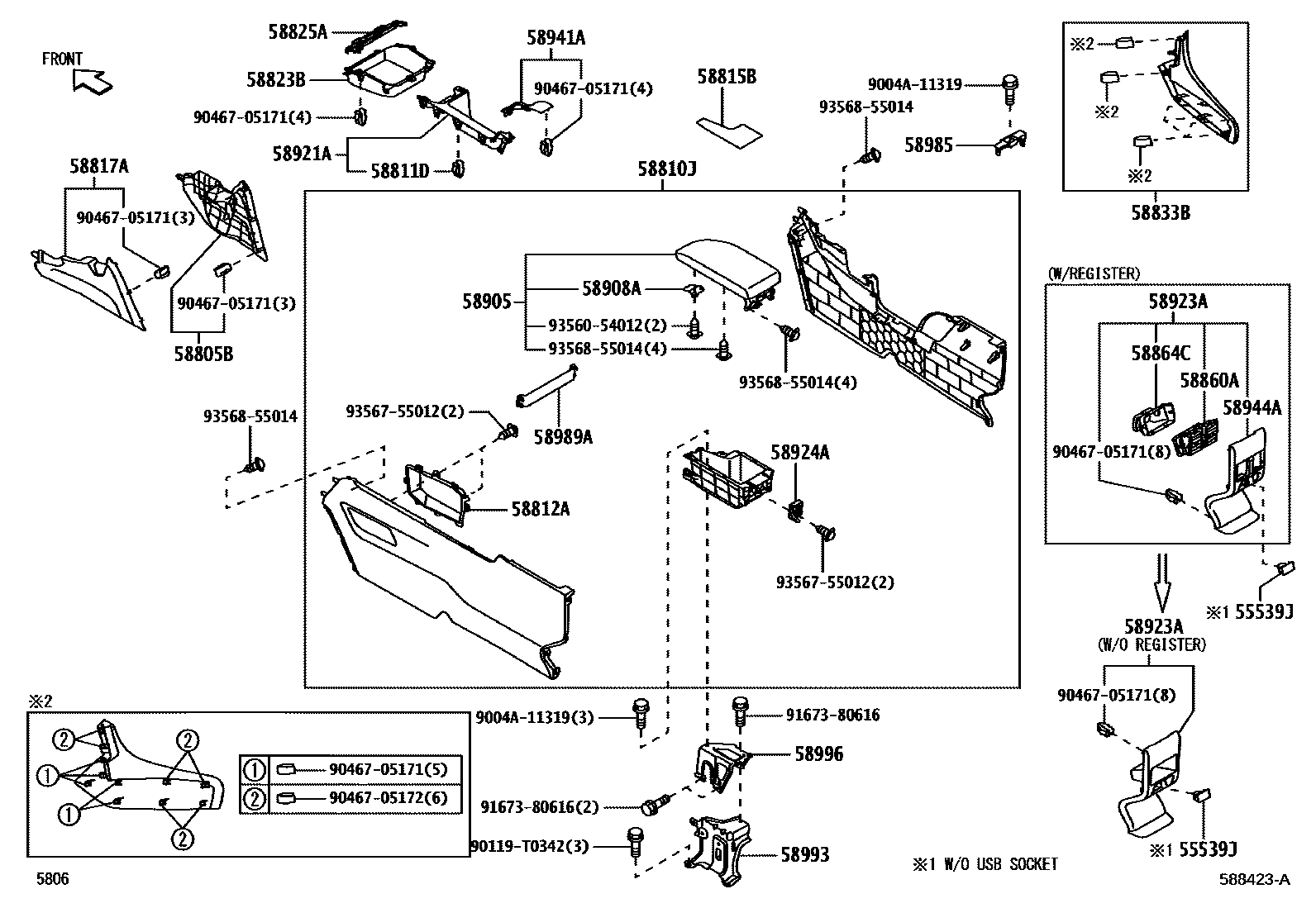

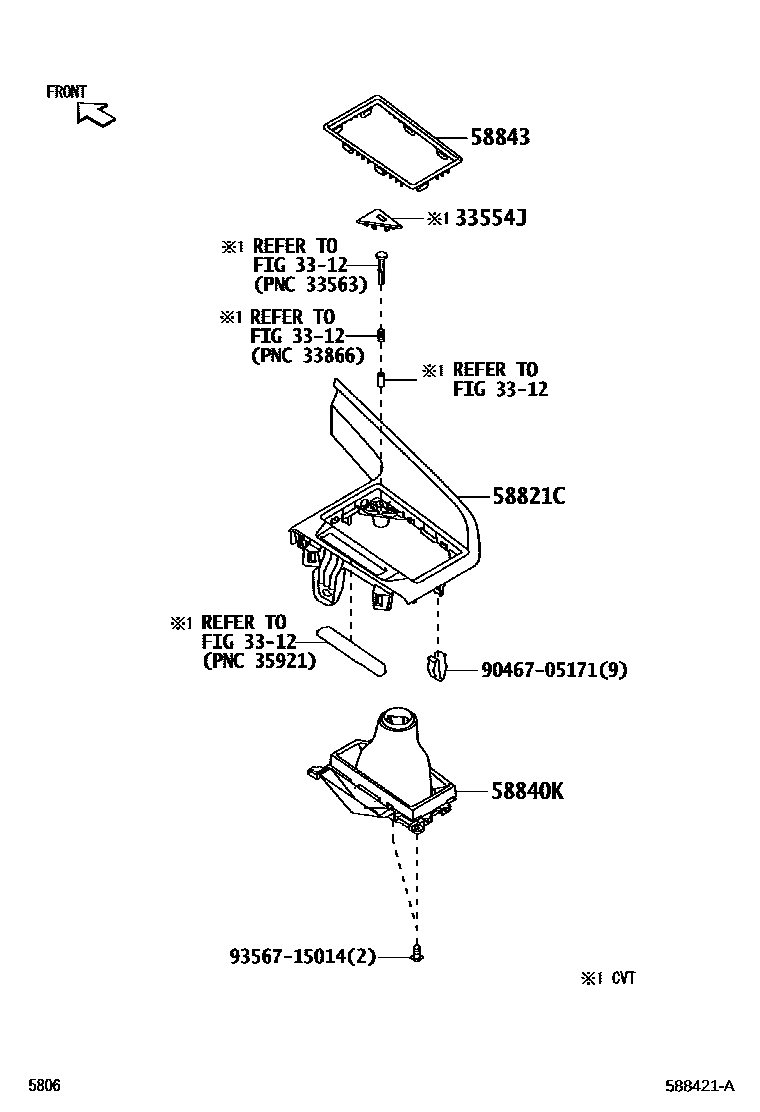

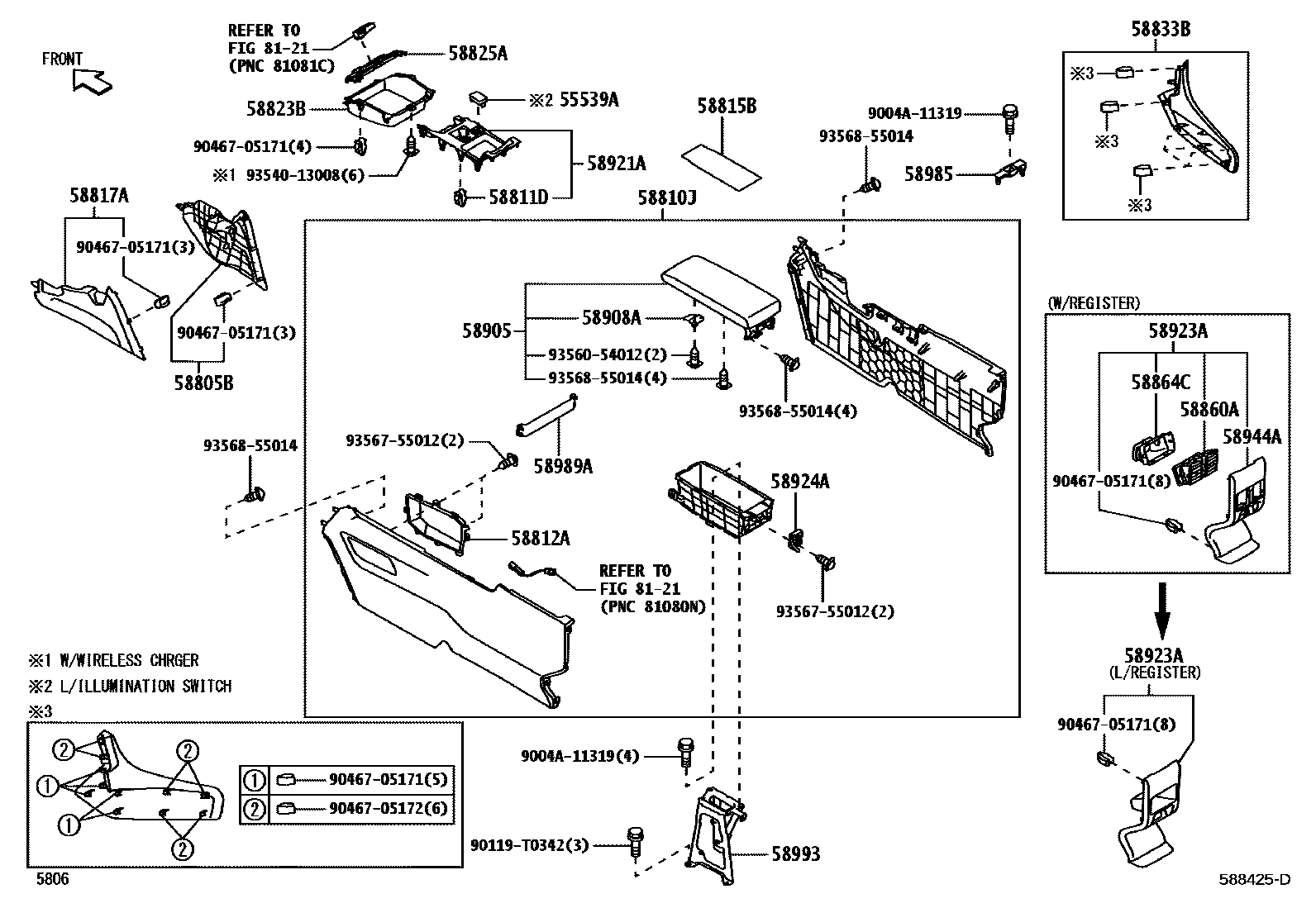

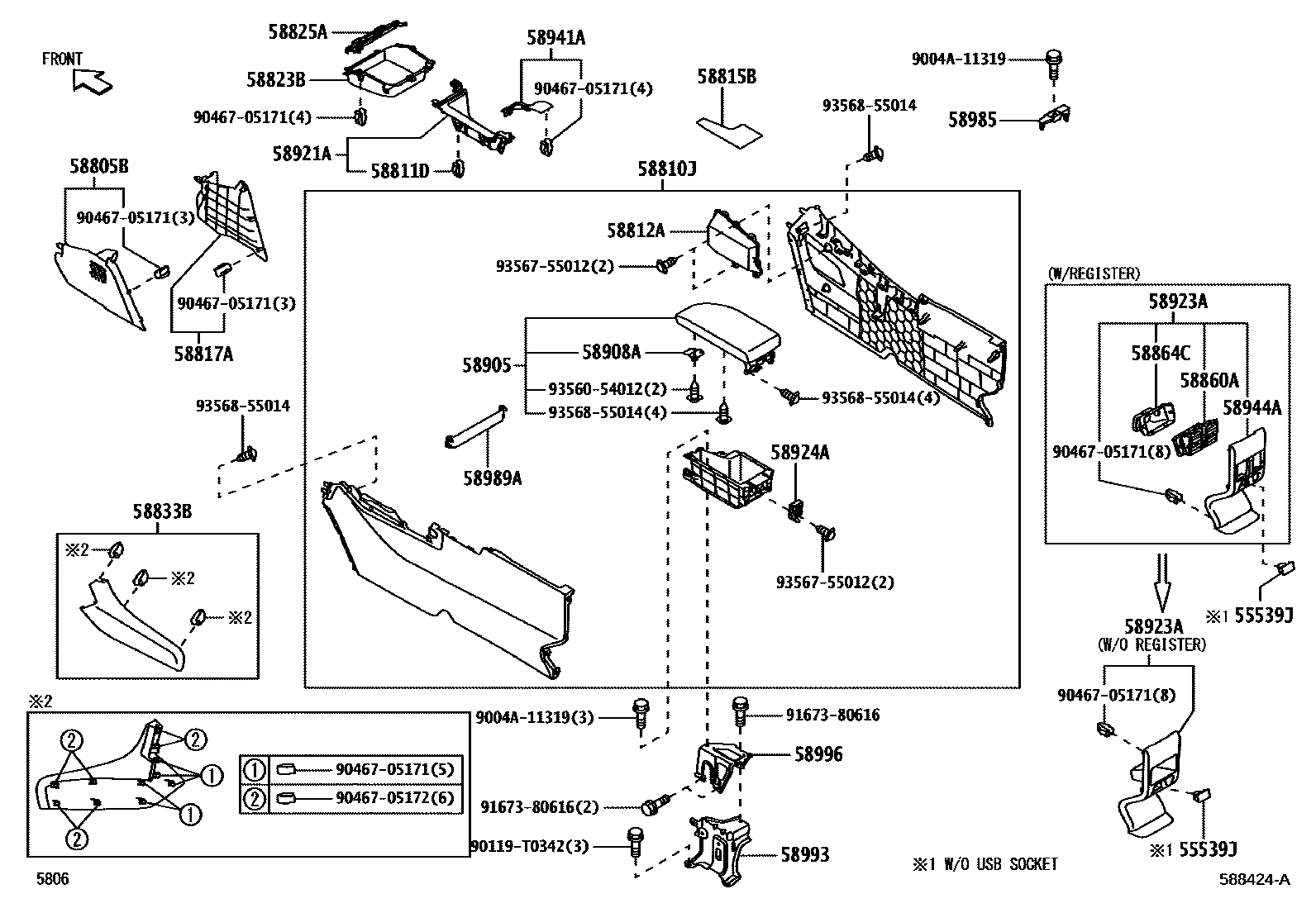

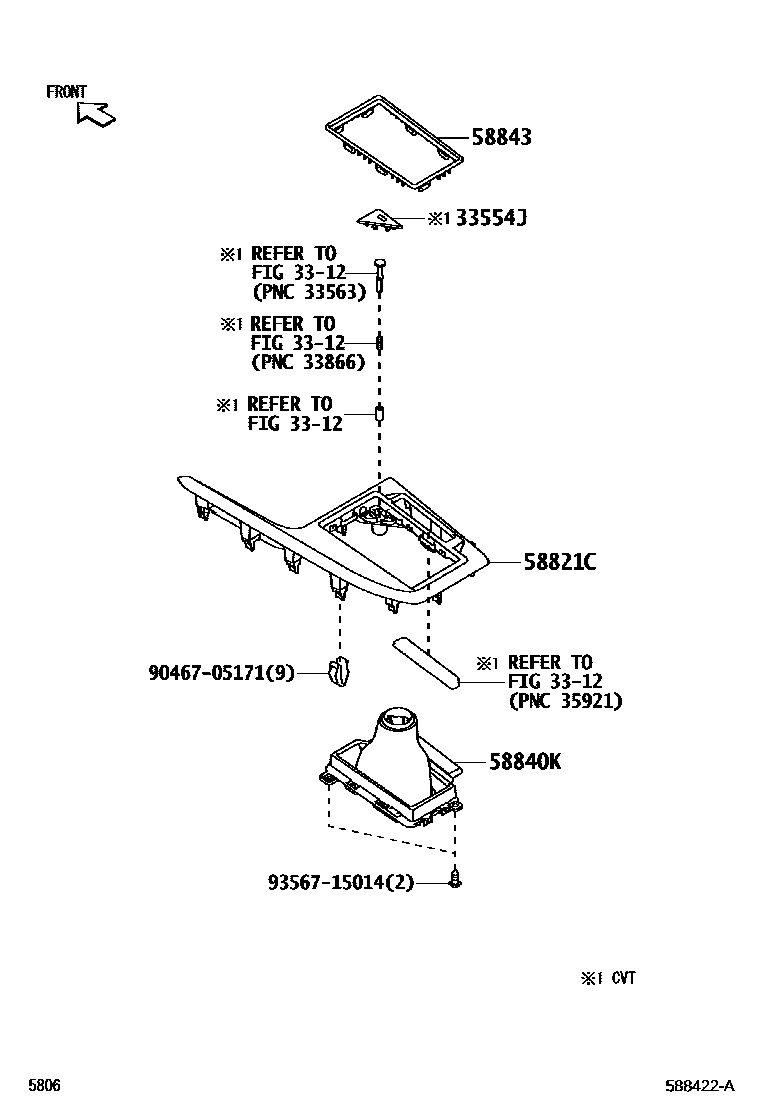

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58811D | Clip (for armrest box) | 90467-05171 |
| 58815B | Armrest box felt pad | 58815-BZ130 · 58815-BZ140 |
| 58843 | shift hole frame | 58843-BZ580 · 58843-BZ600 |
| 58860A | Armrest box air regulator assembly | 58860-BZ100 |
| 58864C | Armrest box No. 4 air duct | 58864-BZ010 · 58864-BZ020 |
| 58908A | Armrest box lid lock assembly | 58908-BZ030 |
| 58923A | Armrest box rear end panel | 58923-BZ180 |
| 58924A | Console No. 2 rear end plate | 58924-BZ050 |
| 58944A | Rear armrest box cover | 58944-BZ110 |
| 58985 | Armrest box fixing bracket | 58985-BZ070 |
| 58989A | Armrest box fixing bracket | 58985-BZ100 |
| 58993 | Armrest box rear mounting bracket | 58993-BZ080 · 58993-BZ090 |
| 58996 | Armrest box No. 1 mounting bracket | 58996-BZ040 |
