Toyota YARIS 地板垫和地毯 — Figure 5804

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 4 images and 8 PNC and OE references.

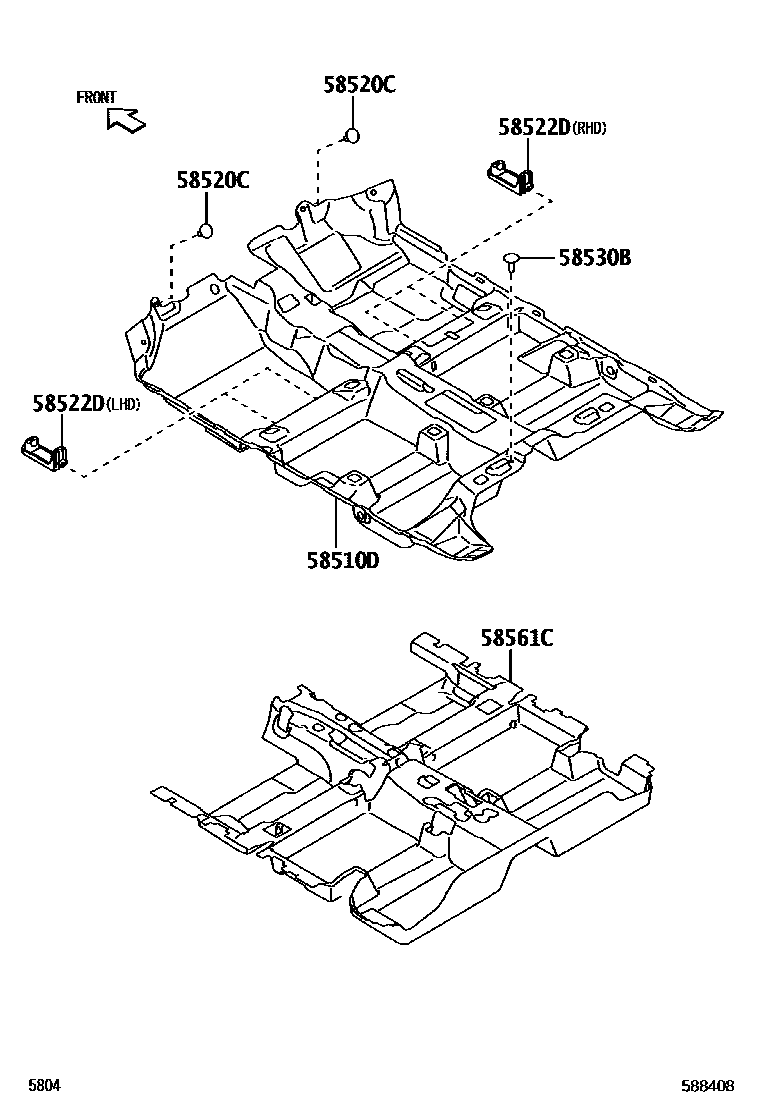

Toyota YARIS 地板垫和地毯 EPC diagram — 588408
地板垫和地毯 — 588408 (202208 – 999999)

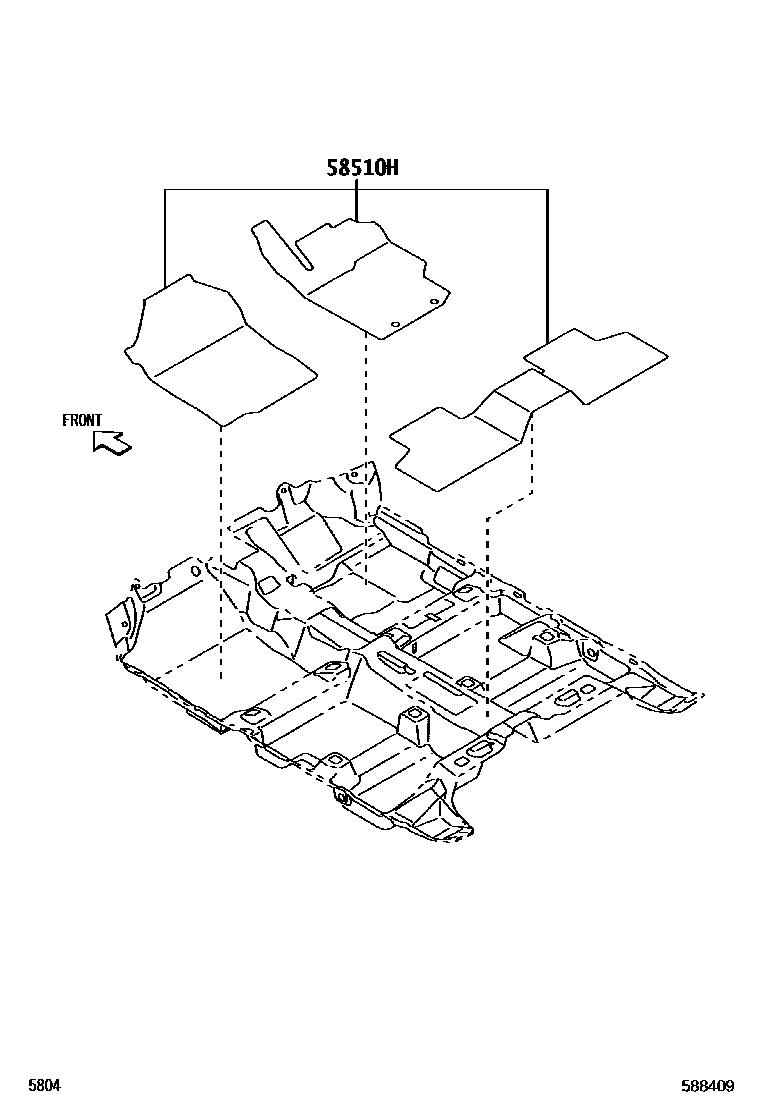

Toyota YARIS 地板垫和地毯 EPC diagram — 588409
地板垫和地毯 — 588409 (202208 – 999999)

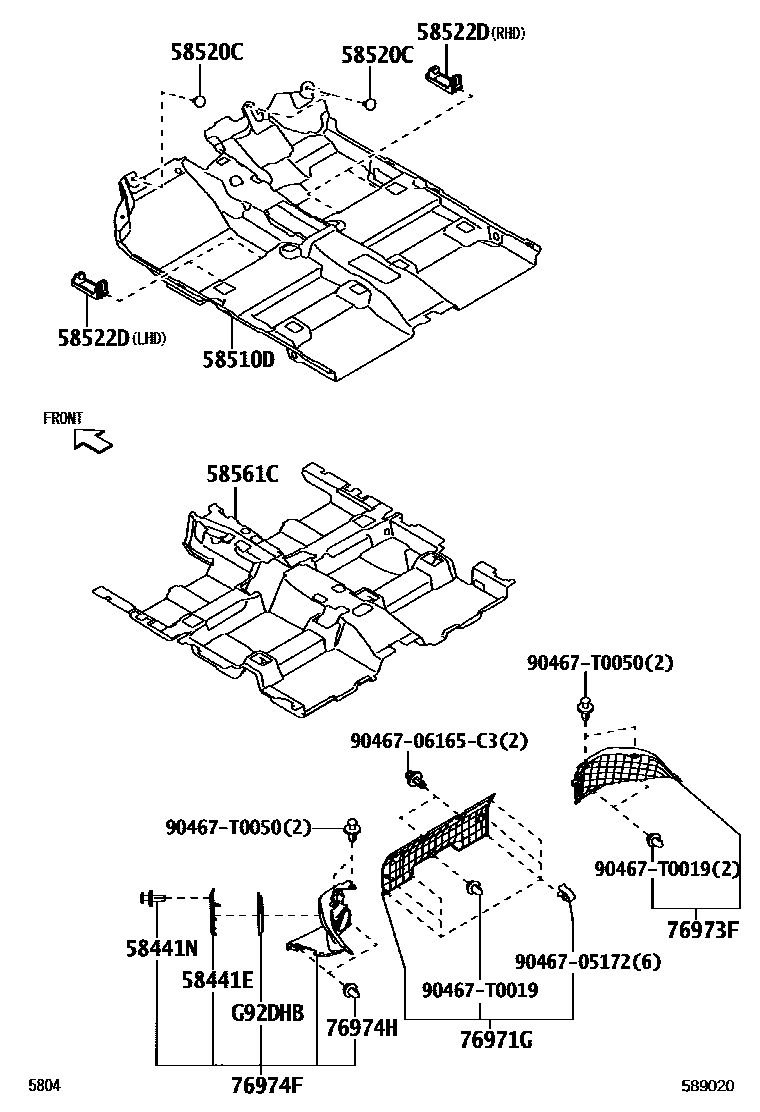

Toyota YARIS 地板垫和地毯 EPC diagram — 589020
地板垫和地毯 — 589020 (202508 – 999999)

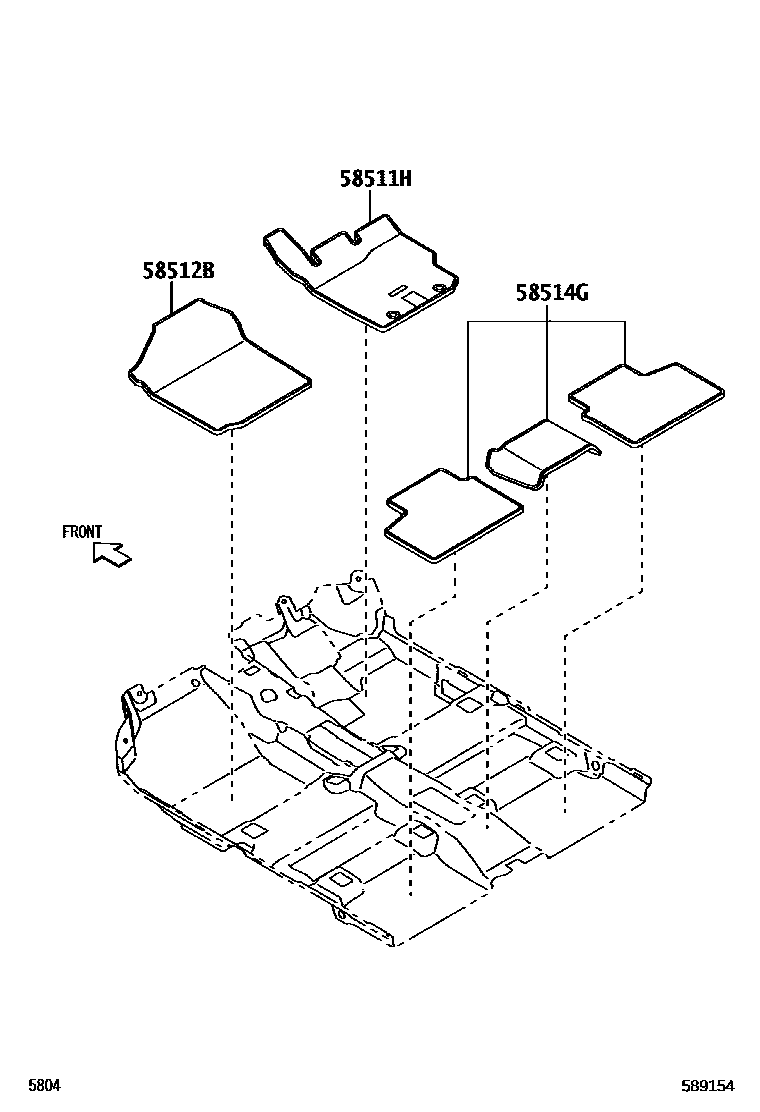

Toyota YARIS 地板垫和地毯 EPC diagram — 589154
地板垫和地毯 — 589154 (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
58510HFloor mat assembly58510-BY360 · 58510-BY361
58511HFront floor right mat58511-BP010
58512BFront floor left mat58512-BP010
58514GRear floor right mat58514-BP010
58522DCarpet hook number 258522-52030
58561CFront floor silencer No. 158561-BZ050 · 58561-BZ060 · 58561-BZ160
76974HLeft rear bottom cover clip90467-T0019
G92DHBNo. 1 HV battery air intake filterG92DH-K0010
