Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

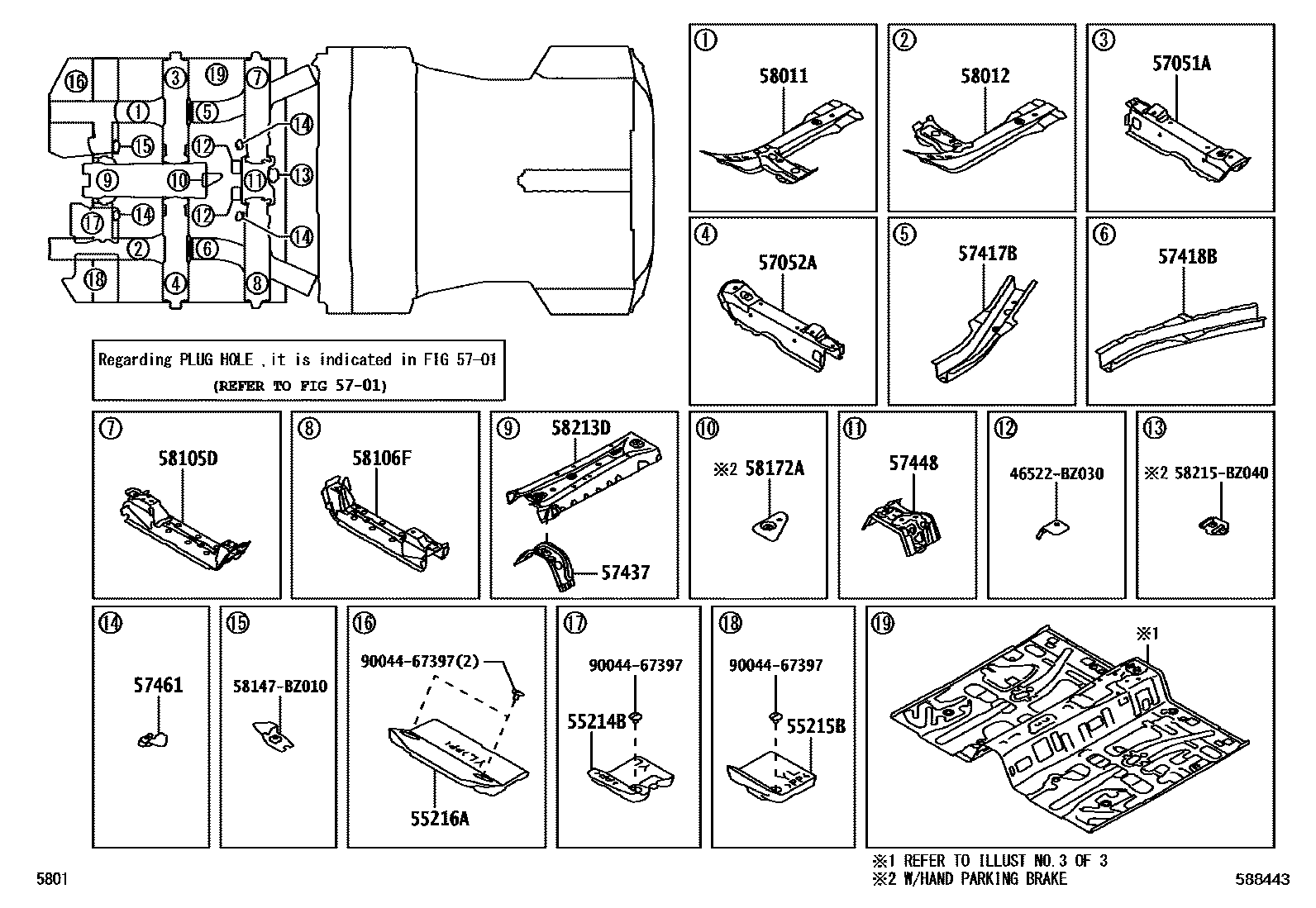

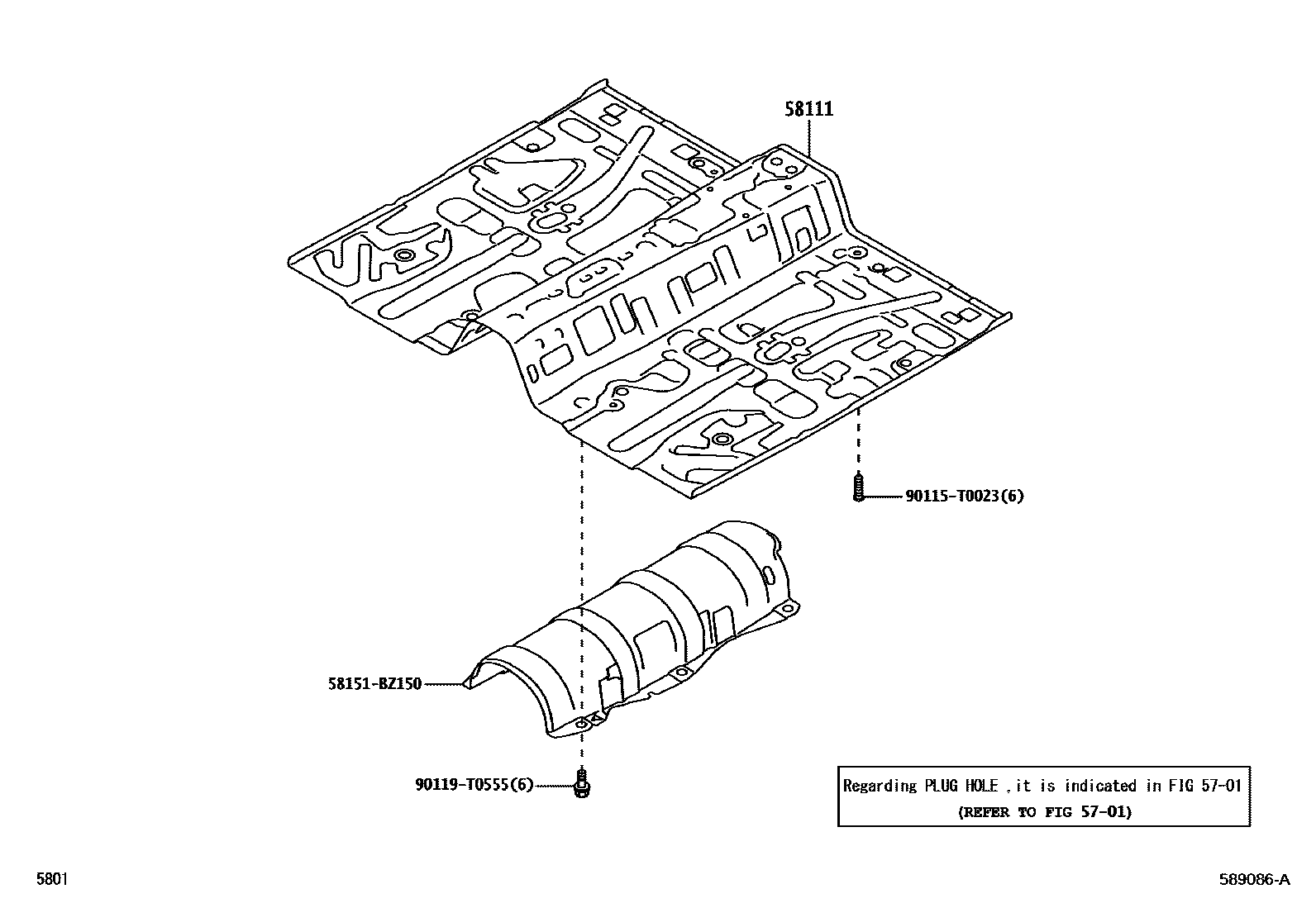

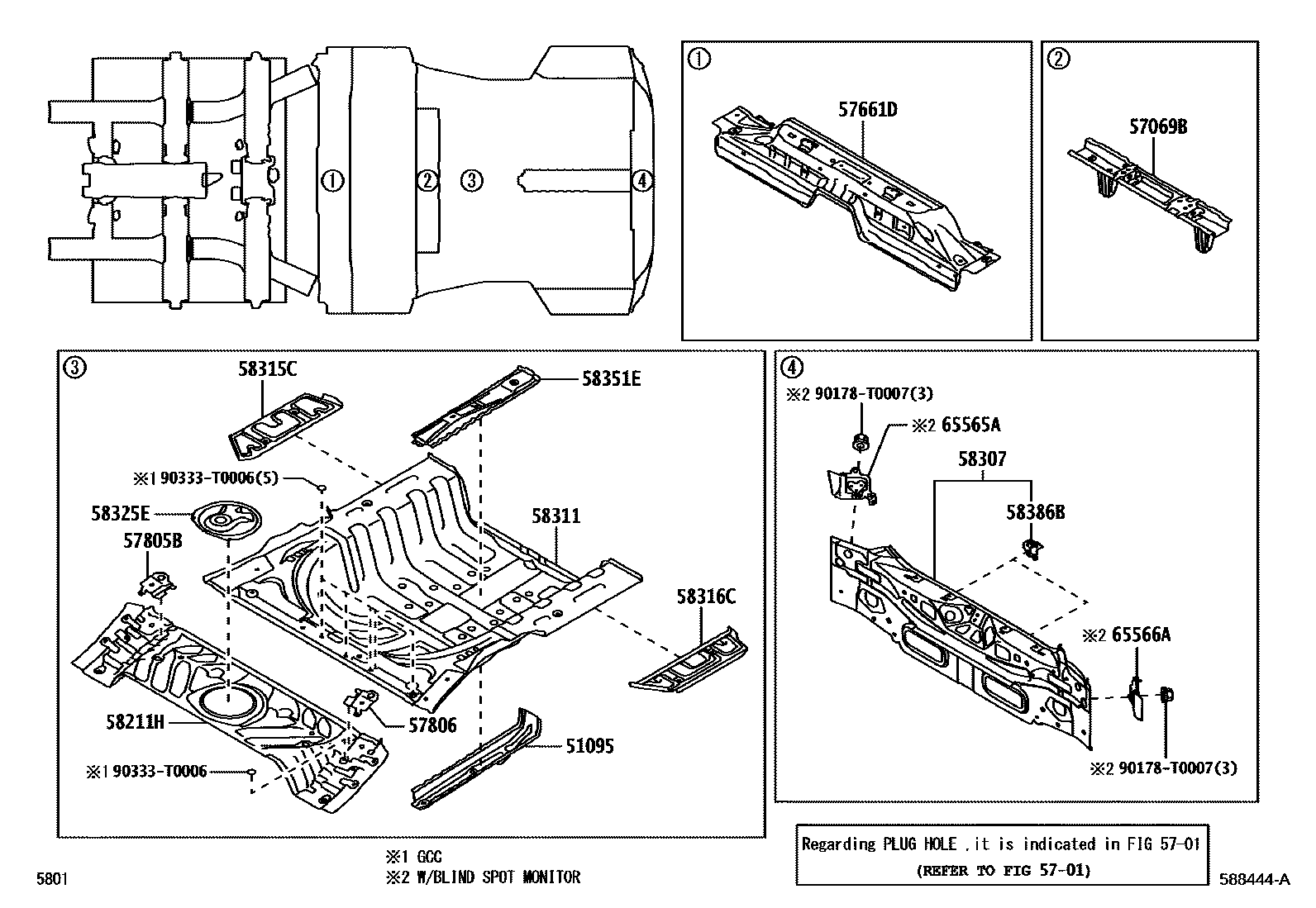

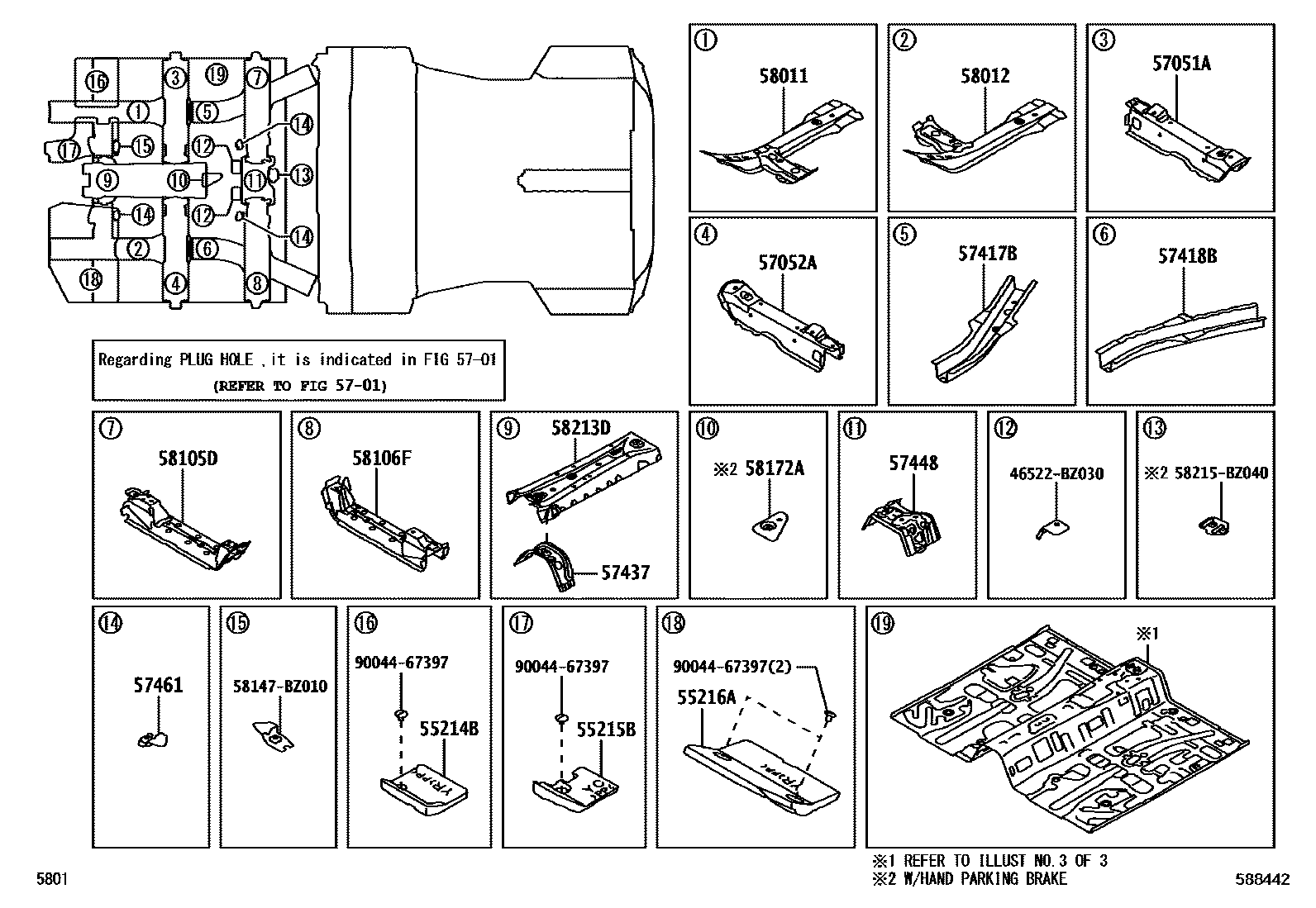

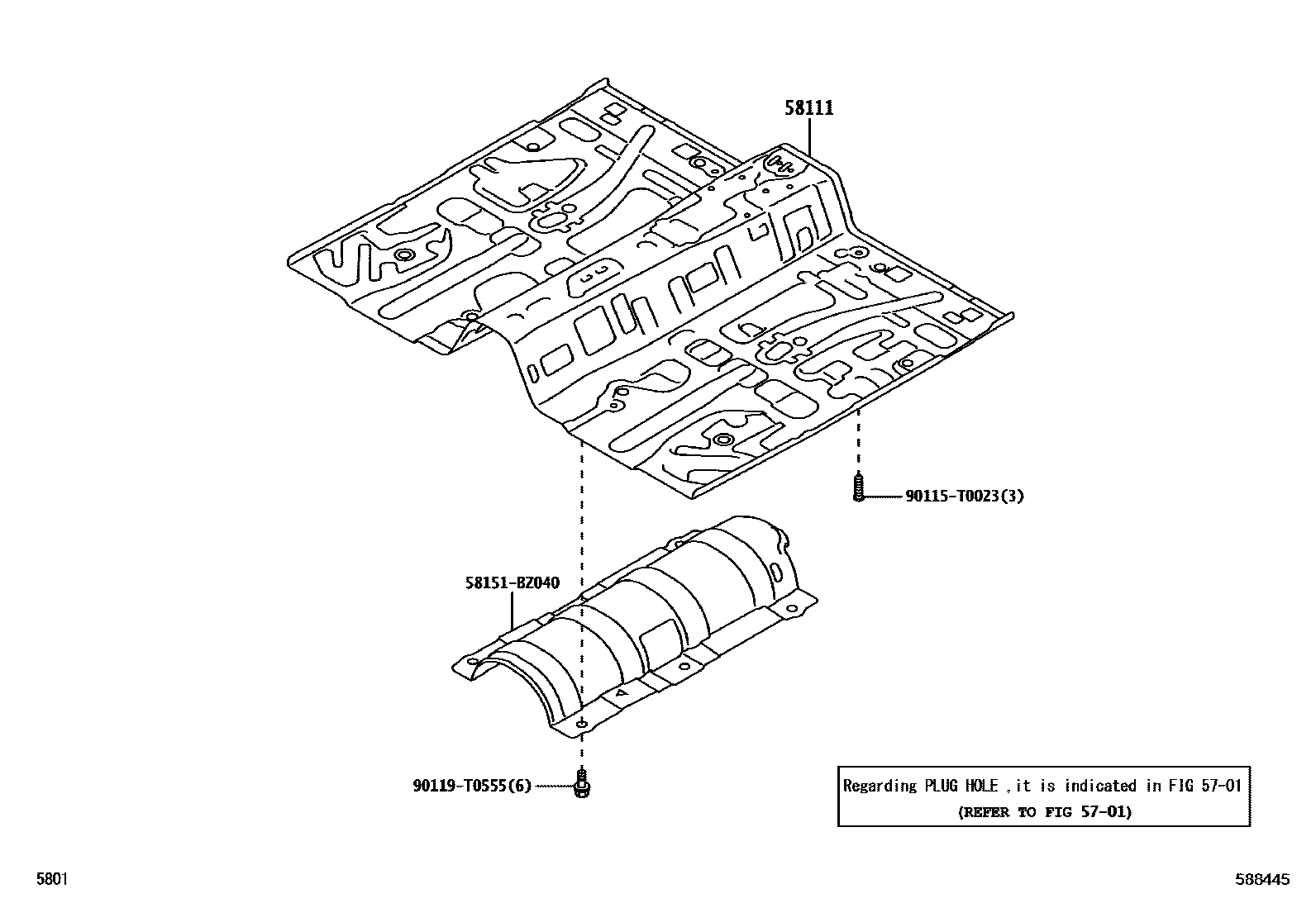

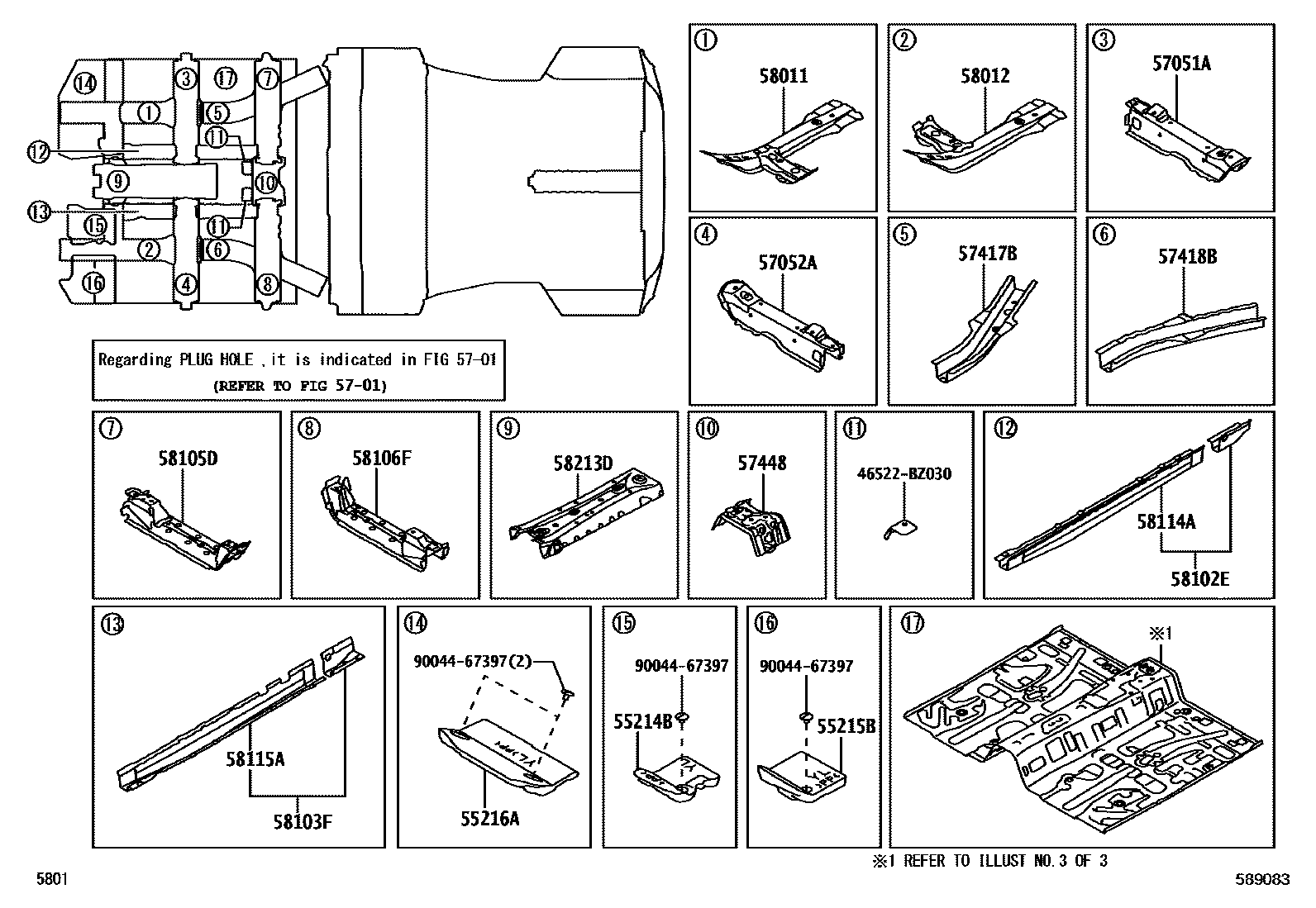

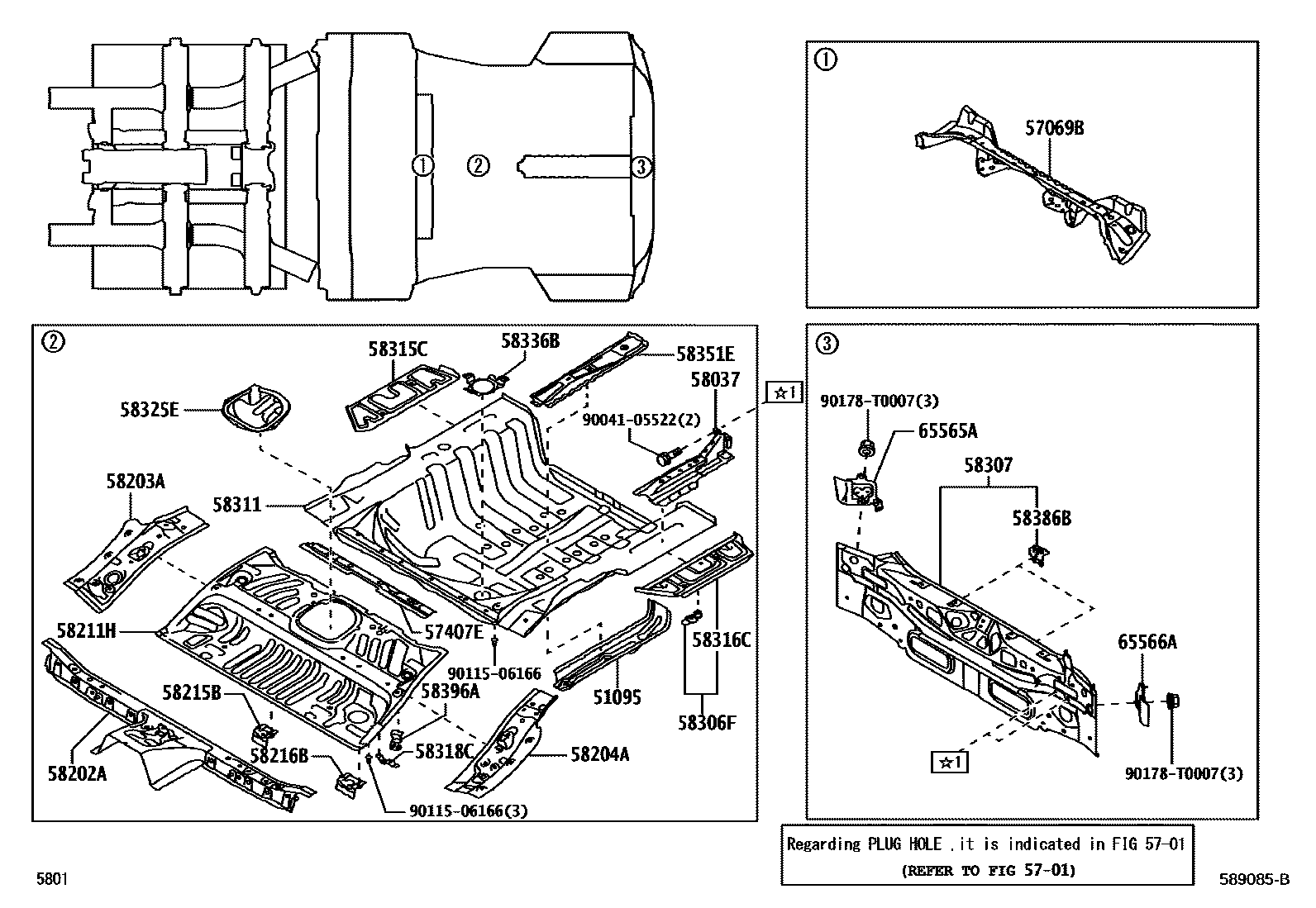

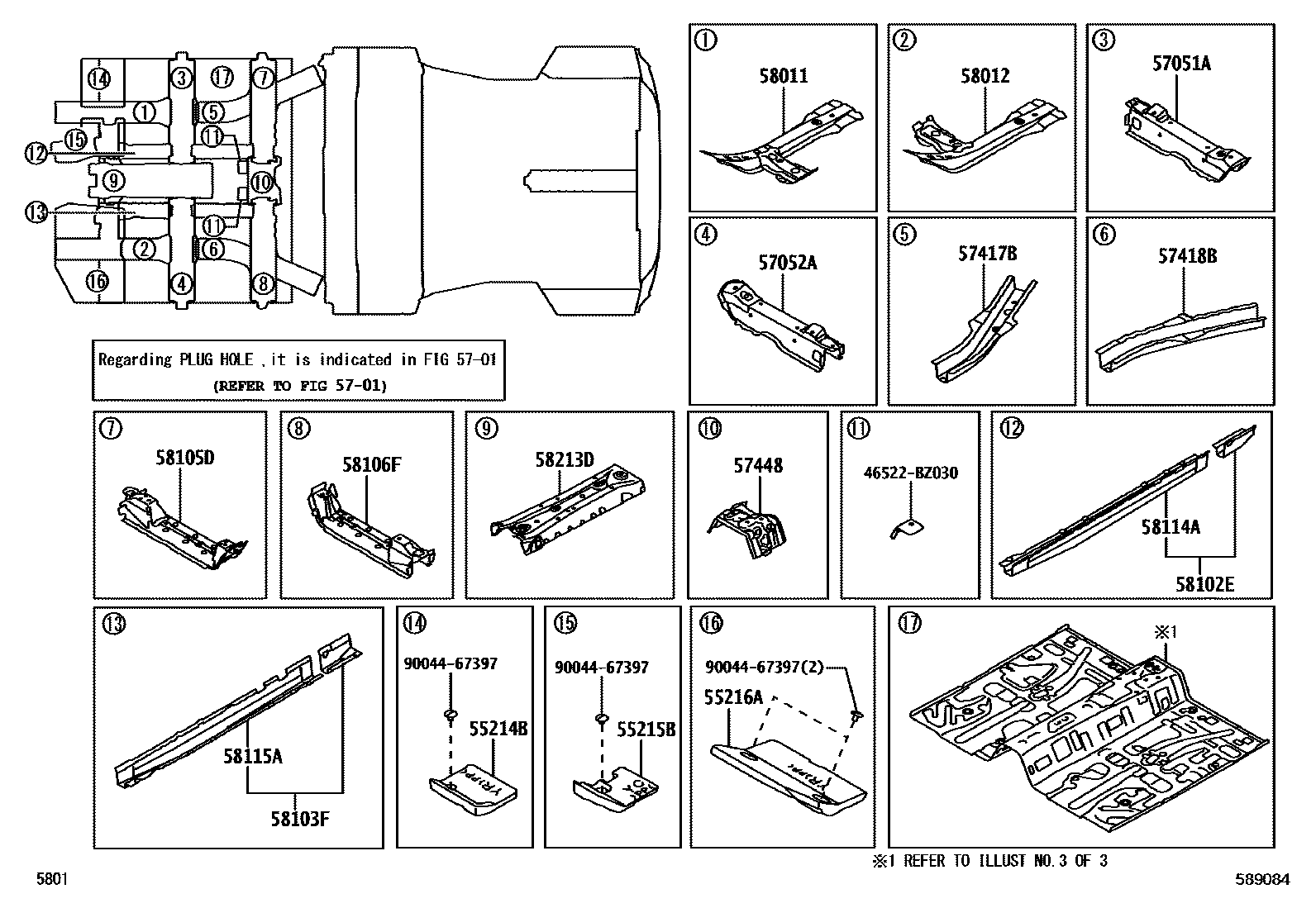

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 8 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51095 | Rear transport hook | 51095-BZ110 |
| 55214B | No. 2 insulation pad for front wall panel | 55214-BZ180 · 55214-BZ190 |
| 55215B | No. 3 insulation pad for front wall panel | 55215-BZ160 · 55215-BZ170 · 55215-BZ180 |
| 55216A | No. 4 heat insulation pad for front wall | 55216-BZ110 · 55216-BZ120 |
| 57051A | Front floor right cross member sub-assembly | 57051-BZ280 |
| 57052A | Front floor left cross member sub-assembly | 57052-BZ200 |
| 57069B | Rear floor middle cross member sub-assembly | 57069-BZ170 · 57069-BZ210 |
| 57407E | Center floor beam sub-assembly | 57461-BZ010 |
| 57417B | Front underfloor reinforcement | 57417-BZ110 · 57417-BZ120 · 57417-BZ170 |
| 57418B | Front floor lower left reinforcement | 57418-BZ020 · 57418-BZ070 · 57418-BZ080 |
| 57437 | Center floor center reinforcement | 58214-BZ090 |
| 57448 | Central floor beam fixings | 57055-BZ030 · 57055-BZ040 |
| 57461 | floor bracket | 58137-BZ020 |
| 57661D | rear floor front cross member | 57068-BZ150 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57815-BZ140 |
| 57806 | Left seat belt anchor reinforcement sub-assembly | 57816-BZ050 |
| 58011 | Front floor right side panel sub-assembly | 58025-BZ070 |
| 58012 | Front floor left side panel sub-assembly | 58026-BZ070 |
| 58037 | Rear floor floor reinforcement sub-assembly | 58037-BZ030 |
| 58102E | Front floor right reinforcement sub-assembly | 58102-BZ200 |
| 58103F | Front floor left reinforcement sub-assembly | 58103-BZ090 |
| 58105D | Rear right seat rail fastener sub-assembly | 58105-BZ140 · 58105-BZ150 |
| 58106F | Front left seat outer mounting bracket sub-assembly | 58106-BZ040 · 58106-BZ050 |
| 58111 | front floor pan | 58111-BZ901 · 58111-BZ902 |
| 58114A | front floor reinforcement | 58114-BZ100 |
| 58115A | front floor reinforcement | 58115-BZ130 |
| 58172A | Parking brake mounting plate | 46521-BZ050 |
| 58202A | Center floor front floor sub-assembly | 58202-BZ010 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-BZ090 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-BZ070 |
| 58211H | central floor base | 58211-BZ090 · 58211-BZ901 |
| 58213D | Central floor reinforcement | 58213-BZ200 · 58213-BZ220 |
| 58215B | Rear right seat mounting bracket | 58215-BZ050 |
| 58216B | Rear left seat mounting bracket | 58216-BZ100 |
| 58306F | Rear floor left side panel sub-assembly | 58306-BZ120 |
| 58307 | Body lower back panel sub-assembly | 58307-BZ270 · 58307-BZ280 · 58307-BZ320 |
| 58311 | rear floor pan | 58311-BZ470 · 58311-BZ900 |
| 58315C | Rear floor right side panel extension | 58315-BZ110 |
| 58316C | Rear floor left side panel extension | 58316-BZ070 · 58316-BZ110 |
| 58318C | Rear floor cross member bracket | 58318-BZ040 |
| 58325E | Rear floor access hole cover | 58325-BZ100 · 58325-BZ120 |
| 58336B | Rear floor pan reinforcement | 58336-BZ100 |
| 58351E | Spare tire clip bracket | 58351-BZ120 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-0D170 |
| 58396A | Wire harness clamp bracket | 58396-BZ060 |
| 65565A | Right side panel rear end lining | 65565-BZ120 |
| 65566A | Left side panel rear end lining | 65566-BZ110 |
