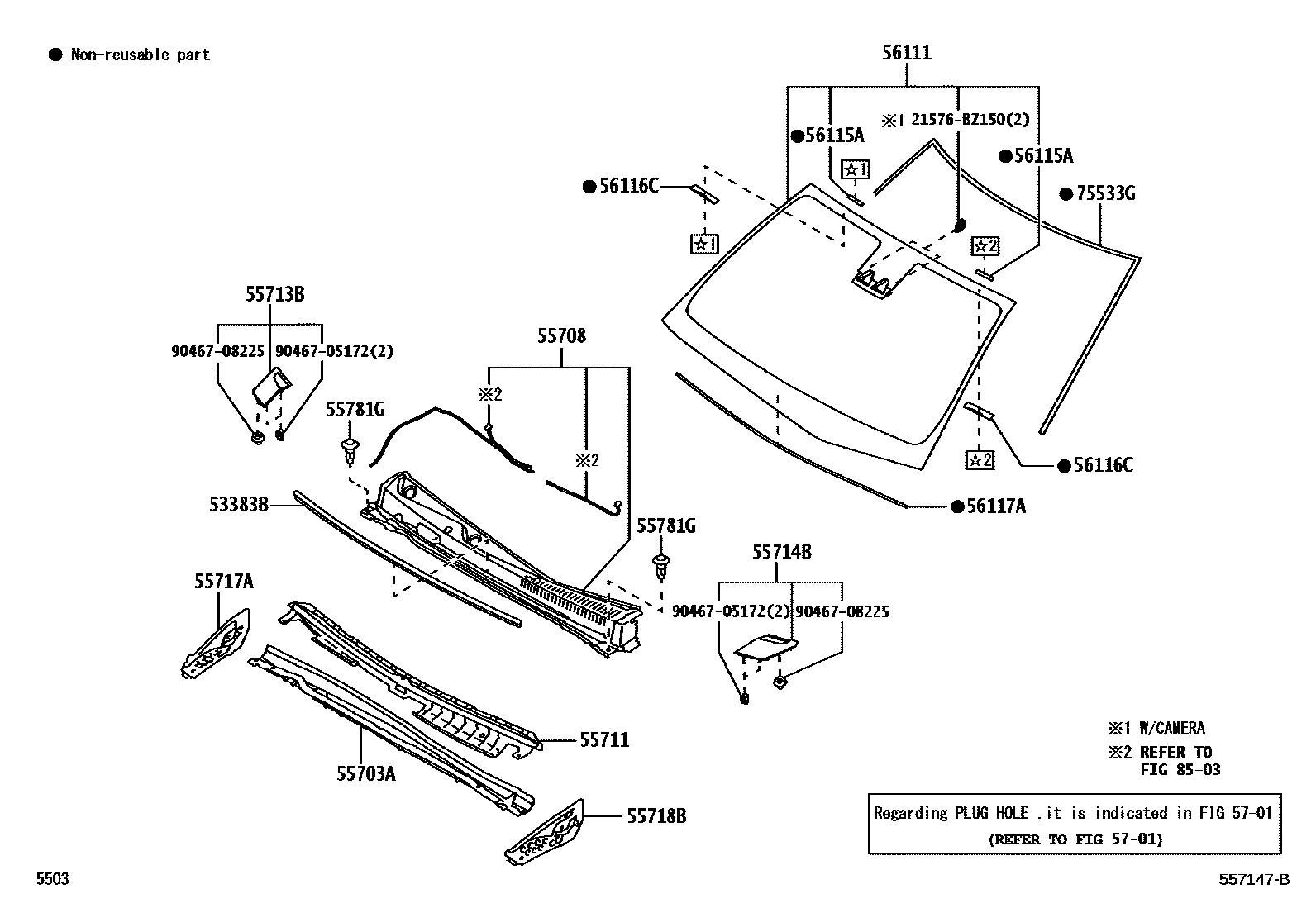

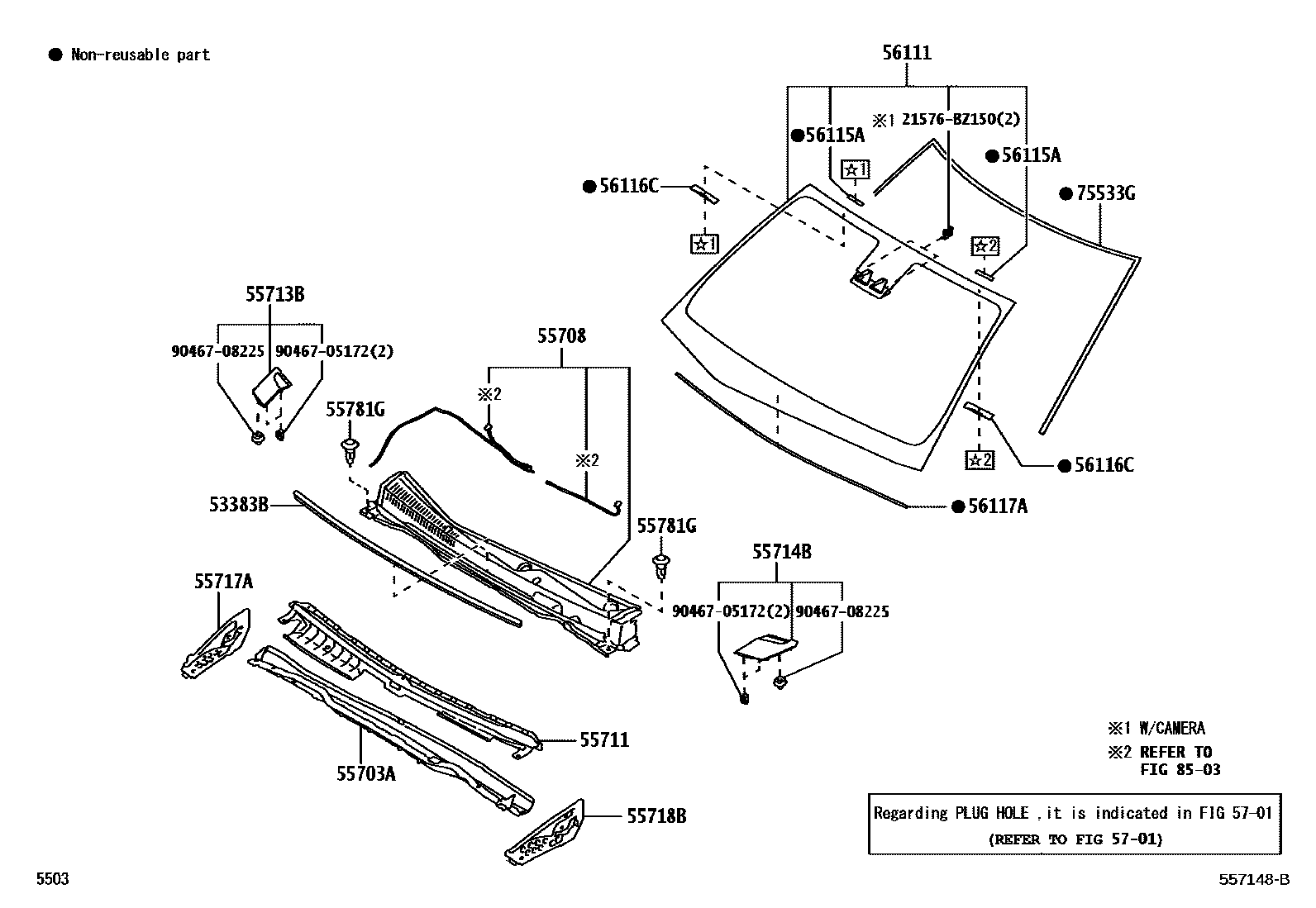

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-BZ180 |
| 55703A | Front wall upper inner panel sub-assembly | 55703-BZ780 · 55703-BZ790 · 55703-BZA20 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-BZ210 · 55708-BZ220 |
| 55711 | Front outer panel | 55701-BZ270 · 55701-BZ280 |
| 55713B | Right front wall side panel hole cover | 53445-BZ150 |
| 55714B | Left front wall side panel hole cover | 53446-BZ150 |
| 55717A | Upper right inner panel of cowl | 55717-BZ100 |
| 55718B | Upper left inner panel of front wall | 55718-BZ100 |
| 55781G | Ventilation grille clips on front apron | 52161-0K040 |
| 56111 | windshield | 56101-BZ900 · 56101-BZ901 · 56101-BZ902 · 56101-BZ903 · 56101-BZ904 · 56101-BZ905 · 56101-BZ906 · 56101-BZ907 · 56101-BZ908 · 56101-BZ909 · 56101-BZ910 · 56101-BZ911 · 56101-BZ912 · 56101-BZ913 · 56101-BZ914 · 56101-BZ915 · 56101-BZ916 · 56101-BZ917 · 56101-BZ918 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-BZ280 |
| 75533G | Windshield outer protective strip | 75533-BZ210 |
