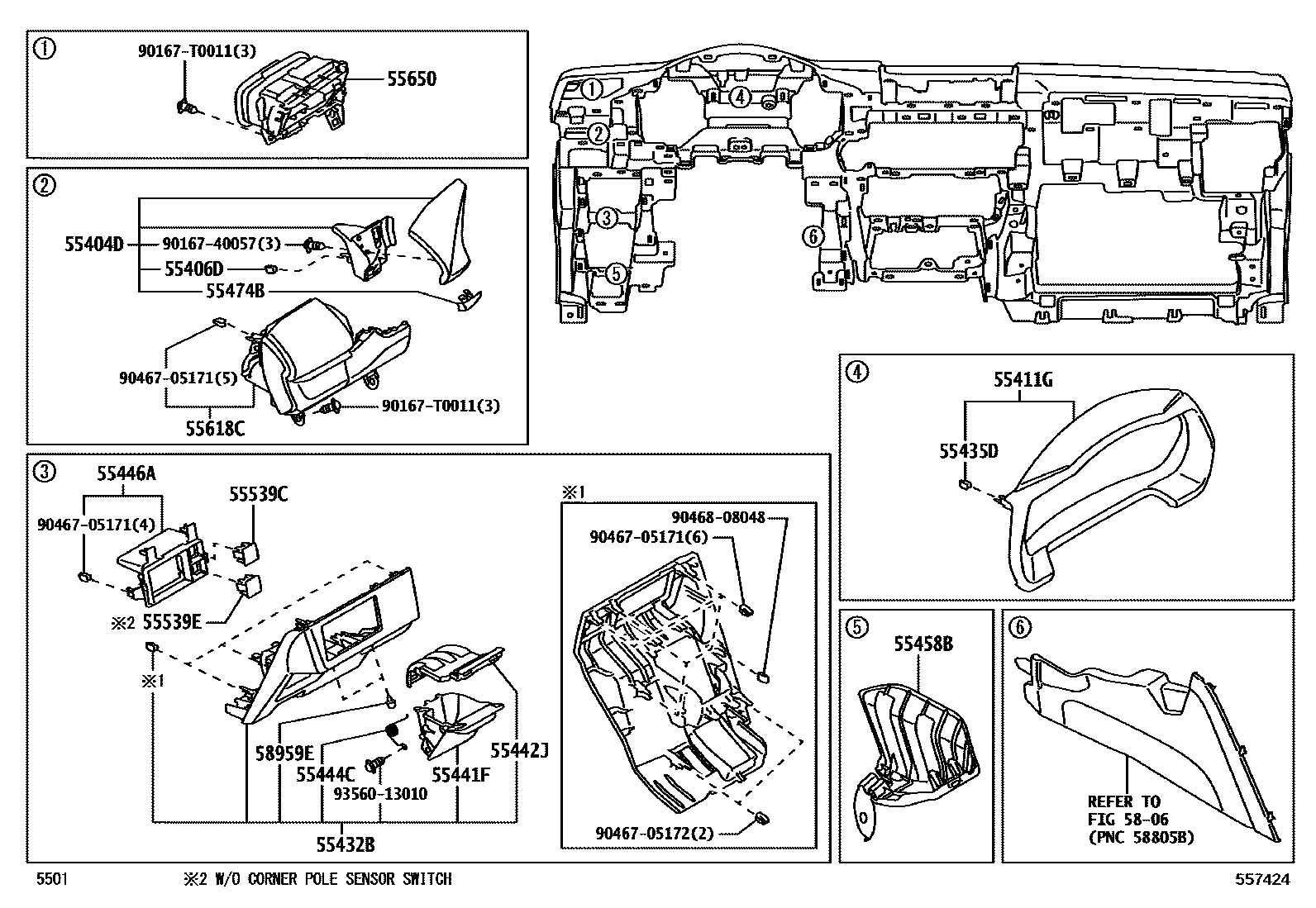

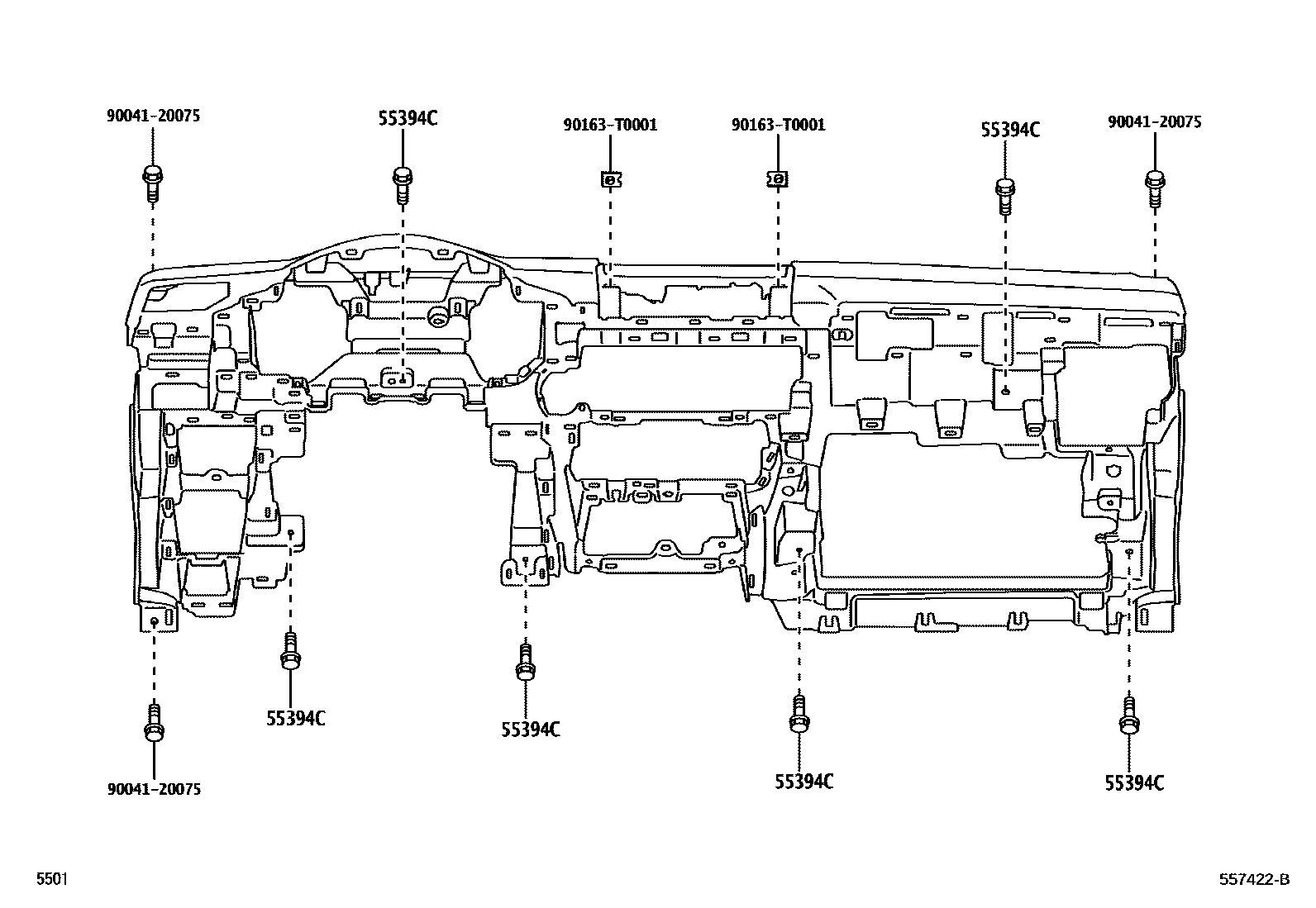

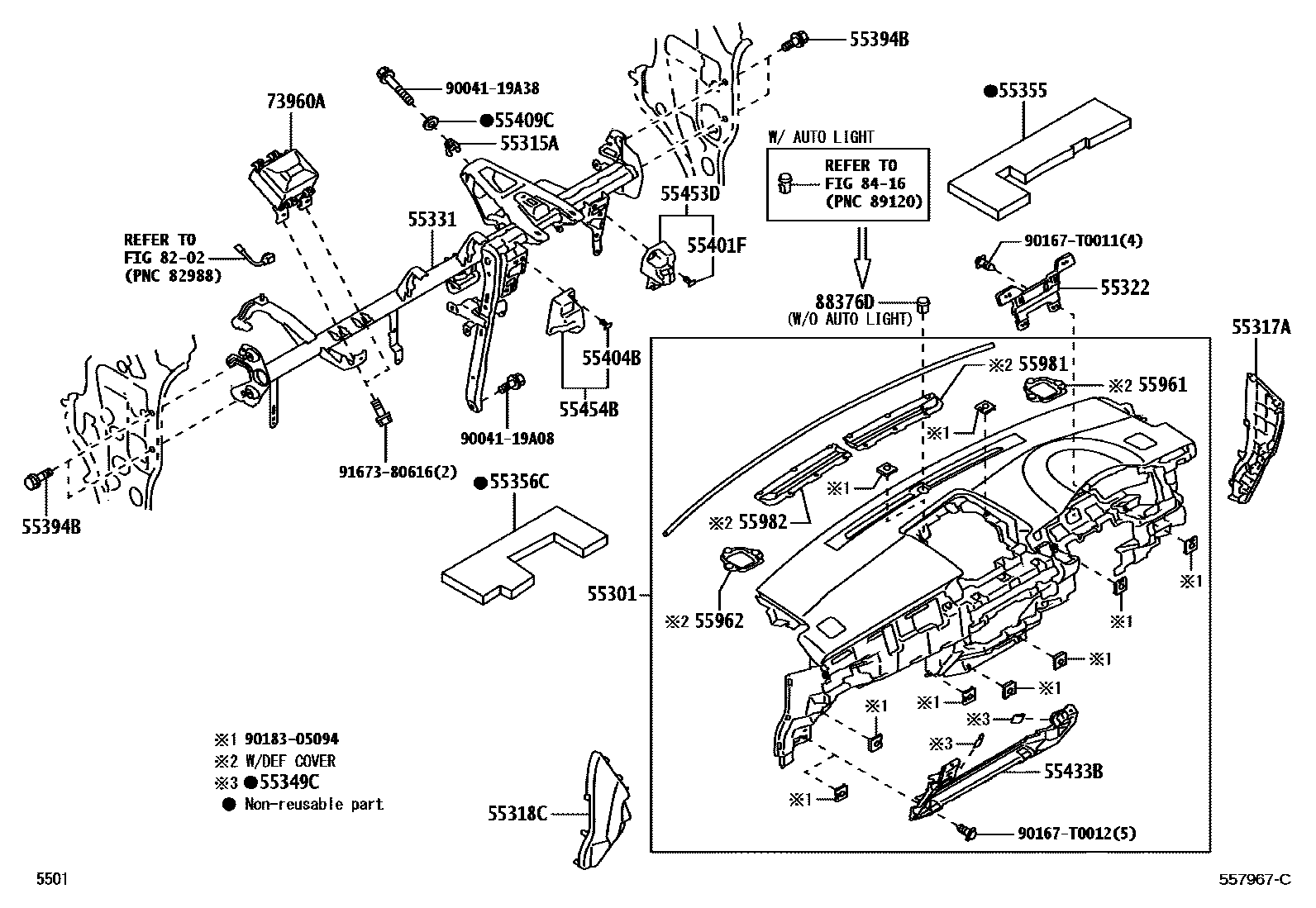

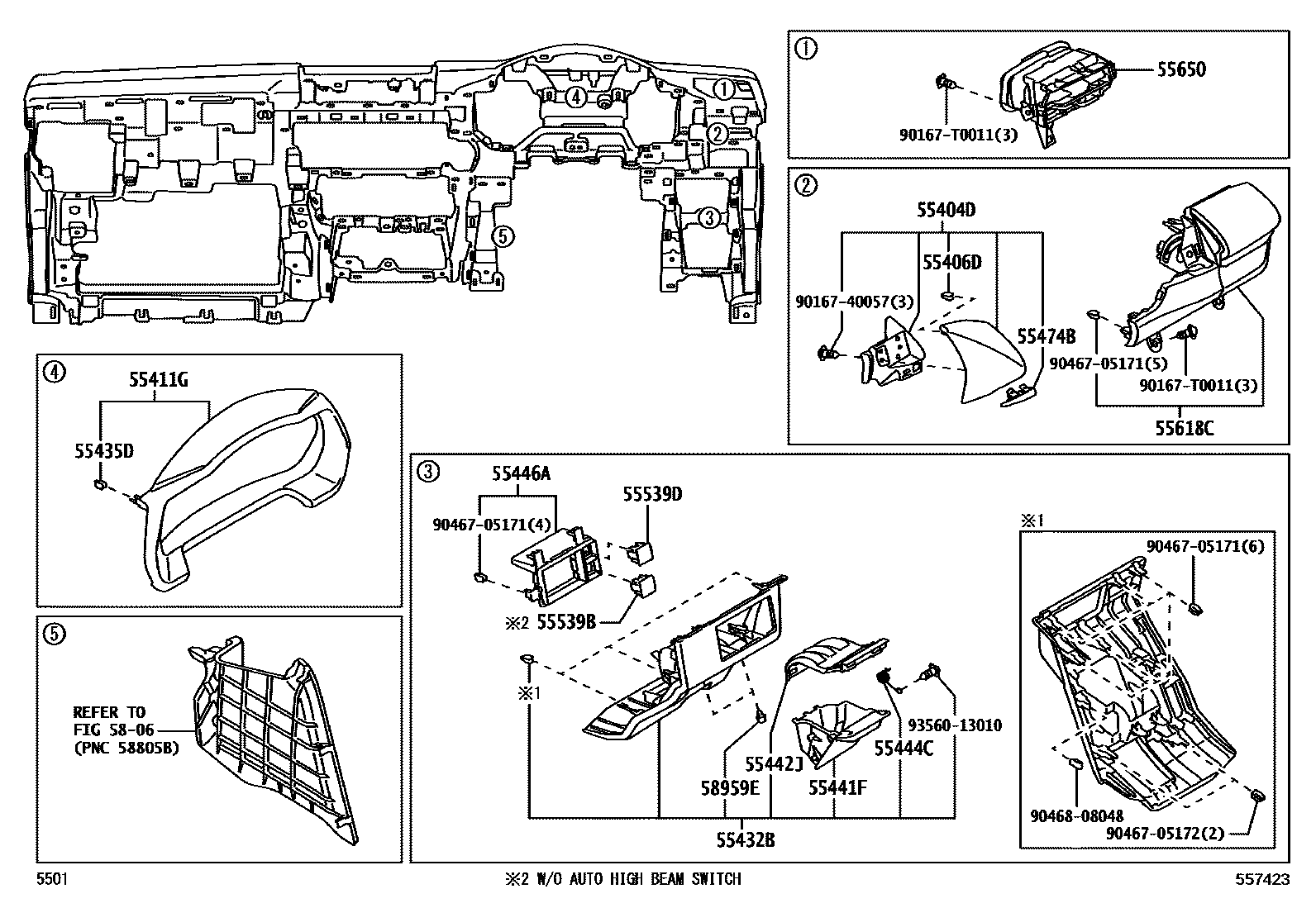

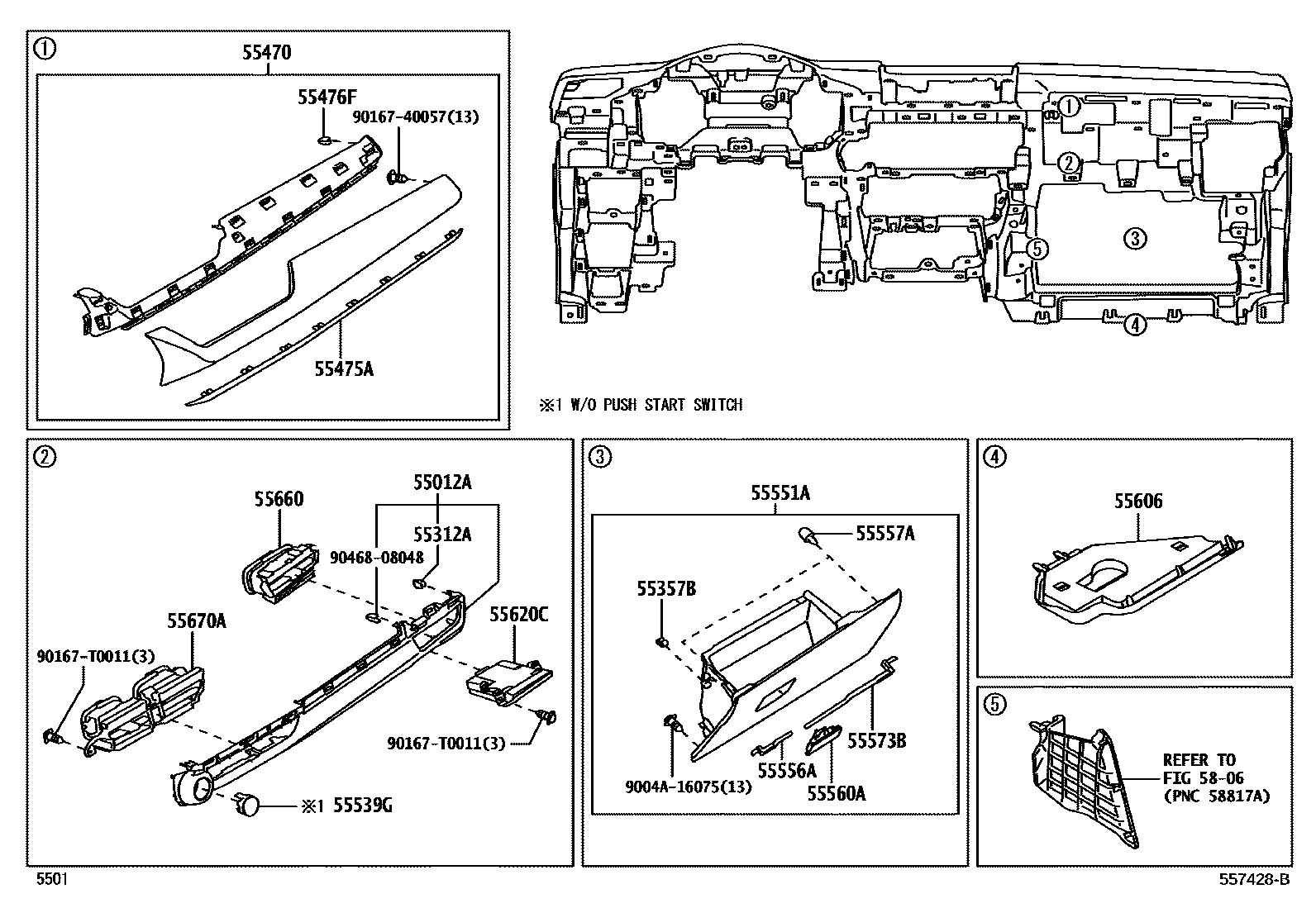

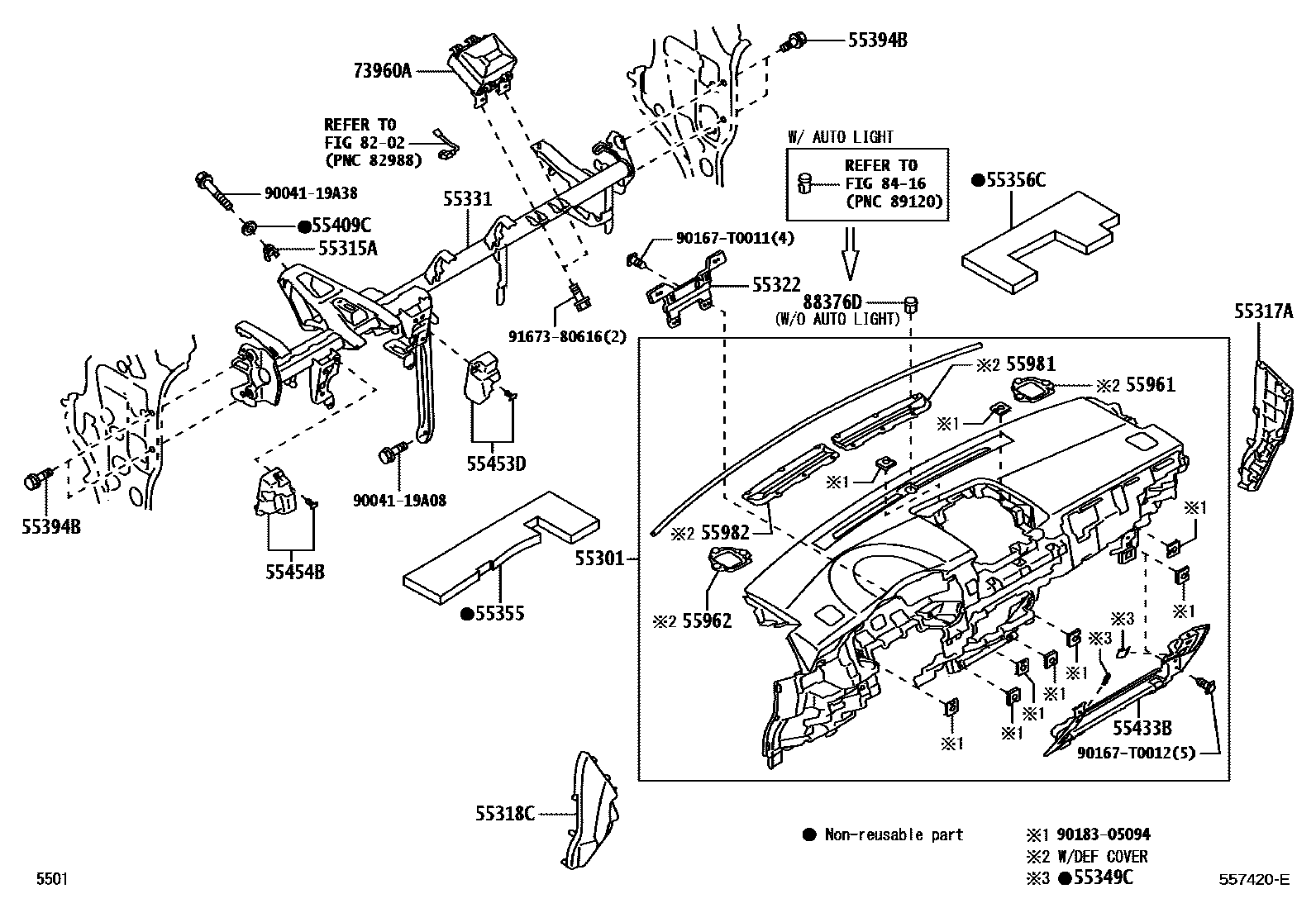

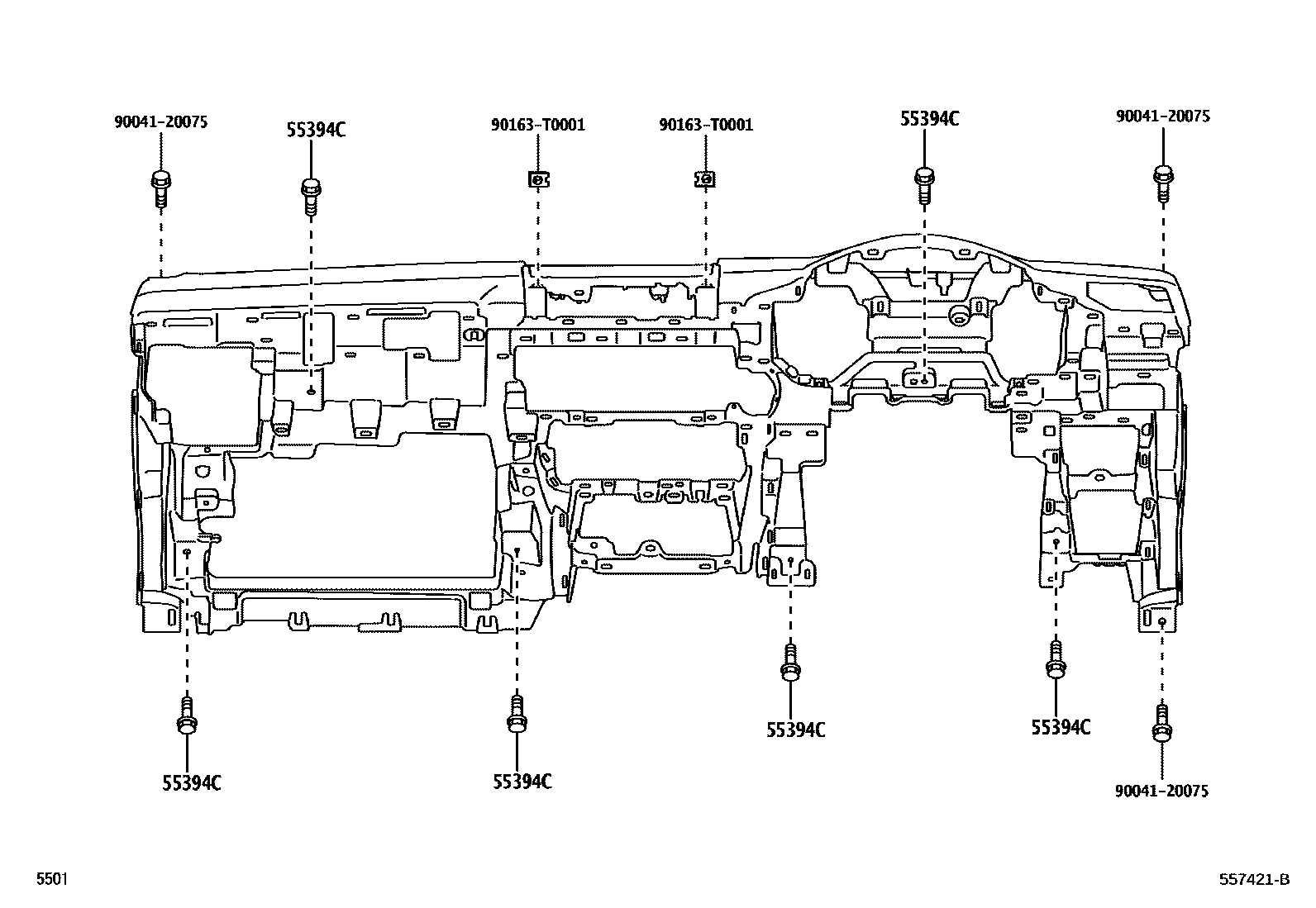

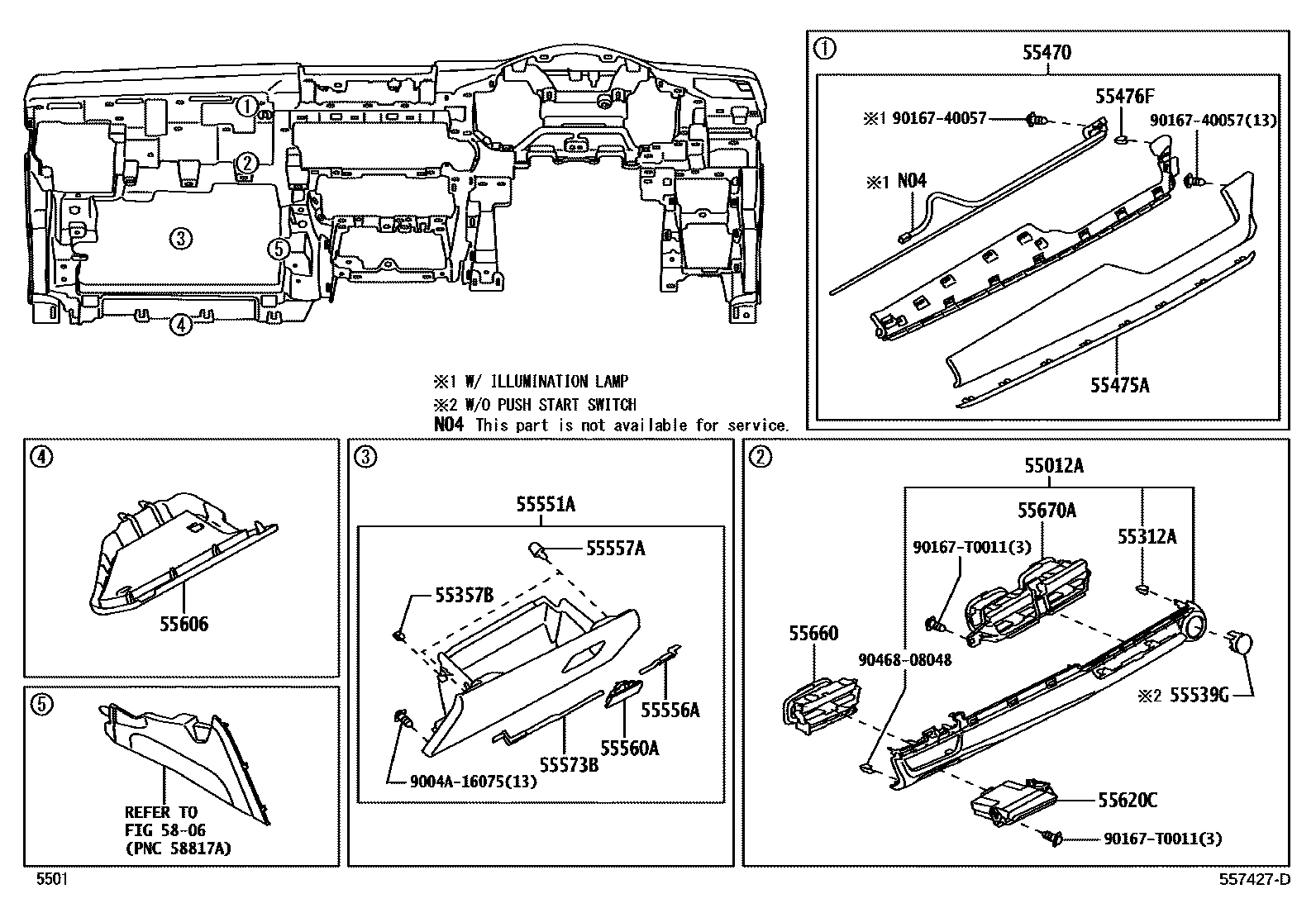

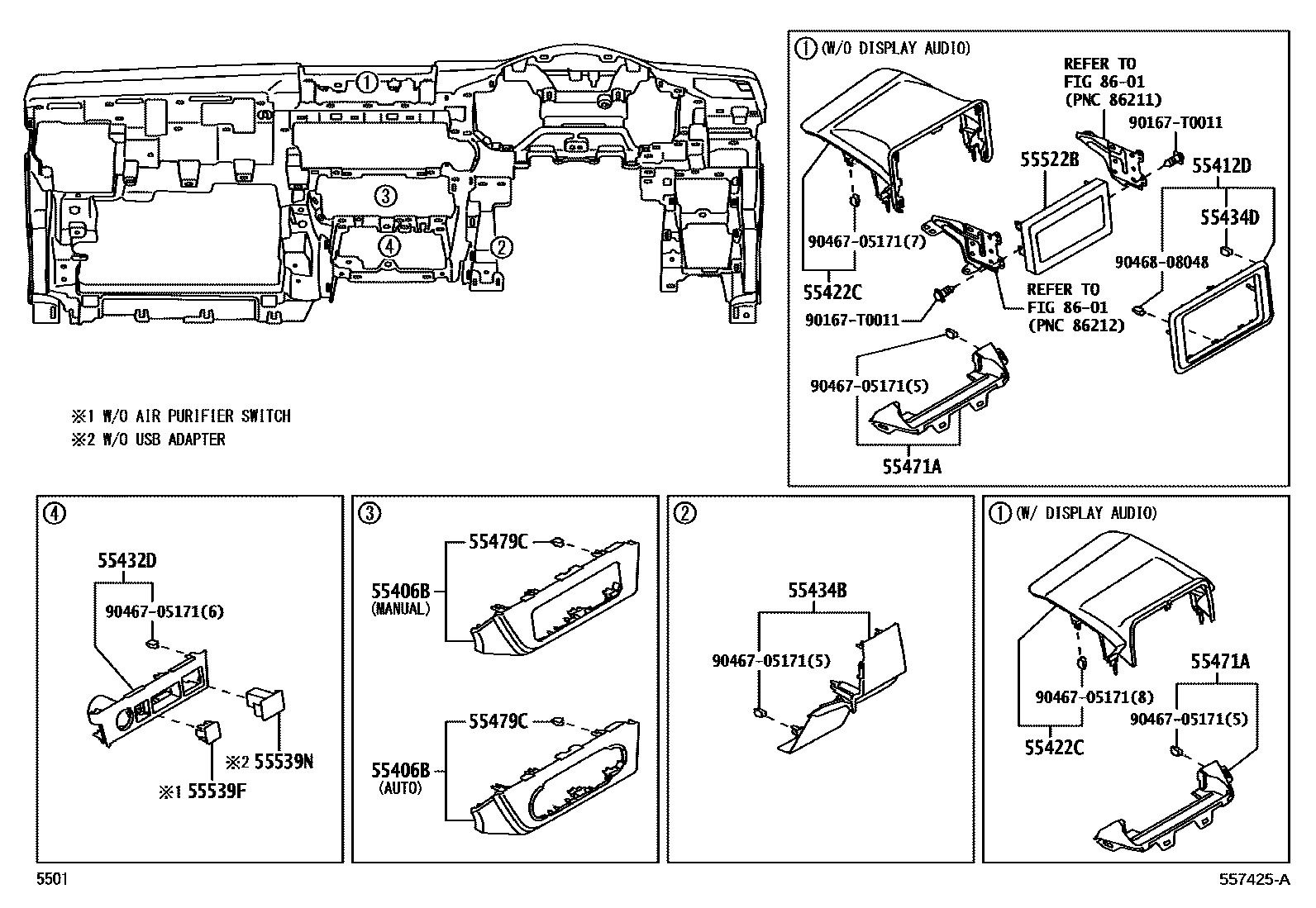

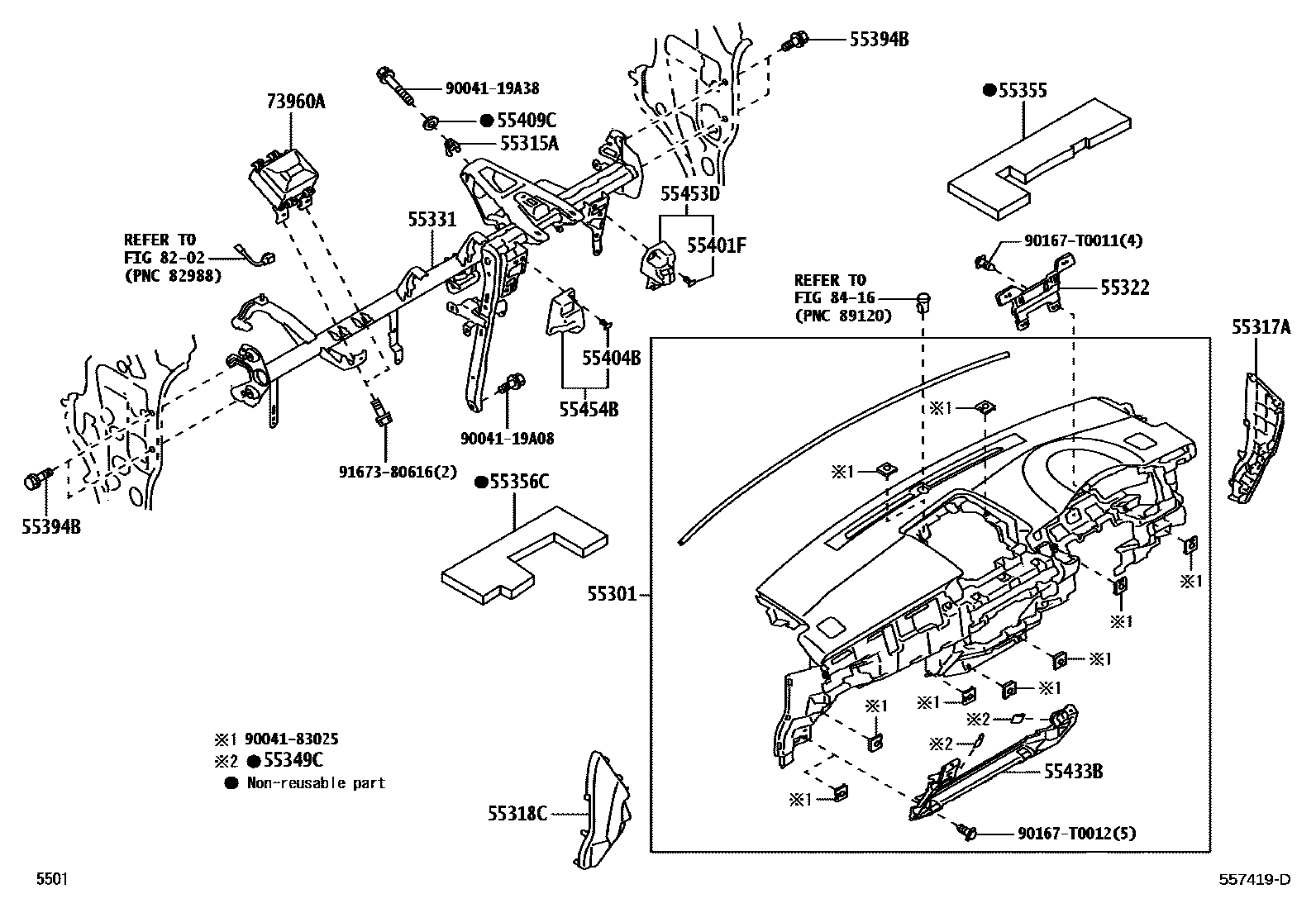

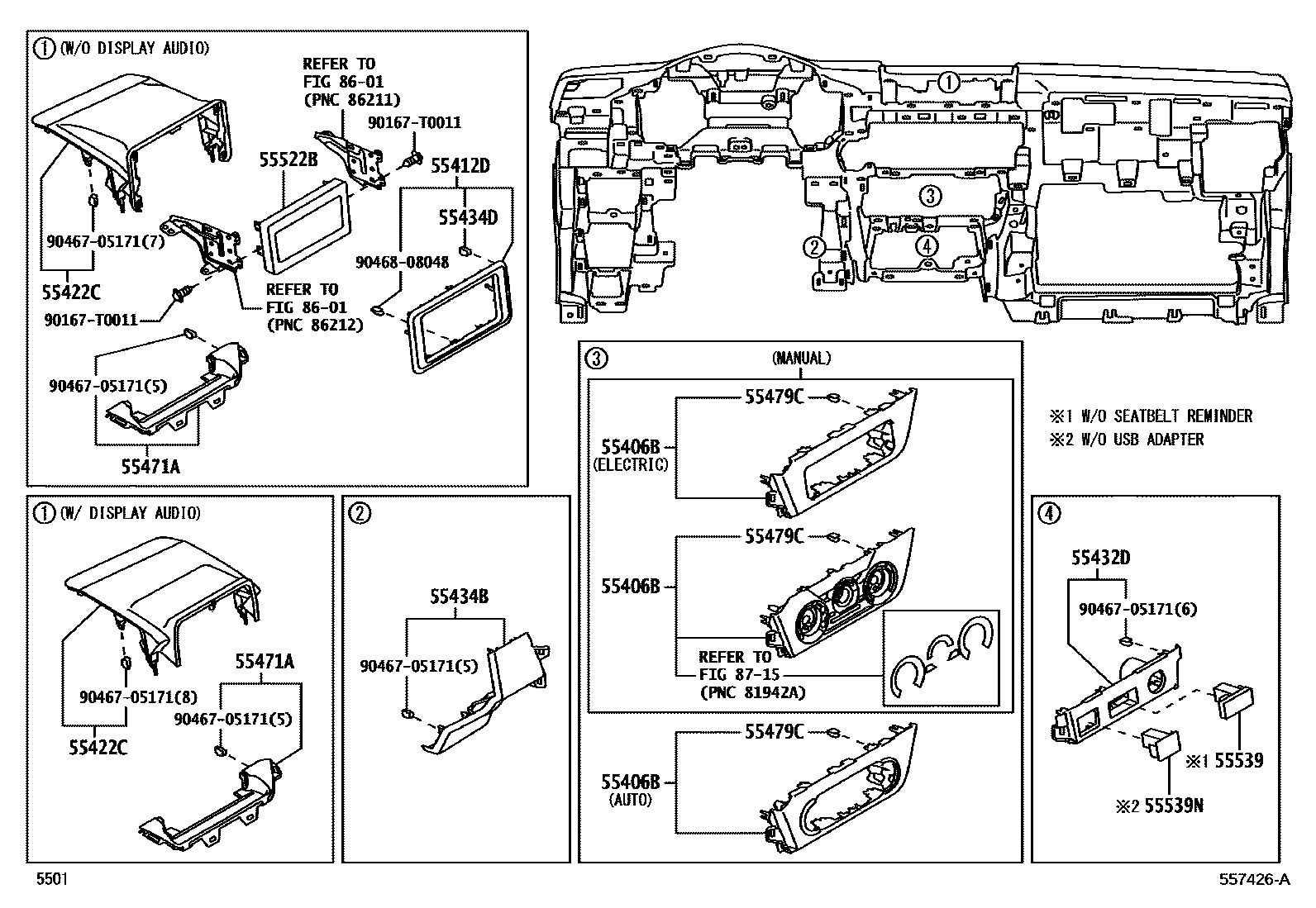

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 11 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55312A | Dashboard clip | 90467-05171 |
| 55315A | Instrument panel spacer No. 1 | 55315-B2020 |
| 55322 | Instrument panel bracket No. 1 | 55322-BZ230 |
| 55331 | Dashboard reinforcement | 55305-BZD00 · 55305-BZD10 · 55305-BZD20 · 55305-BZD30 · 55305-BZE60 |
| 55349C | Dashboard cushion | 55349-0D360 · 55349-0D370 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-BZ210 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-BZ210 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-B1070 |
| 55394B | Dashboard bolts | 90041-19A09 |
| 55394C | Dashboard bolts | 90041-20304 |
| 55401F | Clip (for safety mat) | 55345-BZ010 |
| 55404B | Safety pad fixing clip | 55345-BZ010 |
| 55406D | Clip (for instrument cluster decorative panel) | 90467-05171 |
| 55409C | hole plug | 90048-71319 |
| 55434D | Center dashboard lower decorative panel clip | 90467-05171 |
| 55435D | Instrument cover group clip | 90467-05172 |
| 55442J | Dashboard coin box frame | 55442-BZ040 · 55442-BZ050 |
| 55444C | Dashboard storage box spring | 55444-BZ040 · 55444-BZ050 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-BZ200 · 55453-BZ210 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-BZ200 · 55454-BZ210 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-BZ250 |
| 55476F | Instrument cluster decorative panel decorative clip | 90467-05171 |
| 55479C | Clip (for instrument panel lower cover) | 90467-05171 |
| 55522B | Radio tuner opening cover | 55522-0K010 |
| 55556A | Glove box cover right stopper arm | 55556-BZ070 · 55556-BZ080 |
| 55557A | Glove box cover limit pad | 55557-B2040 |
| 55573B | Glove box cover left stopper arm | 55573-BZ080 · 55573-BZ090 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-BZ040 · 73960-BZ050 |
| 88376D | blind cover | 88376-B2010 |
