Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

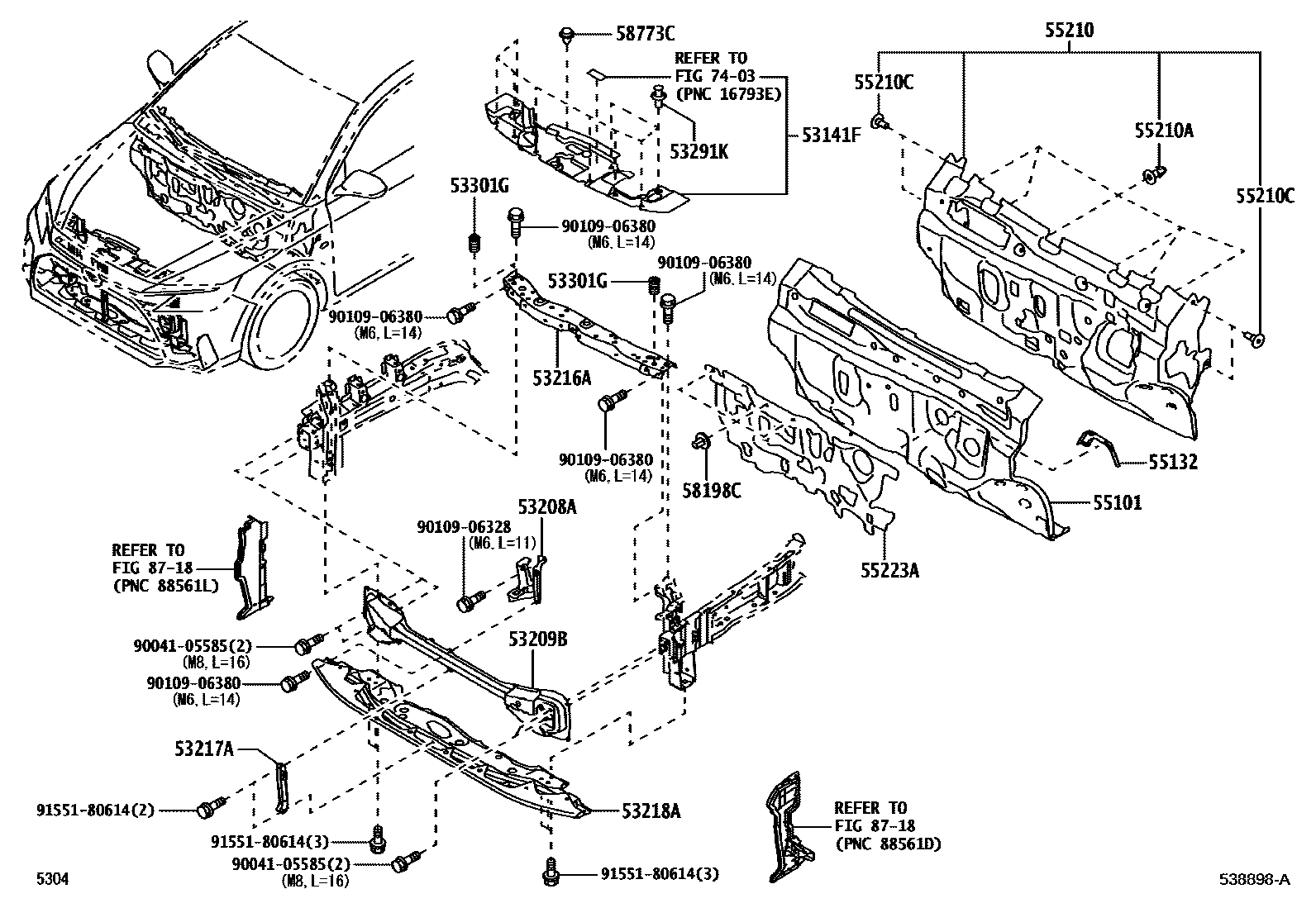

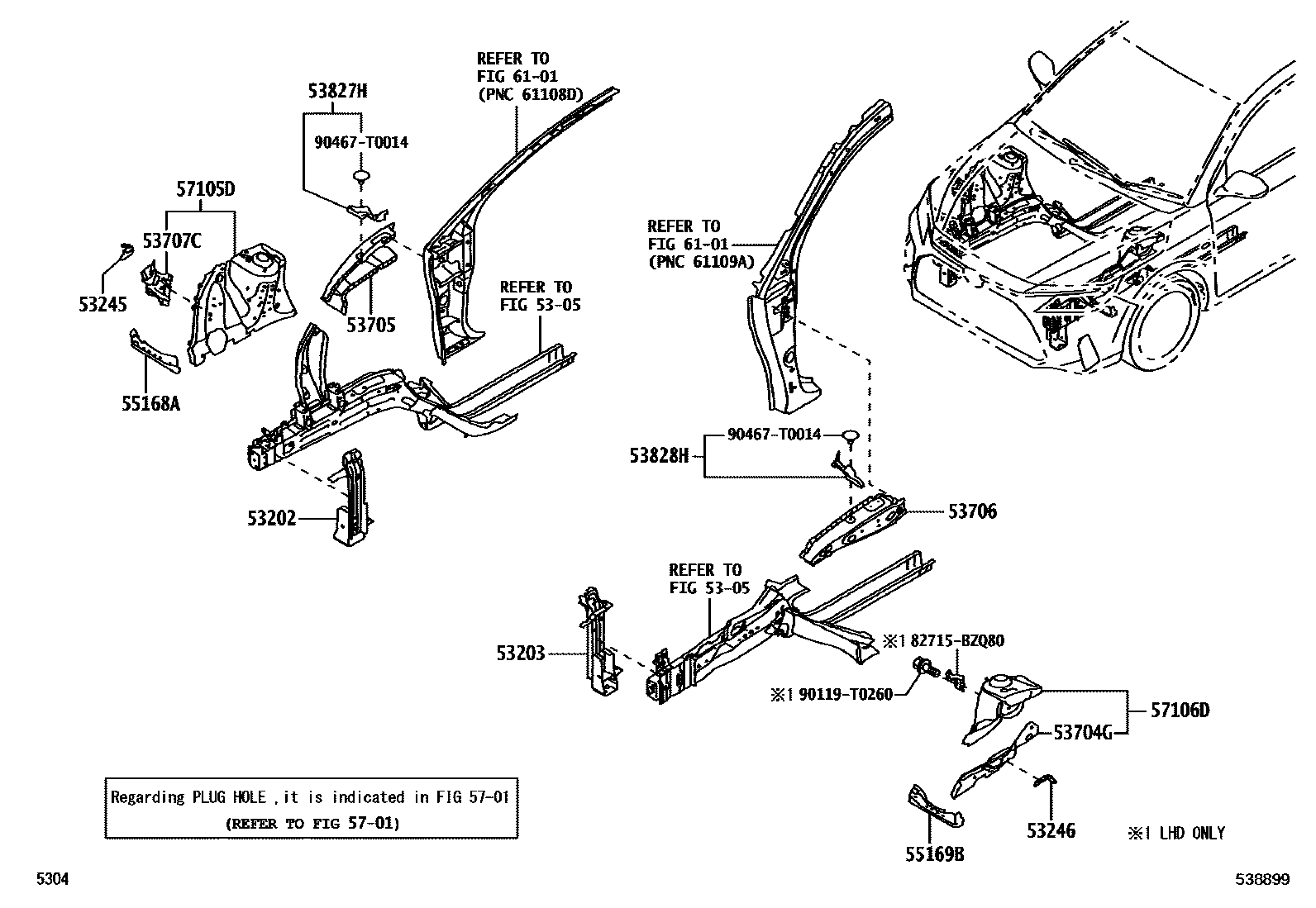

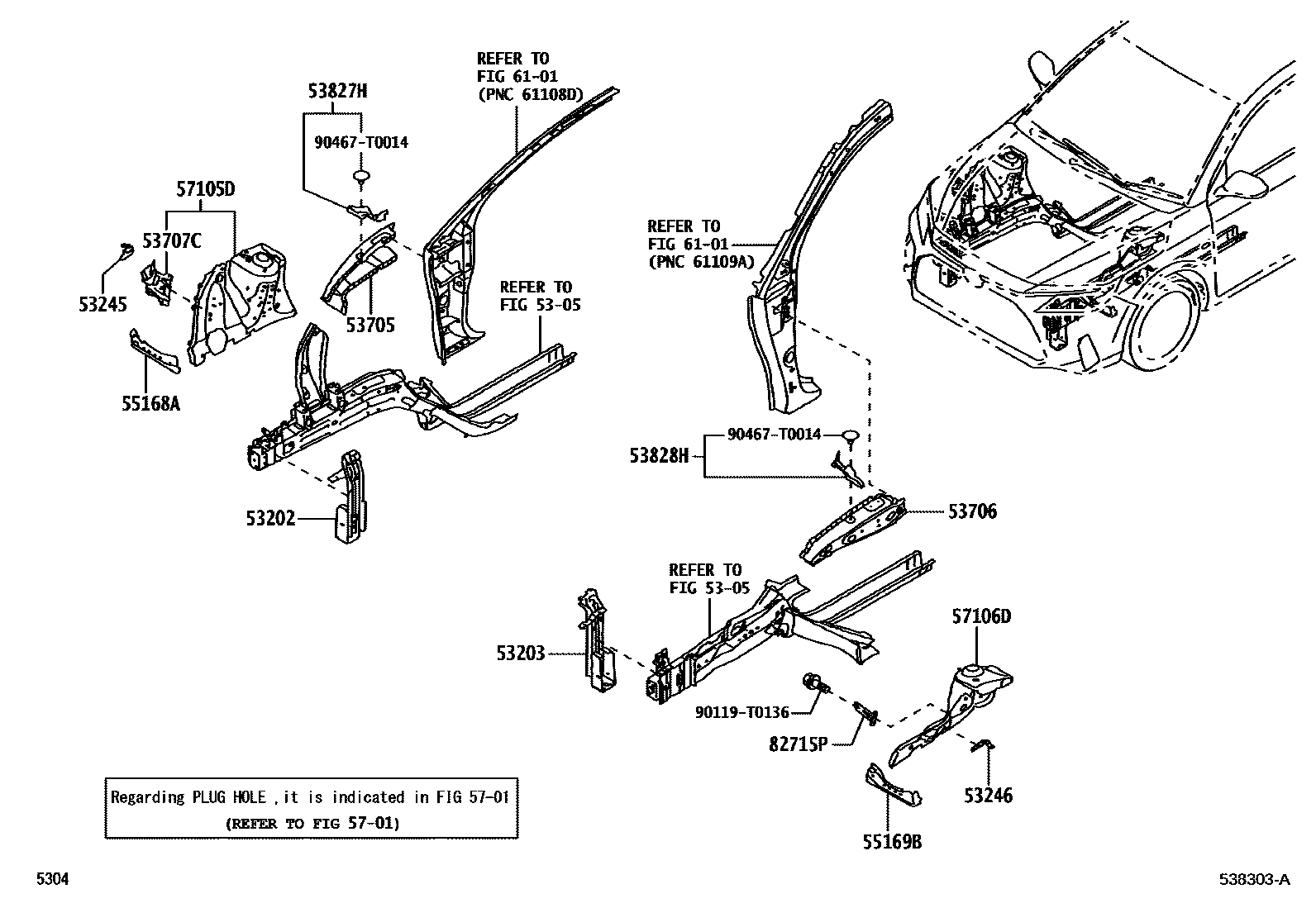

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53141F | radiator cap | 53141-BZ050 · 53141-BZ060 |
| 53202 | Radiator right side bracket sub-assembly | 53202-BZ180 · 53202-BZ250 |
| 53203 | Radiator left bracket sub-assembly | 53203-BZ280 · 53203-BZ360 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-BZ160 |
| 53209B | Engine cover lock bracket sub-assembly | 53209-BZ110 · 53209-BZ130 · 53209-BZ150 |
| 53216A | Radiator upper bracket | 53216-BZ340 |
| 53217A | engine cover lock bracket | 53217-BZ030 |
| 53218A | Radiator lower support | 53028-BZ250 · 53028-BZ310 |
| 53245 | Right headlight bracket | 53245-BZ020 |
| 53246 | Left headlight bracket | 53246-BZ010 |
| 53291K | Radiator cover clip | 90467-T0048 |
| 53301G | engine cover cushion | 90541-15037 |
| 53704G | No. 2 left front fender fender sub-assembly | 53704-BZ100 |
| 53705 | Right front fender fender rear reinforcement sub-assembly | 53803-BZ140 |
| 53706 | Left front fender fender rear reinforcement sub-assembly | 53804-BZ120 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-BZ050 |
| 53827H | Right front fender side panel protector | 53825-BZ030 |
| 53828H | Left front fender side panel protector | 53826-BZ020 |
| 55101 | Front apron sub-assembly | 55101-BZ900 · 55101-BZ901 · 55101-BZ902 · 55101-BZR20 · 55101-BZR30 · 55101-BZR40 · 55101-BZR50 · 55101-BZR70 · 55101-BZR80 · 55101-BZS00 |
| 55132 | No. 2 cowl panel reinforcement | 55132-BZ090 |
| 55168A | Right front fender mounting bracket | 55168-BZ220 |
| 55169B | Left front fender mounting bracket | 55169-BZ220 |
| 55210 | Front wall insulation pad assembly | 55210-BZ410 · 55210-BZ540 · 55210-BZ550 · 55210-BZ710 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-13079 |
| 55223A | Front wall outer heat insulation pad | 55223-BZ250 · 55223-BZ260 · 55223-BZ340 · 55223-BZ350 |
| 57105D | Right front longitudinal beam plate sub-assembly | 57105-BZ220 |
| 57106D | Left front longitudinal beam plate sub-assembly | 57106-BZ190 · 57106-BZ220 |
| 58198C | Front panel heat insulation pad clip | 90467-06197 · 90467-T0032 |
| 58773C | Fixings (radiator cap) | 90467-07221 |
| 82715P | Wire harness clamp bracket | 82715-BZE90 |
