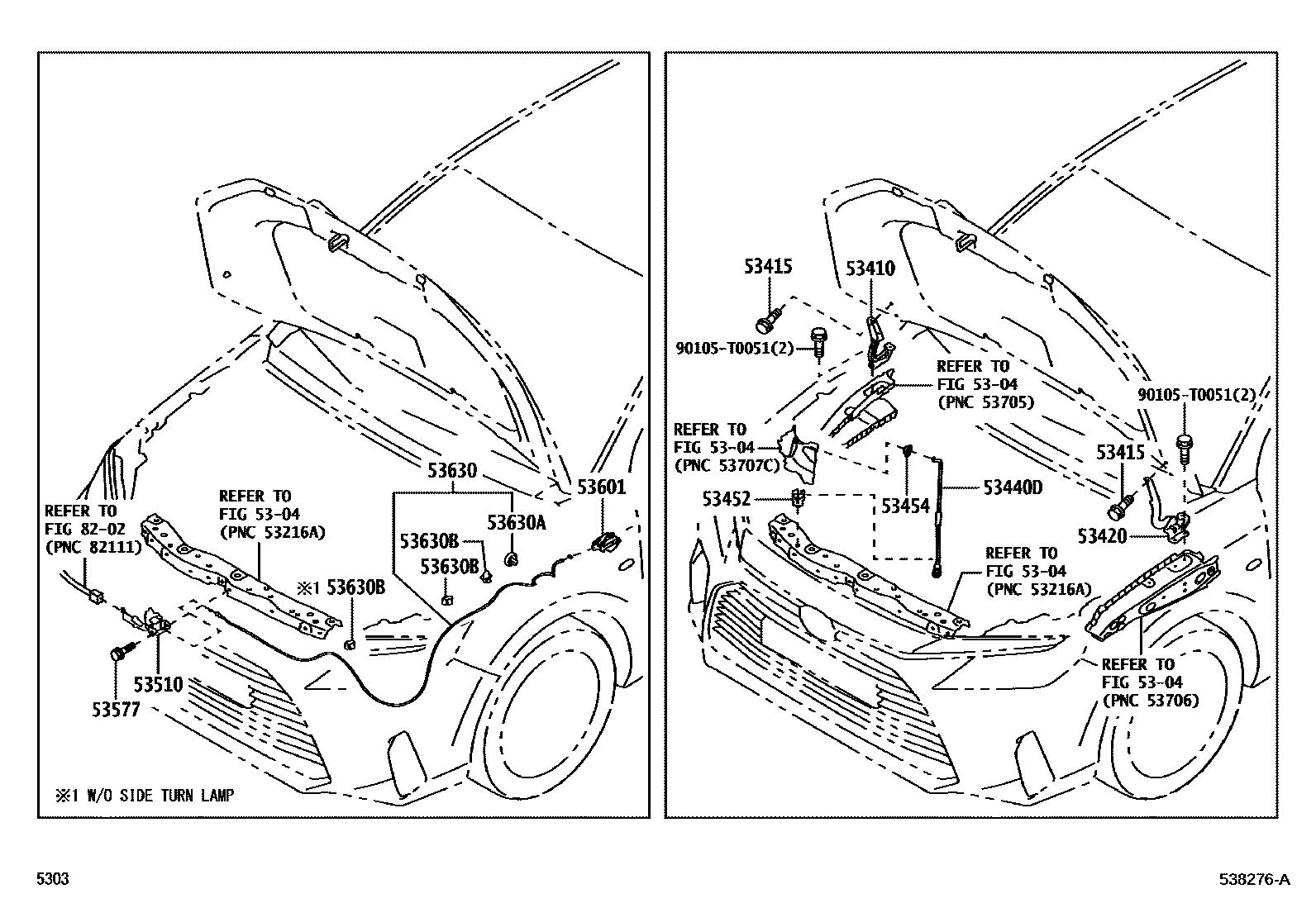

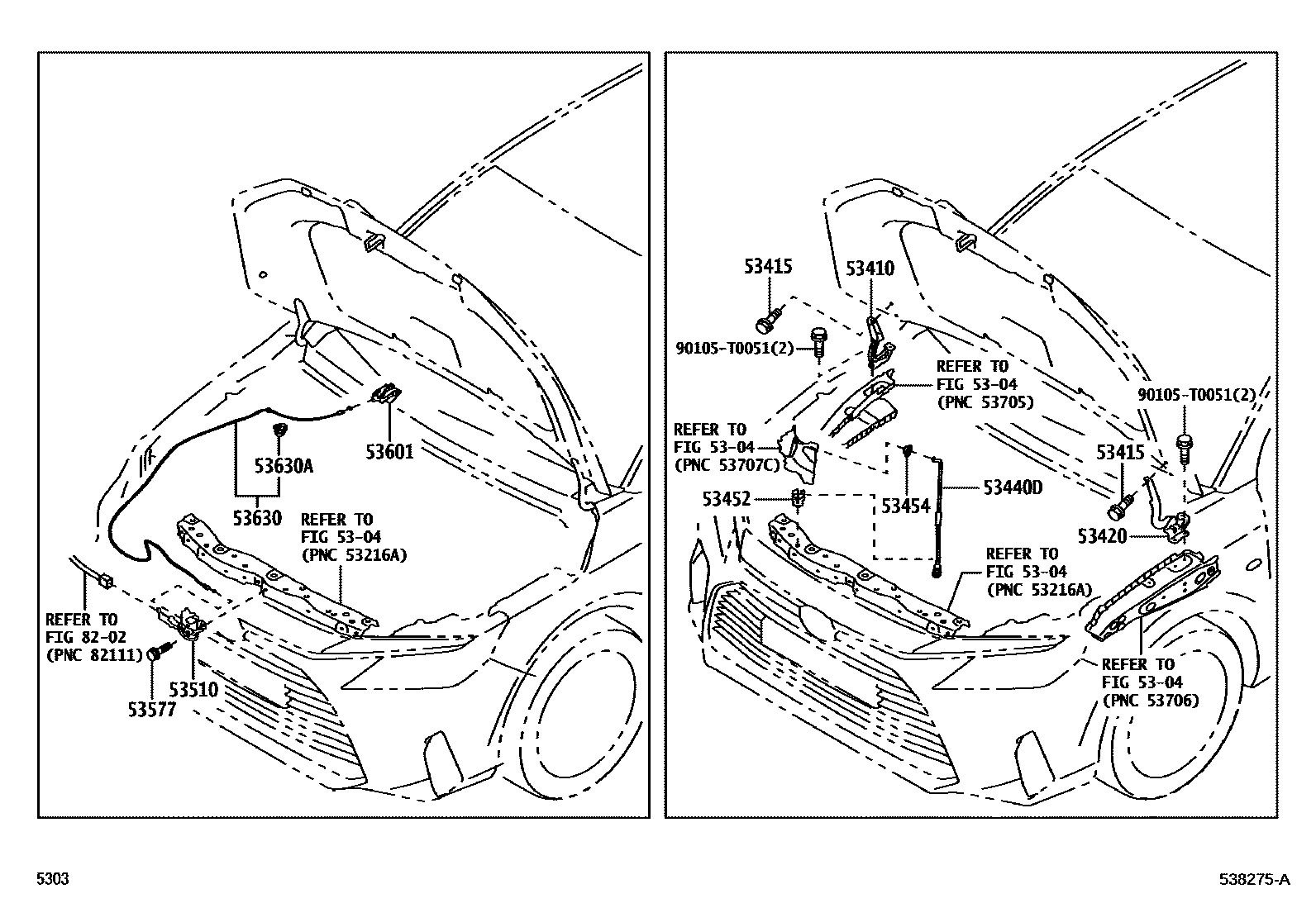

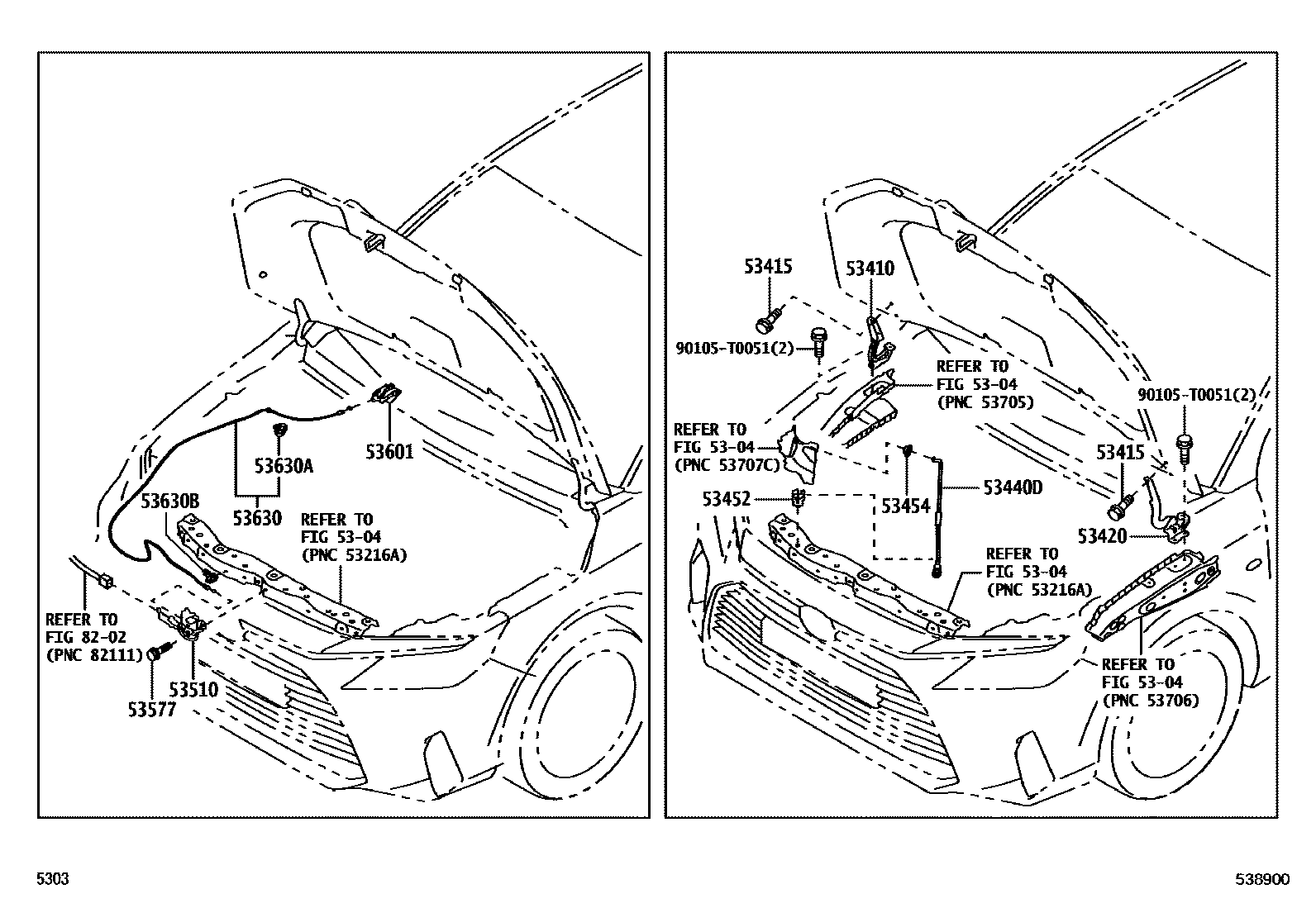

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-BZ080 |
| 53415 | Engine cover hinge bolts | 90105-T0051 |
| 53420 | Engine cover left hinge assembly | 53420-BZ080 |
| 53440D | Engine cover support rod assembly | 53440-BZ170 |
| 53452 | Engine cover stay rod fixing | 53452-BZ100 |
| 53454 | Engine cover support rod clip | 90480-T0009 |
| 53510 | Engine cover lock assembly | 53510-BZ450 · 53510-BZ460 |
| 53577 | engine cover lock bolt | 90105-T0051 |
| 53630 | Engine hood lock control cable assembly | 53630-BZ380 · 53630-BZ390 · 53630-BZ400 |
| 53630A | Gasket (for hood lock control cable) | 85373-BZ180 |
| 53630B | Clip (for hood lock control cable) | 82711-BZ460 · 90469-T0003 |
