Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

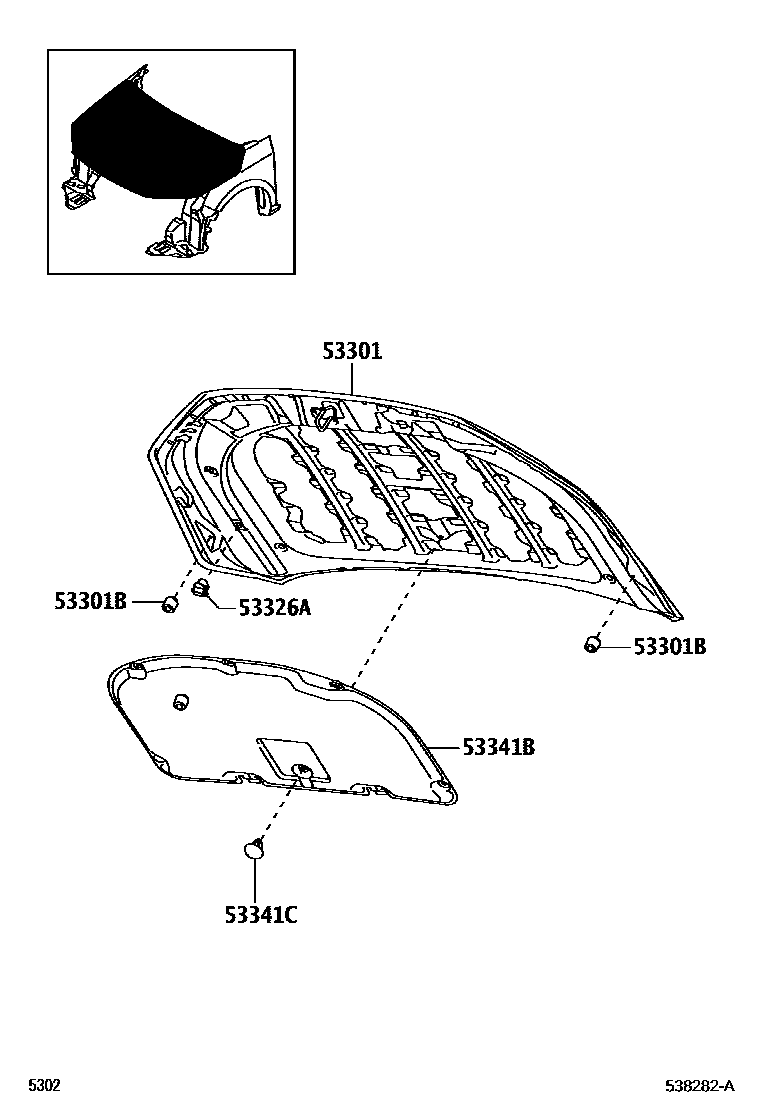

| 53301 | Engine cover sub-assembly | 53301-BZ430 |
| 53301B | engine cover cushion | 90541-09069 |
| 53326A | Engine cover protective strip clip | 53326-0D010 |
| 53341B | engine cover gasket | 53341-BZ180 |
| 53341C | Clip (for engine cover gasket) | 90467-T0014 |
| 53384A | fender to engine cover buffer block | 90541-09069 |

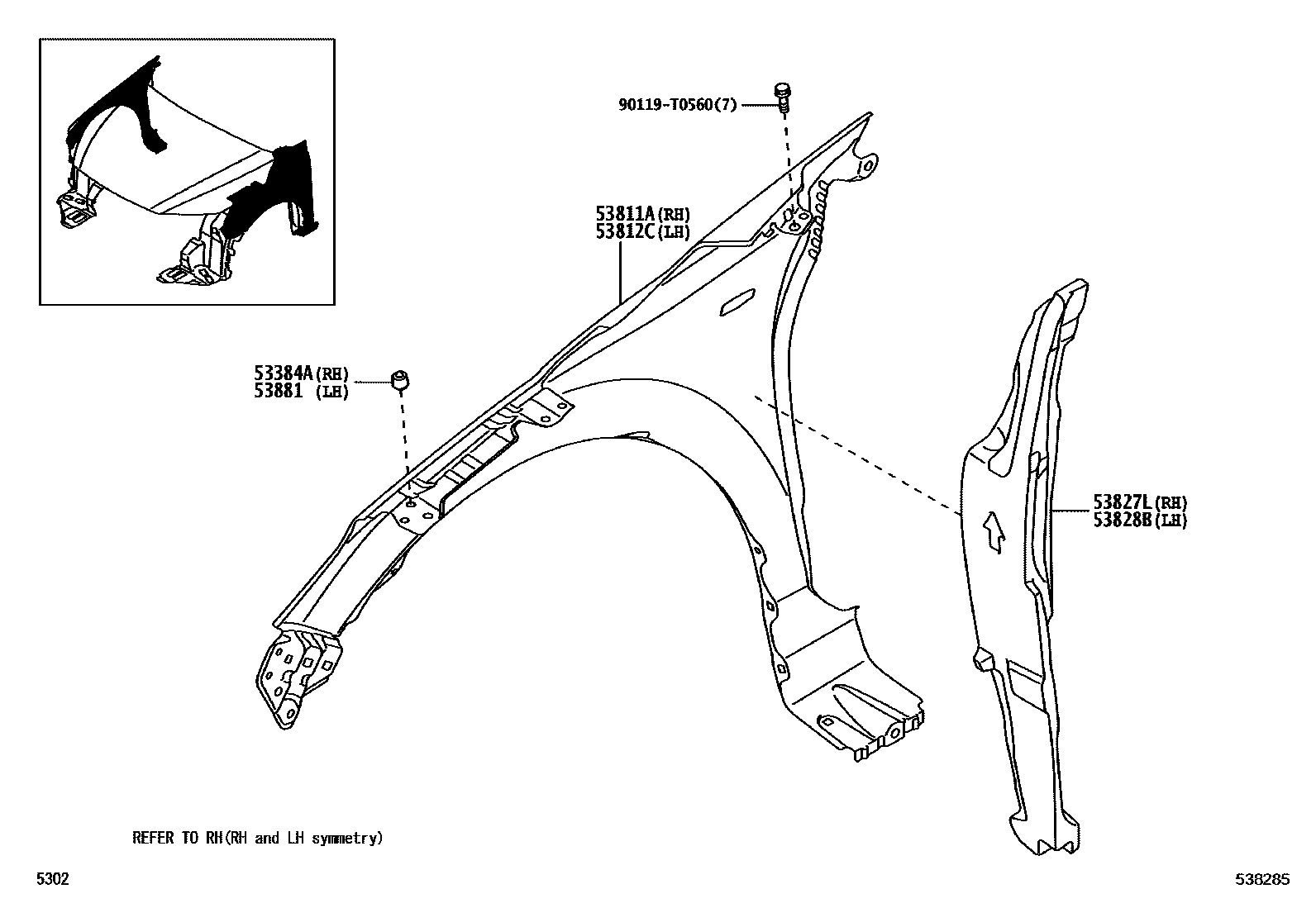

| 53811A | right front fender | 53811-BZ620 · 53811-BZ640 · 53811-BZ730 |
| 53812C | left front fender | 53812-BZ620 · 53812-BZ640 · 53812-BZ730 |
| 53827L | Right front fender side panel protector | 53827-BZ040 |
| 53828B | Left front fender side panel protector | 53828-BZ030 |
| 53851D | Right front fender outer panel pad | 53851-BZ160 · 53851-BZ170 |
| 53852B | Left front fender exterior panel pad | 53852-BZ080 · 53852-BZ090 |

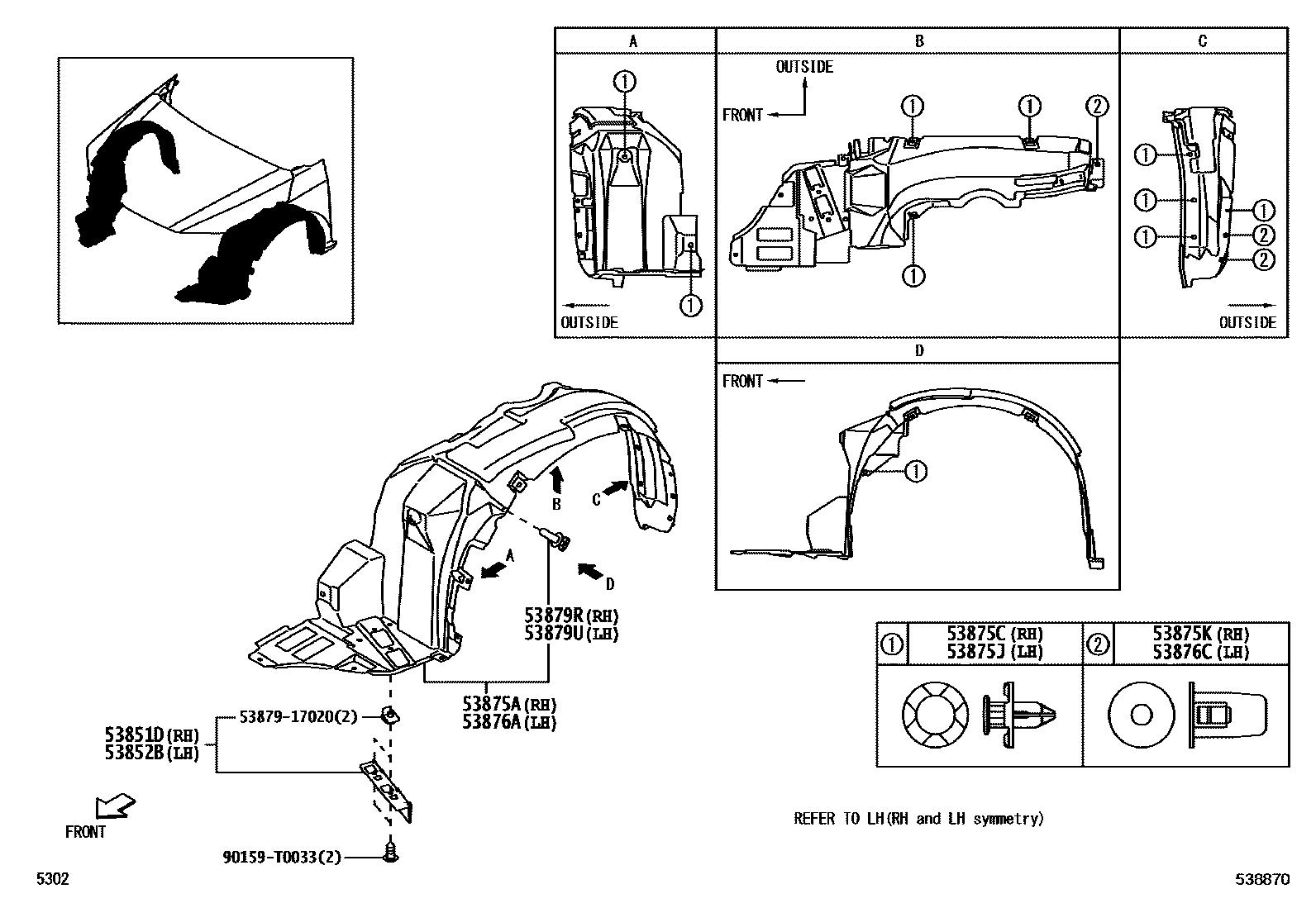

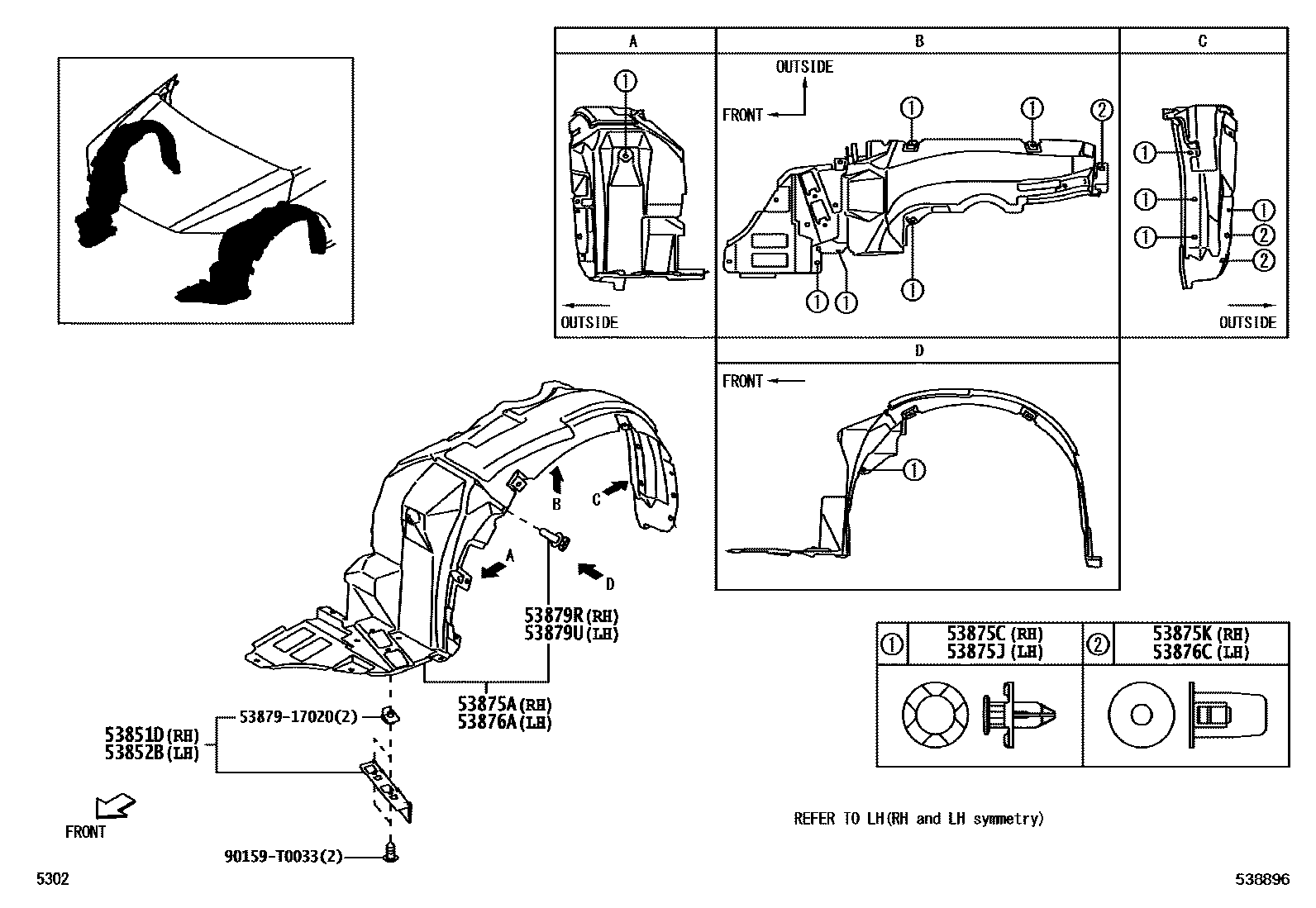

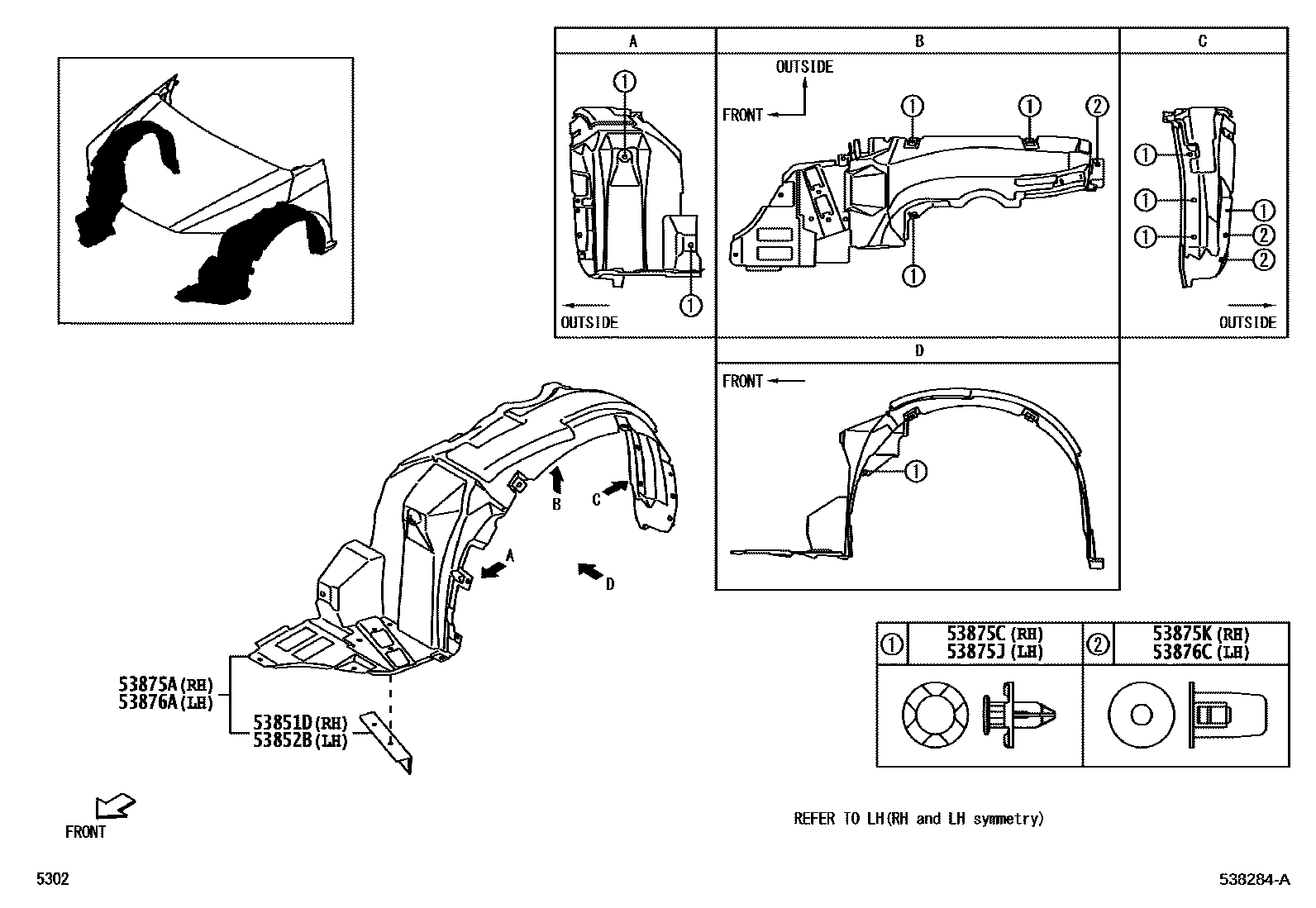

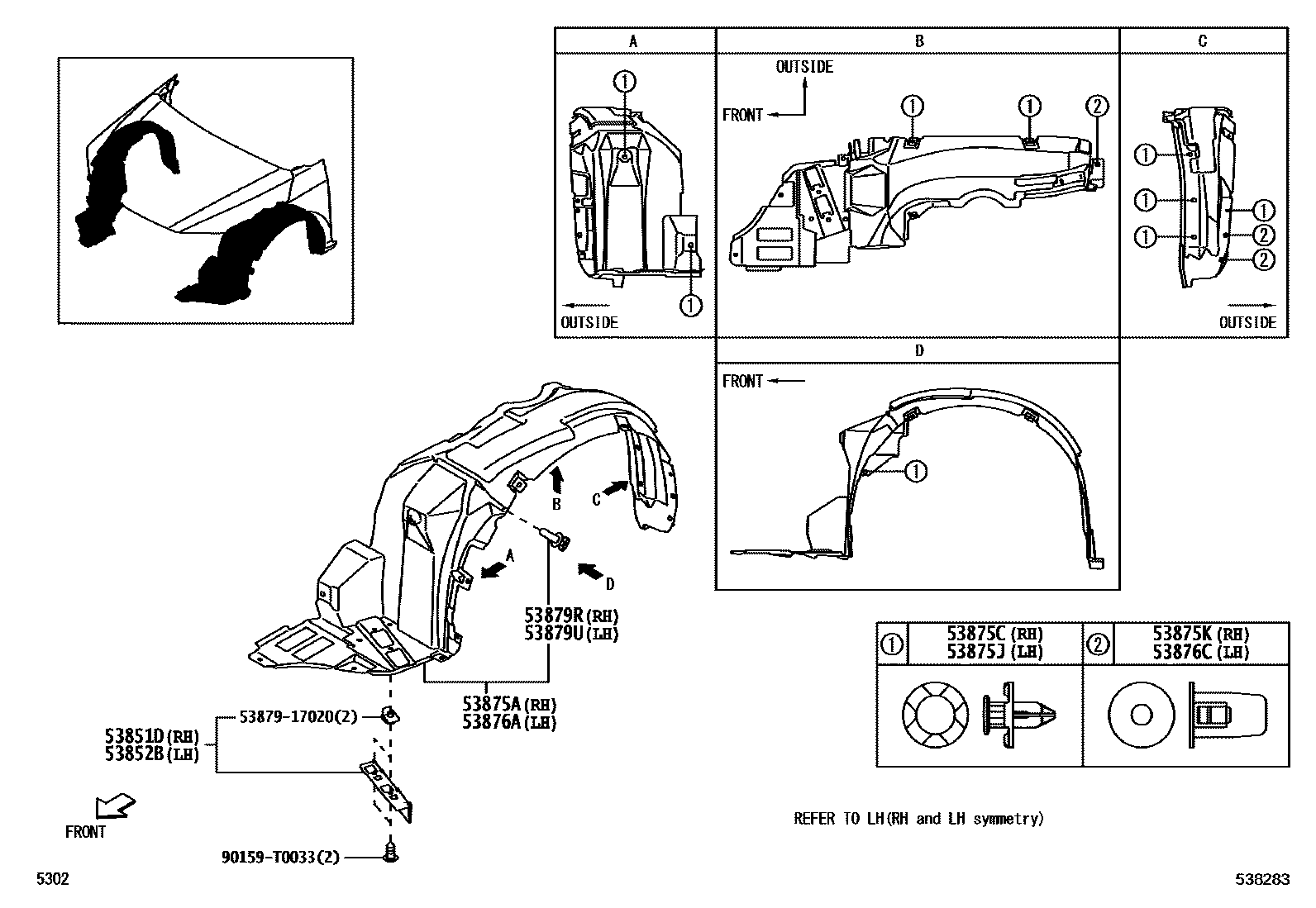

| 53875A | Right front fender lining | 53805-BZ120 · 53805-BZ130 · 53805-BZ180 |
| 53875C | Front fender lining clip | 9004A-46404 |
| 53875J | Front fender lining clip | 9004A-46404 |
| 53875K | screw seal | 90189-06013 |
| 53876A | Left front fender lining | 53806-BZ090 · 53806-BZ100 · 53806-BZ150 |
| 53876C | screw seal | 90189-06013 |
| 53879R | Front fender lining fixing parts | 90467-05127 |
| 53879U | Front fender lining fixing parts | 90467-05127 |
| 53881 | fender to engine cover buffer block | 90541-09069 |
