Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 4 PNC and OE references.

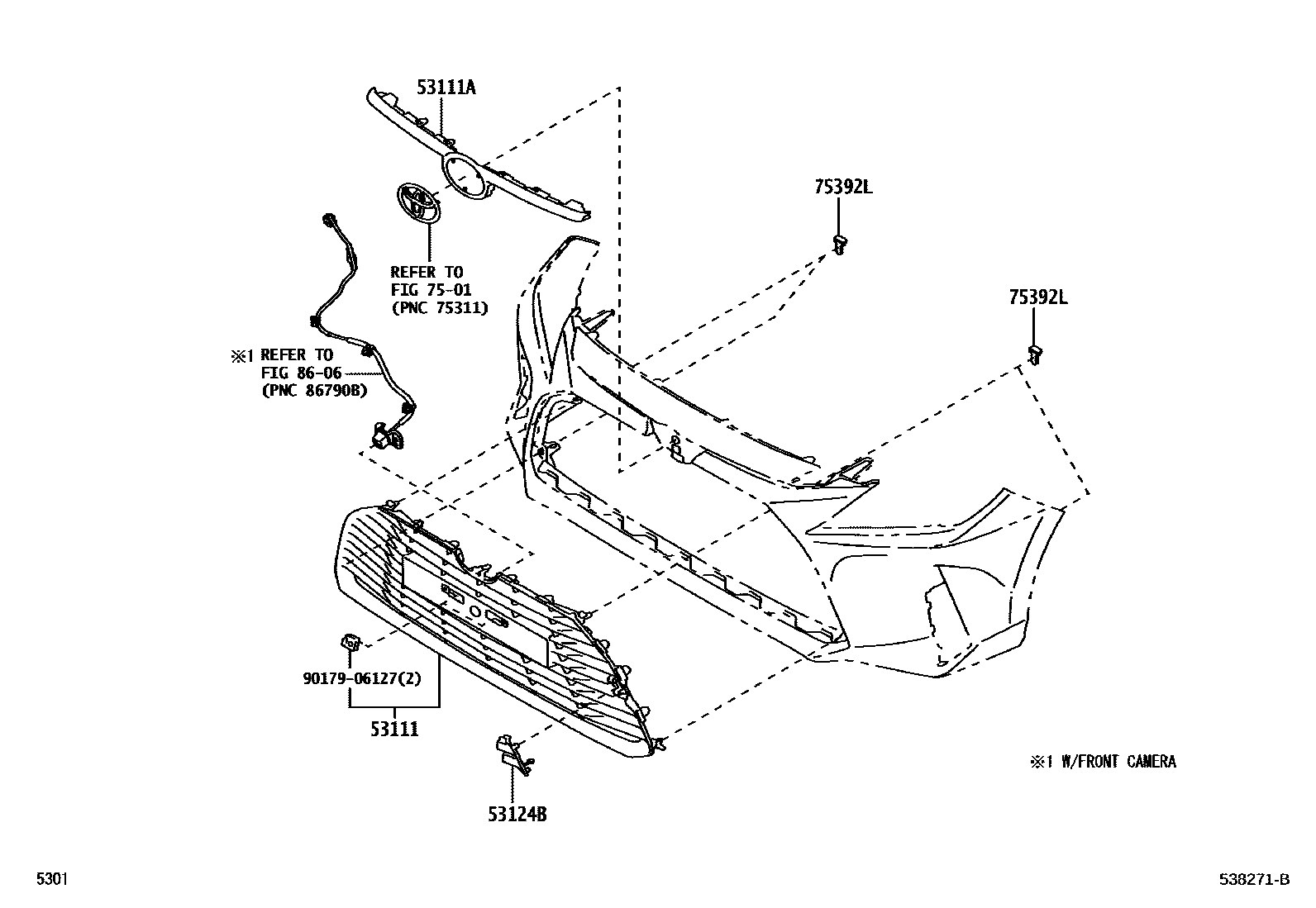

Toyota YARIS radiator grille EPC diagram — 538271B
radiator grille — 538271B (202208 – 999999)

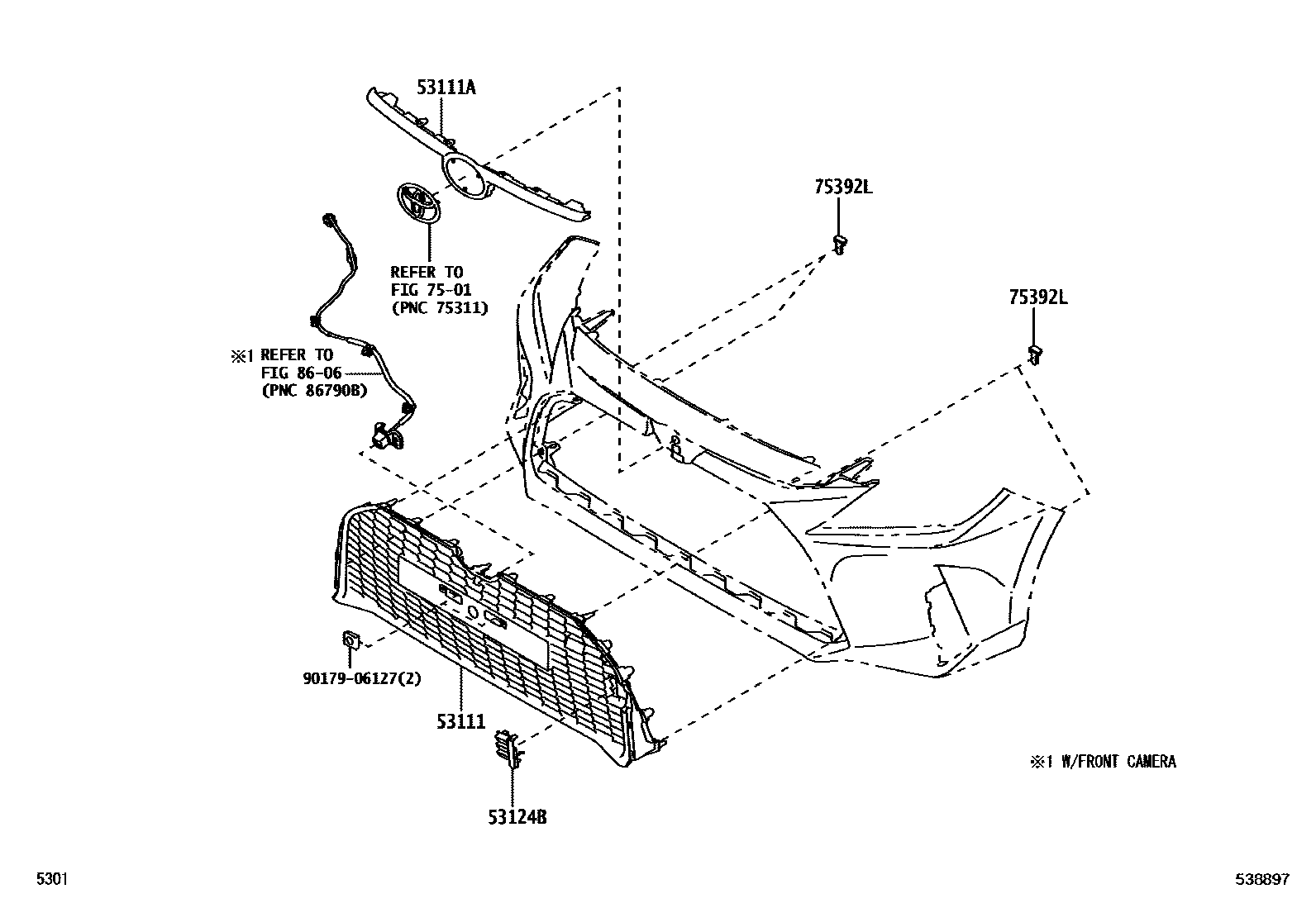

Toyota YARIS radiator grille EPC diagram — 538897
radiator grille — 538897 (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53112-BZ300 · 53112-BZ301
53111ARadiator grille outside53111-BZ650 · 53111-BZ840
53124BRadiator grille left protective strip52721-BZ110
75392LExternal protective strip fixings75392-0K010 · 75392-0K020
