Toyota YARIS 后保险杠及附件 — Figure 5202

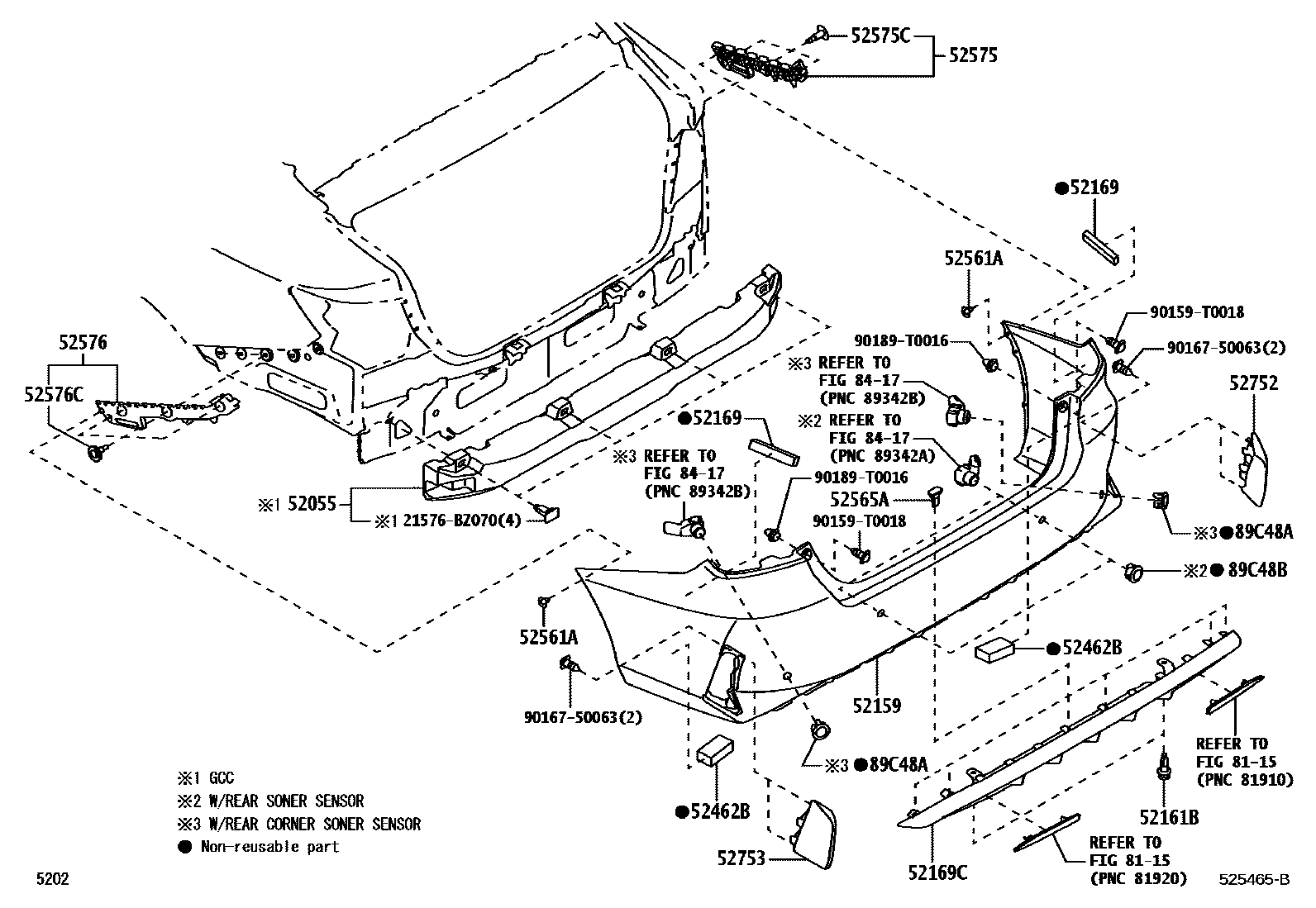

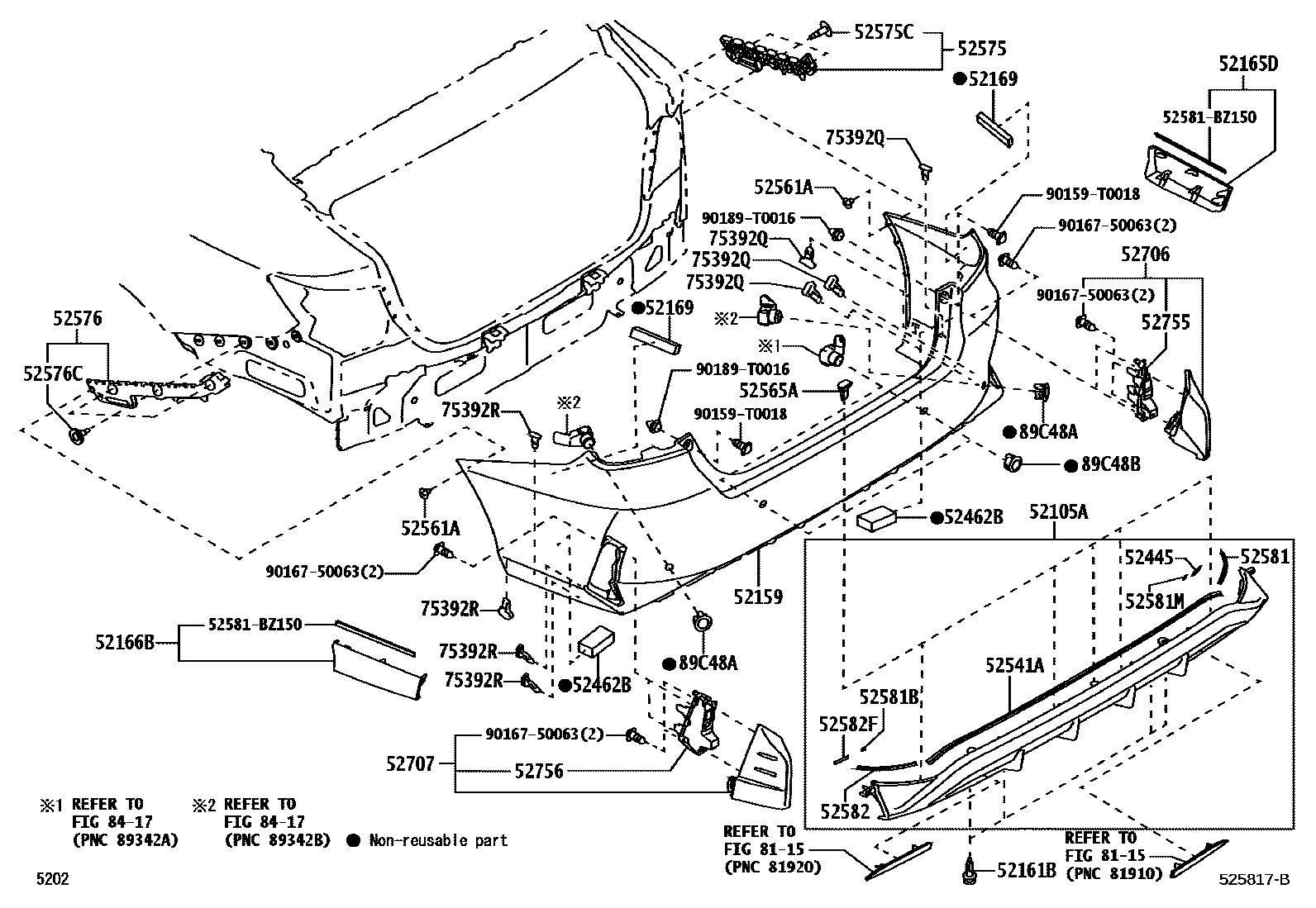

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52055 | Rear bumper gasket sub-assembly | 52057-BZ020 |
| 52159 | rear bumper cover | 52159-BZ900 · 52159-BZ901 · 52159-BZ902 · 52159-BZ903 · 52159-BZ906 |
| 52161B | Rear bumper insert | 52161-0K040 |
| 52165D | Rear bumper right corner extension | 52165-BZ904 |
| 52166B | Rear bumper left corner extension | 52166-BZ904 |
| 52169 | rear bumper lining | 52462-BZ130 |
| 52169C | Rear bumper lower cover | 52169-BZ140 |
| 52445 | Rear bumper right side protector | 52581-BZ170 |
| 52462B | rear bumper lining | 52462-BZ010 |
| 52541A | rear bumper protector | 52581-BZ100 |
| 52561A | Clip (for rear bumper mount) | 90467-05170 |
| 52565A | Rear bumper lower fixing bracket | 75392-0K010 · 75392-0K020 |
| 52575 | Rear bumper right side fixing bracket | 52575-BZ010 · 52575-BZ020 |
| 52575C | Rear bumper side fixing clip | 90467-09237 |
| 52576 | Rear bumper left side fixing bracket | 52576-BZ010 · 52576-BZ020 |
| 52576C | Rear bumper side fixing clip | 90467-09237 |
| 52581 | Rear bumper right side protector | 52581-BZ120 |
| 52581B | rear bumper protector | 52581-BZ160 |
| 52581M | Rear bumper right side protector | 52581-BZ160 |
| 52582 | Rear bumper left protector | 52581-BZ120 |
| 52582F | Rear bumper left protector | 52581-BZ170 |
| 52752 | Rear bumper right side protective strip | 52752-BZ150 |
| 52753 | Rear bumper left protective strip | 52753-BZ150 |
| 52755 | Rear bumper right side protective strip fixing | 52755-BZ010 |
| 52756 | Rear bumper left protective strip fixing | 52756-BZ010 |
| 75392Q | No. 2 outer protective strip fixings | 75392-0K010 |
| 75392R | No. 3 outer protective strip fixings | 75392-0K010 |
