Toyota YARIS 前保险杠及附件 — Figure 5201

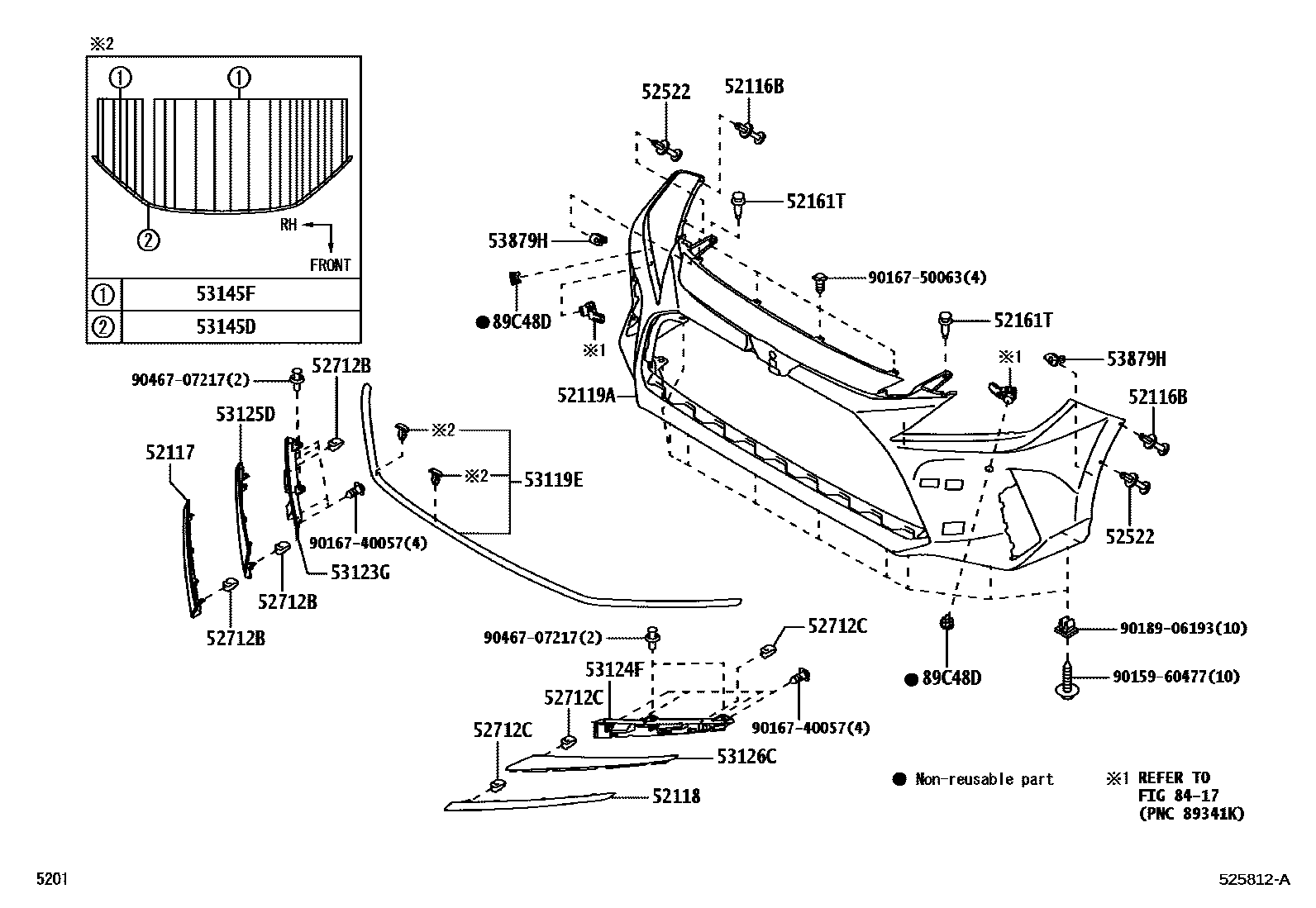

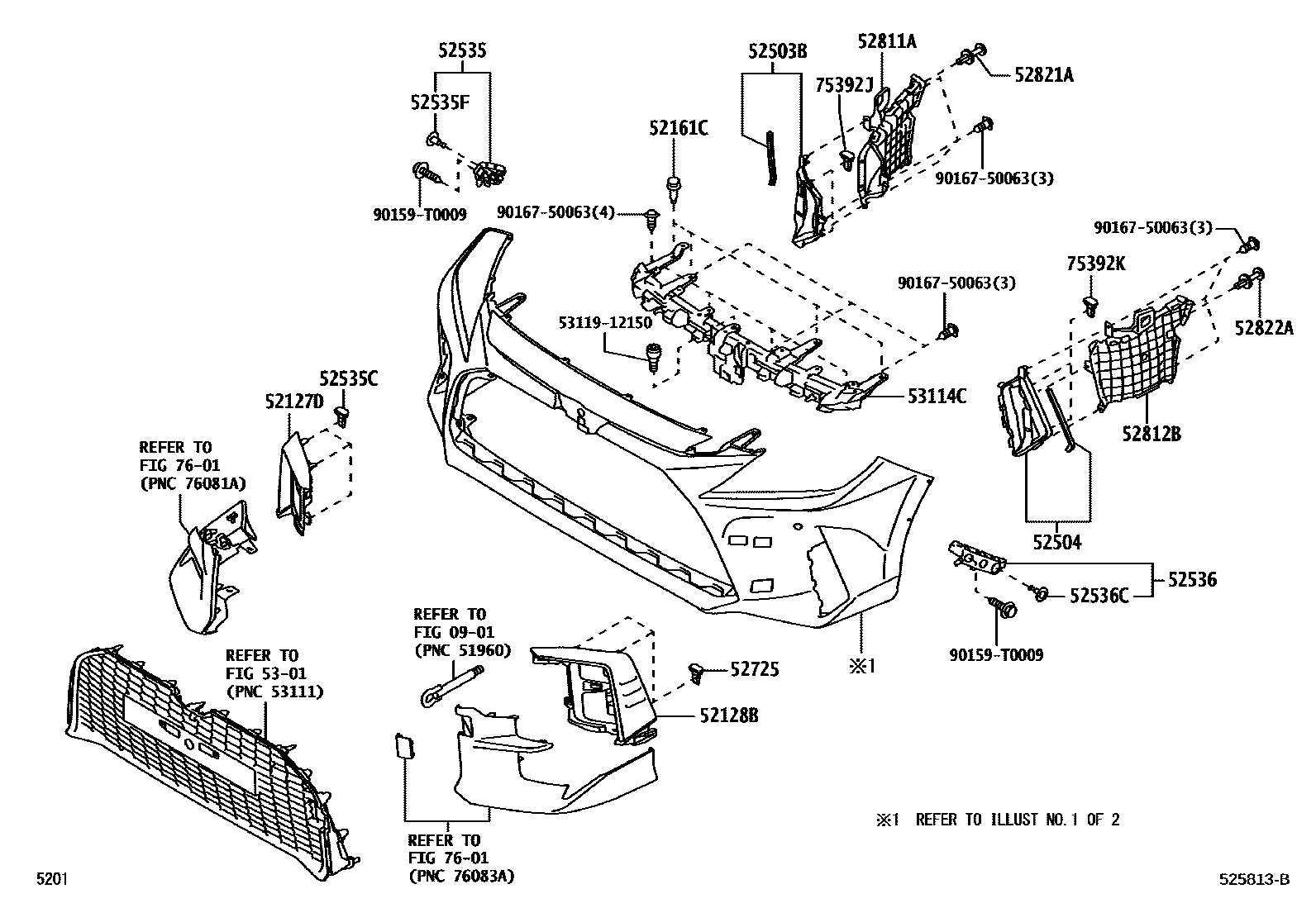

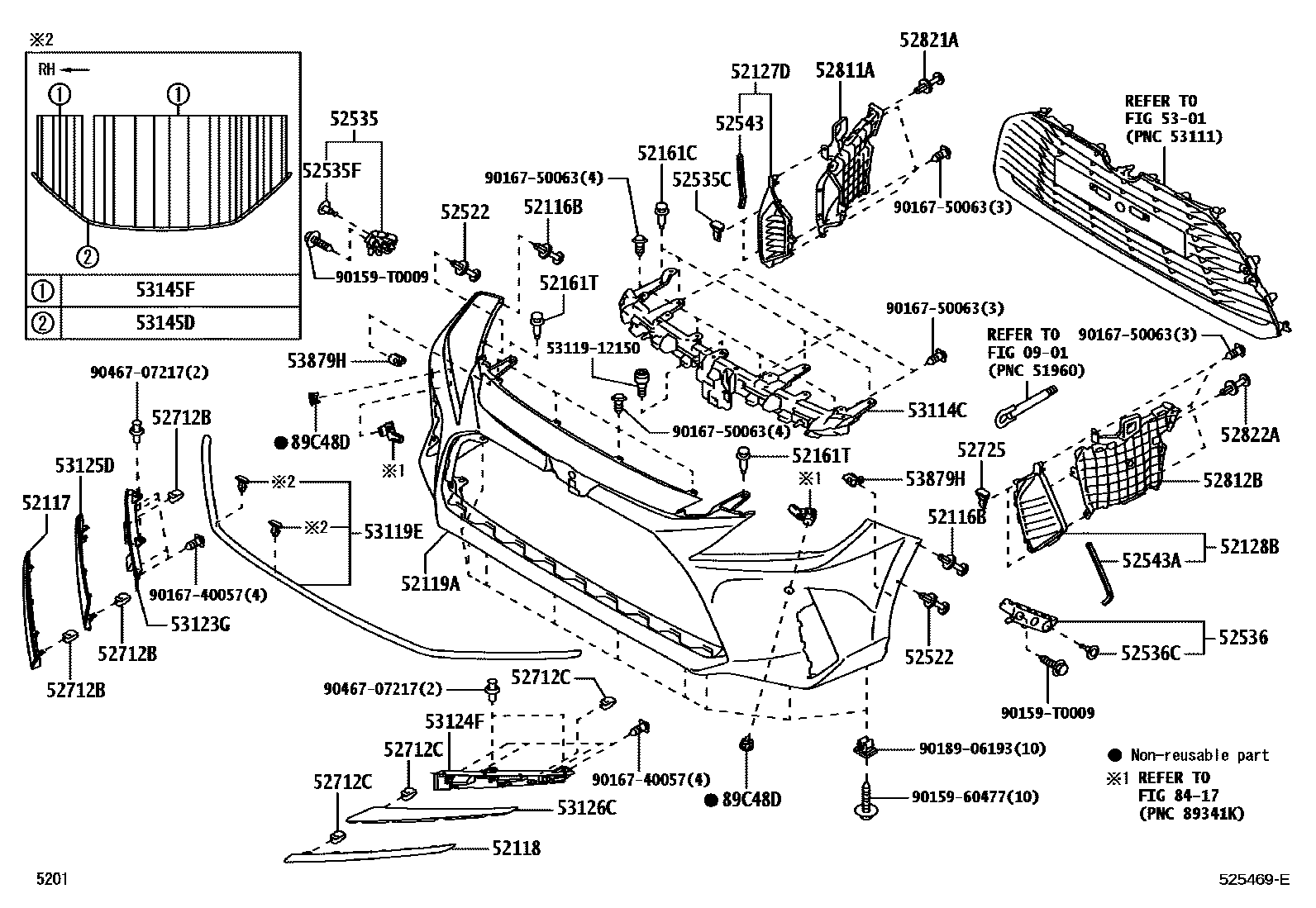

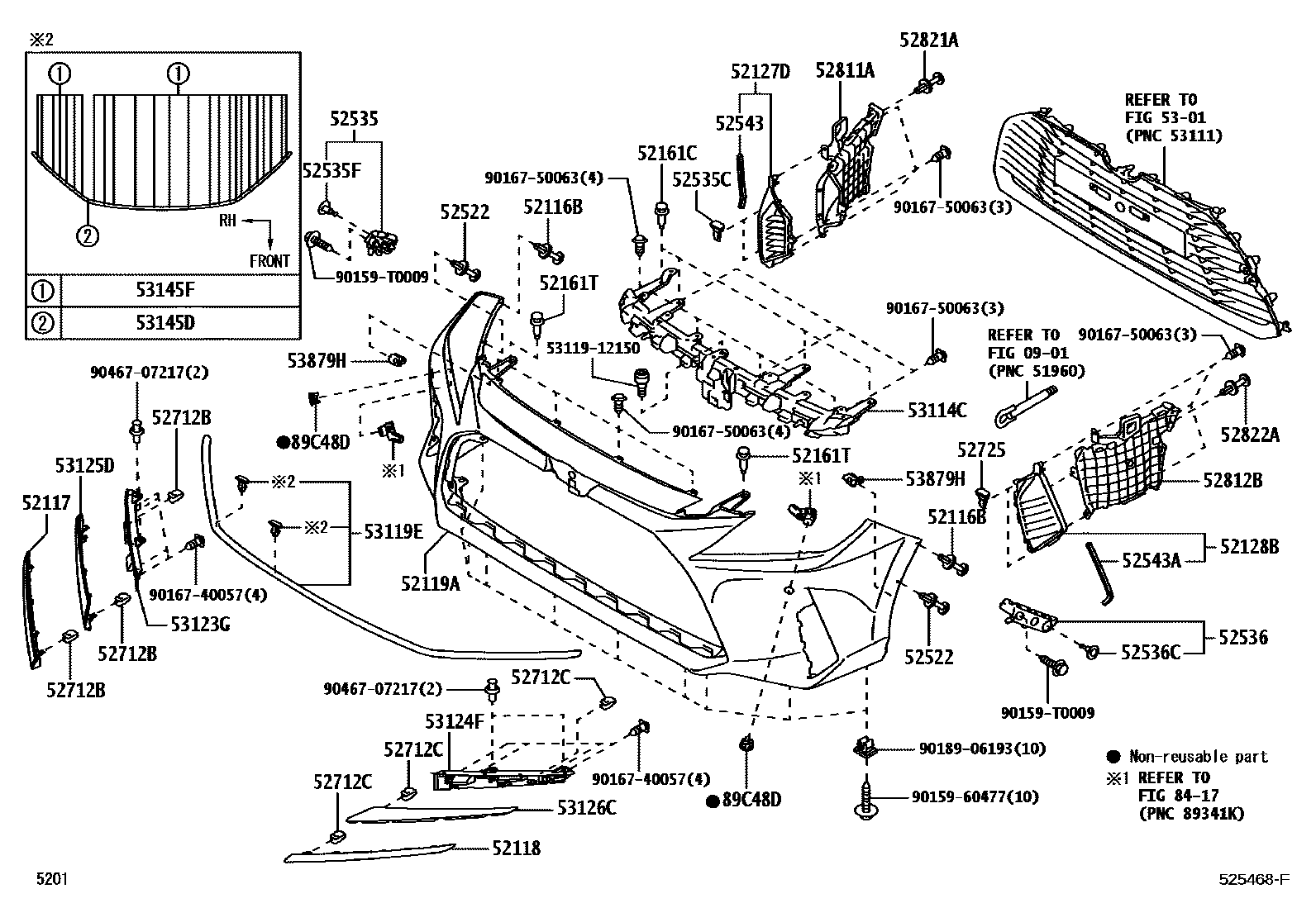

Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52116B | front bumper fixings | 90467-05170 |
| 52117 | Right bumper side protection strip | 53127-BZ030 · 53127-BZ050 · 53127-BZ070 |
| 52118 | Bumper left protective strip | 53128-BZ010 · 53128-BZ030 · 53128-BZ050 |
| 52119A | front bumper cover | 52119-BZ910 · 52119-BZ911 · 52119-BZ912 · 52119-BZ913 |
| 52127D | Front bumper right hole cover | 52127-BZC70 |
| 52128B | Front bumper left hole cover | 52128-BZ430 |
| 52161C | front bumper insert | 52161-0K040 |
| 52161T | front bumper insert | 52161-0K040 |
| 52503B | Front bumper No. 1 right side fixed frame sub-assembly | 52503-BZ010 |
| 52504 | Front bumper No. 1 left fixed frame sub-assembly | 52504-BZ010 |
| 52522 | Front bumper upper side fixing bracket | 90467-05170 |
| 52535 | Front bumper right side fixing bracket | 52535-BZ010 · 52535-BZ020 |
| 52535C | Front bumper side fixing bracket | 75392-0K010 · 75392-0K020 |
| 52535F | Front bumper side fixing clip | 90467-09237 |
| 52536 | Front bumper left fixed bracket | 52536-BZ010 · 52536-BZ020 |
| 52536C | Front bumper side fixing clip | 90467-09237 |
| 52543 | Front bumper right seal | 52543-BZ190 |
| 52543A | Front bumper side seal | 52543-BZ190 |
| 52712B | Front bumper protective strip clip | 90467-05171 |
| 52712C | Front bumper protective strip clip No. 2 | 90467-05171 |
| 52725 | Front bumper side protection strip fixings | 75392-0K010 · 75392-0K020 |
| 52811A | No. 1 cold air intake pipe | 52811-BZ010 |
| 52812B | No. 2 cold air intake pipe | 52812-BZ010 |
| 52821A | Intake pipe clip | 90467-05170 |
| 52822A | Intake pipe clip | 90467-05170 |
| 53114C | inner radiator grille | 53114-BZ150 |
| 53119E | Radiator grille protector | 53119-BZ030 · 53119-BZ040 |
| 53123G | Protective strip on the right side of the radiator grille | 53123-BZ220 · 53123-BZ410 |
| 53124F | Radiator grille left protective strip | 53124-BZ300 · 53124-BZ320 |
| 53125D | Radiator grille No. 5 protective strip | 53125-BZ900 · 53125-BZ901 |
| 53126C | Radiator grille No. 6 protective strip | 53126-BZ900 · 53126-BZ901 |
| 53145D | Radiator grille clip | 53145-60030 |
| 53145F | Radiator grille trim clip | 53145-0K010 |
| 53879H | Front fender lining fixing parts | 53879-B2020 |
| 75392J | External protective strip fixings | 75392-0K010 |
| 75392K | No. 2 outer protective strip fixings | 75392-0K010 |
