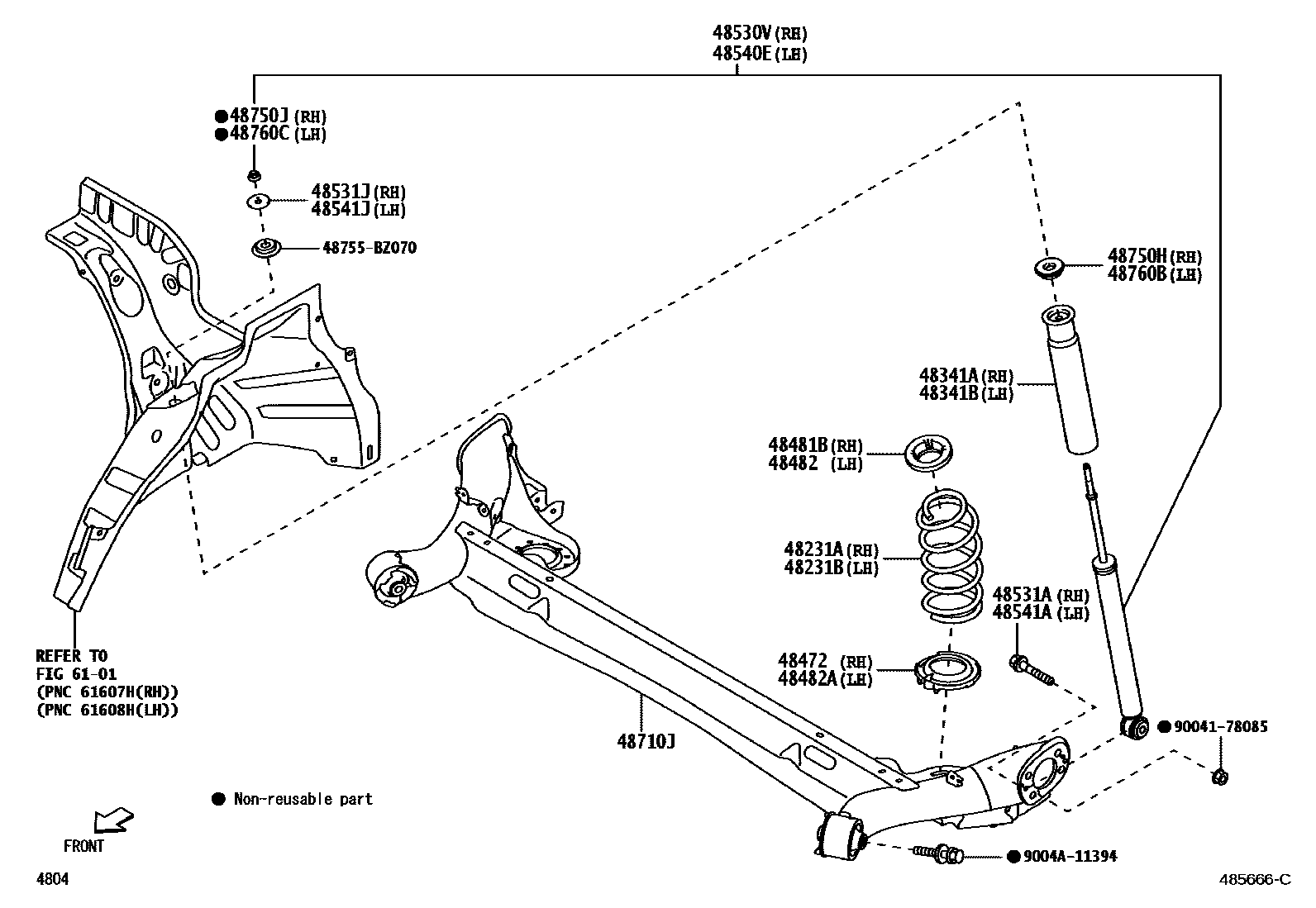

Toyota YARIS Rear Spring & Shock Absorber — Figure 4804
Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48231A | Right rear coil spring | 48231-BZ650 · 48231-BZA30 · 48231-BZA50 · 48231-BZB80 · 48231-BZB90 · 48231-BZC10 |
| 48231B | Left rear coil spring | 48231-BZ650 · 48231-BZA30 · 48231-BZA50 · 48231-BZB80 · 48231-BZB90 · 48231-BZC10 |
| 48341A | No. 1 right rear spring buffer block | 48341-BZ220 |
| 48341B | No. 1 left rear spring buffer block | 48341-BZ220 |
| 48472 | Rear spring lower seat | 48482-BZ190 |
| 48481B | Upper right rear spring seat | 48481-BZ120 |
| 48482 | Rear spring left upper seat | 48481-BZ120 |
| 48482A | Rear spring lower seat | 48482-BZ190 |
| 48530V | Right rear shock absorber assembly | 48531-8Z034 · 48531-8Z035 · 48531-8Z036 · 48531-8Z037 · 48531-8Z038 · 48531-8Z039 · 48531-8Z040 · 48531-8Z041 |
| 48531A | Joint bolt (for right rear shock absorber) | 90041-01716 |
| 48531J | Right rear shock absorber No. 1 cushion washer | 90201-10320 |
| 48540E | Left rear shock absorber assembly | 48531-8Z034 · 48531-8Z035 · 48531-8Z036 · 48531-8Z037 · 48531-8Z038 · 48531-8Z039 · 48531-8Z040 · 48531-8Z041 |
| 48541A | Joint bolt (for left rear shock absorber) | 90041-01716 |
| 48541J | Left rear shock absorber No. 1 cushion washer | 90201-10320 |
| 48710J | Rear suspension No. 1 arm assembly | 48710-BZ480 · 48710-BZ530 |
| 48750H | Right rear suspension support assembly | 48750-BZ070 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94188-01001 |
| 48760B | Left rear suspension support assembly | 48750-BZ070 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94188-01001 |
