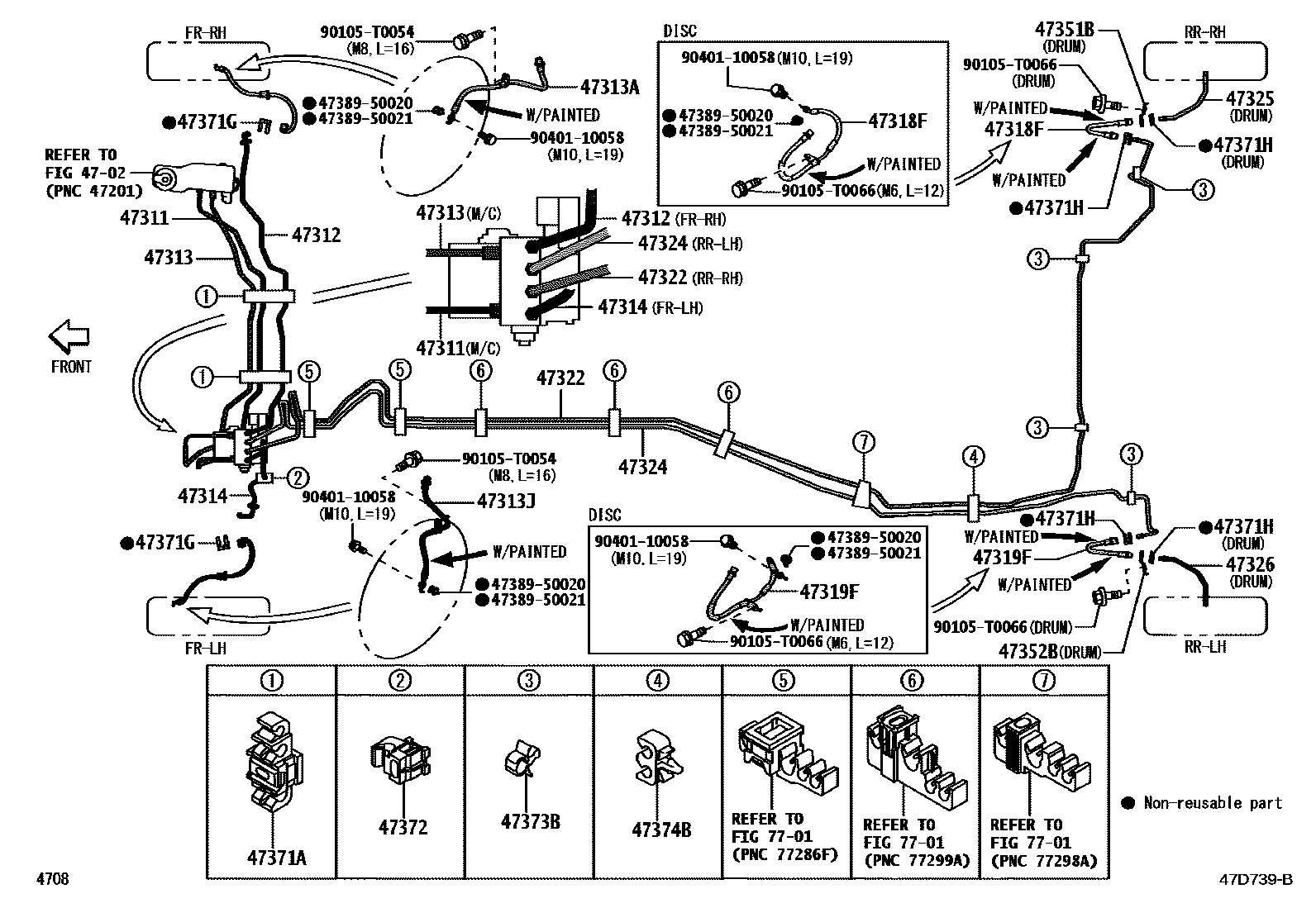

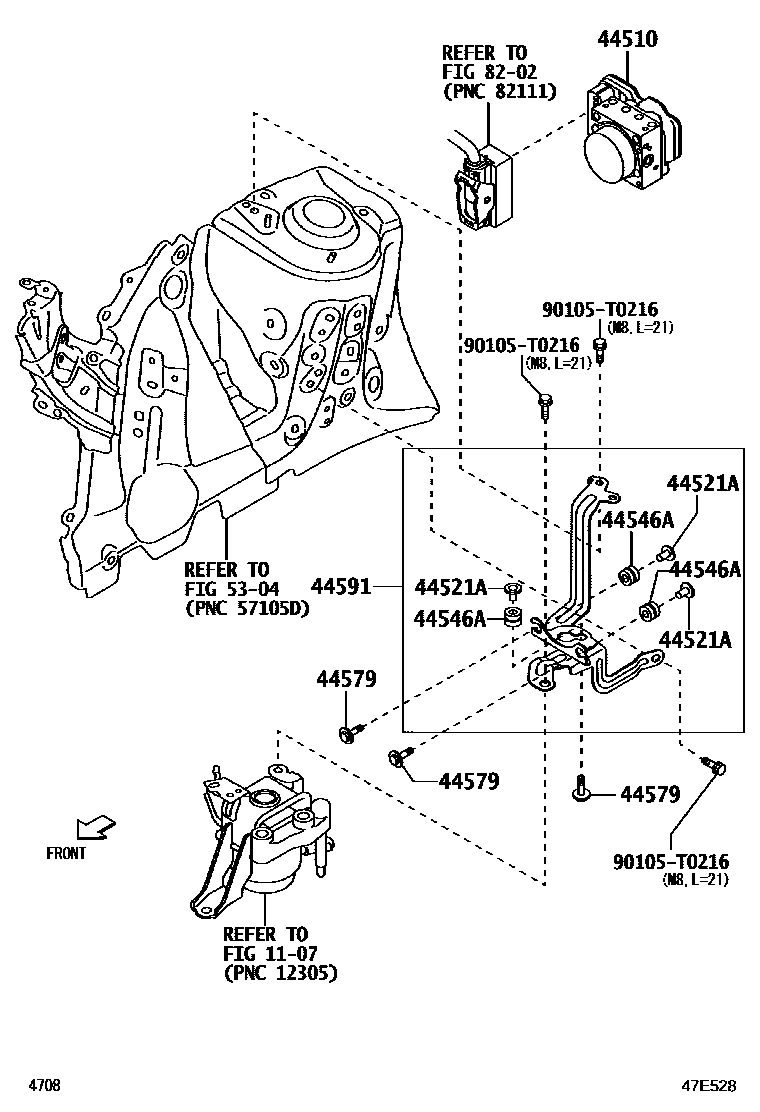

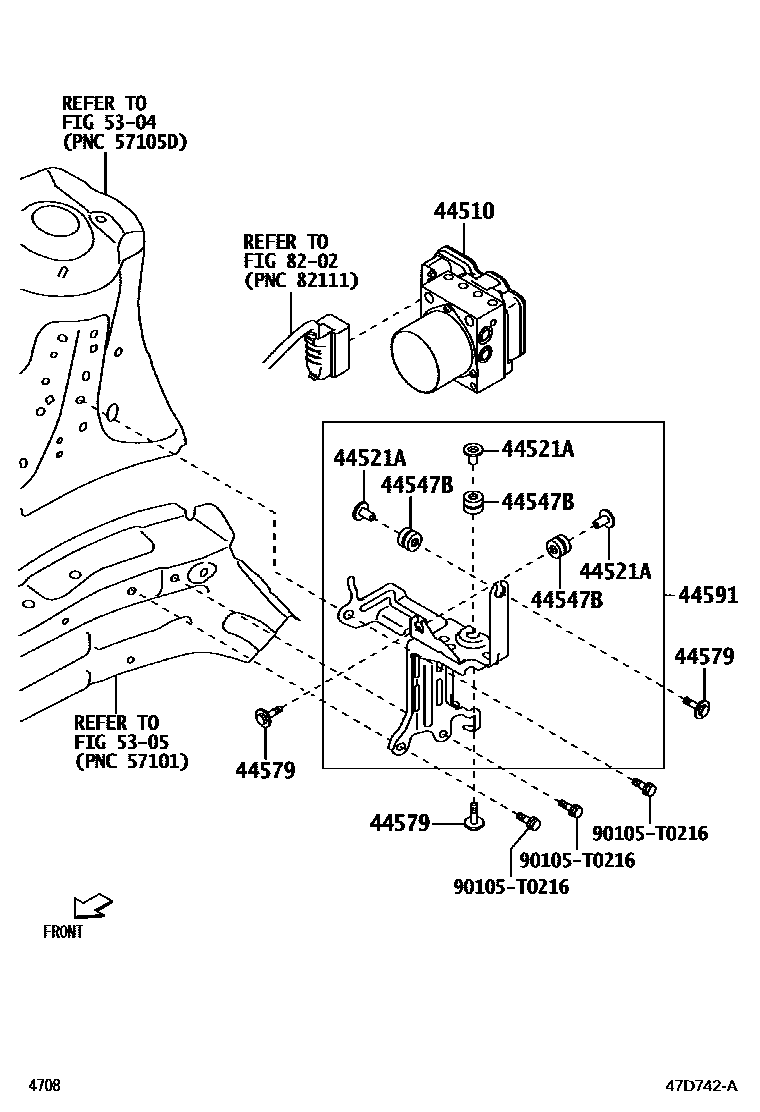

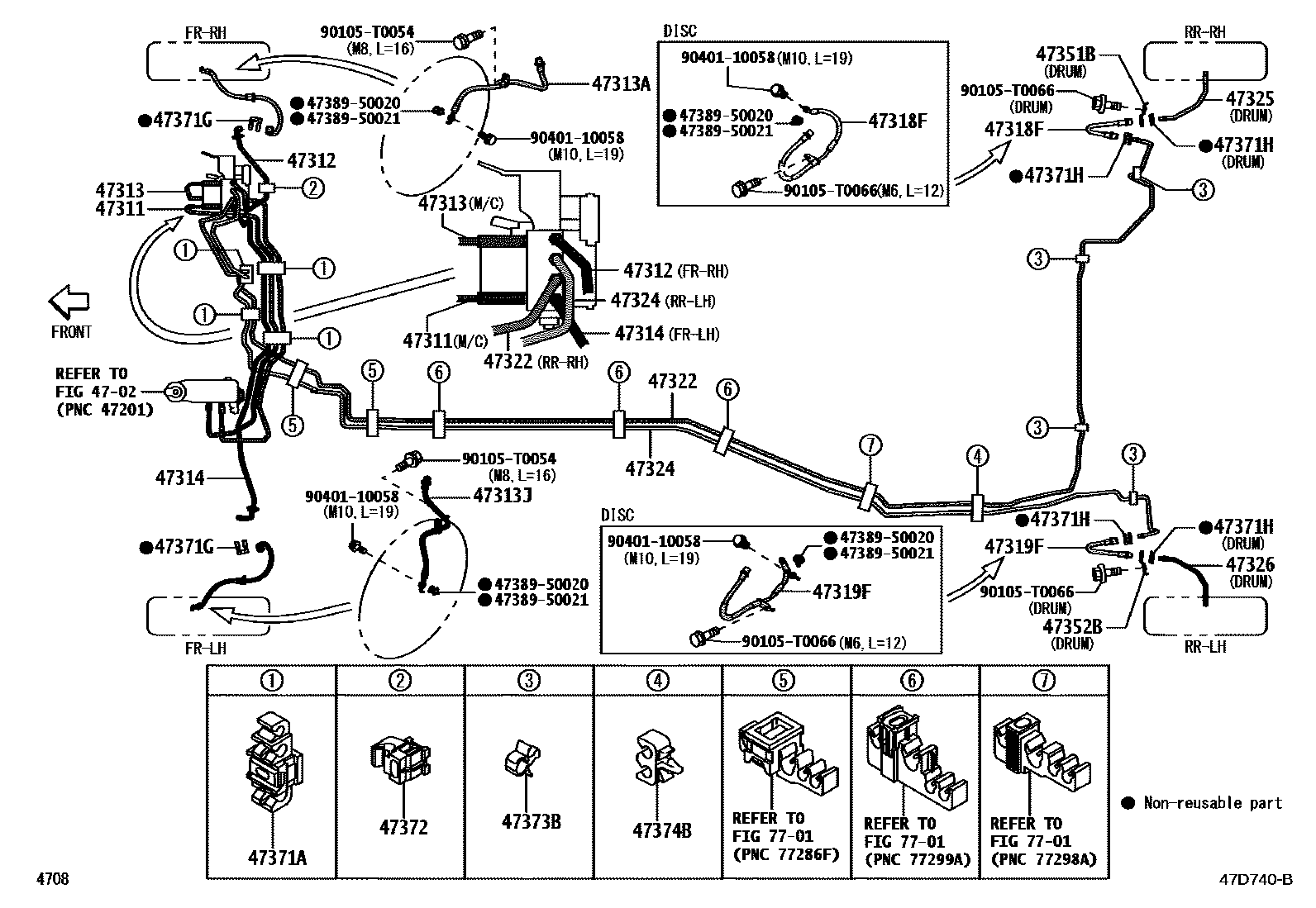

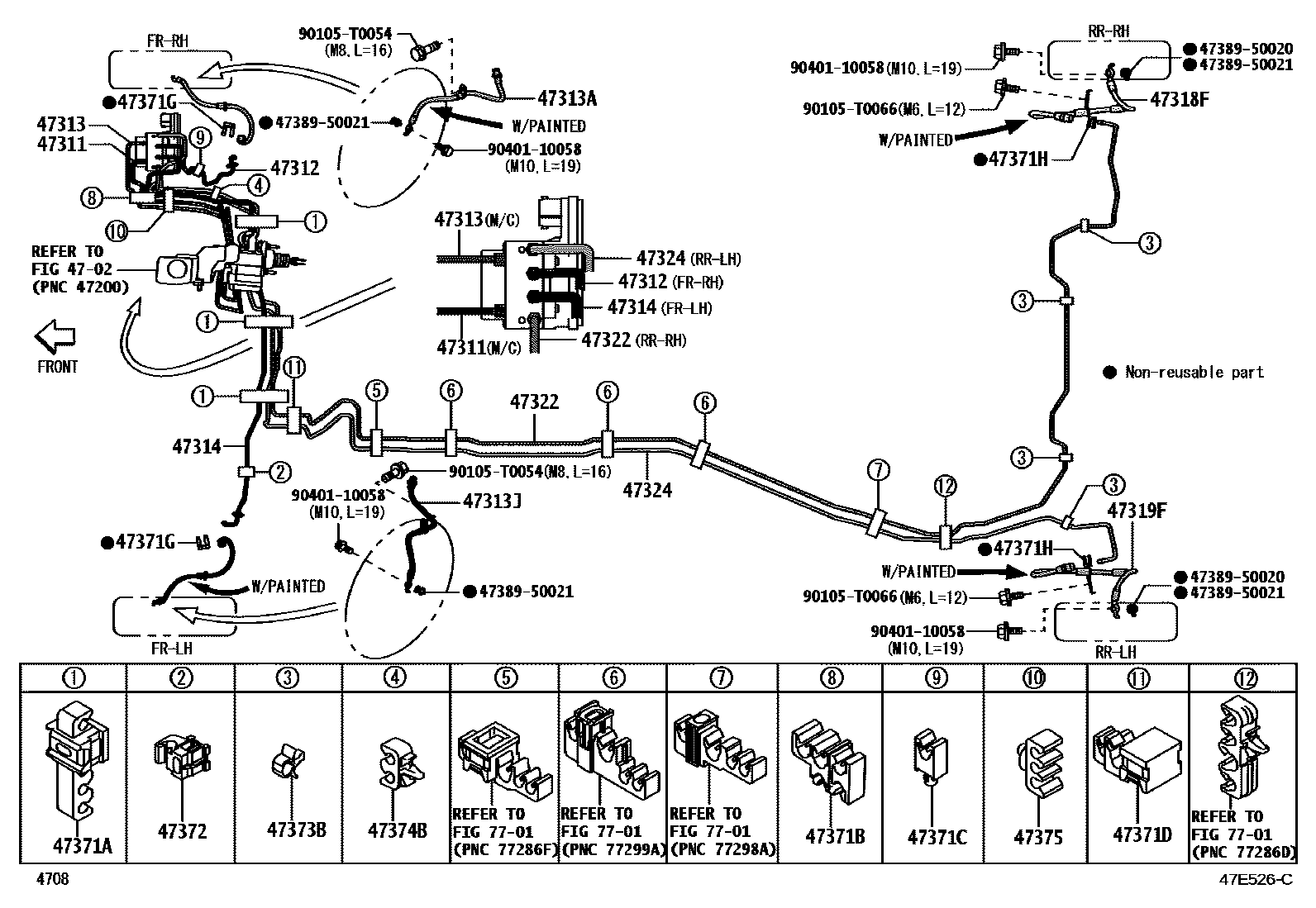

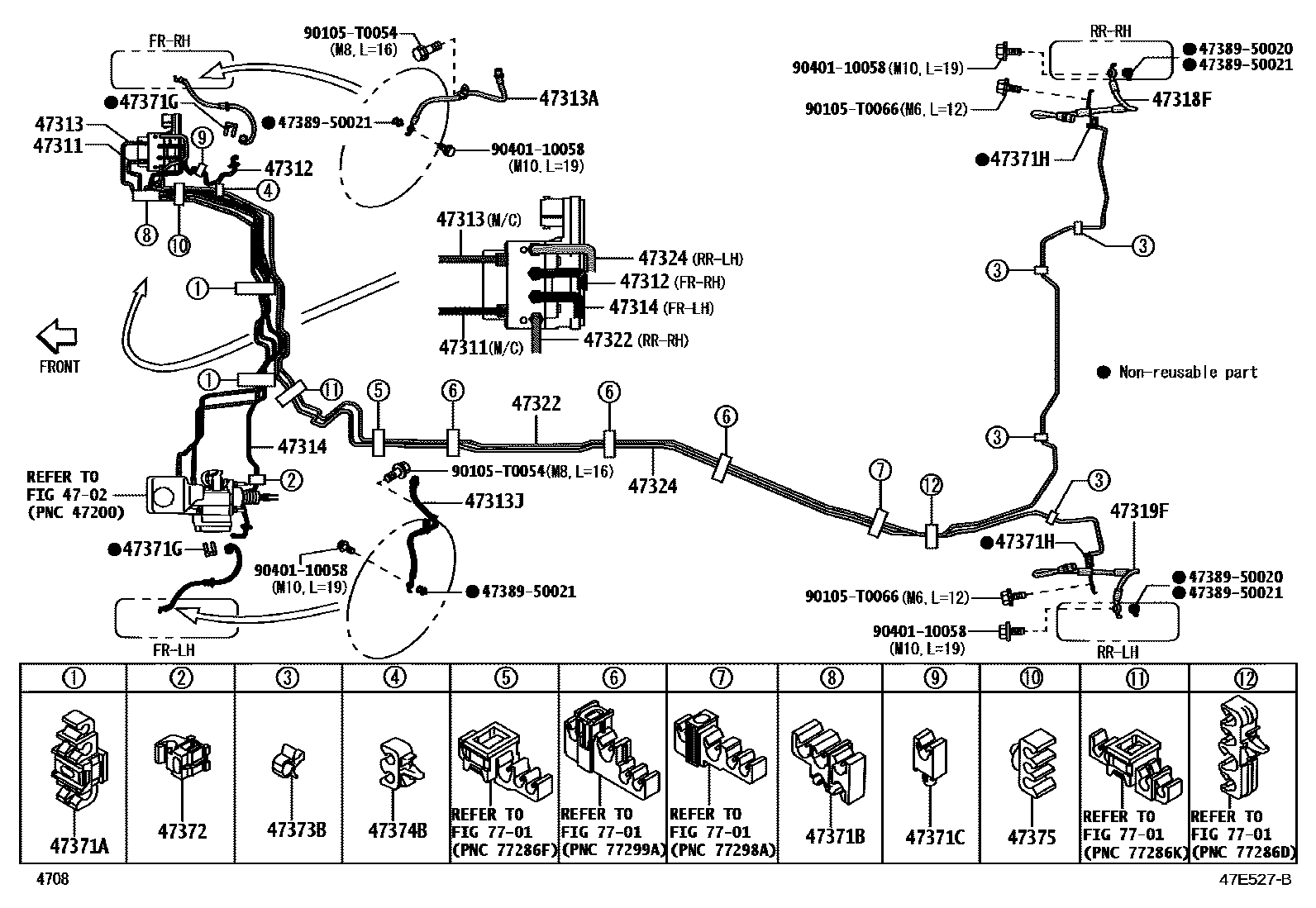

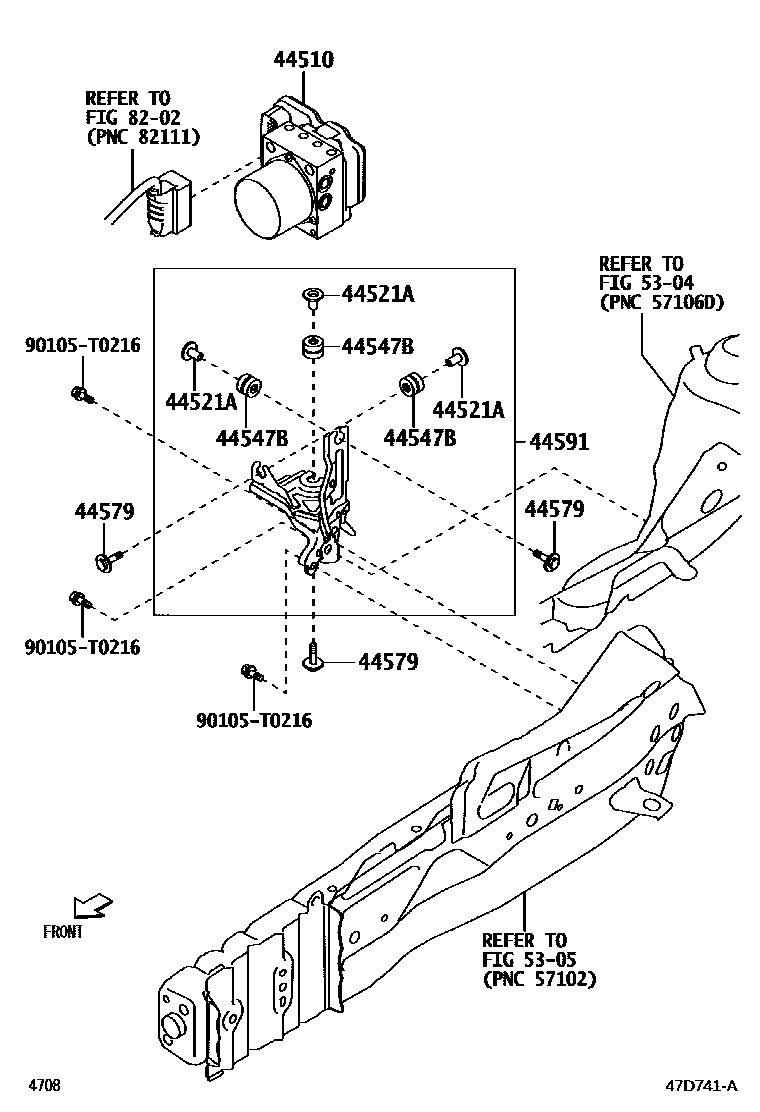

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 7 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-B1A10 · 44050-BZ770 · 44050-BZ810 · 44050-BZ860 · 44050-BZ870 · 44050-BZ890 · 44050-BZA00 · 44050-BZA20 · 44050-BZA40 · 44050-BZA60 · 44050-BZA70 · 44050-BZA80 · 44050-BZF10 · 44050-BZF20 · 44050-BZF50 · 44050-BZF60 · 44050-BZF80 · 44050-BZF90 · 44050-BZG30 · 44050-BZG40 · 44050-BZG60 · 44050-BZG70 · 44050-BZG90 · 44050-BZJ00 · 44050-BZJ10 · 44050-BZJ30 |
| 44521A | No. 1 brake actuator housing collar | 44521-0D010 |
| 44546A | Brake actuator bolt cushion | 44547-02050 |
| 44547B | brake actuator bracket cushion | 44547-02050 |
| 44579 | Brake actuator bracket bolt | 90119-T0199 |
| 44591 | No. 1 brake actuator bracket | 44591-BZ280 · 44591-BZ290 · 44591-BZ390 · 44591-BZ400 · 44591-BZ410 |
| 47311 | No. 1 front brake pipe | 47311-BZ760 · 47311-BZ770 · 47311-BZ850 · 47311-BZ860 · 47311-BZ890 · 47311-BZA00 |
| 47312 | No. 2 front brake pipe | 47312-BZ780 · 47312-BZ790 · 47312-BZ810 |
| 47313 | No. 3 front brake pipe | 47313-BZ740 · 47313-BZ750 · 47313-BZ790 · 47313-BZ800 · 47313-BZ870 · 47313-BZ880 |
| 47313A | No. 1 front flexible hose | 9004A-94145 · 9004A-94152 · 9004A-94170 |
| 47313J | No. 2 front flexible hose | 9004A-94145 · 9004A-94152 · 9004A-94170 |
| 47314 | No. 4 front brake pipe | 47314-BZ740 · 47314-BZ750 · 47314-BZ770 · 47314-BZ780 |
| 47318F | Right rear flexible hose | 47330-BZ050 · 47330-BZ080 · 47330-BZ081 · 9004A-94151 · 9004A-94153 · 9004A-94172 |
| 47319F | Left rear flexible hose | 47340-BZ050 · 47340-BZ080 · 47340-BZ081 · 9004A-94151 · 9004A-94153 · 9004A-94172 |
| 47322 | No. 2 rear brake pipe | 47322-BZ500 · 47322-BZ510 · 47322-BZ560 · 47322-BZ570 |
| 47324 | No. 4 rear brake pipe | 47324-BZ560 · 47324-BZ570 · 47324-BZ610 · 47324-BZ620 |
| 47325 | No. 5 rear brake pipe | 47325-BZ360 |
| 47326 | No. 6 rear brake pipe | 47326-BZ360 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-BZ280 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-BZ100 |
| 47371A | No. 1 brake pipe clamp | 47371-BZ070 · 47371-BZ160 |
| 47371B | No. 6 brake pipe clamp | 47371-BZ150 |
| 47371C | No. 7 brake pipe clamp | 47372-BZ090 |
| 47371D | No. 8 brake pipe clamp | 47371-BZ190 |
| 47371G | No. 11 brake pipe clamp | 90044-65441 |
| 47371H | No. 12 brake pipe clamp | 90044-65441 |
| 47372 | No. 2 brake pipe clamp | 47372-BZ020 |
| 47373B | No. 3 brake pipe clamp | 47371-BZ140 |
| 47374B | No. 4 brake pipe clamp | 47372-BZ080 |
| 47375 | No. 5 brake pipe clamp | 90949-01D41 |
