Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706

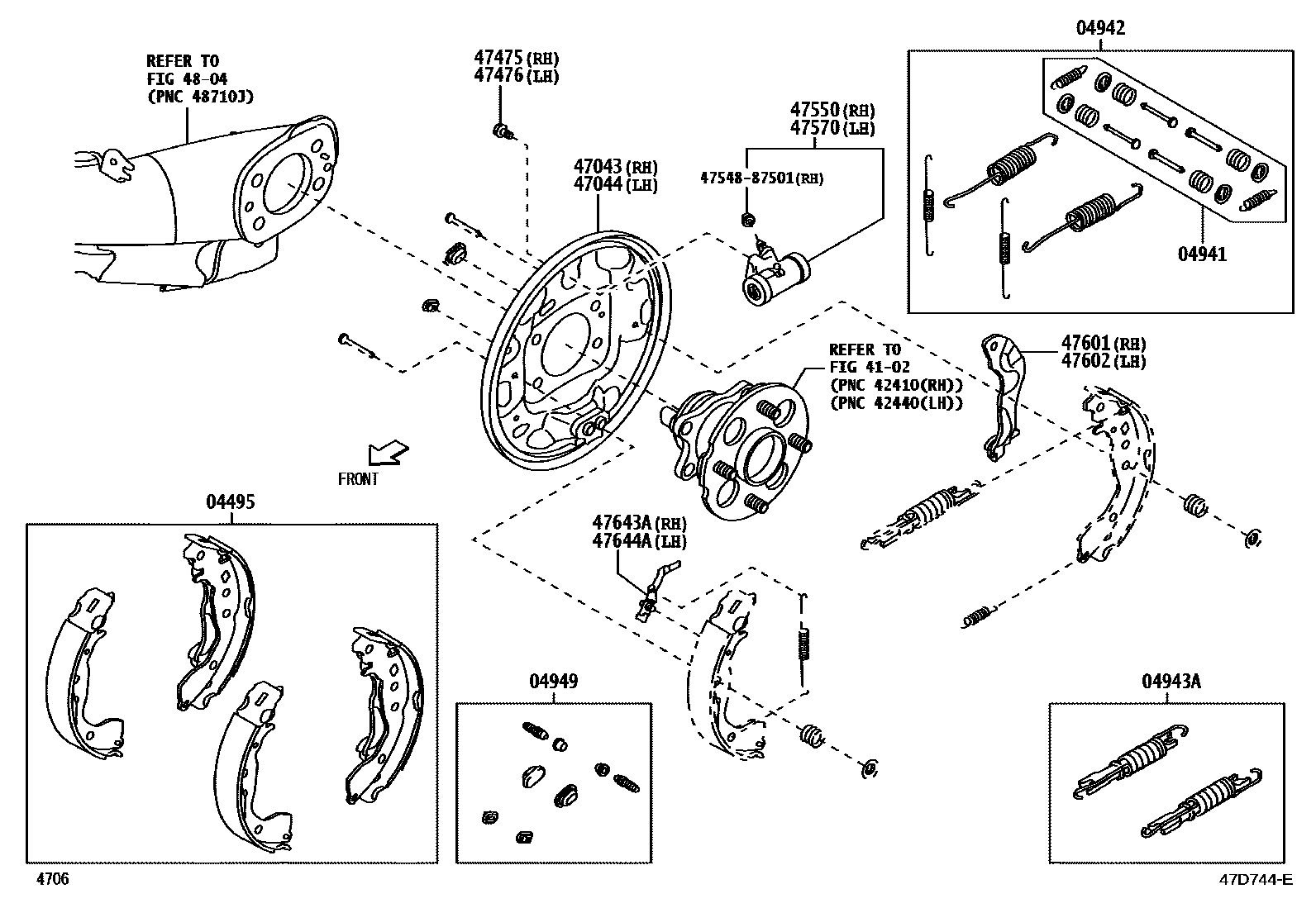

Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-B1320 |
| 04941 | Rear brake shoe limit spring assembly | 04941-B1020 |
| 04942 | Rear brake spring assembly | 04942-B1030 |
| 04943A | Rear brake bracket assembly | 04943-B1020 |
| 04949 | Rear brake plug assembly | 04949-B1020 |
| 47043 | Right rear brake base plate sub-assembly | 47043-BZ180 |
| 47044 | Left rear brake base plate sub-assembly | 47044-BZ190 |
| 47475 | Right rear wheel cylinder adjustment bolt (for rear wheel brake) | 90041-19848 |
| 47476 | Left rear wheel cylinder adjustment bolt (for rear wheel brake) | 90041-19848 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-BZ170 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47570-BZ030 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-B5010 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47612-B5010 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-BZ120 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-BZ110 |
