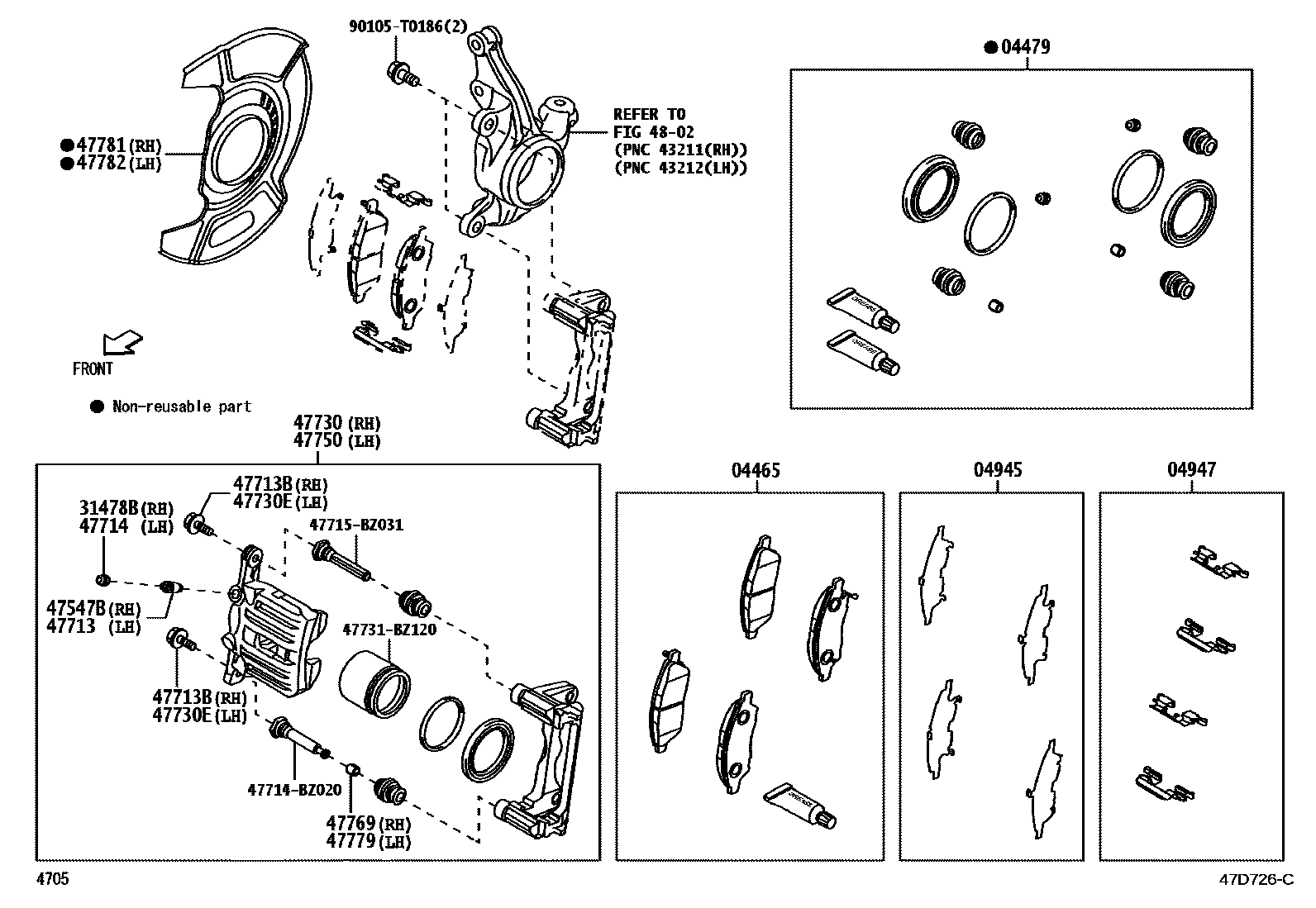

Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-B1420 |
| 04479 | Front disc brake cylinder assembly | 04478-B1180 |
| 04945 | Front silencer gasket assembly | 04945-B1060 |
| 04947 | Front disc brake mounting kit | 04947-B1020 · 04947-B1021 · 04947-B1022 · 04947-B1023 |
| 31478B | Bleeder plug cap (for front disc brake) | 47548-BZ030 |
| 47547B | Bleed plug (for front disc brake) | 47547-BZ030 |
| 47713 | Bleed plug (for front disc brake) | 47547-BZ030 |
| 47713B | Bolt (for front disc brake cylinder) | 47715-BZ040 |
| 47714 | Bleeder plug cap (for front disc brake) | 47548-BZ030 |
| 47730 | Right front disc brake cylinder assembly | 47730-BZ150 |
| 47730E | Bolt (for front disc brake cylinder) | 47715-BZ040 |
| 47750 | Left disc brake cylinder assembly | 47750-BZ160 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-BZ050 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47769-BZ050 |
| 47781 | Right front disc brake dust cover | 47781-BZ190 |
| 47782 | Left front disc brake dust cover | 47782-BZ190 |
