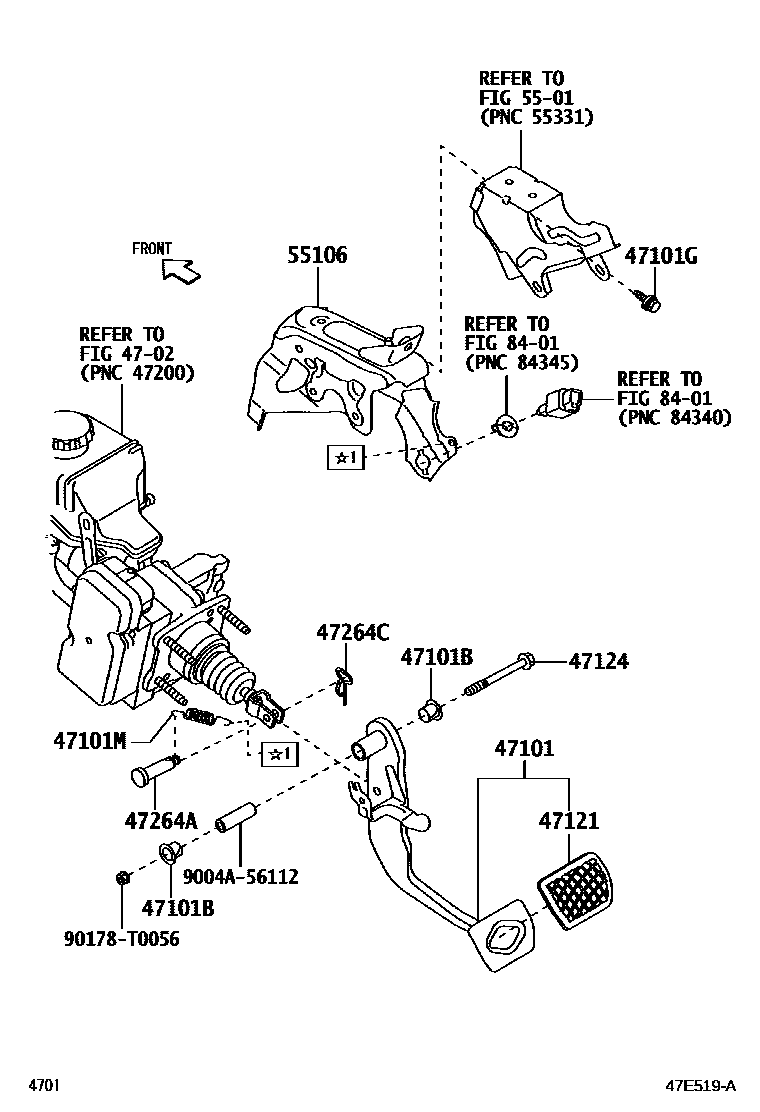

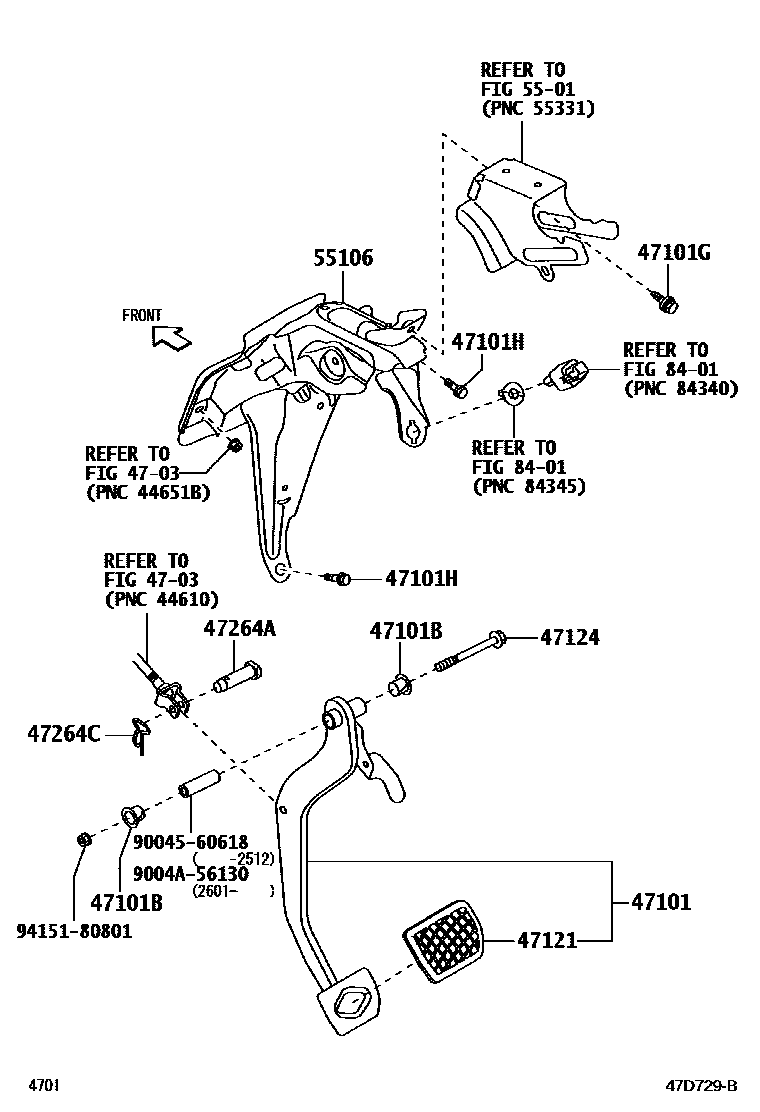

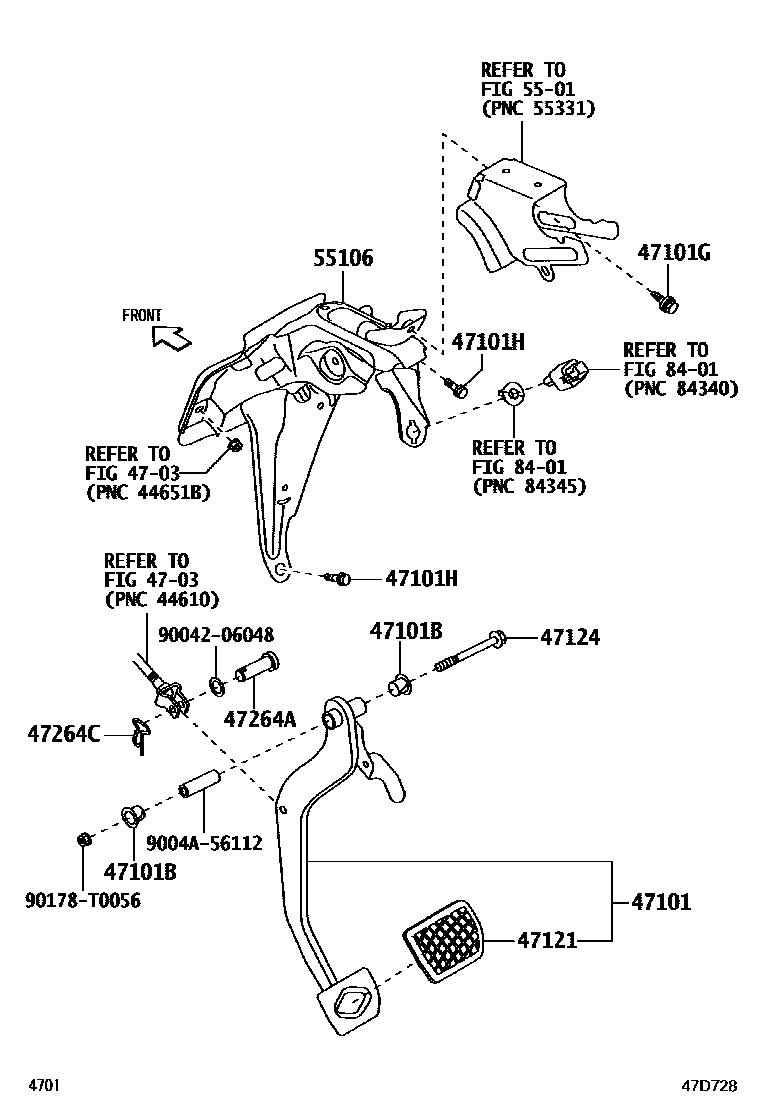

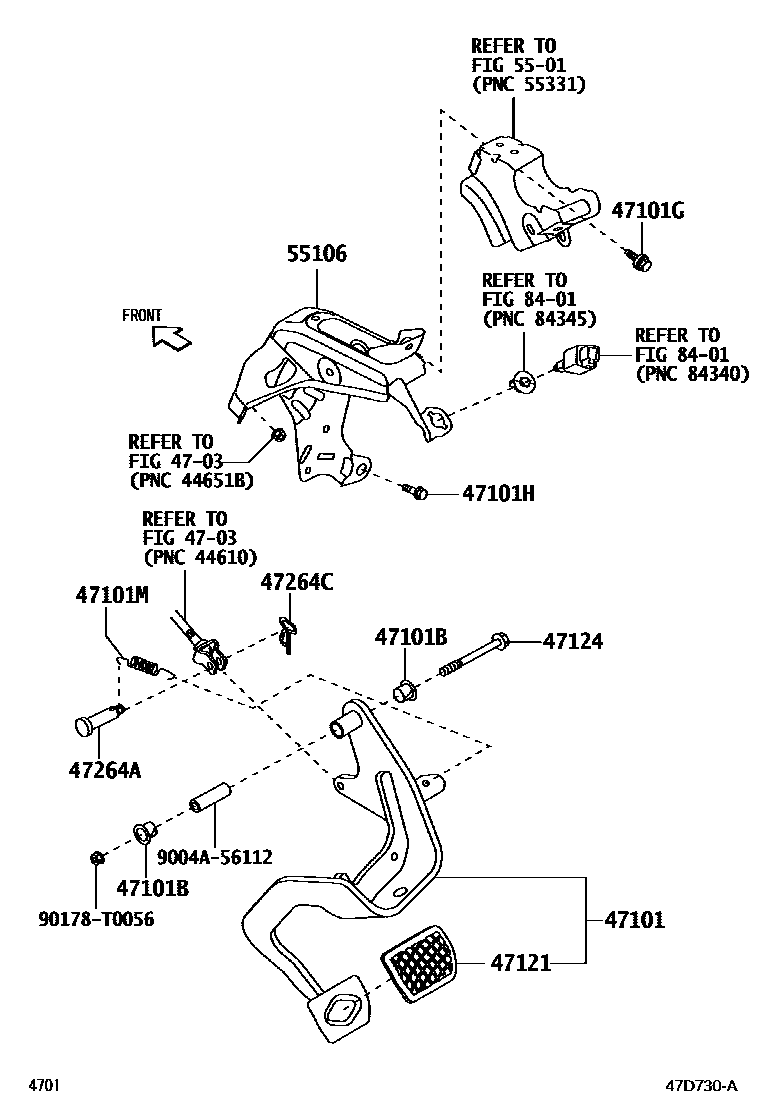

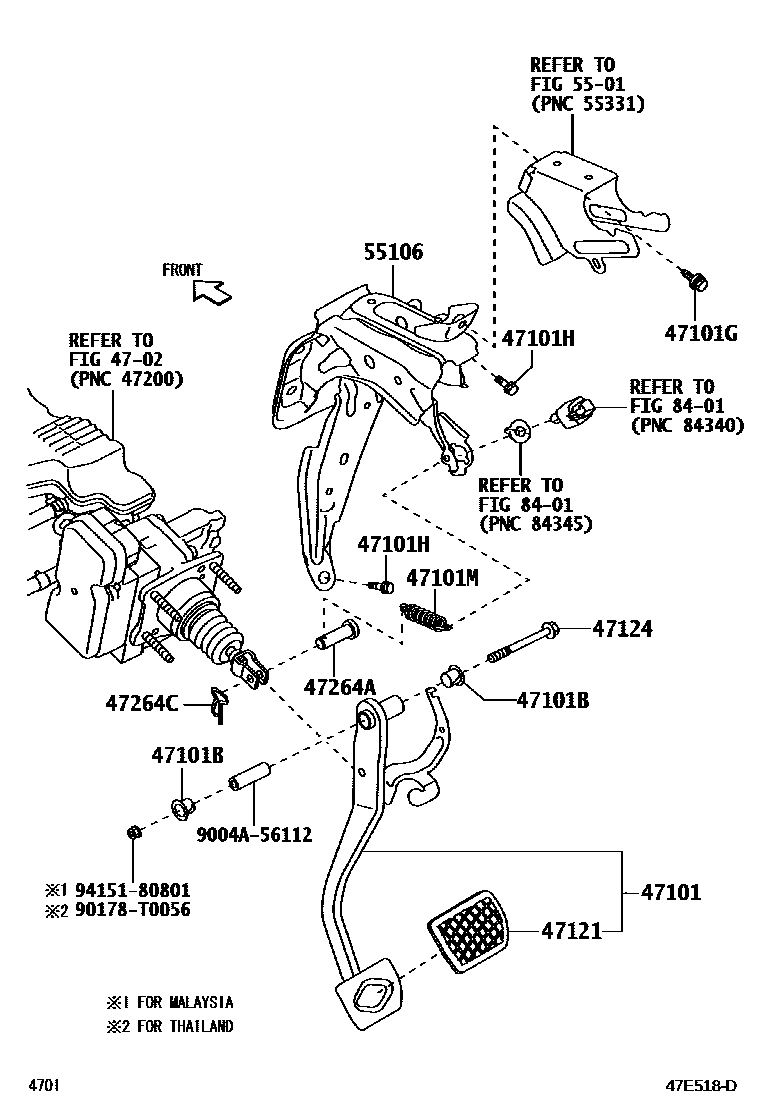

Toyota YARIS Brake Pedal & Bracket — Figure 4701
Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47110-BZ630 · 47110-BZ640 · 47110-BZ650 · 47110-BZ660 · 47110-BZ760 · 47110-BZ770 · 47110-BZ790 |
| 47101B | Bushing (for brake pedal) | 90043-86137 · 9004A-38094 |
| 47101G | Brake pedal limit bolt No. 1 | 90119-T0320 |
| 47101H | Brake pedal limit bolt No. 2 | 90041-19990 |
| 47101M | Tension spring | 90506-T0015 |
| 47121 | brake pedal pad | 47121-BZ060 · 47121-BZ070 · 47121-BZ080 · 47121-BZ081 |
| 47124 | brake pedal shaft | 90041-05626 |
| 47264A | Pin (for push rod) | 90042-40151 · 90042-40154 · 90249-08051 |
| 47264C | Clip (for push rod clevis pin) | 90044-68076 |
| 55106 | Brake pedal bracket sub-assembly | 55106-BZ570 · 55106-BZ580 · 55106-BZ660 · 55106-BZ670 |
