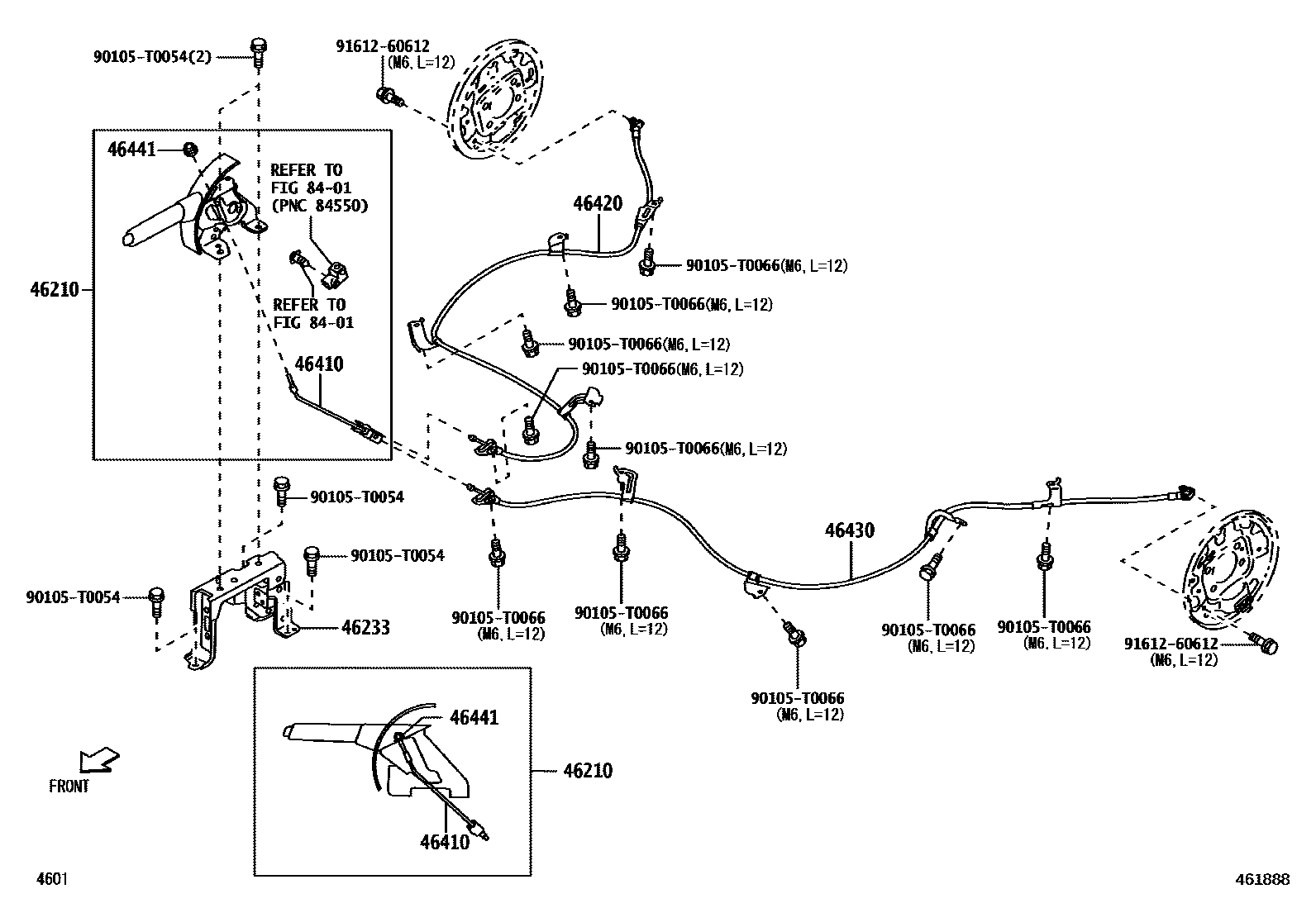

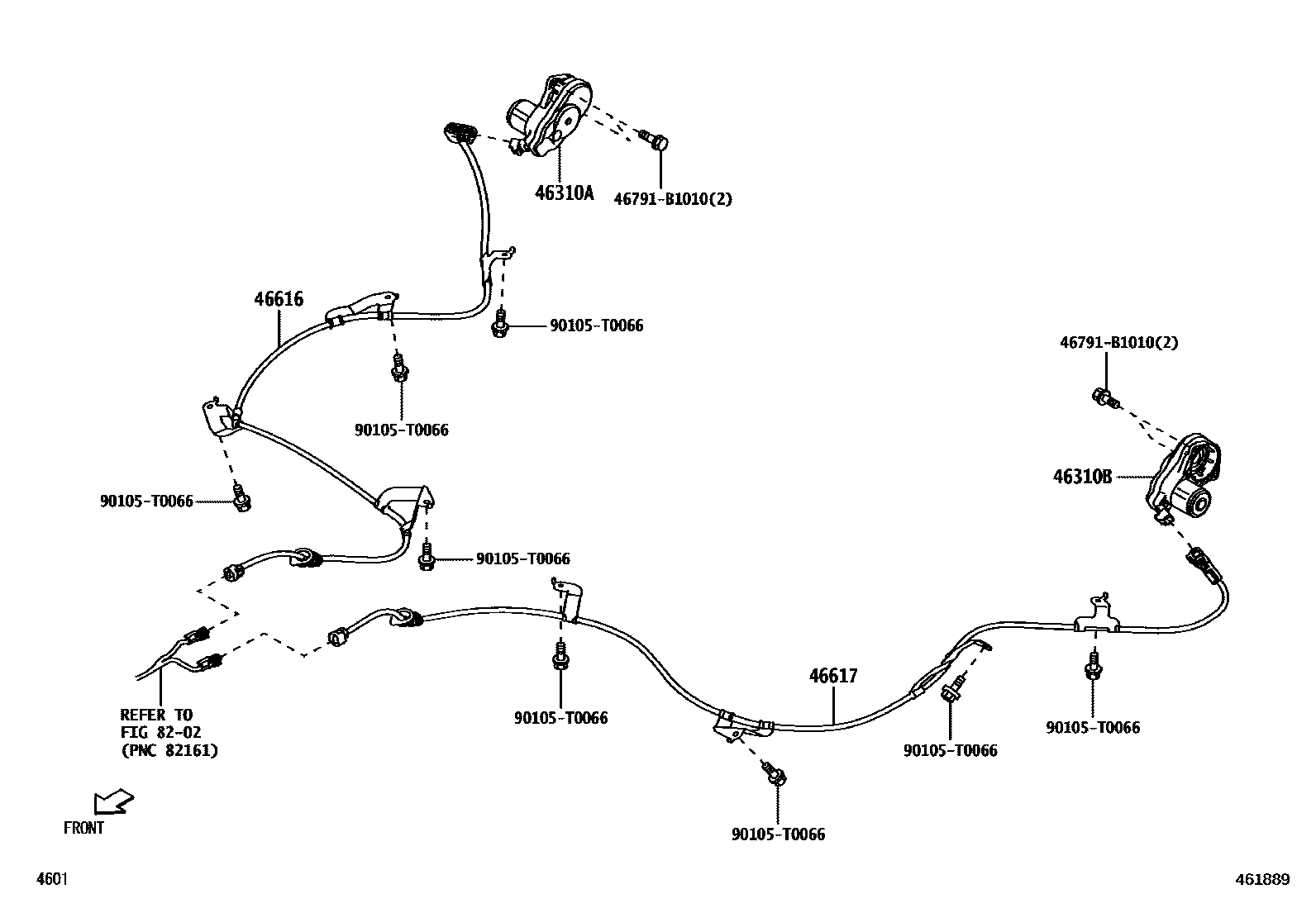

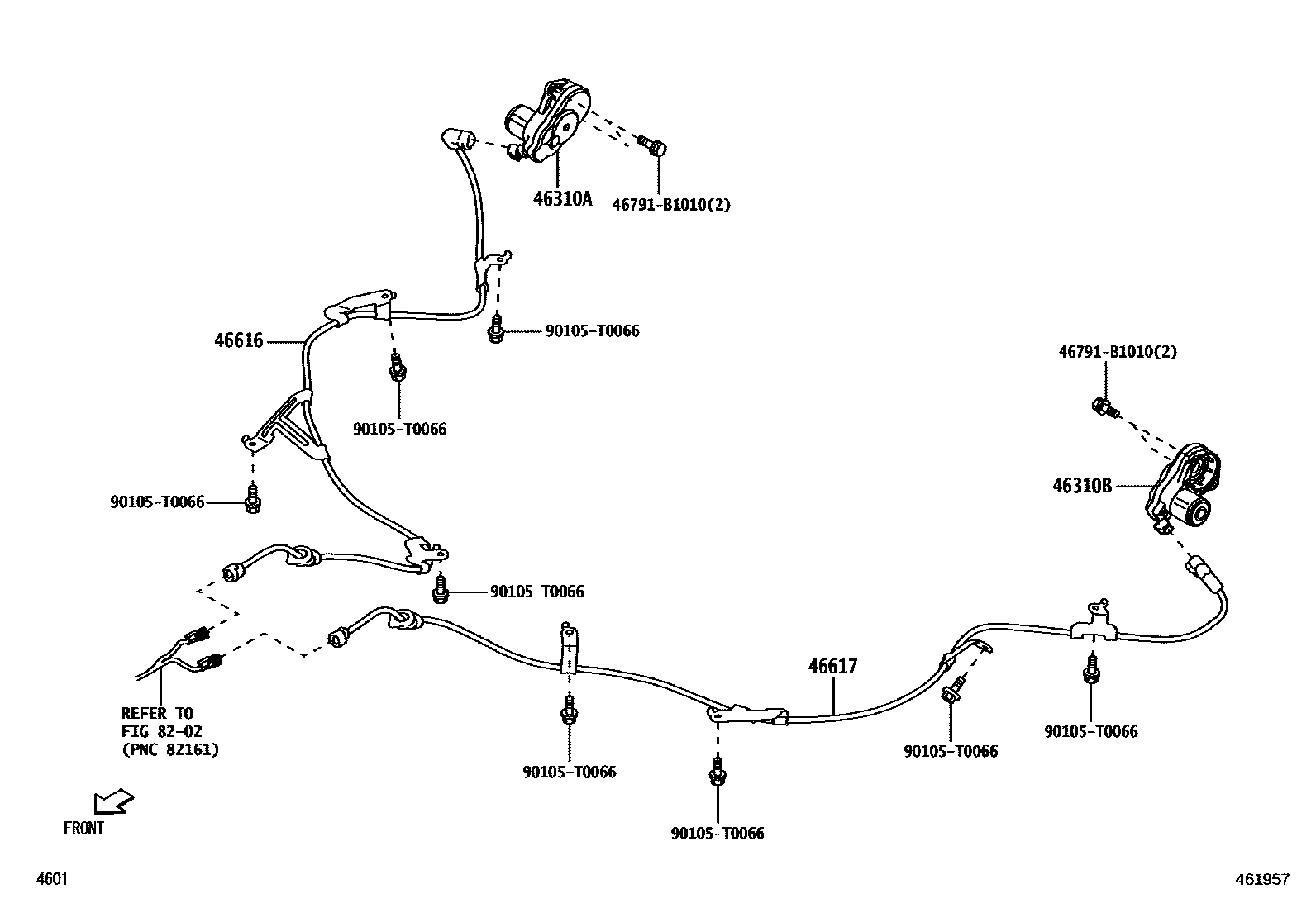

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46233 | Parking brake center bracket | 46233-BZ070 |
| 46310A | Right parking brake actuator assembly | 46310-B1030 |
| 46310B | Left parking brake actuator assembly | 46310-B1030 |
| 46410 | Parking brake cable assembly No. 1 | 46410-BZ020 |
| 46420 | Parking brake No. 2 cable assembly | 46420-BZ410 |
| 46430 | Parking brake No. 3 cable assembly | 46430-BZ410 |
| 46441 | No. 1 cable adjustment nut | 90177-06001 |
| 46616 | Right parking brake cable | 890C0-BZ050 · 890C0-BZ070 |
| 46617 | left parking brake cable | 890C0-BZ060 · 890C0-BZ080 |
