Toyota YARIS Steering Column & Shaft — Figure 4501

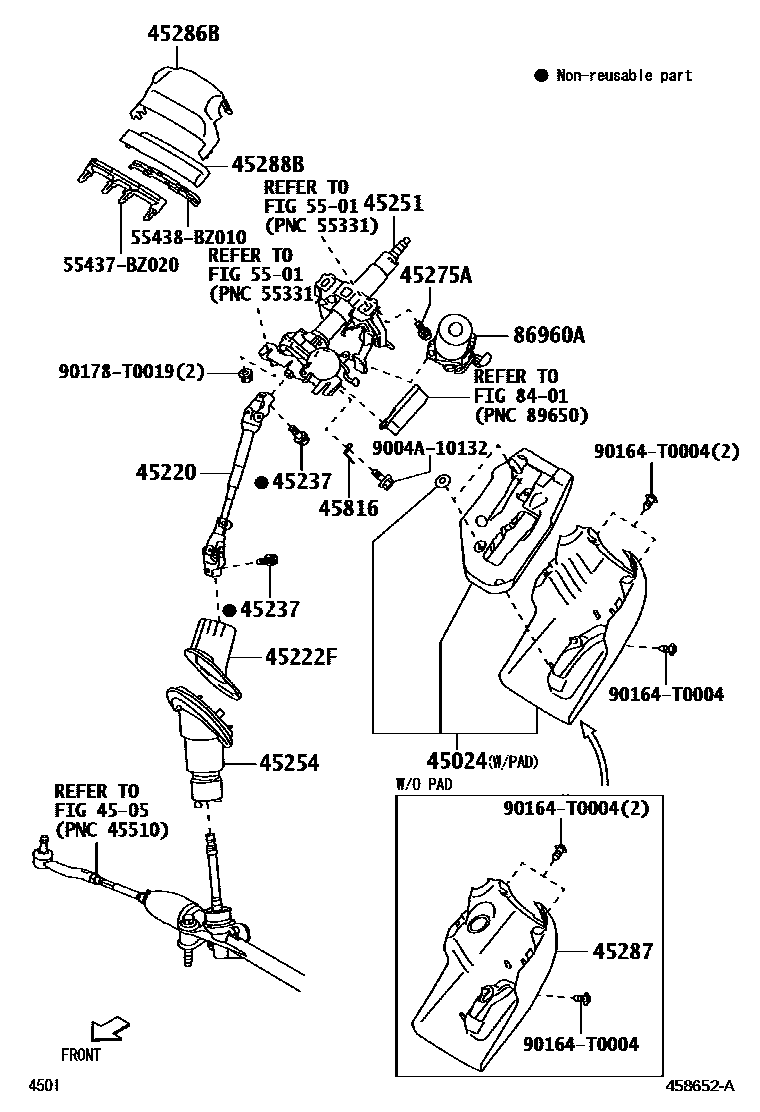

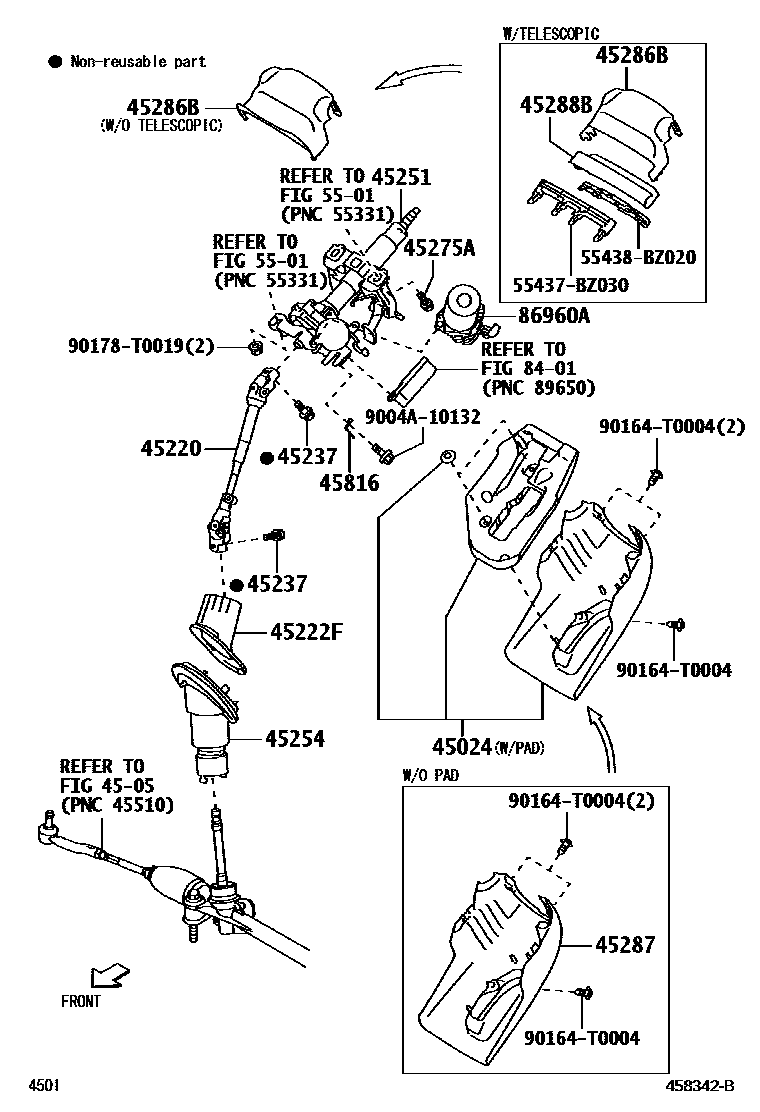

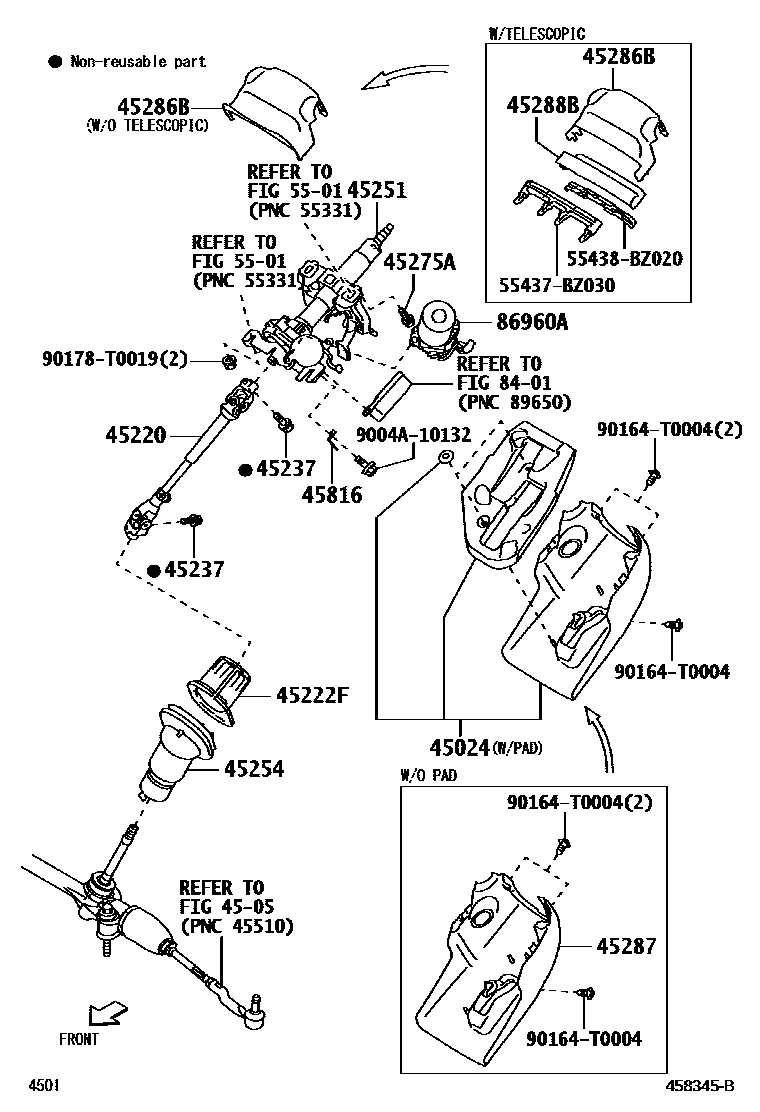

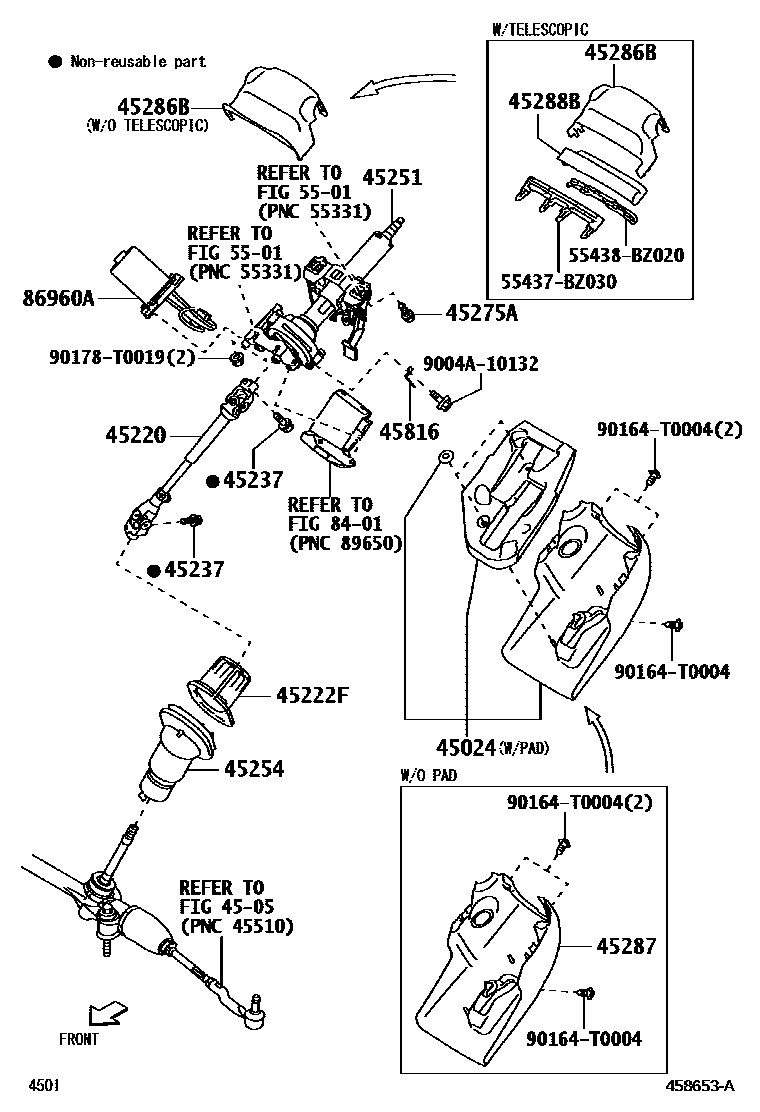

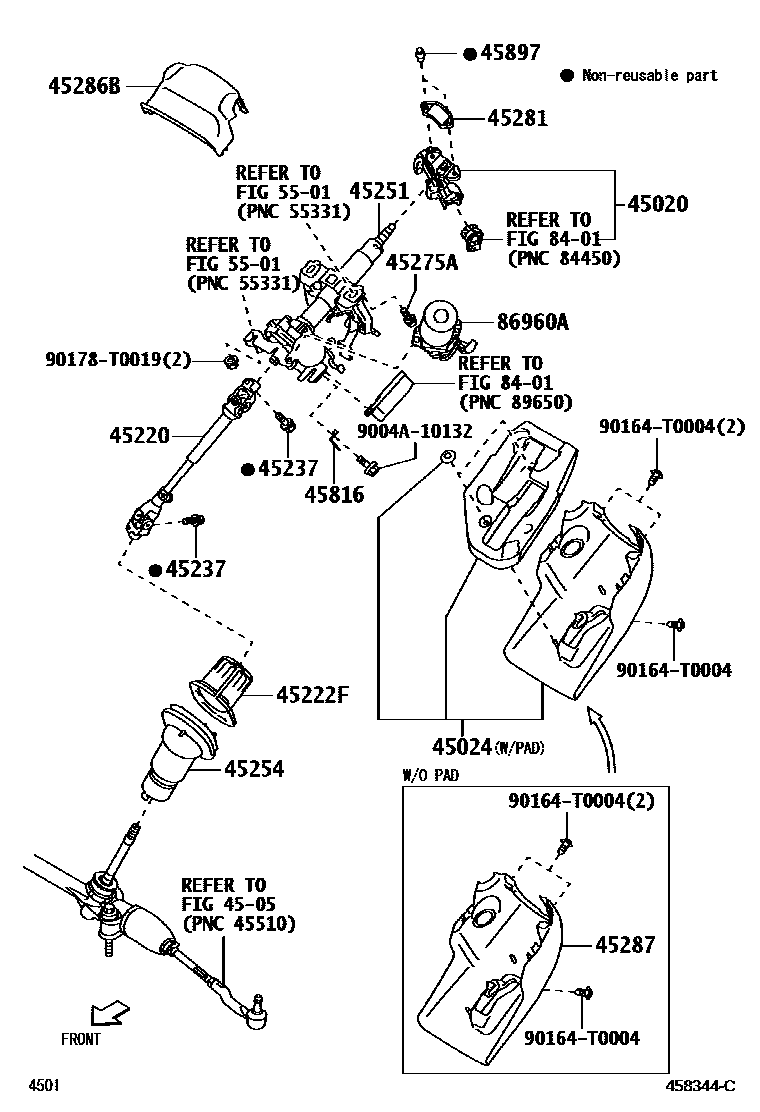

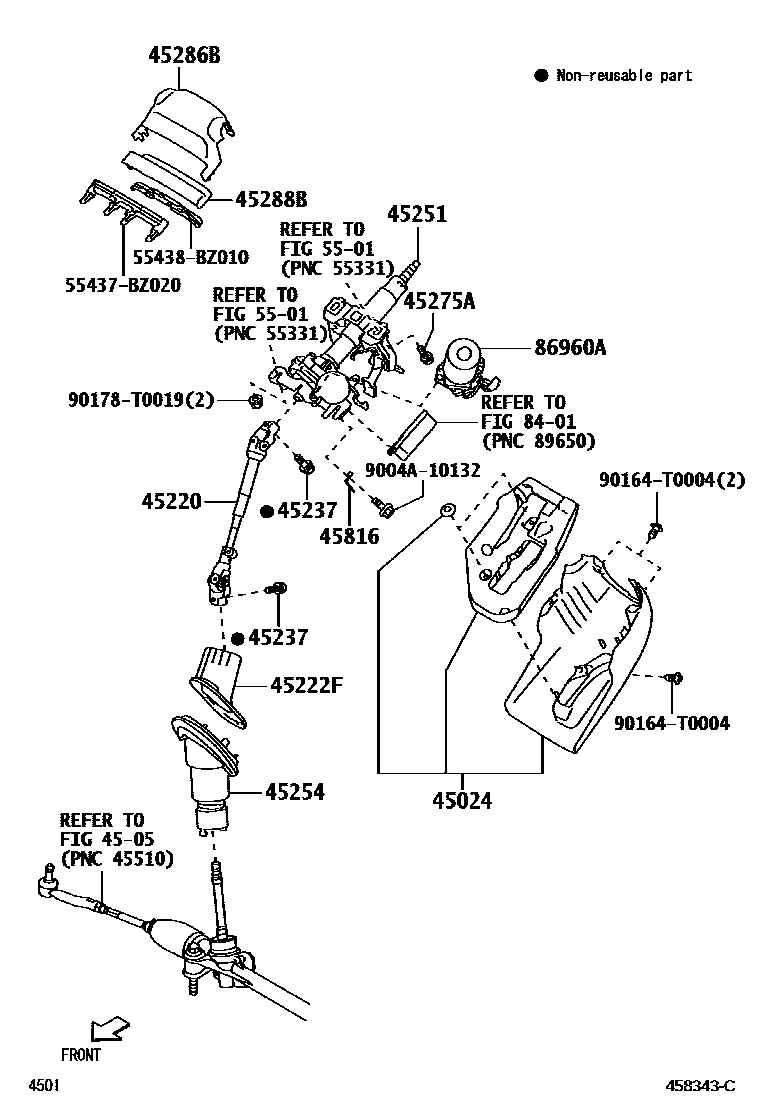

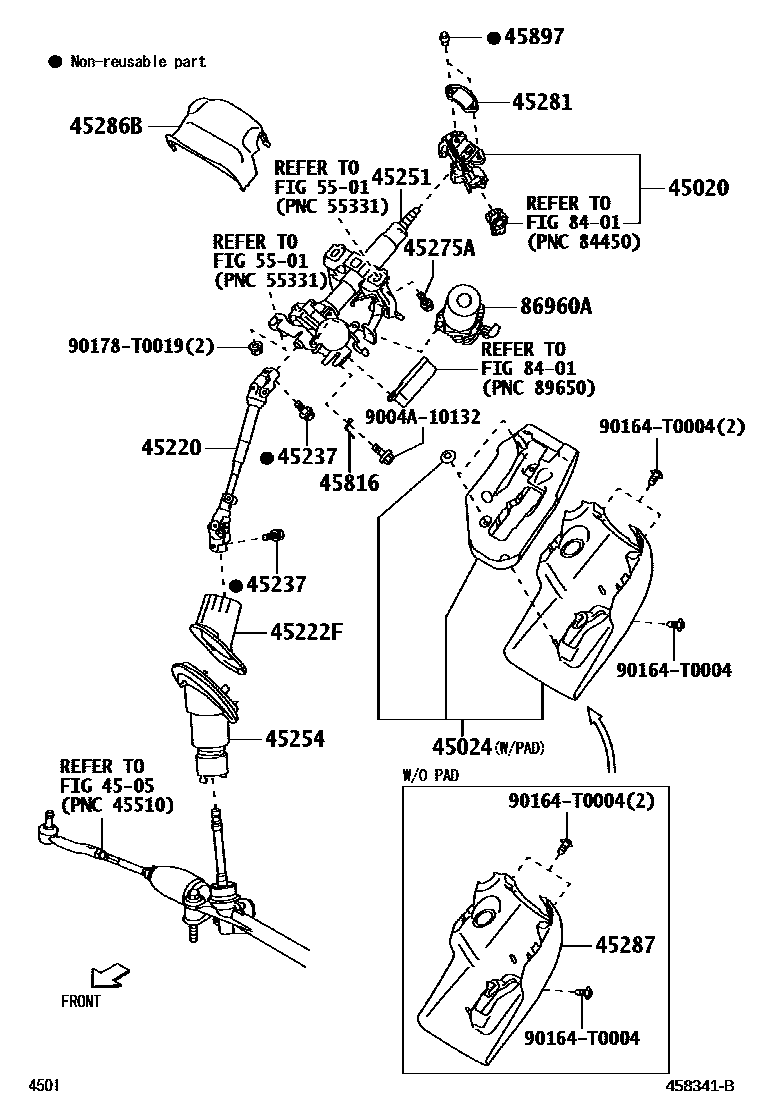

Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 7 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-BZ400 · 45020-BZ410 |
| 45220 | Steering intermediate shaft assembly | 45220-BZ520 · 45220-BZ521 · 45220-BZ530 · 45220-BZ531 · 45220-BZ600 · 45220-BZ601 |
| 45222F | dust cover | 45222-BZ240 · 45222-BZ250 |
| 45237 | Flexible fixing bolt (for steering spindle) | 90119-T0168 |
| 45251 | Steering column tube assembly | 45251-B9350 · 45251-B9360 · 45251-B9370 · 45251-B9380 · 45251-B9390 · 45251-B9440 · 45251-B9590 · 45251-B9600 |
| 45254 | steering column escutcheon | 45254-BZ330 · 45254-BZ340 |
| 45275A | Hexagonal bolt (for steering column bracket) | 9004A-11391 |
| 45281 | Steering column housing | 45281-BZ160 |
| 45288B | Steering column upper cover | 45288-BZ100 · 45288-BZ110 |
| 45816 | Wire harness bracket | 82715-BZE80 · 82715-BZR20 |
| 45897 | Steering lock fixing bolt | 45897-B2010 |
| 86960A | Power steering motor assembly | 80960-B9220 · 80960-B9260 |
