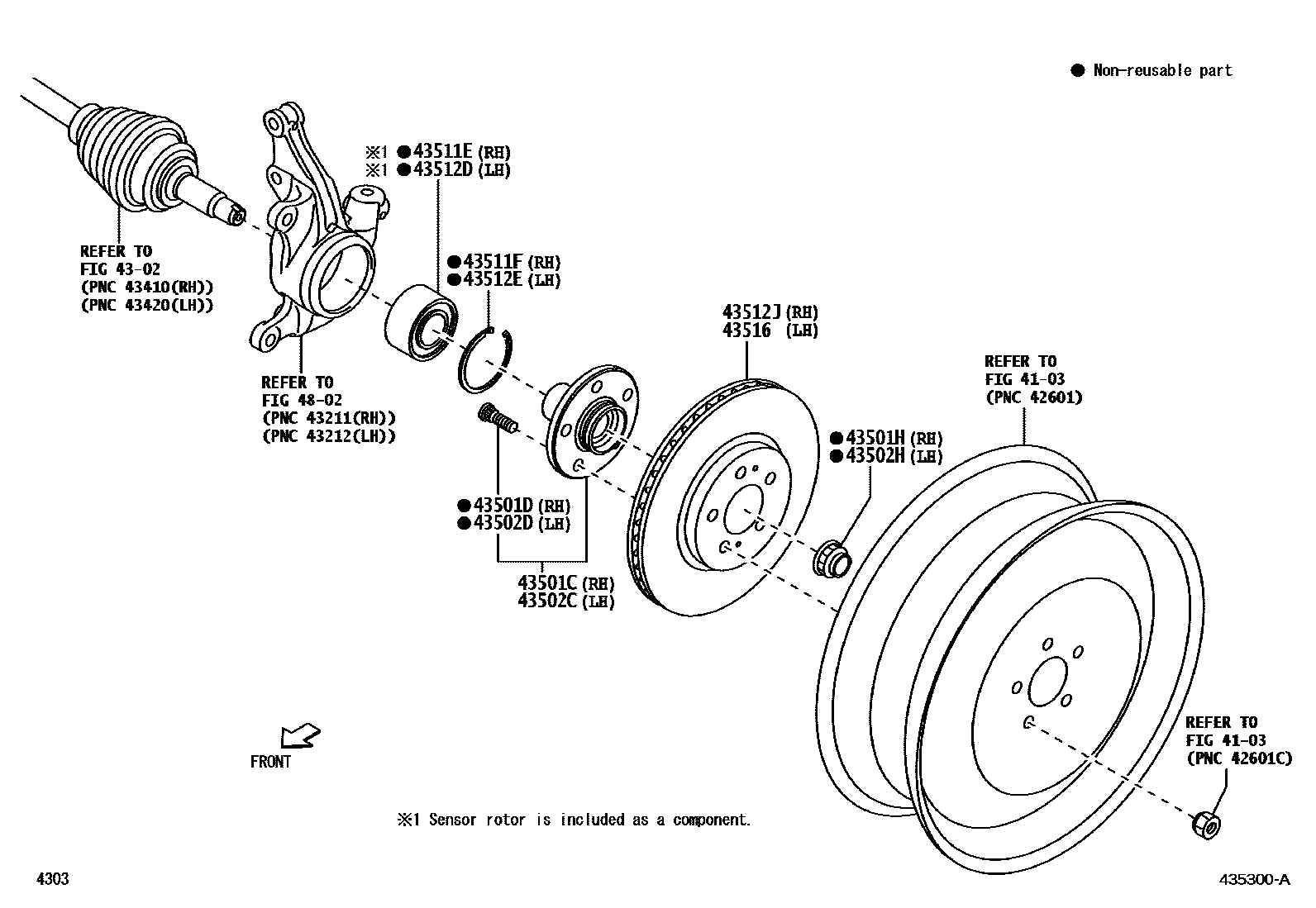

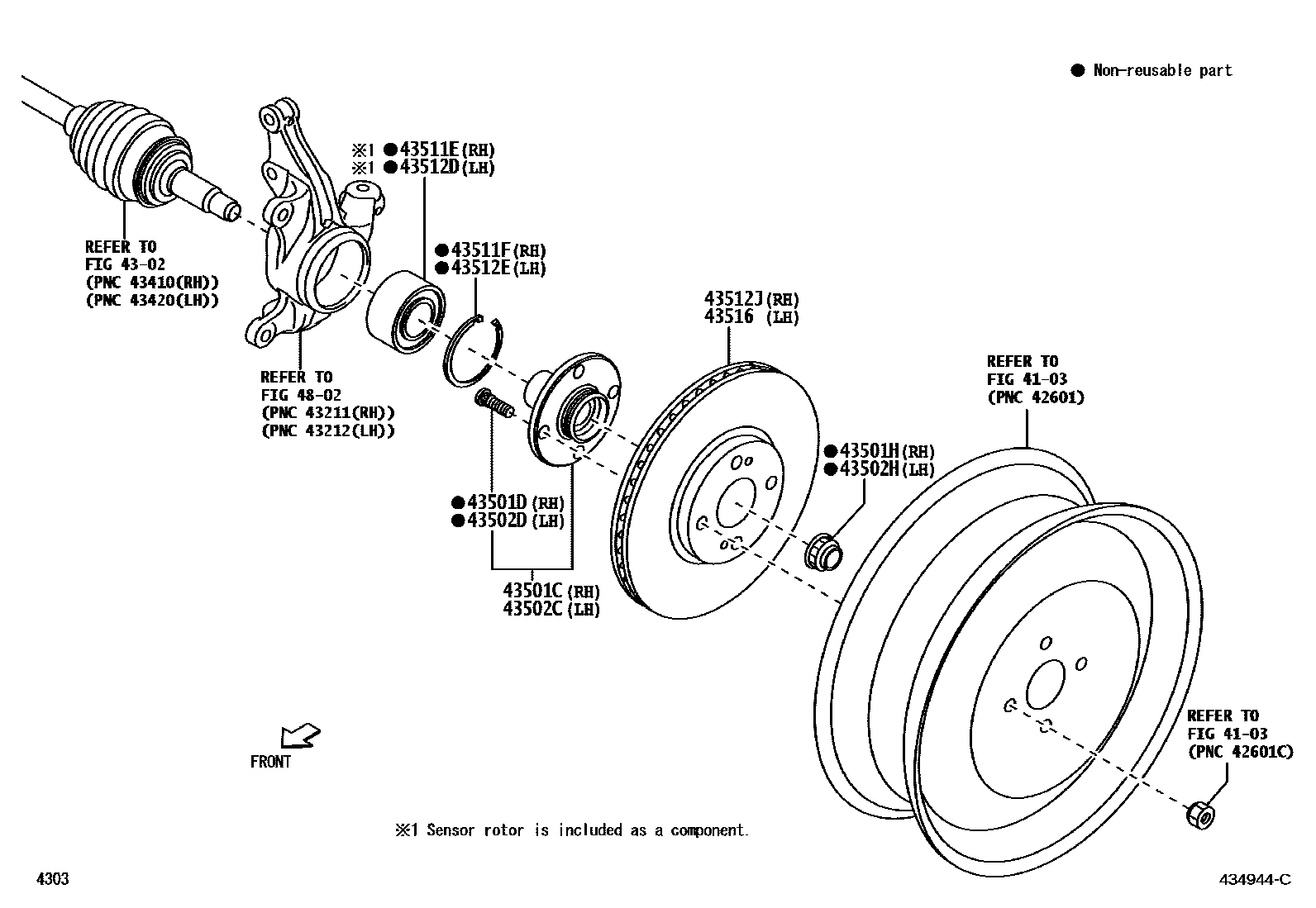

Toyota YARIS Front Axle Hub — Figure 4303
Toyota YARIS EPC diagram 4303, Front Axle Hub, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43501C | Right front axle hub sub-assembly | 43502-BZ250 · 43502-BZ270 |
| 43501D | Hub bolt (for right front axle) | 90049-12056 |
| 43501H | Nut (for front axle right half shaft) | 90177-22001 · 90177-T0017 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-BZ250 · 43502-BZ270 |
| 43502D | Hub bolt (for left front axle) | 90049-12056 |
| 43502H | Nut (for front axle left half shaft) | 90177-22001 · 90177-T0017 |
| 43511E | Bearing (for right front axle hub) | 43560-BZ100 |
| 43511F | Hole snap ring (for right front axle hub) | 90045-21188 |
| 43512D | Bearing (for left front axle hub) | 43560-BZ100 |
| 43512E | Hole snap ring (for left front axle hub) | 90045-21188 |
| 43512J | Right front brake disc | 43512-BZ390 · 43512-BZ430 |
| 43516 | Left front brake disc | 43512-BZ390 · 43512-BZ430 |
