Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 11 images and 16 PNC and OE references.

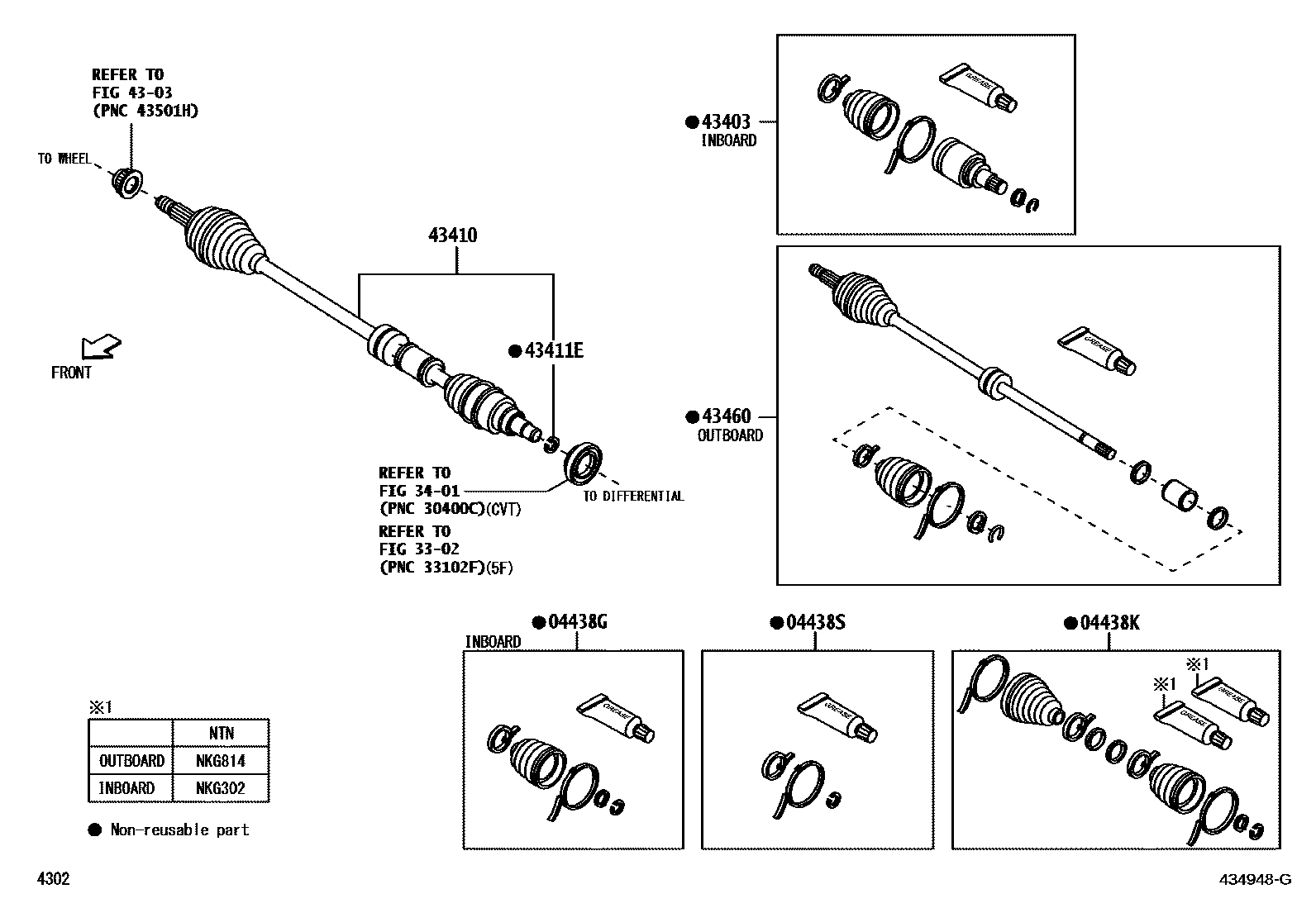

Toyota YARIS Front Drive Shaft EPC diagram — 434948G
Front Drive Shaft — 434948G (202208 – 999999)

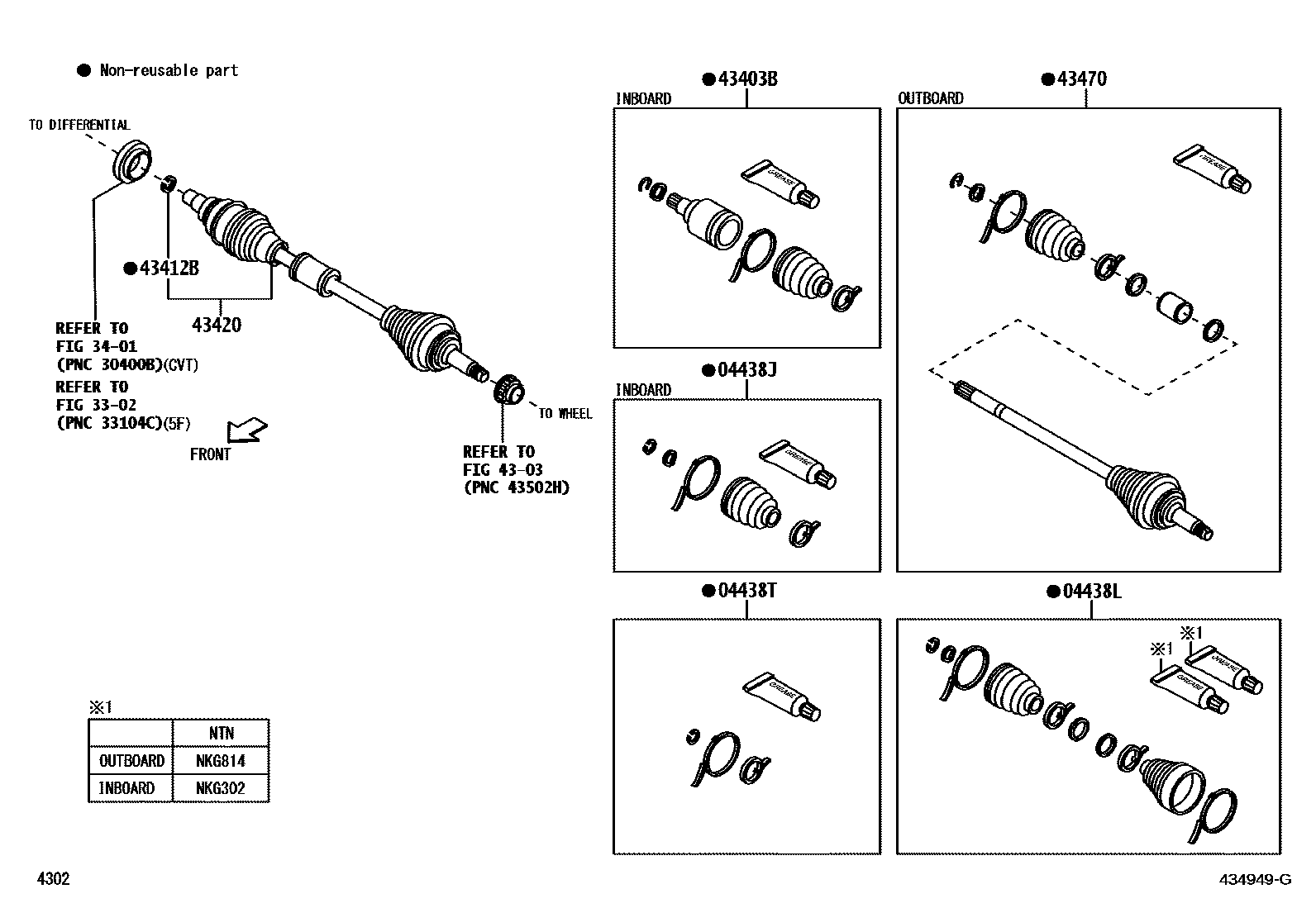

Toyota YARIS Front Drive Shaft EPC diagram — 434949G
Front Drive Shaft — 434949G (202208 – 999999)

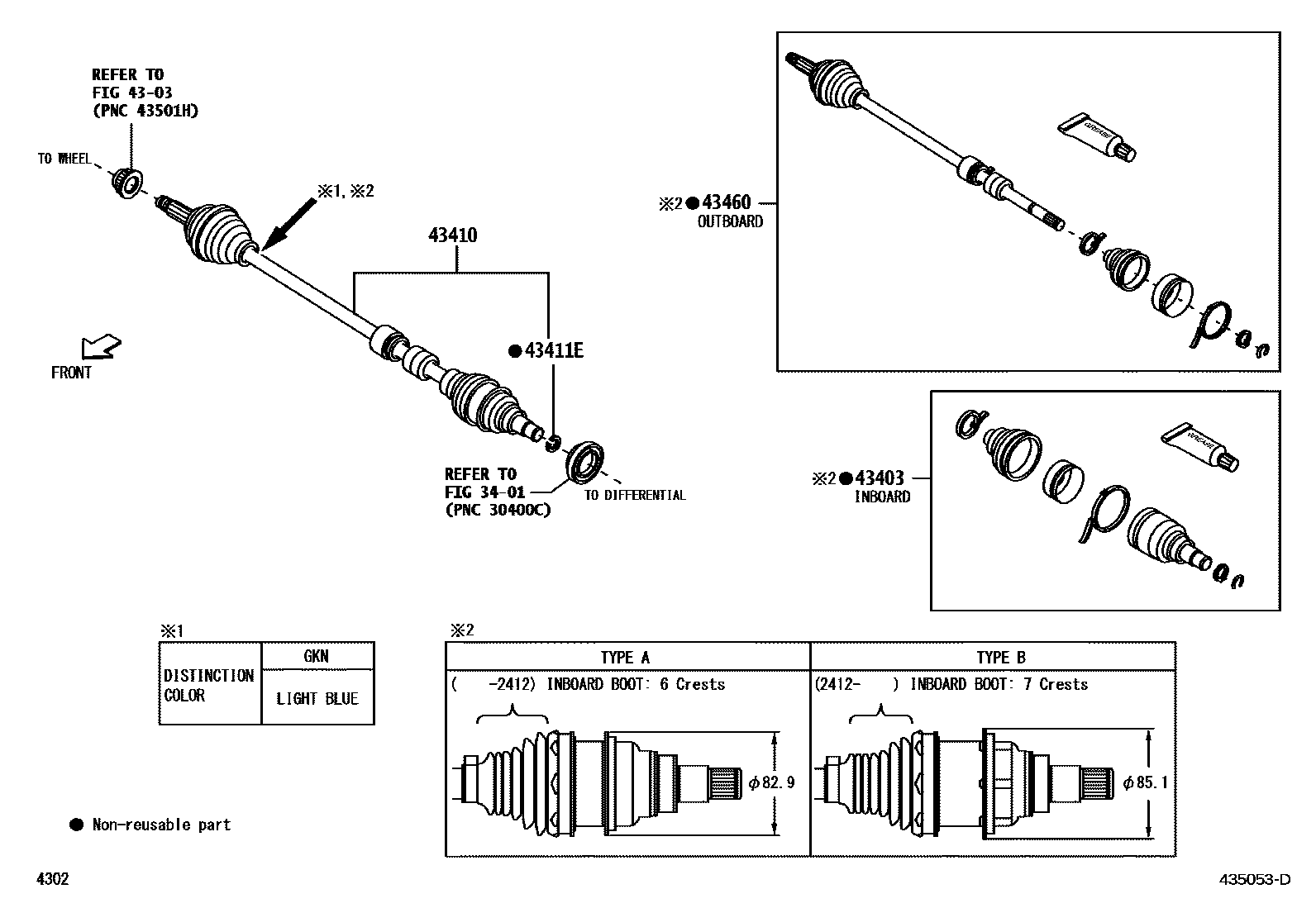

Toyota YARIS Front Drive Shaft EPC diagram — 435053D
Front Drive Shaft — 435053D (202303 – 999999)

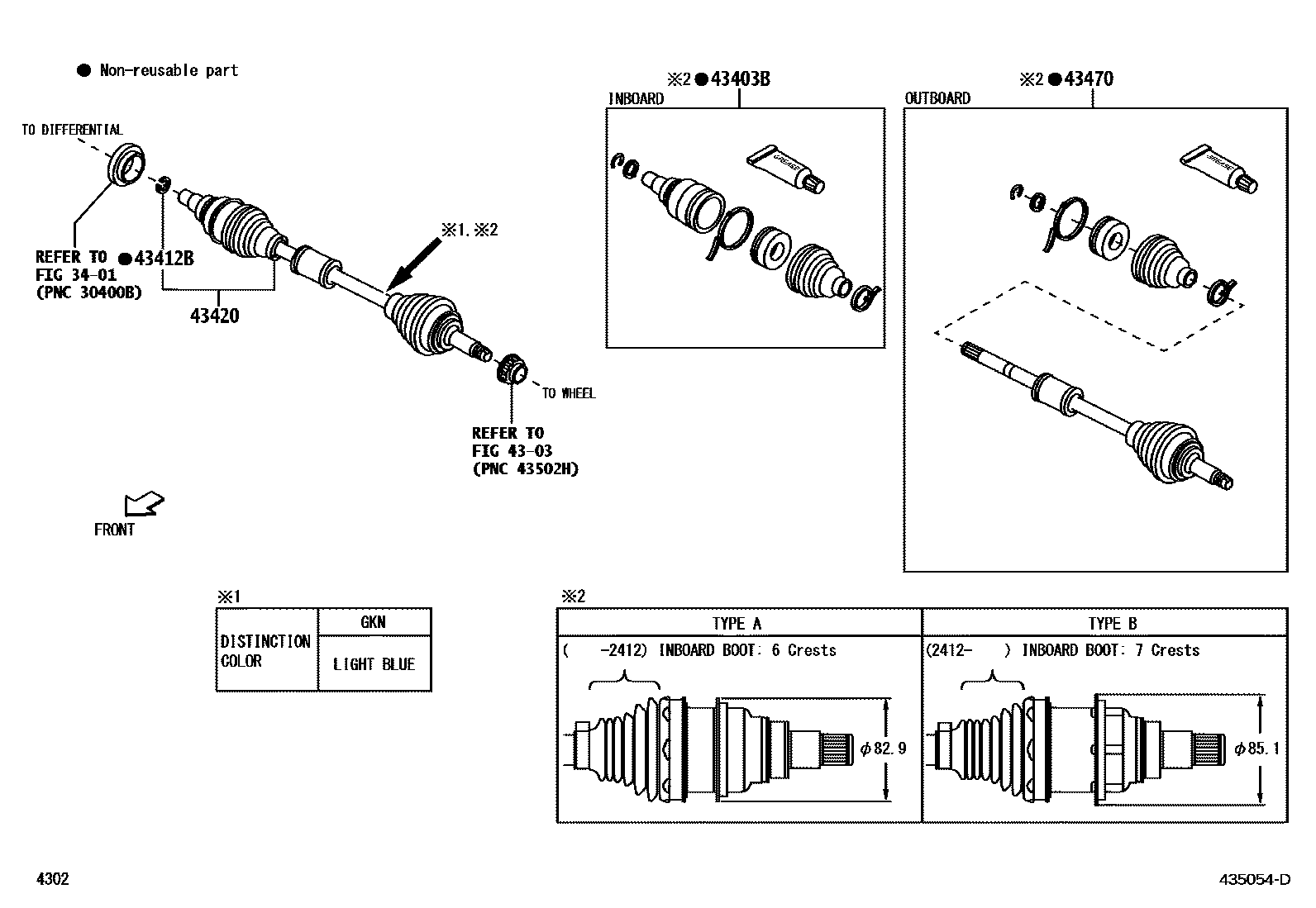

Toyota YARIS Front Drive Shaft EPC diagram — 435054D
Front Drive Shaft — 435054D (202303 – 999999)

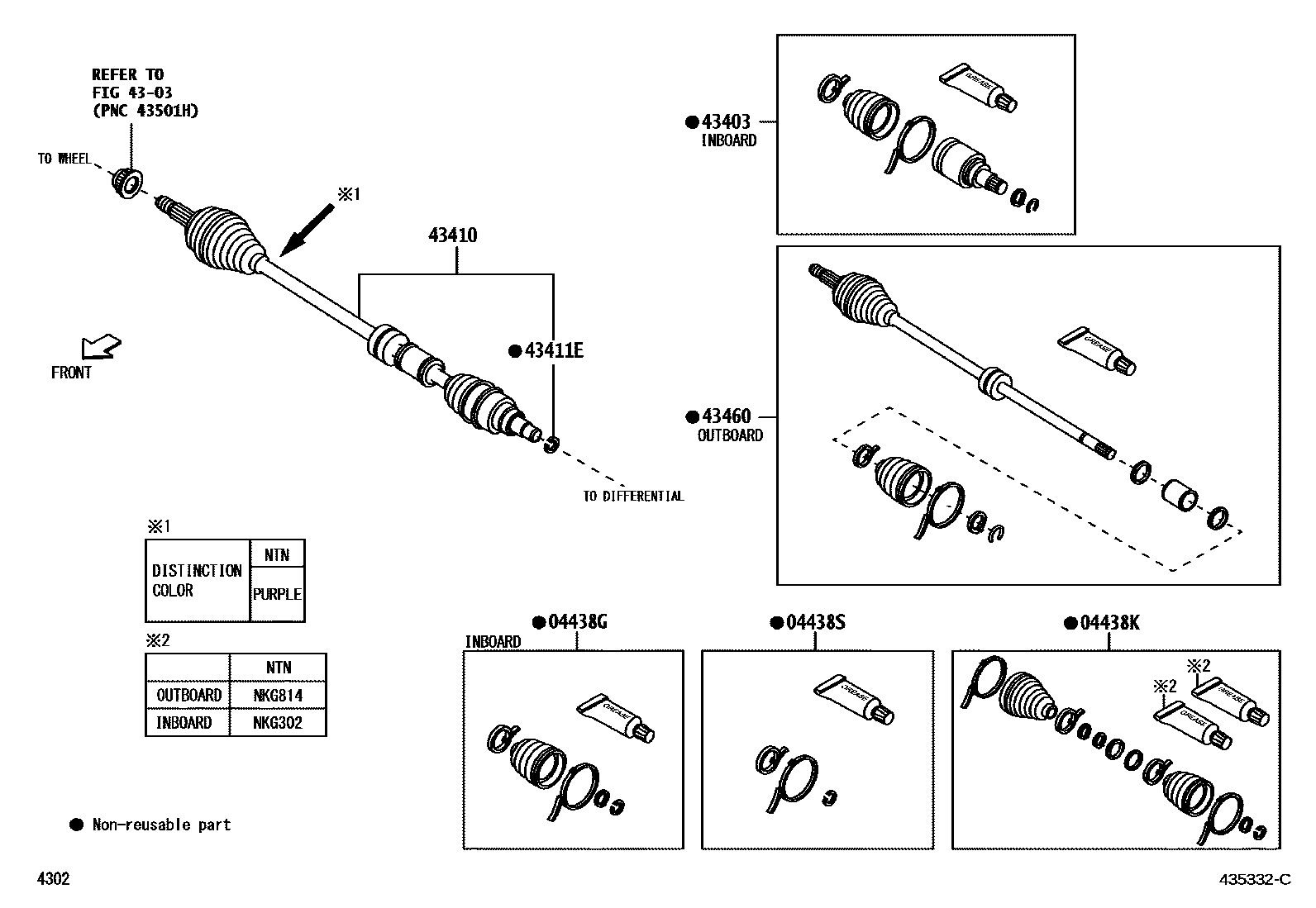

Toyota YARIS Front Drive Shaft EPC diagram — 435332C
Front Drive Shaft — 435332C (202508 – 999999)

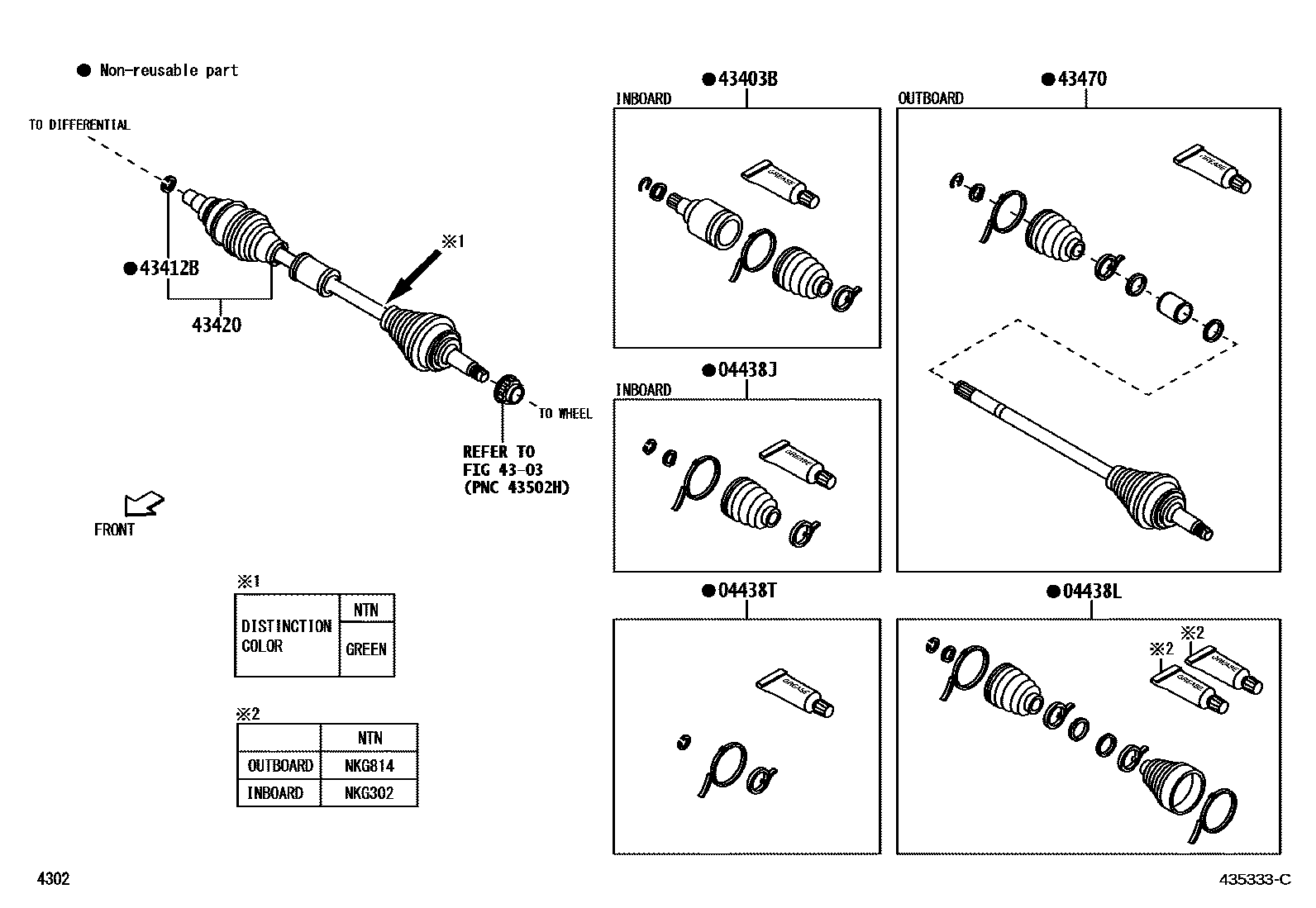

Toyota YARIS Front Drive Shaft EPC diagram — 435333C
Front Drive Shaft — 435333C (202508 – 999999)

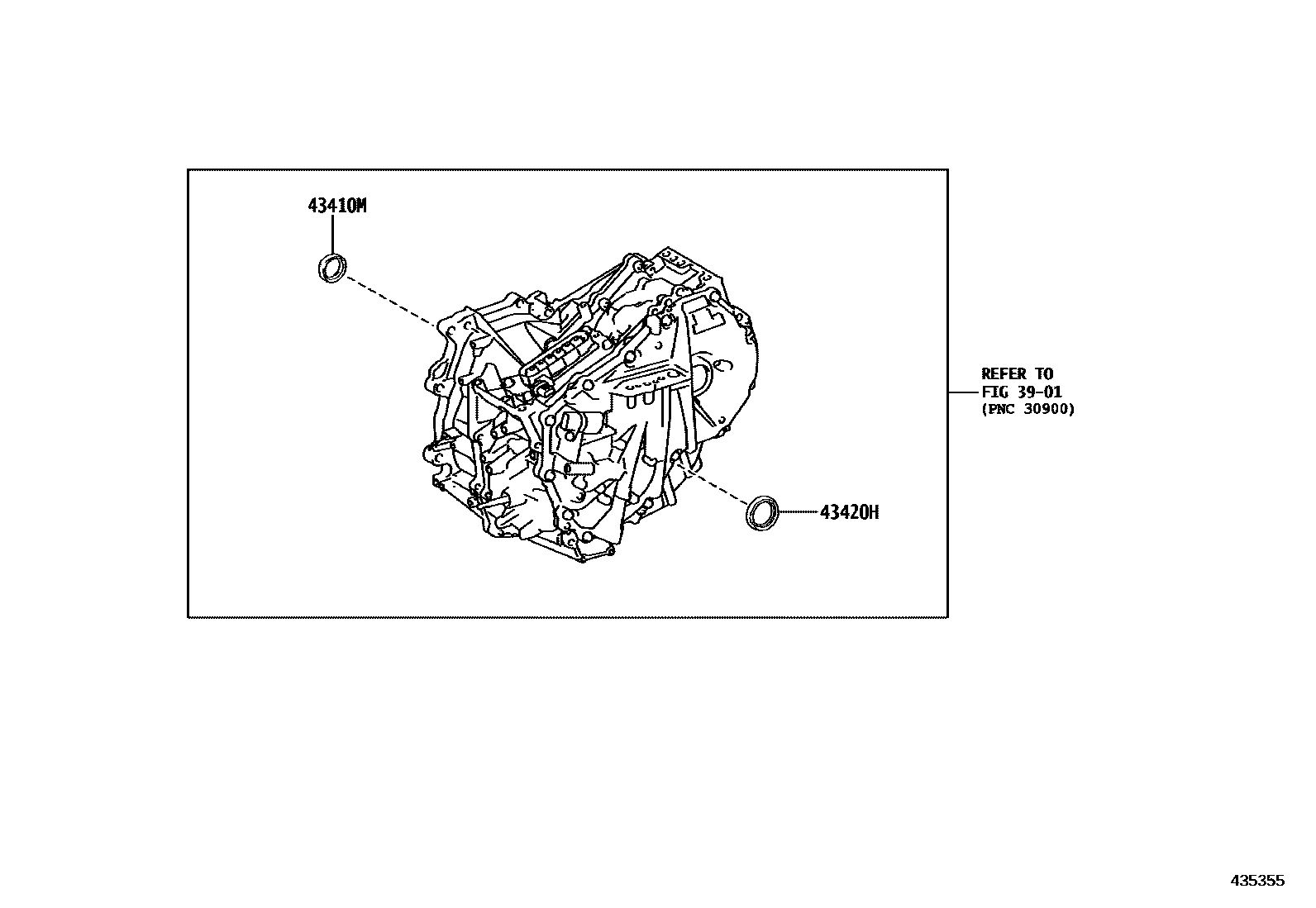

Toyota YARIS Front Drive Shaft EPC diagram — 435355
Front Drive Shaft — 435355 (202508 – 999999)

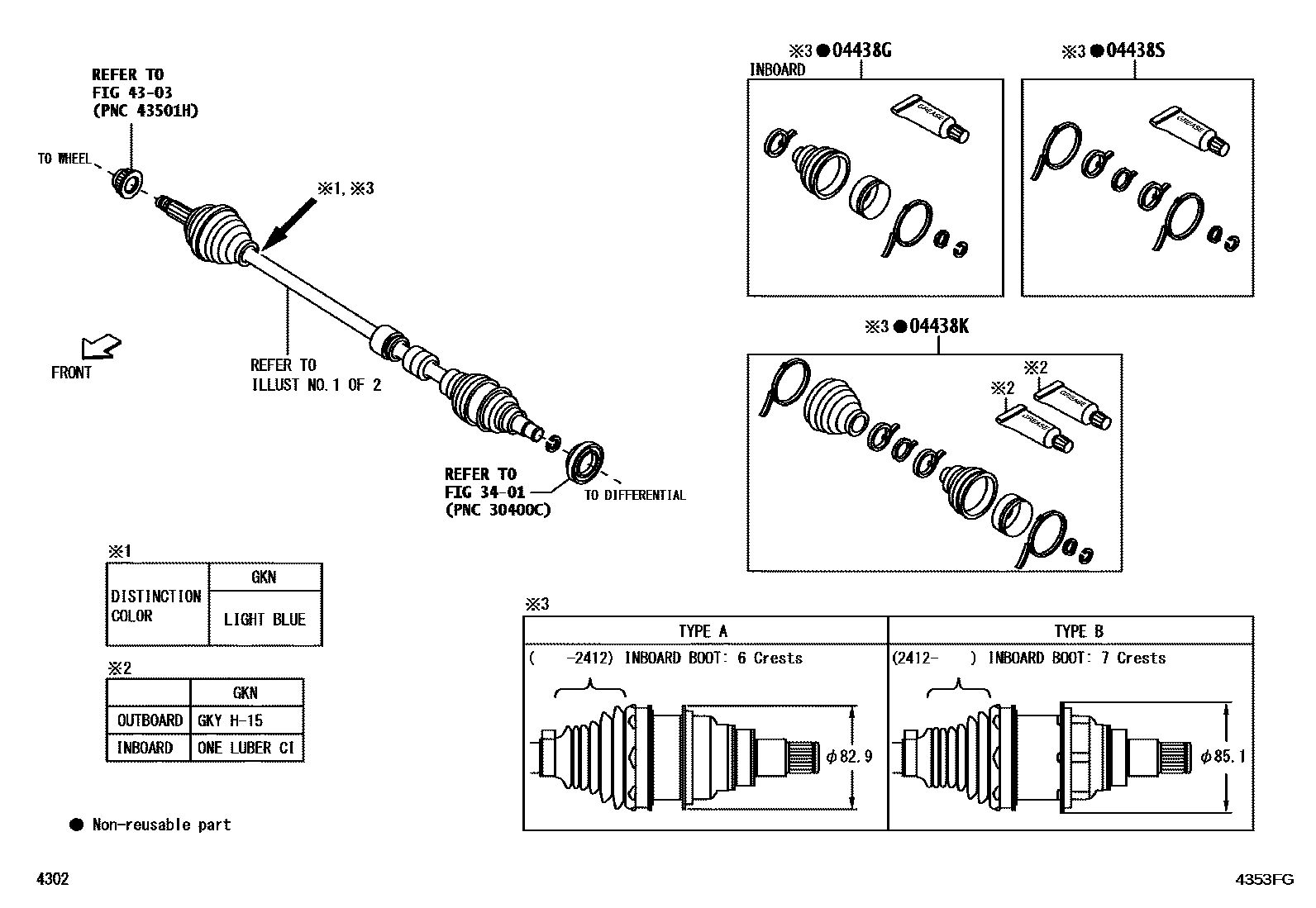

Toyota YARIS Front Drive Shaft EPC diagram — 4353FG
Front Drive Shaft — 4353FG (202303 – 999999)

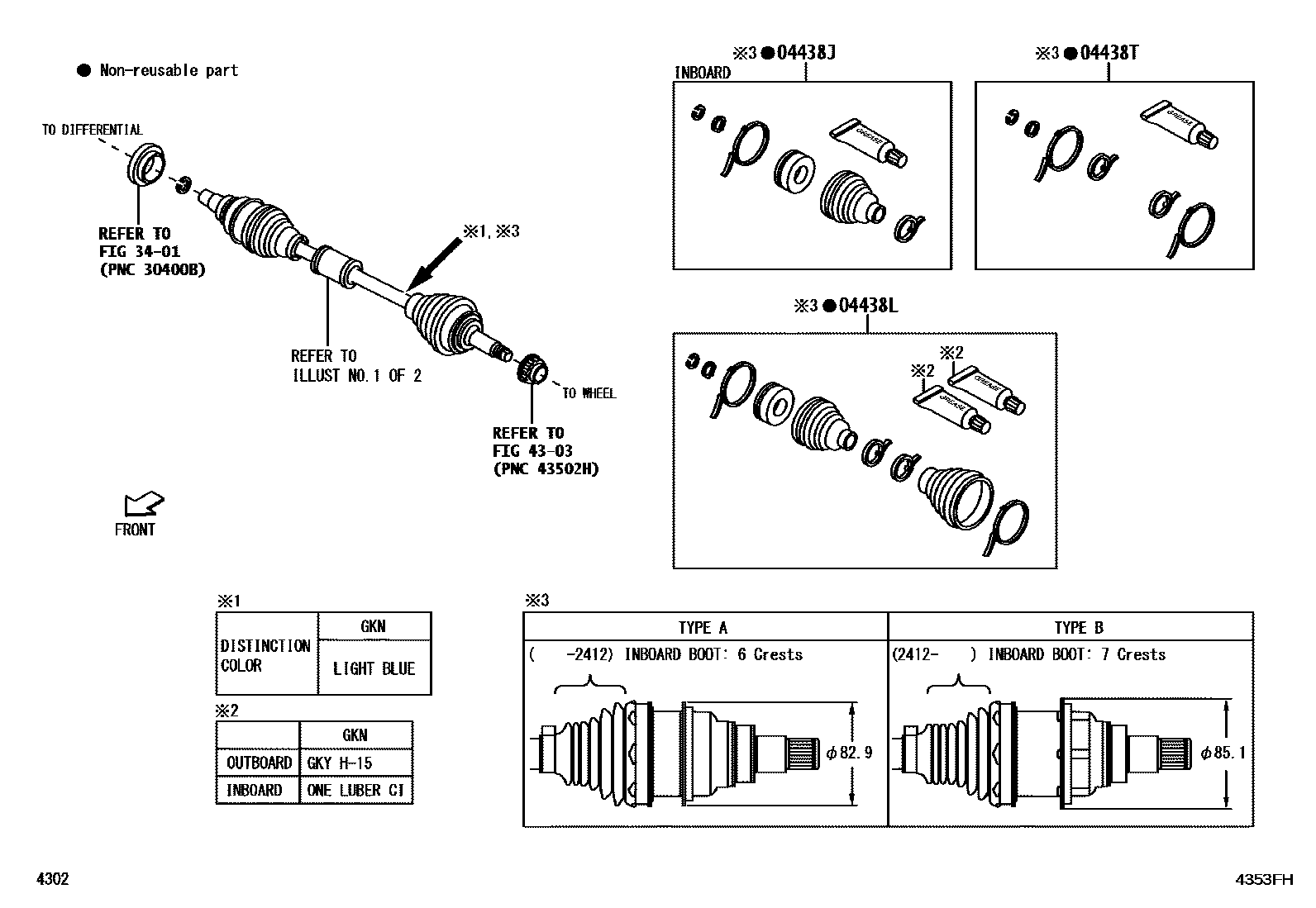

Toyota YARIS Front Drive Shaft EPC diagram — 4353FH
Front Drive Shaft — 4353FH (202303 – 999999)

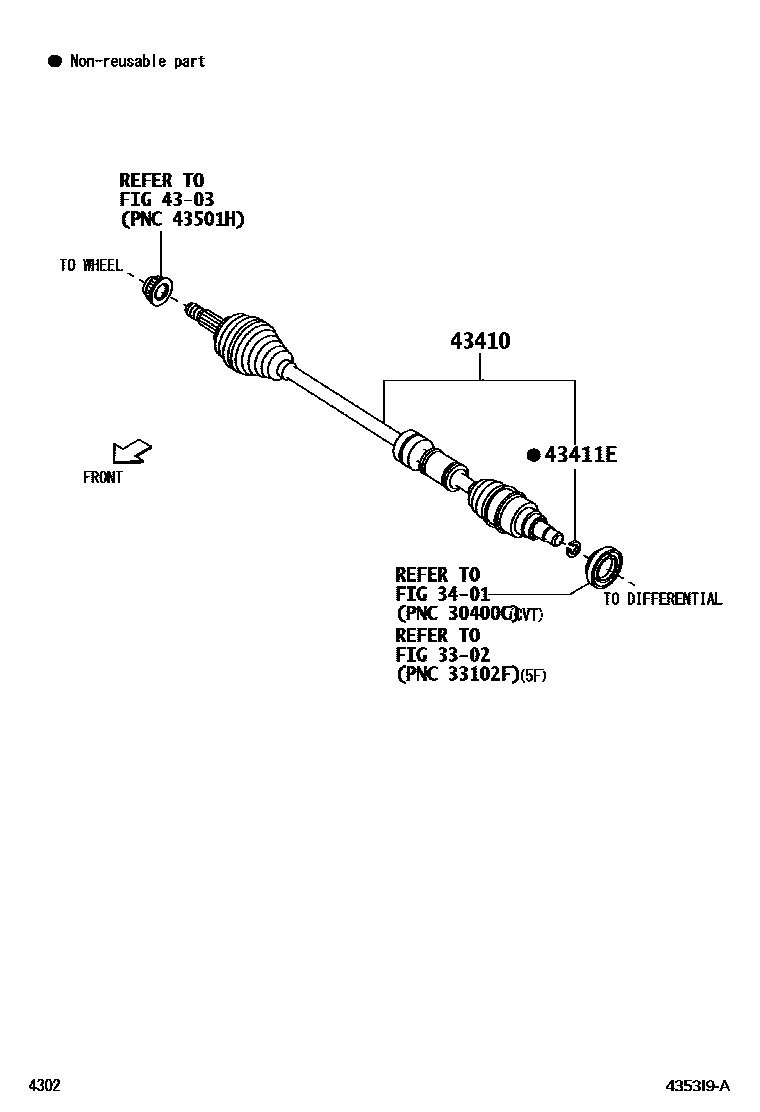

Toyota YARIS Front Drive Shaft EPC diagram — 4353I9A
Front Drive Shaft — 4353I9A (202208 – 202409)

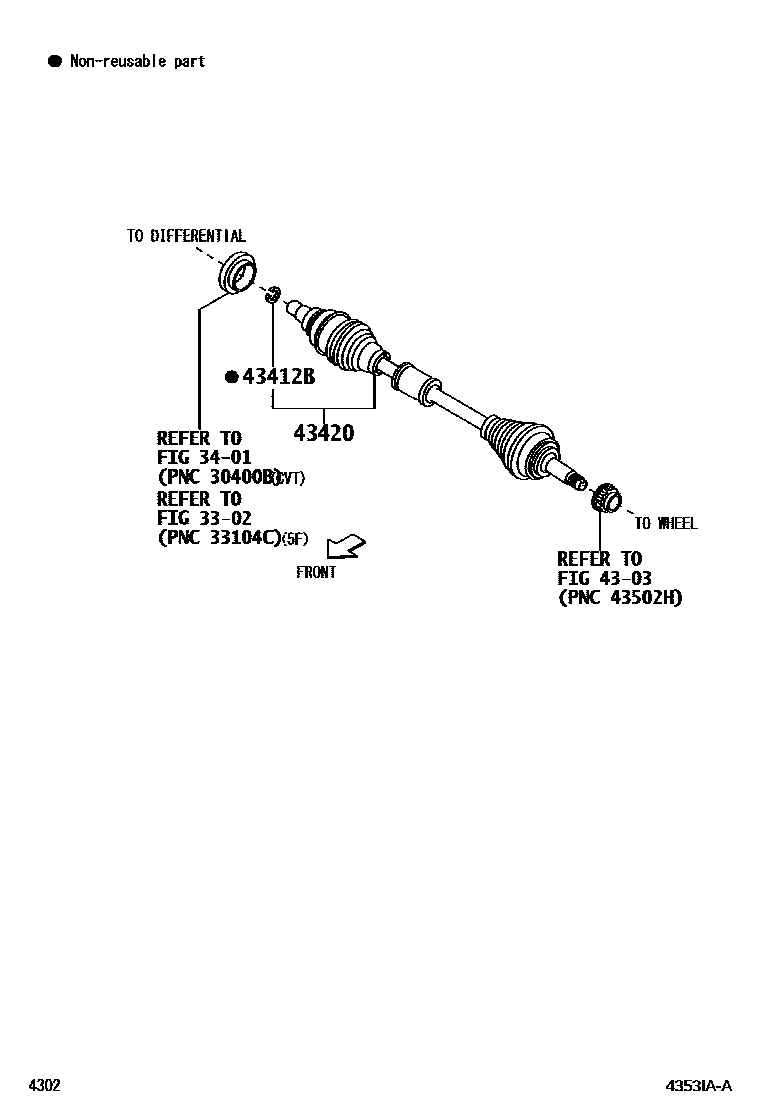

Toyota YARIS Front Drive Shaft EPC diagram — 4353IAA
Front Drive Shaft — 4353IAA (202208 – 202409)

PNC and OE references

PNCPart nameOE numbers
04438GRight front drive shaft inner universal joint dust boot assembly04437-B2340 · 04437-BZ070 · 04437-BZ080 · 04437-BZ150 · 04438-BZ070
04438JLeft front drive shaft inner universal joint dust boot assembly04437-B2340 · 04437-BZ080 · 04437-BZ090 · 04437-BZ150 · 04438-BZ070
04438KRight front drive shaft outer universal joint dust boot assembly04425-B2290 · 04425-BZ080 · 04425-BZ160 · 04425-BZ180 · 04425-BZ210
04438LLeft front drive shaft outer universal joint dust boot assembly04425-B2290 · 04425-BZ190 · 04426-BZ080 · 04426-BZ100 · 04426-BZ160
04438SRight front drive shaft clamp assembly04435-B2350 · 04435-BZ090 · 04435-BZ160 · 04435-BZ180 · 04435-BZ210
04438TLeft front drive shaft clamp assembly04435-B2350 · 04435-BZ160 · 04435-BZ190 · 04436-BZ080 · 04436-BZ100
43403Right front axle inner universal joint assembly43408-B9620 · 43408-B9630 · 43408-B9660 · 43408-B9780 · 43408-B9810
43403BLeft front axle inner universal joint assembly43408-B9620 · 43408-B9630 · 43408-B9670 · 43408-B9780 · 43408-B9810
43410Right front driveshaft assembly43410-BZ240 · 43410-BZ250 · 43410-BZ260 · 43410-BZ320 · 43410-BZ340 · 43410-BZ380
43410MFront drive shaft right oil seal90311-35083
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-BZ080 · 43425-BZ120 · 43425-BZ260 · 90045-20298
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-BZ080 · 43425-BZ120 · 43425-BZ260 · 90045-20298
43420Left front drive shaft assembly43420-BZ220 · 43420-BZ250 · 43420-BZ260 · 43420-BZ330 · 43420-BZ400 · 43420-BZ450
43420HFront drive shaft left oil seal90311-35082
43460Right front outer drive universal joint shaft assembly43411-B9750 · 43411-B9770 · 43411-B9775 · 43411-B9800 · 43411-B9855
43470Left front outer drive universal joint shaft assembly43412-B9550 · 43412-B9570 · 43412-B9575 · 43412-B9600 · 43412-B9690
