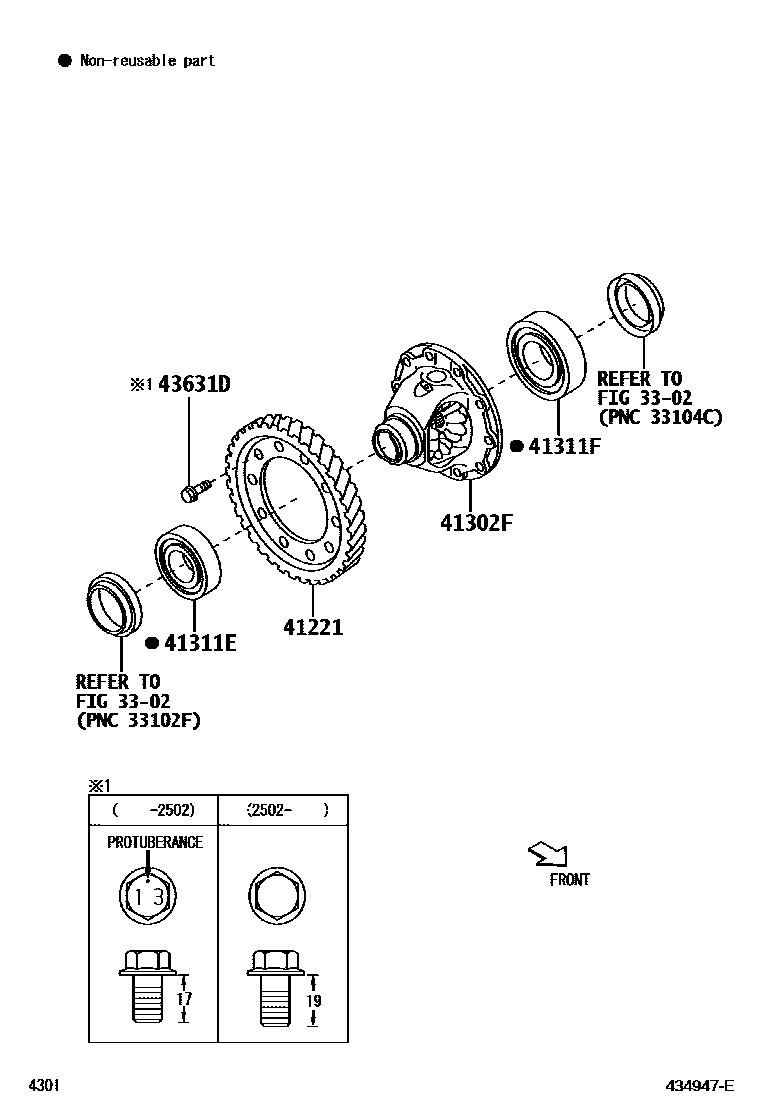

Toyota YARIS 前桥壳和差速器 — Figure 4301
Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41221 | Front differential ring gear | 41221-BZ300 · 41221-BZ301 · 41221-BZ320 · 41221-BZ321 |
| 41302F | Front differential housing sub-assembly | 41301-BZ060 · 41301-BZ070 |
| 41311E | Roller cone bearing (for front differential housing) | 9004A-36123 |
| 41311F | Rear tapered bearing (for front differential housing) | 9004A-36124 |
| 43631D | Hexagonal bolt (for differential case) | 9004A-10120 · 9004A-10296 |
