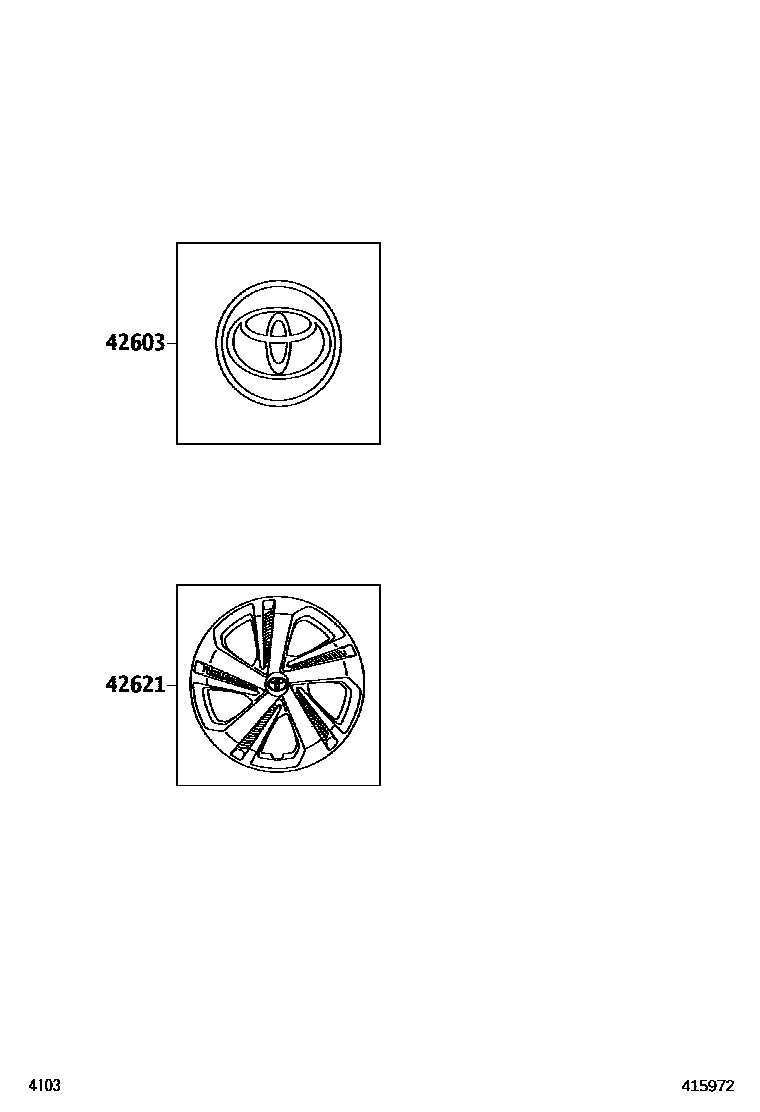

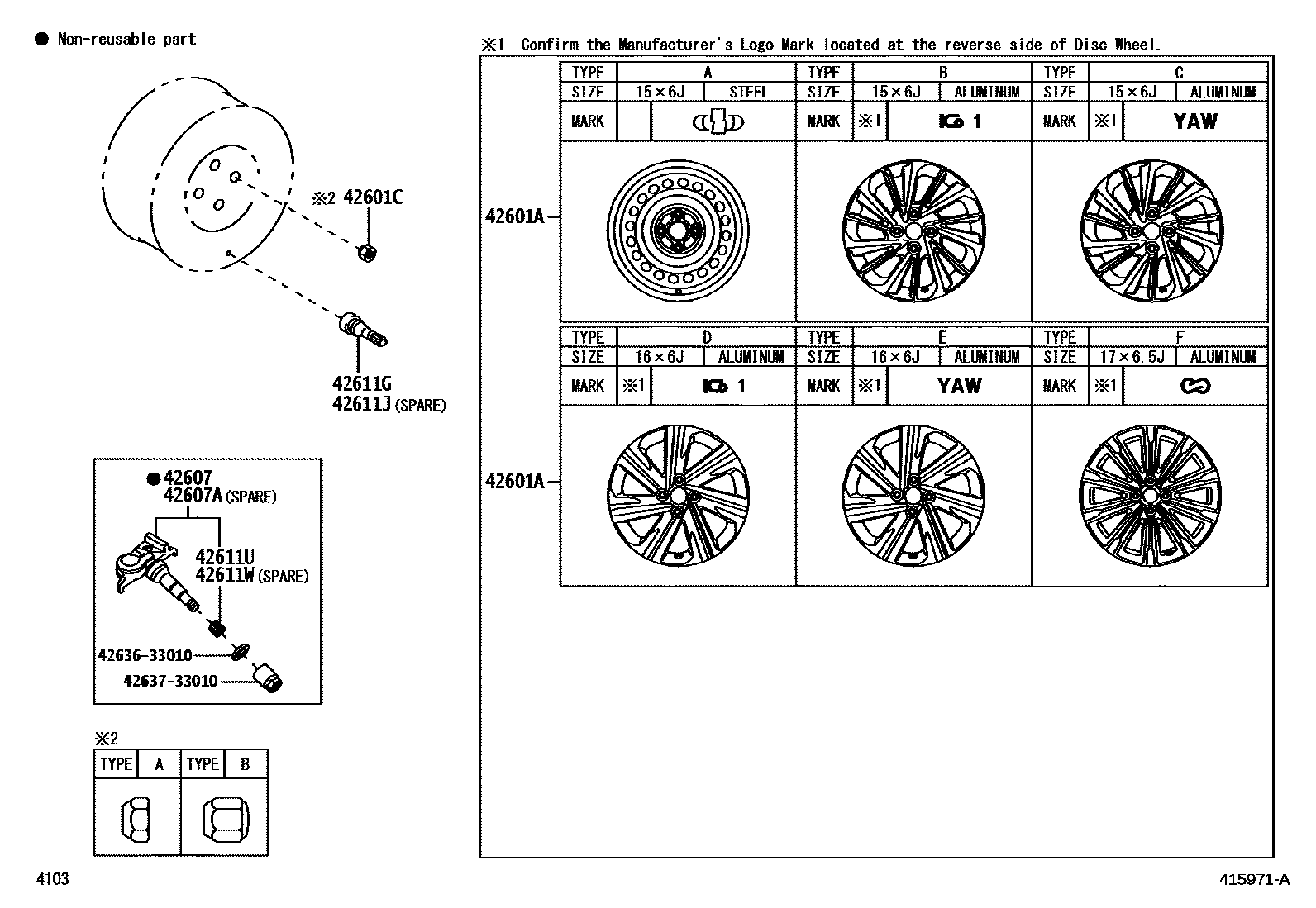

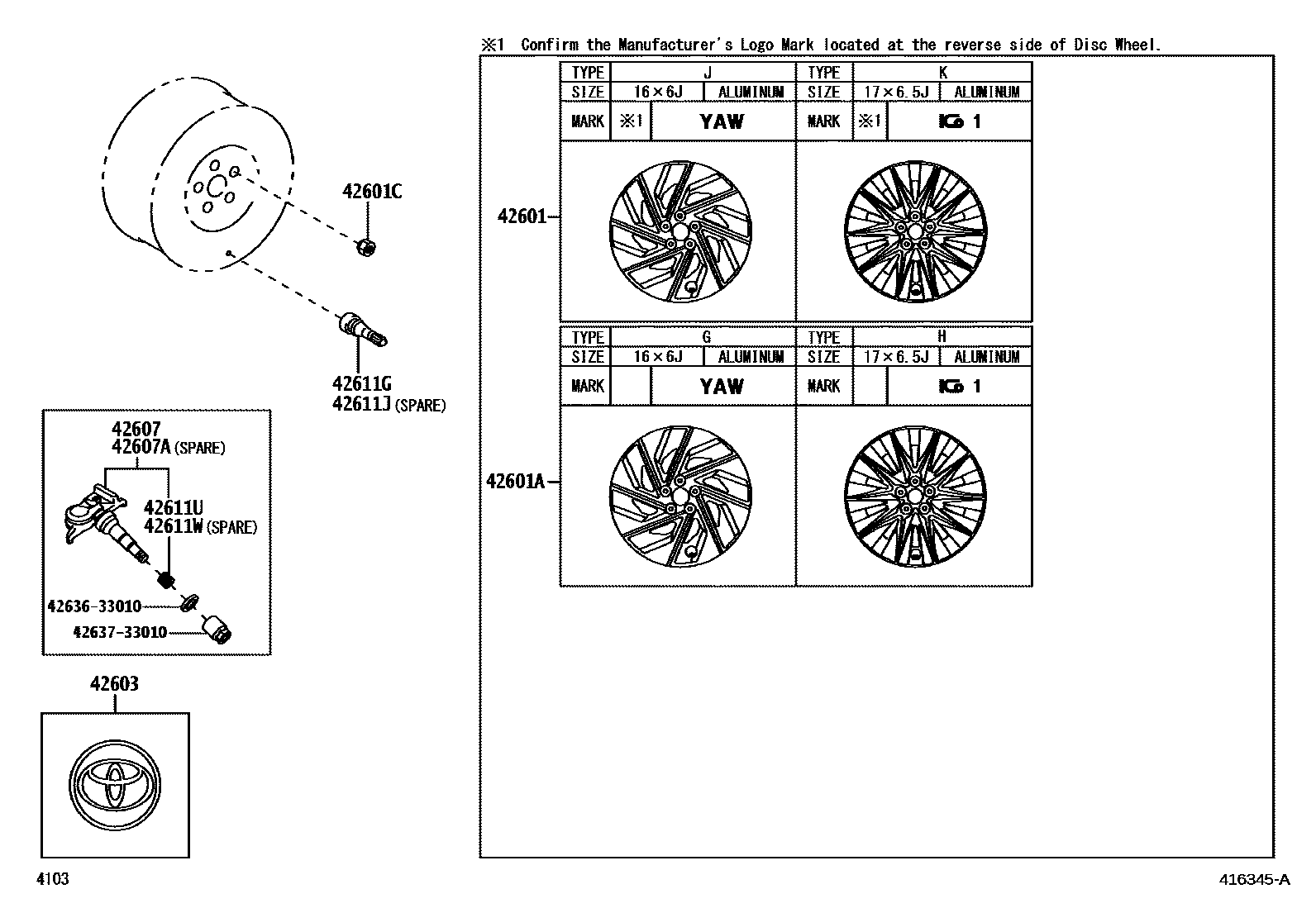

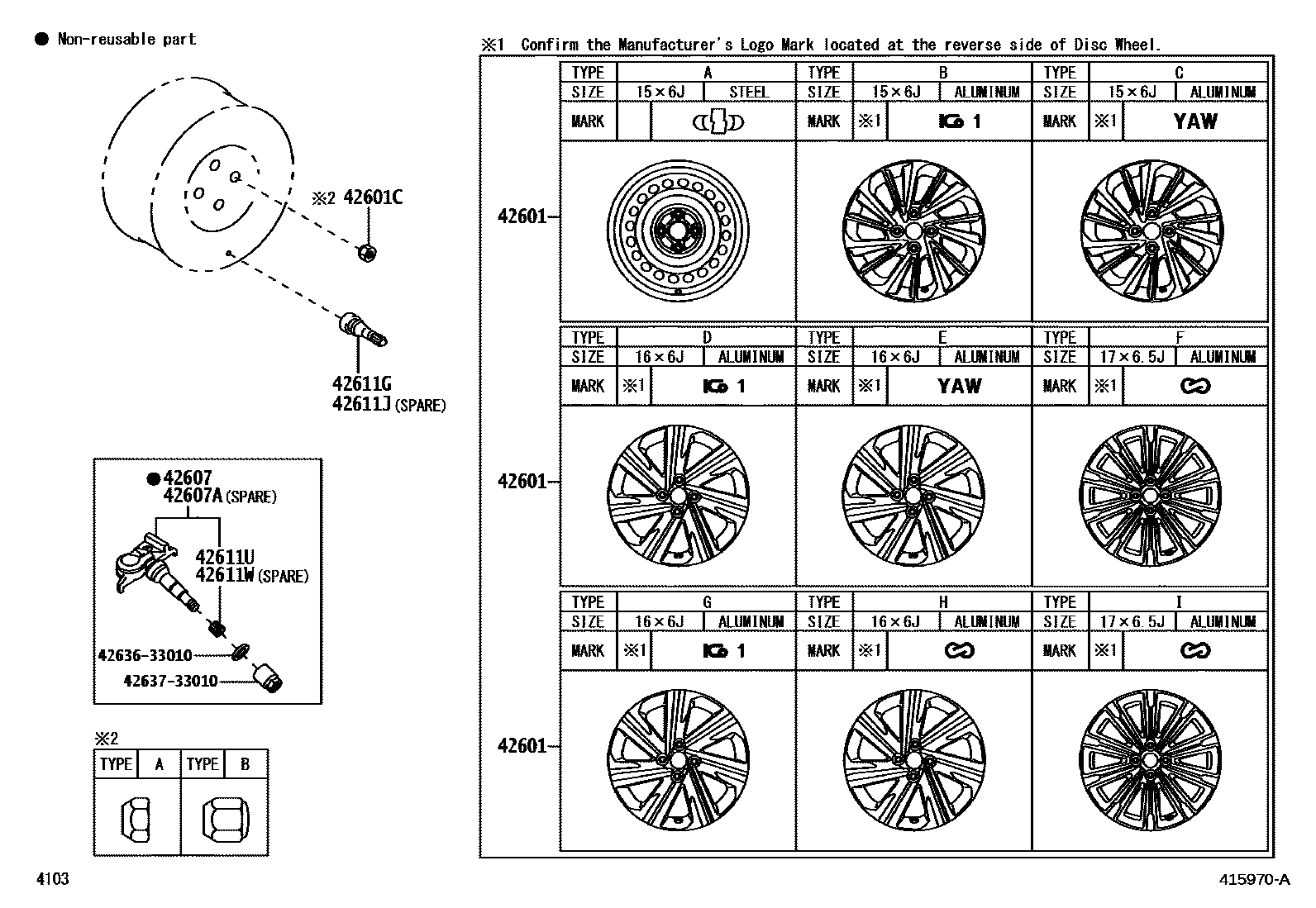

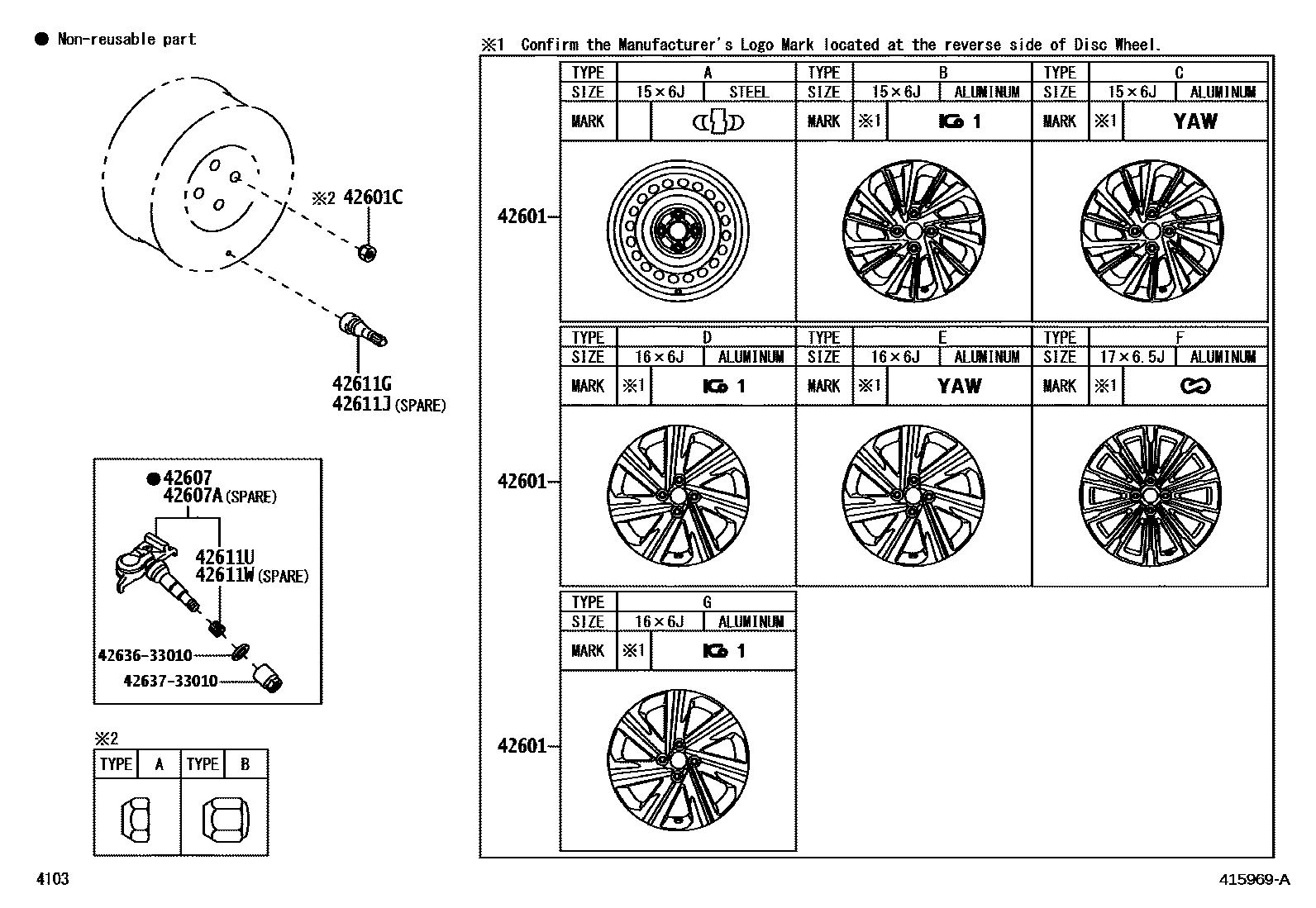

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 8 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-BZD40 · 42611-BZD50 · 42611-BZG20 · 42611-BZG30 · 42611-BZG40 · 42611-BZG50 · 42611-BZK00 · 42611-BZK10 · 42611-BZK70 · 42611-BZK80 |
| 42601A | Spoke wheel (for spare tire) | 42611-BZG20 · 42611-BZG30 · 42611-BZG40 · 42611-BZG50 · 42611-BZK00 · 42611-BZK10 · 42611-BZK70 · 42611-BZK80 |
| 42601C | Hub nut (for axle) | 90049-11063 · 90942-01007 |
| 42603 | Wheel hub decorative parts sub-assembly | 42638-BZ680 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12020 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-12020 |
| 42611G | Valve (for tubeless tires) | 9004A-94161 · 90080-94031 |
| 42611J | Valve (for tubeless spare tire) | 9004A-94161 · 90080-94031 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-BZ160 |
