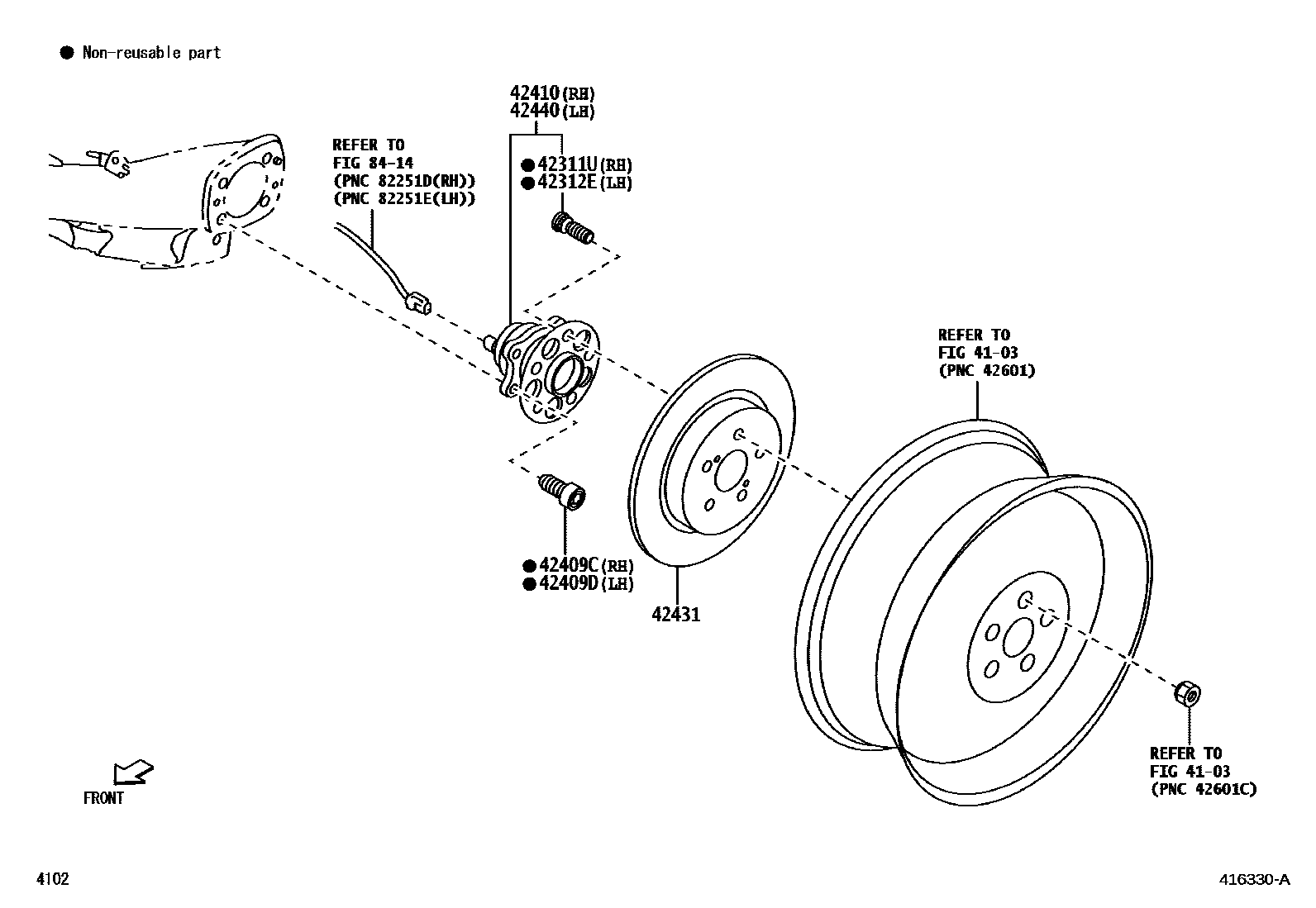

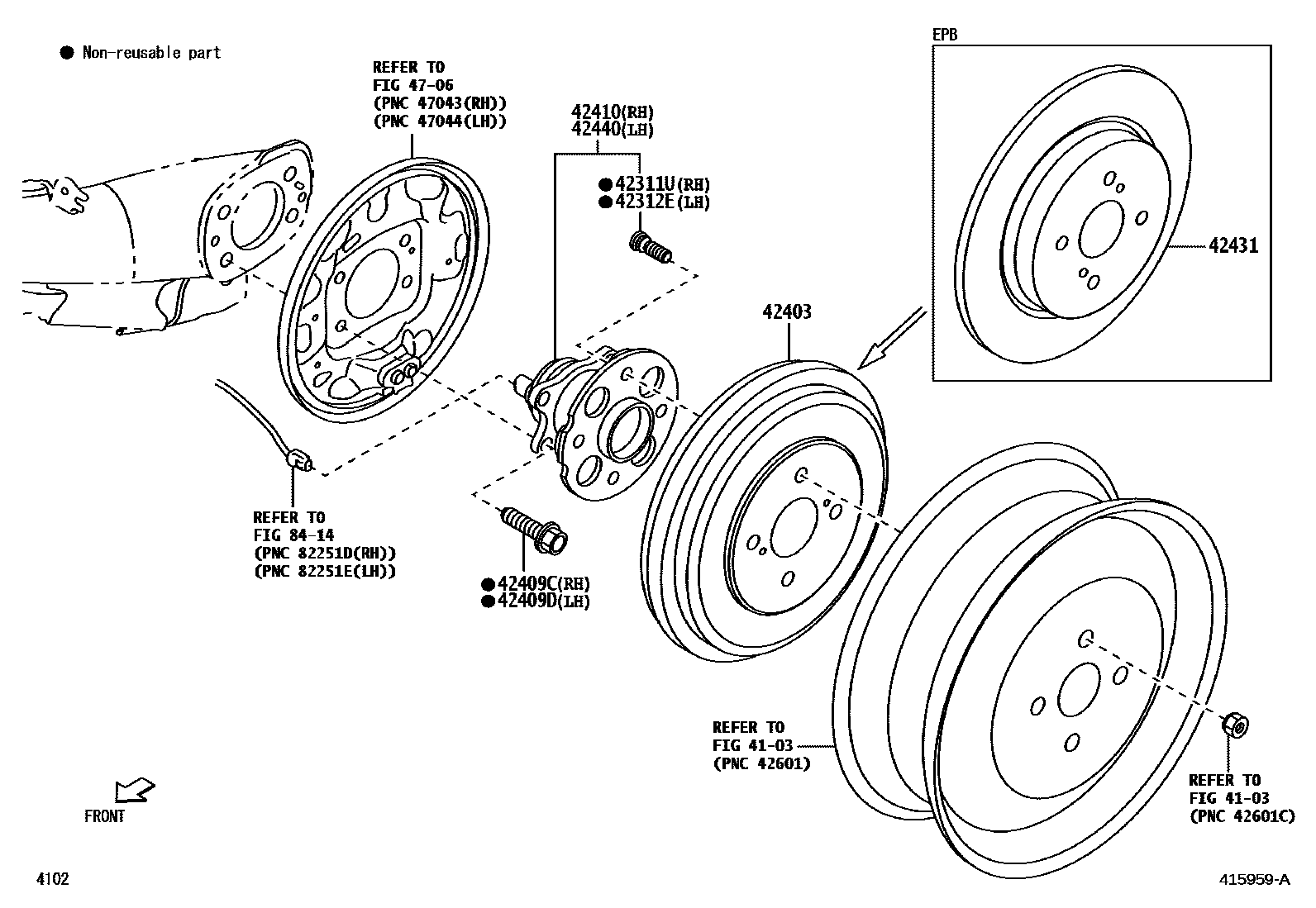

Toyota YARIS 后桥半轴和后桥轮毂 — Figure 4102
Toyota YARIS EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90049-12056 |
| 42312E | Hub bolt (for left rear axle) | 90049-12056 |
| 42403 | Rear brake drum sub-assembly | 42431-BZ300 |
| 42409C | Bolt (for rear axle right bearing) | 9004A-10258 |
| 42409D | Bolt (for rear axle left bearing) | 9004A-10258 |
| 42410 | Rear axle right hub and bearing assembly | 42410-BZ120 · 42410-BZ180 · 42410-BZ220 |
| 42431 | rear brake disc | 42431-BZ210 · 42431-BZ260 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-BZ120 · 42410-BZ180 · 42410-BZ220 |
