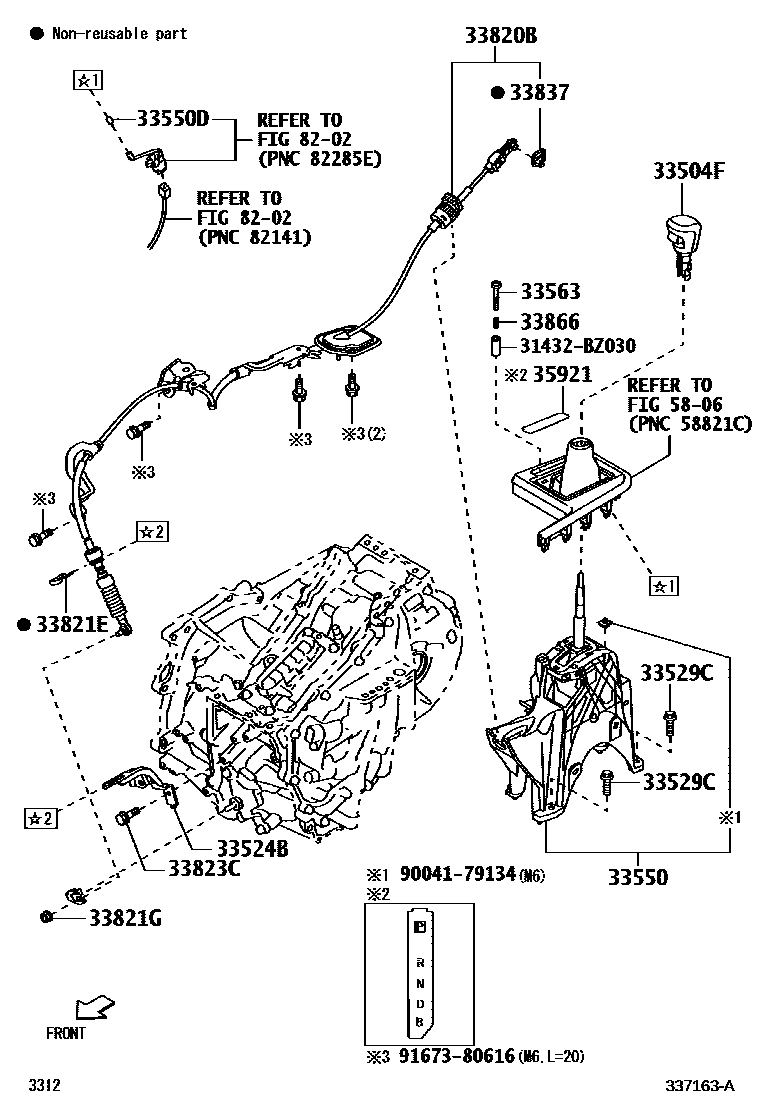

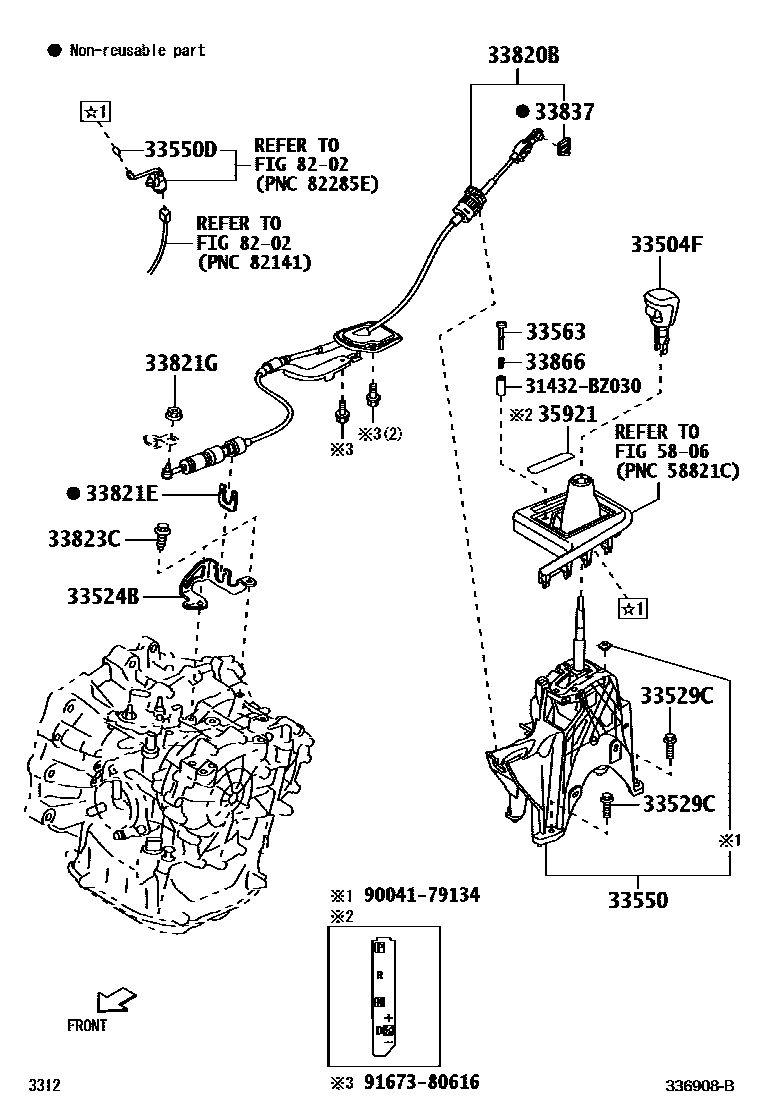

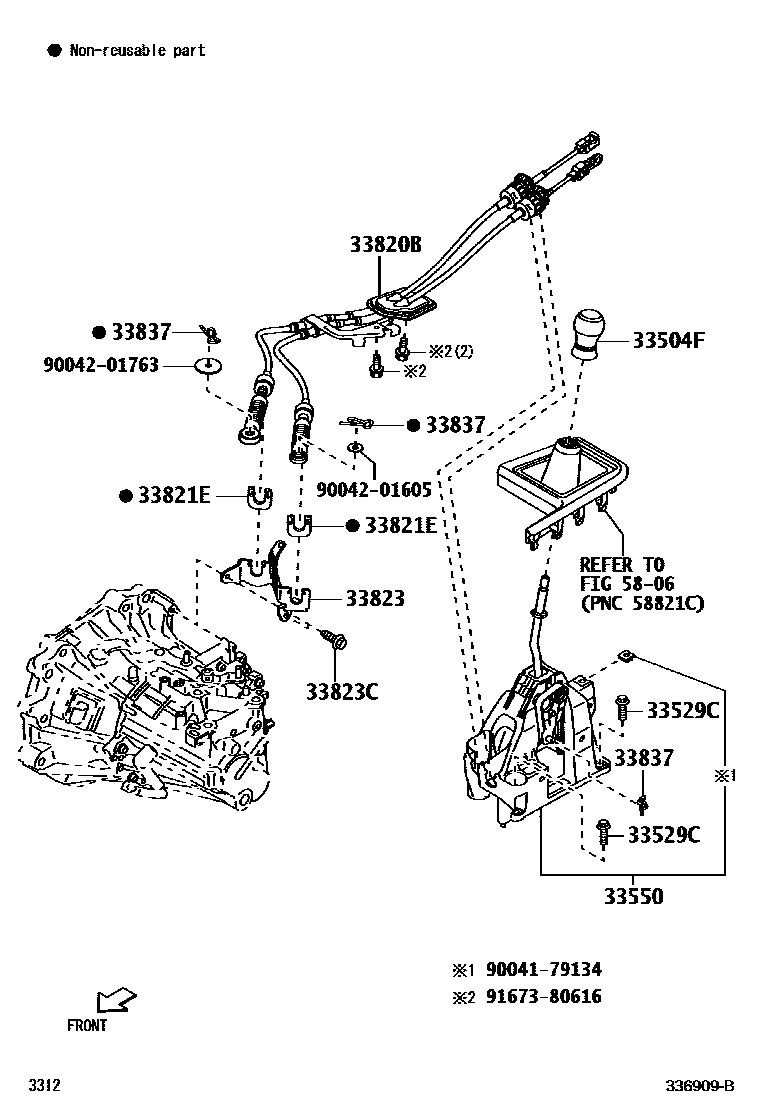

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524B | Control cable bracket | 33524-BZ070 · 33524-BZ100 |
| 33529C | shift lever bolt | 90041-20099 |
| 33550 | Transmission floor shift assembly | 33550-BZ680 · 33550-BZ700 |
| 33550D | position indicator light bulb | 35955-BZ070 · 35955-BZ090 |
| 33820B | Transmission control cable assembly | 33820-BZ460 · 33820-BZ470 · 33820-BZ480 · 33820-BZ550 |
| 33821E | Clamp No. 1 (for transmission control cable) | 33567-B1010 · 90468-14016 |
| 33821G | Nut (for transmission control cable) | 90178-T0019 · 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-BZ100 |
| 33823C | Bolt (for transmission control cable bracket) | 90105-T0120 · 91551-80820 |
| 33837 | Transmission control cable adjustment clip | 33837-B2010 · 90044-68076 |
| 33866 | Shift lock release spring | 33866-BZ050 |
| 35921 | control position indicator board | 35921-BZ150 · 35921-BZ350 |
