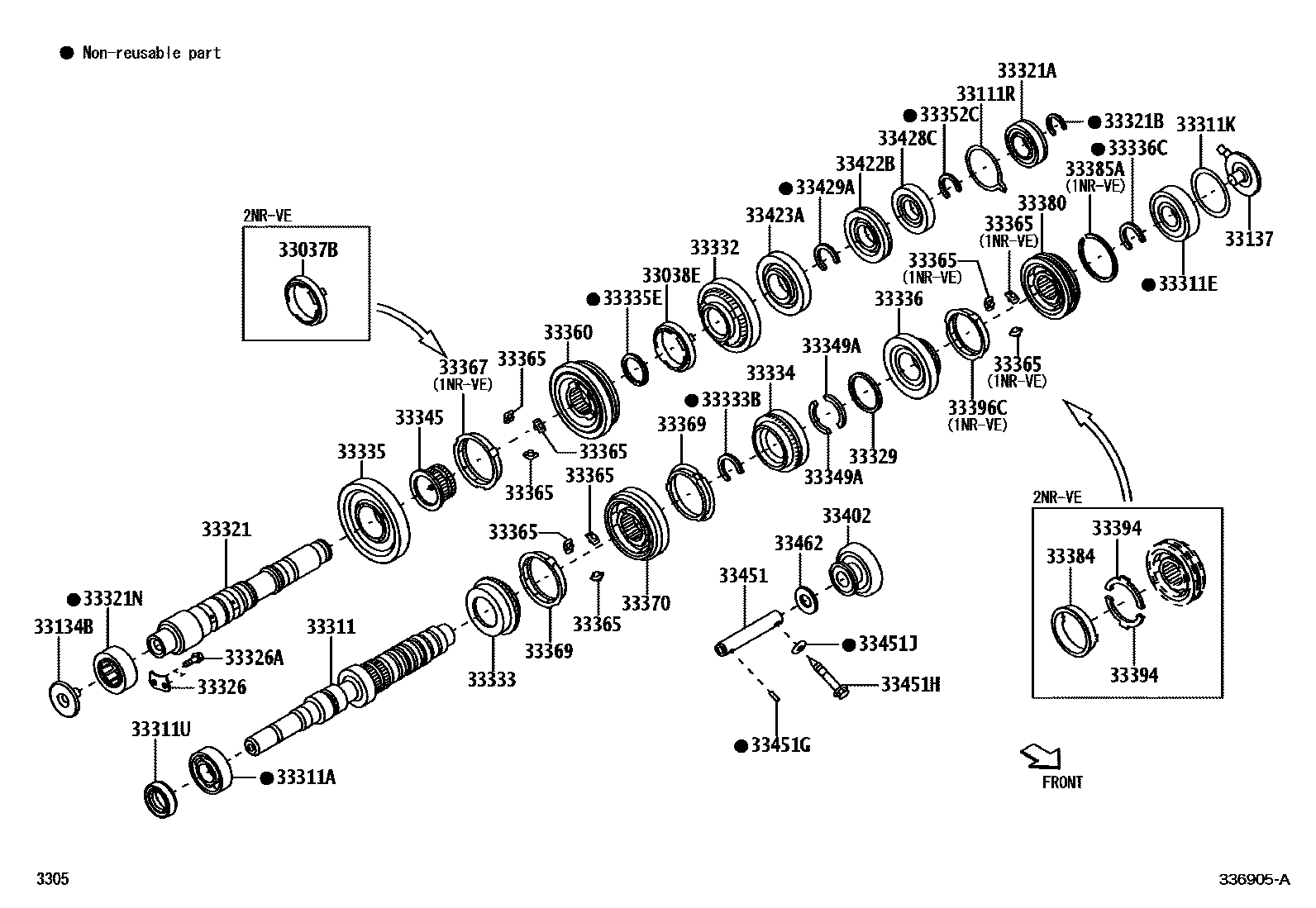

Toyota YARIS 变速器齿轮(MTM) — Figure 3305
Toyota YARIS EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-BZ010 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-BZ050 |
| 33111R | Hole snap ring (for output shaft rear bearing) | 9004A-52101 |
| 33134B | Output shaft cover (MTM) | 33134-BZ030 |
| 33137 | Input shaft cover (MTM) | 33137-BZ010 |
| 33311 | input shaft | 33311-BZ100 |
| 33311A | Bearing (for front input shaft) | 9004A-36125 |
| 33311E | Radial ball bearing (for rear input shaft) | 9004A-36120 |
| 33311K | Spacer (for input shaft rear bearing) | 9004A-56100 · 9004A-56101 · 9004A-56102 · 9004A-56103 · 9004A-56104 · 9004A-56105 · 9004A-56106 · 9004A-56107 |
| 33311U | Oil seal (for input shaft) | 9004A-31065 |
| 33321 | output shaft | 33321-BZ130 · 33321-BZ170 |
| 33321A | Bearings (for rear output shaft) | 9004A-36126 |
| 33321B | Shaft snap ring (for output shaft bearing) | 9004A-52119 · 9004A-52120 · 9004A-52121 · 9004A-52122 · 9004A-52123 · 9004A-52124 |
| 33321N | Bearing (for front output shaft) | 9004A-36127 |
| 33326 | Bearing locking plate | 33326-BZ060 |
| 33326A | Bolt (for bearing locking plate) | 9004A-10271 |
| 33329 | Fourth gear washer retaining ring | 33329-BZ010 |
| 33332 | Second gear | 33332-BZ070 |
| 33333 | Third gear | 33333-BZ090 |
| 33333B | Shaft snap ring (for rear third gear) | 9004A-52113 · 9004A-52114 · 9004A-52115 · 9004A-52116 · 9004A-52117 |
| 33334 | fourth gear | 33334-BZ080 · 33334-BZ090 |
| 33335 | first gear | 33335-BZ120 · 33335-BZ130 |
| 33335E | Shaft snap ring (for first gear) | 9004A-52125 · 9004A-52126 · 9004A-52127 · 9004A-52128 · 9004A-52129 · 9004A-52130 |
| 33336 | fifth gear | 33336-BZ100 · 33336-BZ110 |
| 33336C | Shaft snap ring (for fifth gear) | 9004A-52102 · 9004A-52103 · 9004A-52104 · 9004A-52105 · 9004A-52106 |
| 33345 | First gear bushing | 33345-BZ010 |
| 33349A | Fourth gear gear washer | 33349-BZ010 |
| 33352C | Shaft snap ring | 9004A-52107 · 9004A-52108 · 9004A-52109 · 9004A-52110 · 9004A-52111 · 9004A-52112 |
| 33360 | No. 1 synchronizer hub assembly | 33360-BZ240 · 33360-BZ241 · 33360-BZ270 · 33360-BZ271 |
| 33365 | No. 1 synchromesh shift key | 33365-BZ060 |
| 33367 | Synchronizer lock ring No. 1 | 33367-BZ060 |
| 33369 | No. 3 synchronizer lock ring | 33369-BZ070 |
| 33370 | No. 2 synchronizer hub assembly | 33370-BZ170 |
| 33380 | No. 3 synchronizer hub assembly | 33380-BZ170 · 33380-BZ200 |
| 33384 | Fifth gear synchronizer outer locking ring | 33384-BZ010 |
| 33385A | Hole snap ring (for fifth-speed shift key retaining ring) | 9004A-52070 |
| 33394 | No. 3 synchromesh shift key | 33394-BZ010 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-BZ010 |
| 33402 | Reverse idler gear sub-assembly | 33402-BZ060 |
| 33422B | Fourth gear driven gear | 33422-BZ050 · 33422-BZ080 |
| 33423A | Third gear driven gear | 33423-BZ030 |
| 33428C | fifth speed driven gear | 33428-BZ060 · 33428-BZ070 |
| 33429A | Shaft snap ring | 9004A-52102 · 9004A-52103 · 9004A-52104 · 9004A-52105 · 9004A-52106 |
| 33451 | Reverse gear idler shaft | 33451-BZ040 |
| 33451G | Slotted spring pin (for reverse idler shaft) | 9004A-25039 |
| 33451H | Bolt (for reverse idler shaft) | 9004A-10254 |
| 33451J | Gasket (for reverse idler shaft) | 9004A-43024 |
| 33462 | Reverse idler thrust washer | 33462-BZ030 |
