Toyota YARIS 离合器壳和变速器壳(MTM) — Figure 3302

Toyota YARIS EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 11 PNC and OE references.

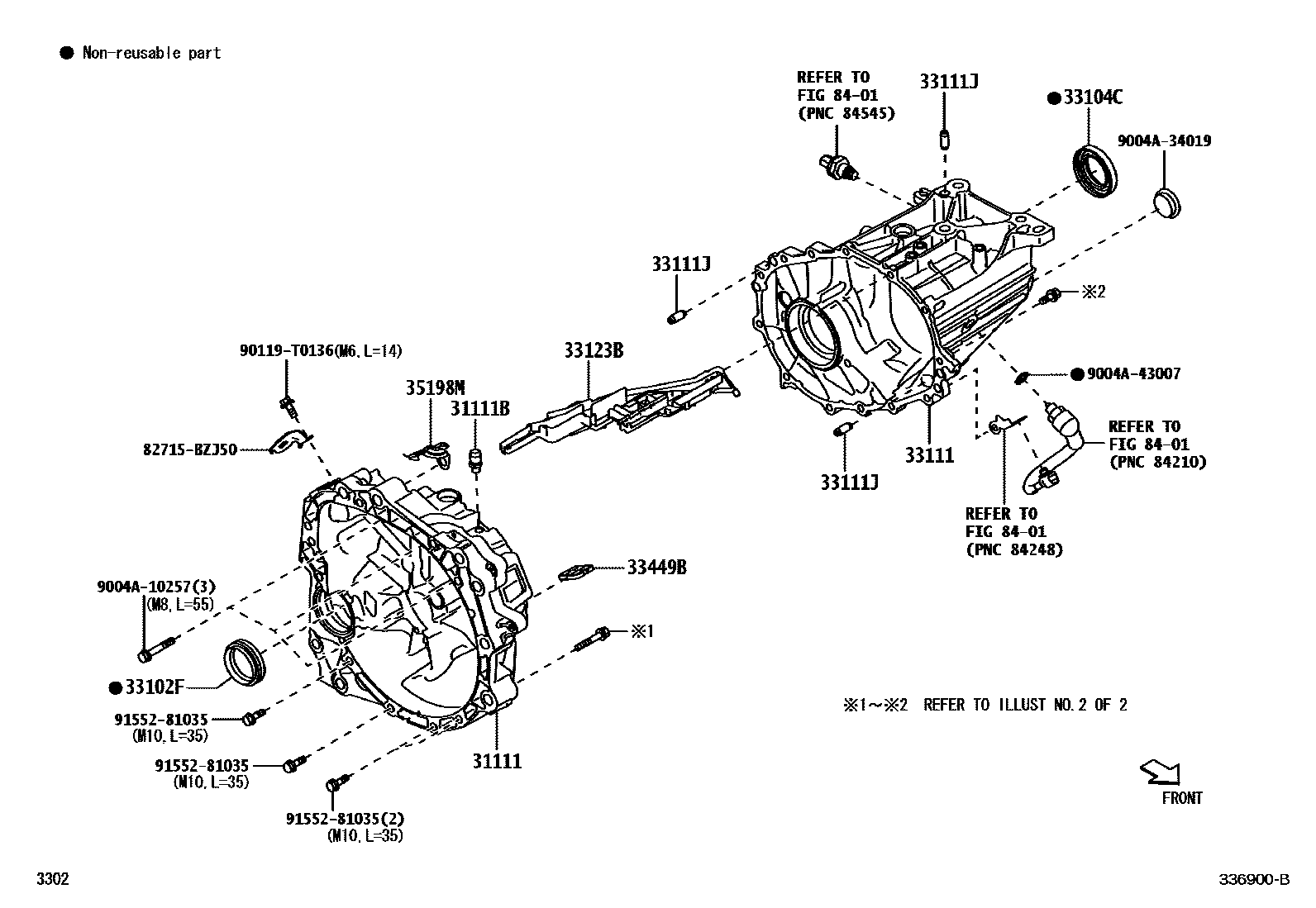

Toyota YARIS 离合器壳和变速器壳(MTM) EPC diagram — 336900B
离合器壳和变速器壳(MTM) — 336900B (202208 – 999999)

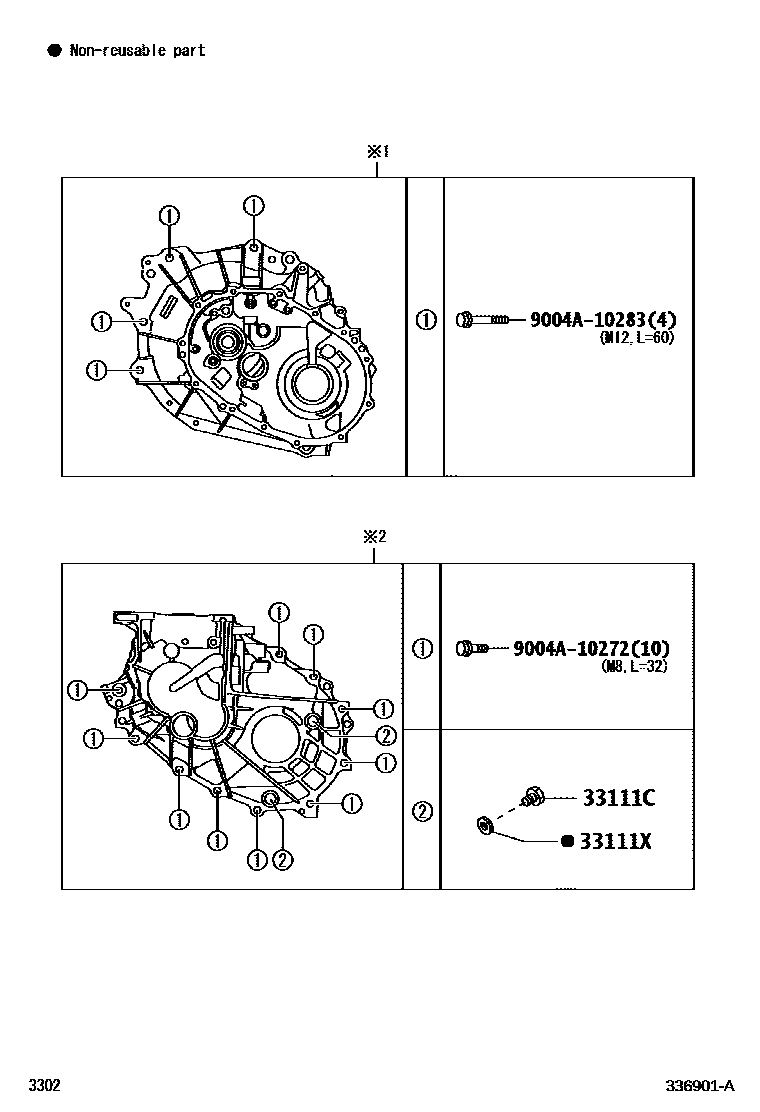

Toyota YARIS 离合器壳和变速器壳(MTM) EPC diagram — 336901A
离合器壳和变速器壳(MTM) — 336901A (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
31111clutch housing31115-BZ090
31111BScrew plug (for clutch housing)9004A-93003
33102FRight T-shaped oil seal (for manual transmission)9004A-31051
33104CLeft T-shaped oil seal (for manual transmission)9004A-31050
33111Manual transmission housing33111-BZ100
33111CScrew plug (for gearbox)9004A-34013
33111JDirect sales (for manual transmission)9004A-25032
33111XGearbox plug gasket9004A-43006
33123BNo. 1 transmission case cover oil collection tank (MTM)33123-BZ030
33449Bderailleur magnet33449-BZ070
35198MWire harness clamp bracket82715-B2510
