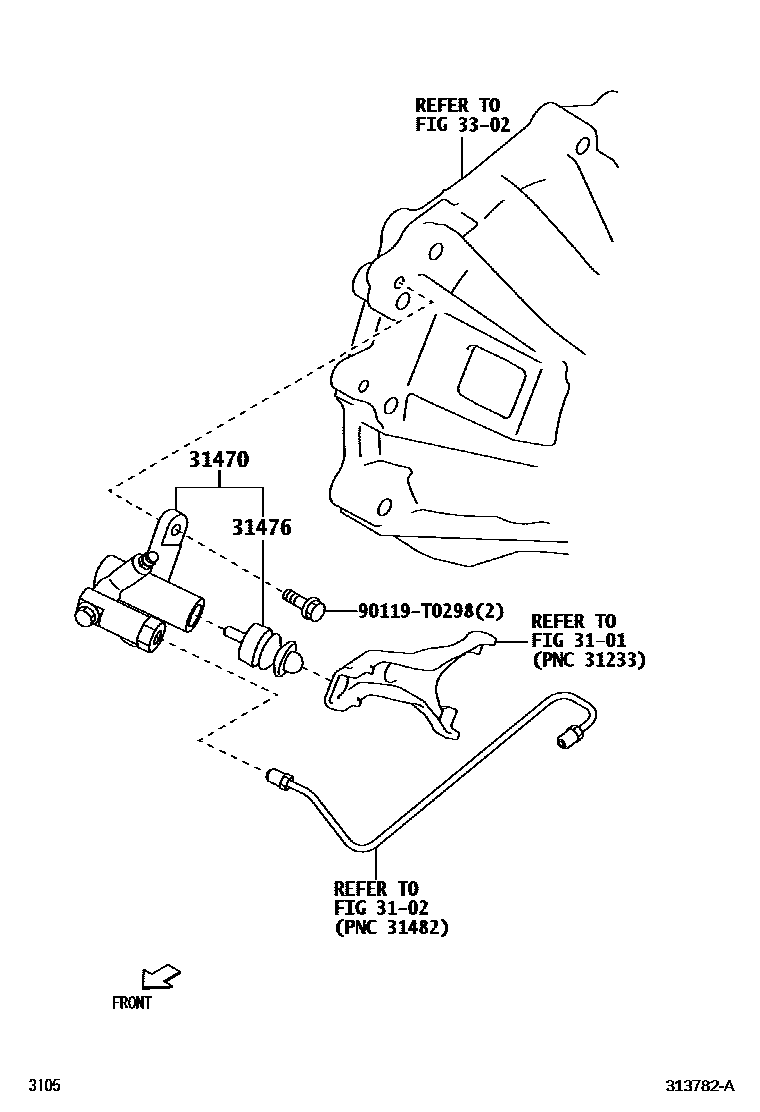

Toyota YARIS 离合器分离缸 — Figure 3105
Toyota YARIS EPC diagram 3105, 离合器分离缸, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31470 | Clutch release cylinder assembly | 31470-BZ060 · 31470-BZ061 |
| 31476 | Clutch release cylinder dust boot | 31476-B9000 |
