Toyota YARIS 离合器踏板和挠性软管 — Figure 3102

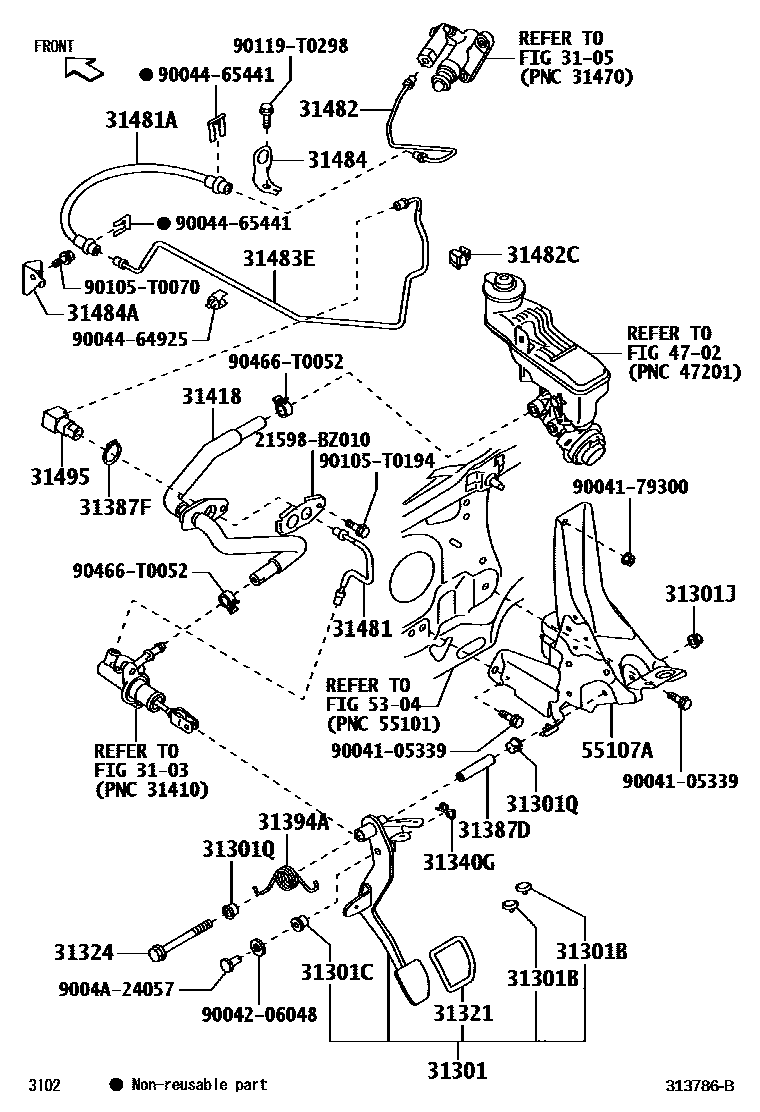

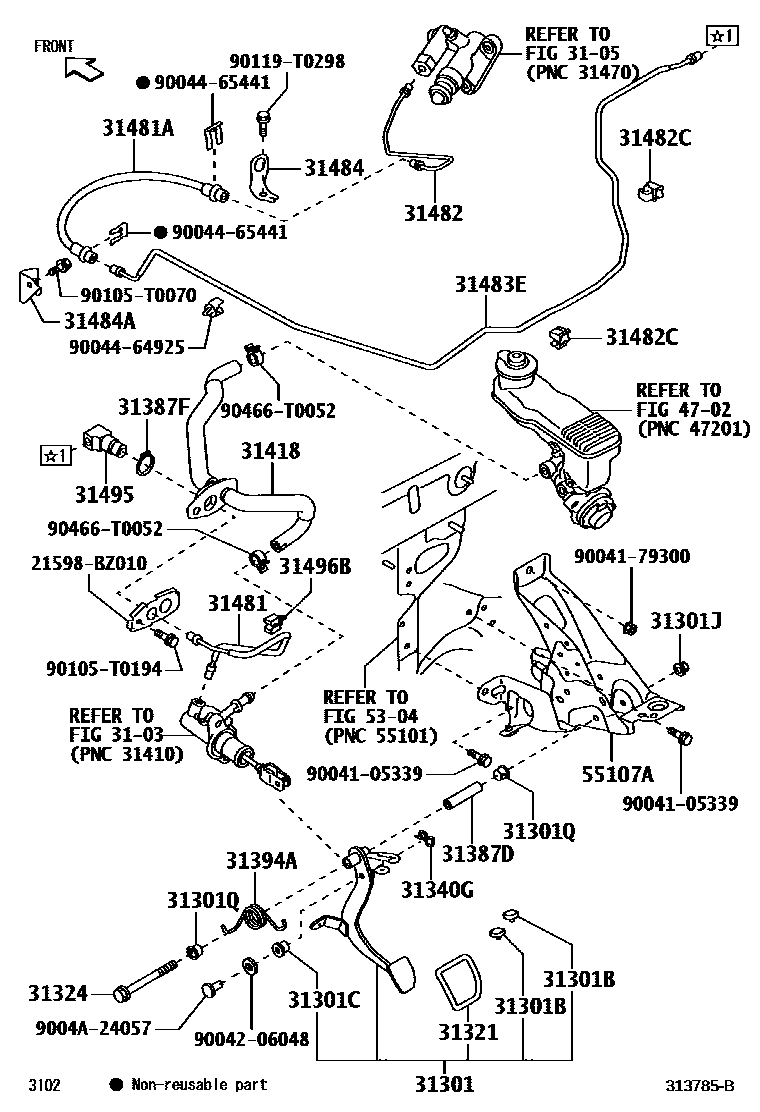

Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31310-BZ520 · 31310-BZ560 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 9004A-54003 |
| 31301C | Bushing (for clutch pedal) | 90043-86123 |
| 31301J | Nut (for clutch pedal stop) | 90178-T0056 |
| 31301Q | Bushing (for clutch pedal spring) | 9004A-38094 |
| 31321 | clutch pedal pad | 47121-BZ080 · 47121-BZ081 |
| 31324 | clutch pedal shaft | 91551-80865 |
| 31340G | Clamp (for clutch release cable) | 90044-68076 |
| 31387D | Spacer (for clutch release sector gear) | 9004A-56112 |
| 31387F | snap ring | 96150-01800 |
| 31394A | Pedal spring with hook | 31394-BZ170 |
| 31418 | clutch hose | 47240-BZ050 · 47240-BZ060 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31482-BZ240 · 31482-BZ320 |
| 31481A | No. 1 clutch hose | 9004A-94154 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-BZ280 |
| 31482C | Clamp (for clutch tube) | 47372-B2040 |
| 31483E | Clutch release bleeder pipe | 31482-BZ300 · 31482-BZ310 |
| 31484 | Flexible hose bracket (for clutch) | 31484-BZ070 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-BZ080 |
| 31495 | clutch pipe joint | 31495-BZ050 |
| 31496B | Clutch tube clamp | 90044-64804 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-BZ520 · 55107-BZ530 |
