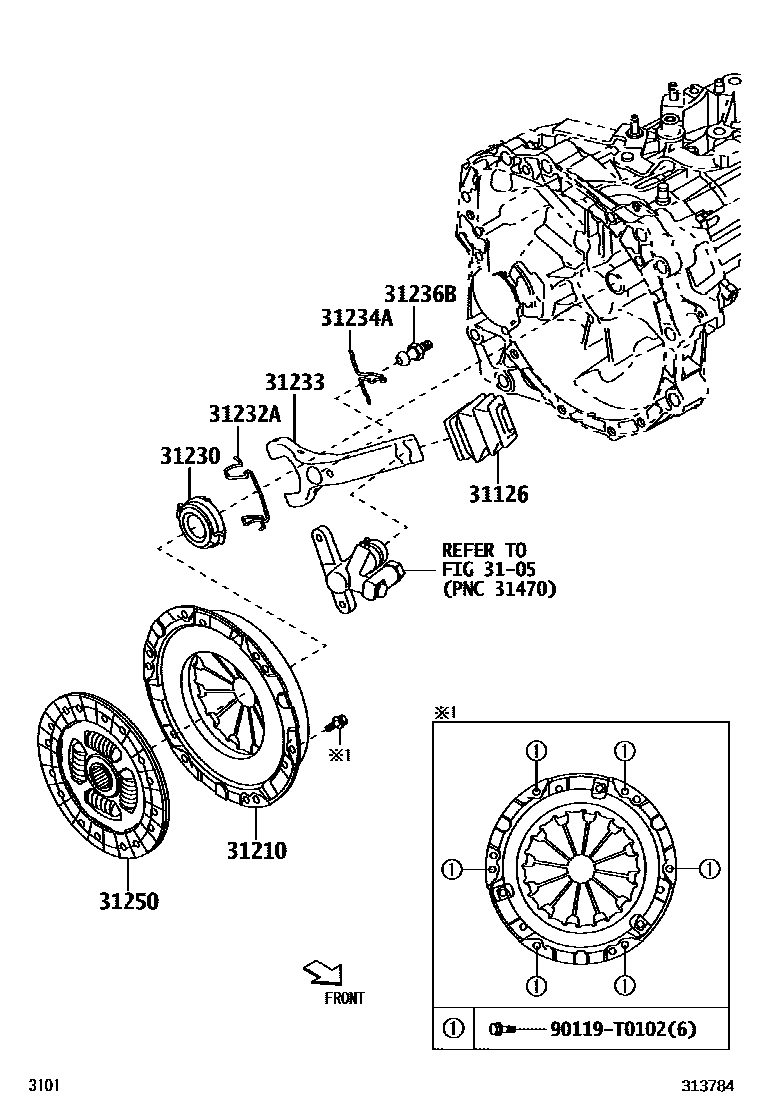

Toyota YARIS 离合器和分离叉 — Figure 3101
Toyota YARIS EPC diagram 3101, 离合器和分离叉, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-BZ030 |
| 31210 | Clutch cover assembly | 31210-BZ270 · 31210-BZ320 |
| 31230 | Clutch release bearing assembly | 31230-BZ070 |
| 31232A | Release bearing hub clip | 31232-BZ060 |
| 31233 | clutch release fork | 31233-BZ080 |
| 31234A | Release fork bracket spring | 31234-BZ040 |
| 31236B | Split fork bracket | 31236-BZ010 |
| 31250 | Clutch disc assembly | 31250-BZ320 · 31250-BZ330 |
