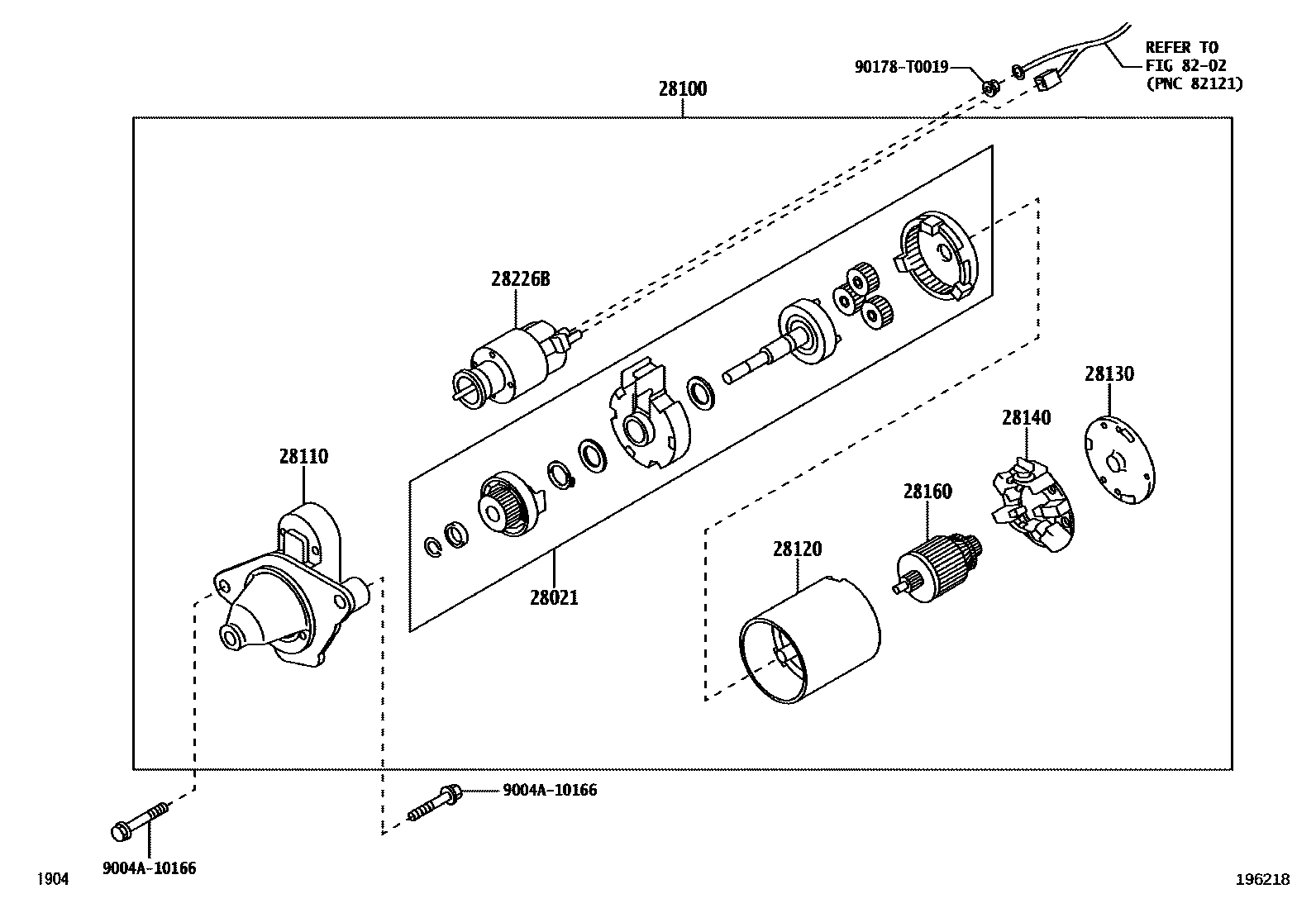

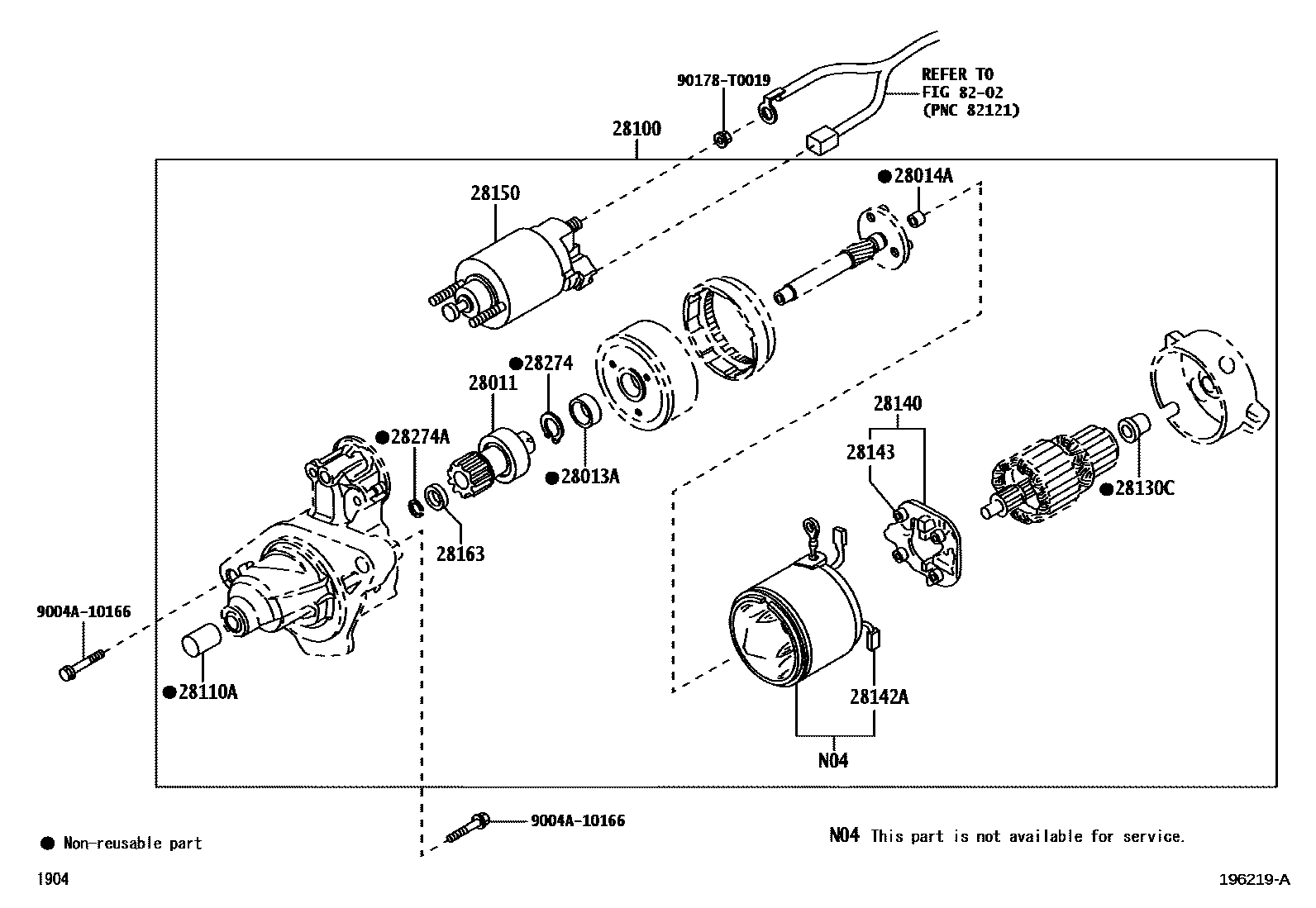

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-BZ080 |
| 28013A | No. 2 starter intermediate bearing and shock absorber | 90099-10181 |
| 28014A | Planet gear carrier shaft bushing or bearing | 90099-10180 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-BZ050 |
| 28100 | Starter assembly | 28100-BZ310 · 28100-BZ350 |
| 28110 | Starter drive end housing assembly | 28110-BZ180 |
| 28110A | Bearings (for starter housing) | 28277-87201 |
| 28120 | Starter yoke assembly | 28120-BZ090 |
| 28130 | Starter commutator end frame assembly | 28130-BZ140 |
| 28130C | Starter flange bearing | 90099-10183 |
| 28140 | Starter brush holder assembly | 28140-BZ030 · 28140-BZ140 |
| 28142A | starter components | 28142-97501 |
| 28143 | starter brush spring | 28143-87202 |
| 28150 | Starter electromagnetic switch assembly | 28150-BZ060 |
| 28160 | Starter armature assembly | 28160-BZ040 |
| 28163 | Starter pinion snap nut or snap ring | 28163-87202 |
| 28226B | starter magnetic switch | 28226-BZ010 |
| 28274 | Starter No. 1 snap ring | 90096-90030 |
| 28274A | Starter No. 2 snap ring | 28274-87503 |
