Toyota YARIS Alternator — Figure 1903

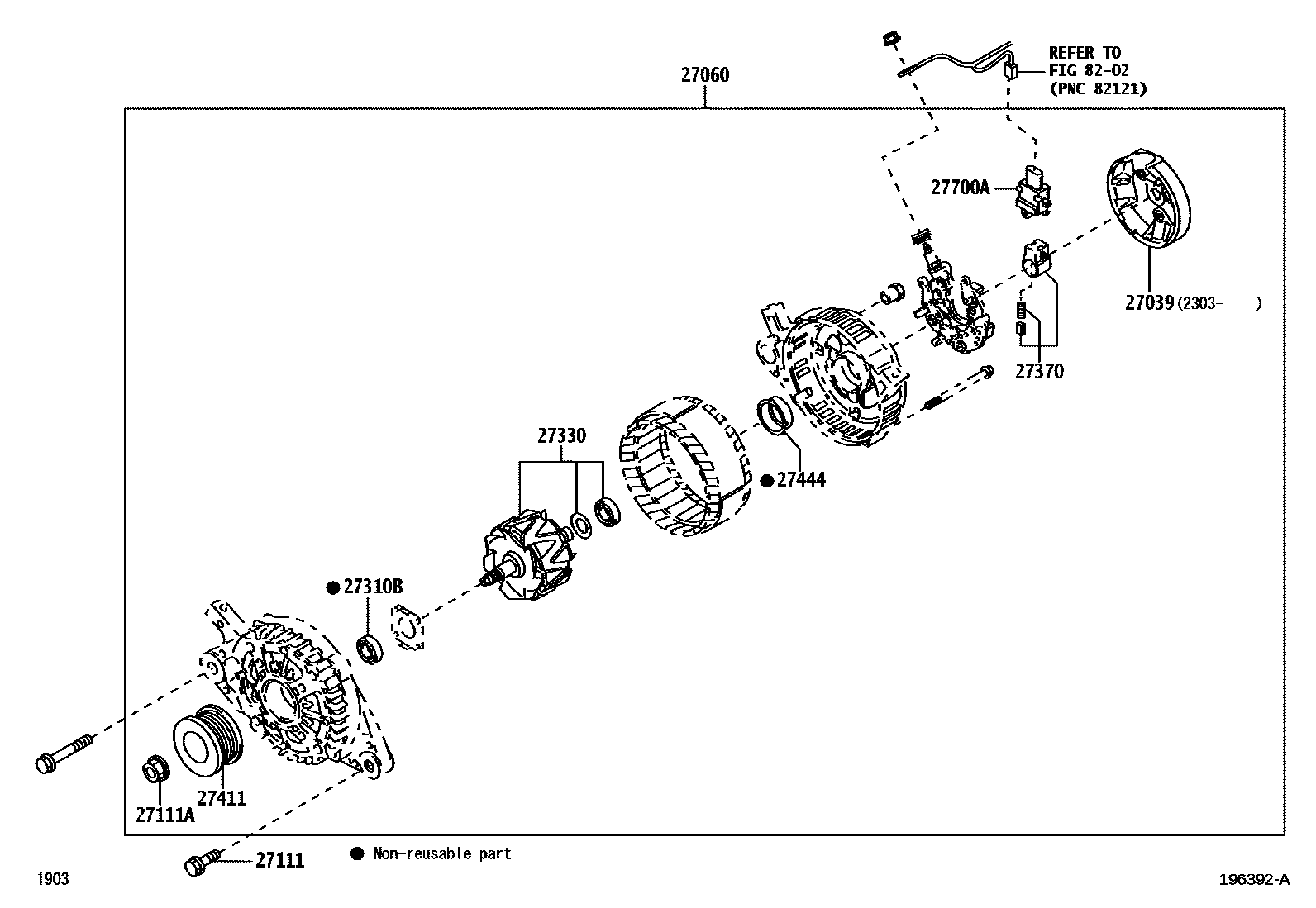

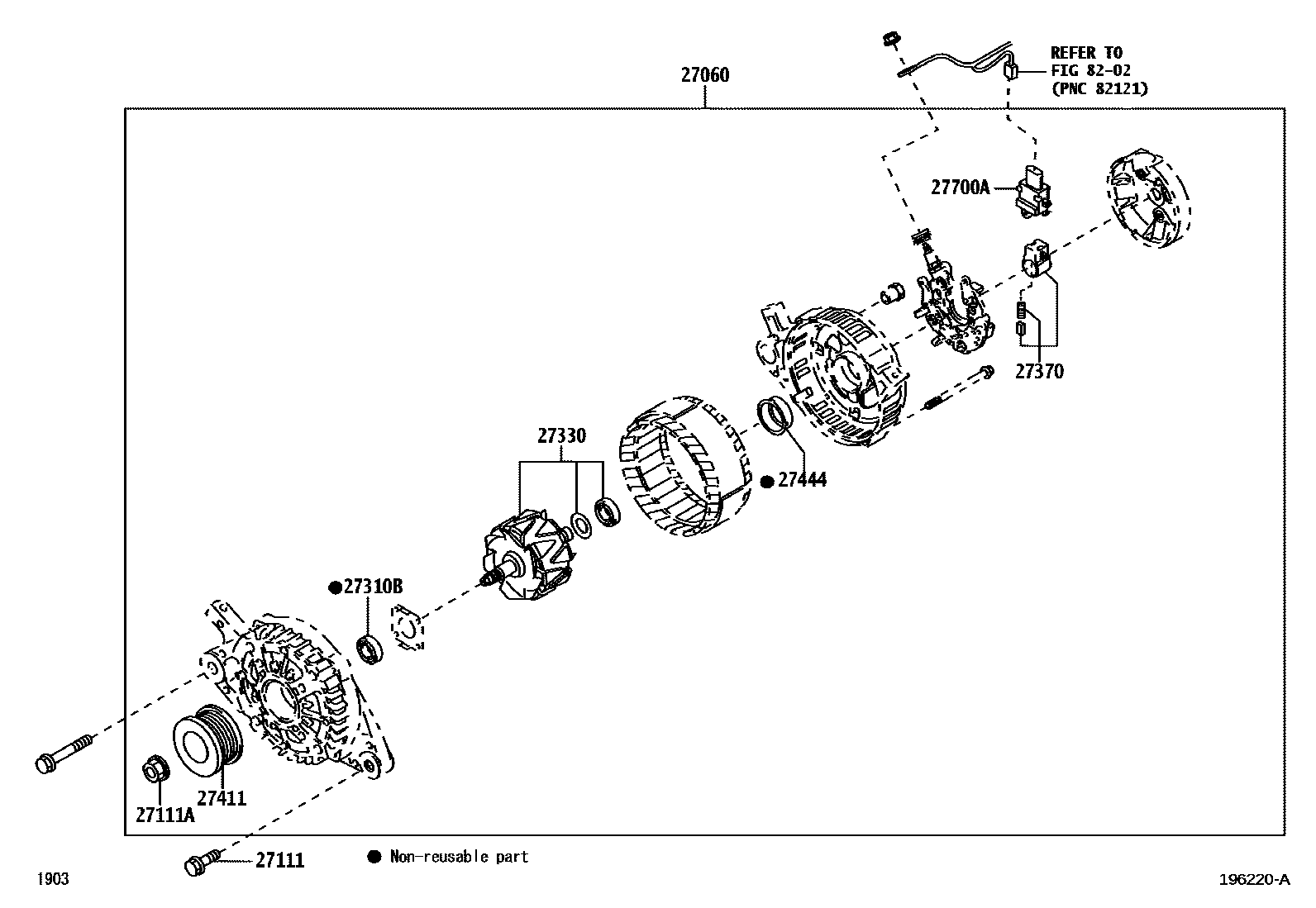

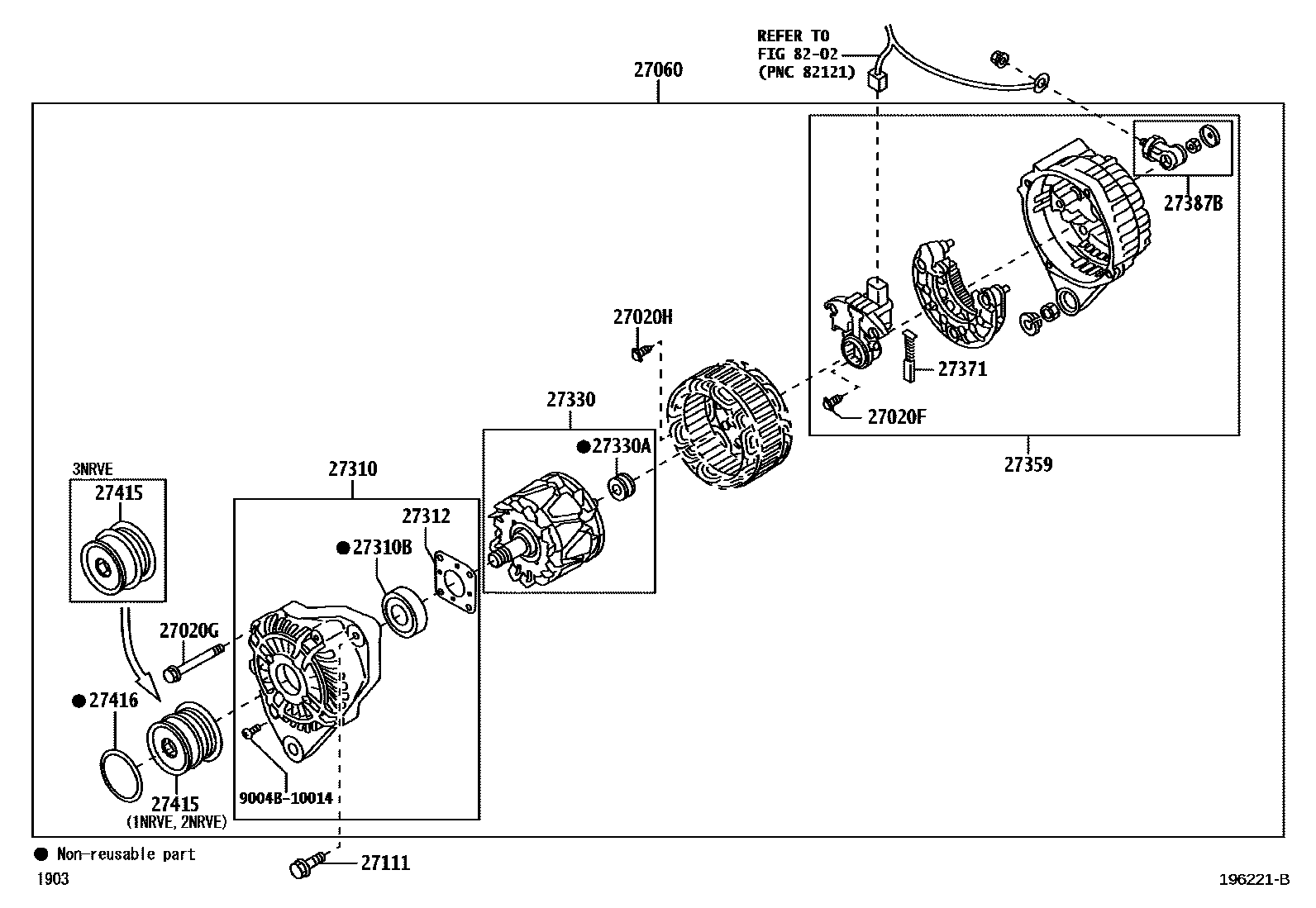

Toyota YARIS EPC diagram 1903, Alternator, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020F | Bolt No. 1 (for generator) | 9004B-10030 |
| 27020G | Bolt No. 2 (for generator) | 9004B-10013 |
| 27020H | No. 3 bolt (for generator) | 9004B-10029 |
| 27039 | Alternator Rear End Cover | 27039-BZ050 |
| 27060 | Generator assembly with regulator | 27060-BZ500 · 27060-BZ520 · 27060-BZ530 · 27060-BZ570 |
| 27111 | Generator bolts | 90105-T0130 |
| 27111A | Generator nut | 90099-05171 |
| 27310 | Alternator Drive End Frame Assembly | 27310-BZ220 |
| 27310B | Bearing (for Alternator Drive End Frame) | 9004B-37017 · 9004C-37008 |
| 27312 | Retainer Plate | 27312-BZ040 |
| 27330 | Alternator Rotor Assembly | 27330-B1050 · 27330-BZ060 |
| 27330A | Bearings (for generator rotor) | 9004B-37014 |
| 27359 | Generator rectifier end frame | 27359-BZ080 · 27359-BZ090 |
| 27370 | Alternator Brush Holder Assembly | 27370-B1020 |
| 27371 | Generator brushes | 27371-B1020 |
| 27387B | Generator terminal insulation pad | 27387-B1020 |
| 27411 | Alternator Pulley | 27411-BZ100 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-B0020 · 27415-B0040 |
| 27416 | Generator pulley cover | 27416-B0010 |
| 27444 | Generator bearing cap seals | 27444-B1010 |
| 27700A | Generator voltage regulator assembly | 27700-B2080 |
