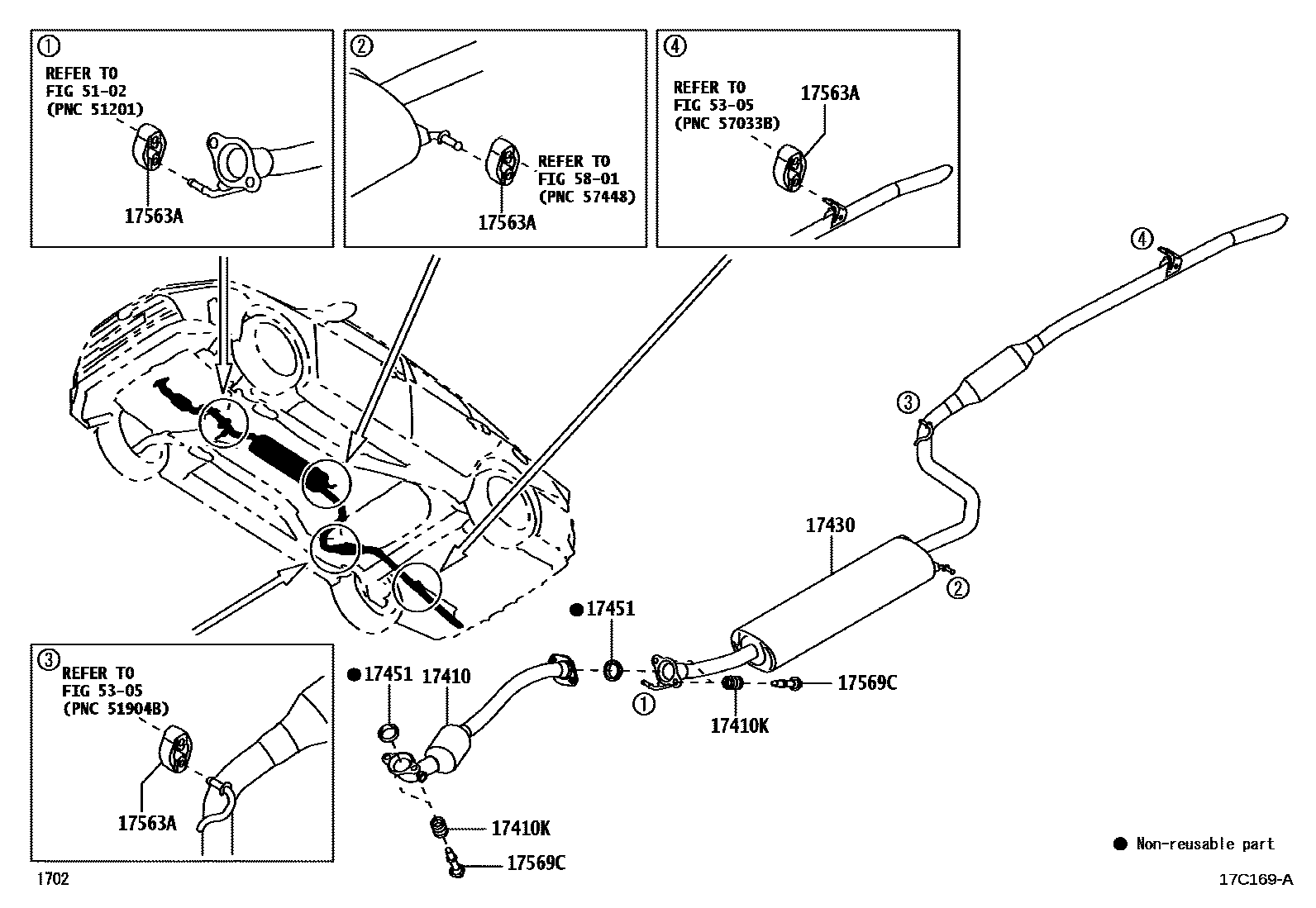

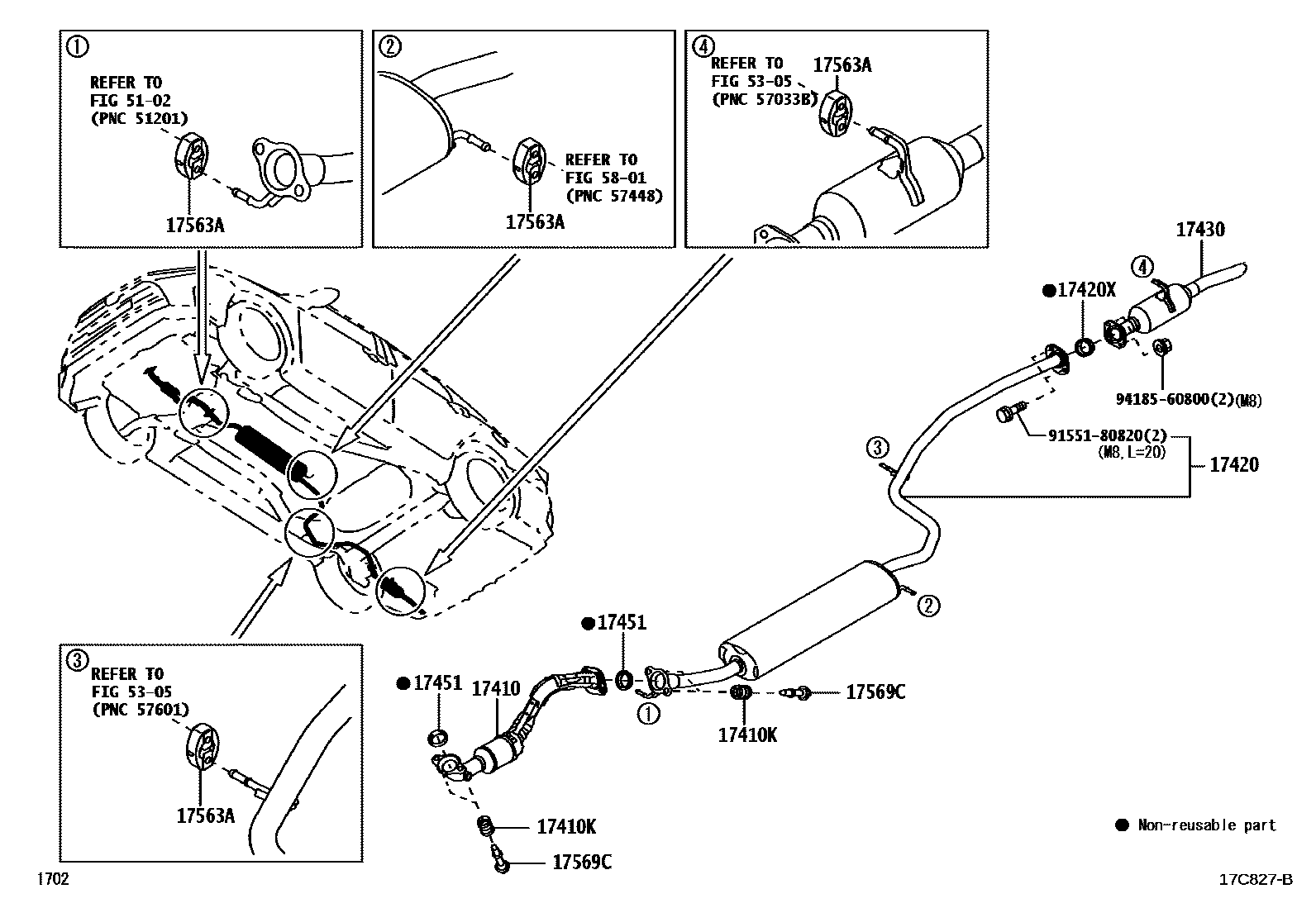

Toyota YARIS Exhaust Pipe — Figure 1702
Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-BZB90 · 17410-BZC10 · 17410-BZC20 · 17410-BZC30 · 17410-BZE80 · 17410-BZF30 · 17410-BZF40 |
| 17410K | Exhaust pipe spring | 90501-T0020 |
| 17420 | Central exhaust pipe assembly | 17420-BZ060 |
| 17420X | Center exhaust pipe liner | 90917-06048 |
| 17430 | Exhaust tailpipe assembly | 17430-BZ570 · 17430-BZ580 · 17430-BZ590 · 17430-BZ810 · 17430-BZB00 |
| 17451 | Exhaust pipe gasket | 17451-BZ110 |
| 17563A | No. 3 exhaust pipe lifting lug | 17567-BZ080 · 17567-BZ090 |
| 17569C | Exhaust pipe bracket bolts | 90109-T0016 |
