Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 4 images and 15 PNC and OE references.

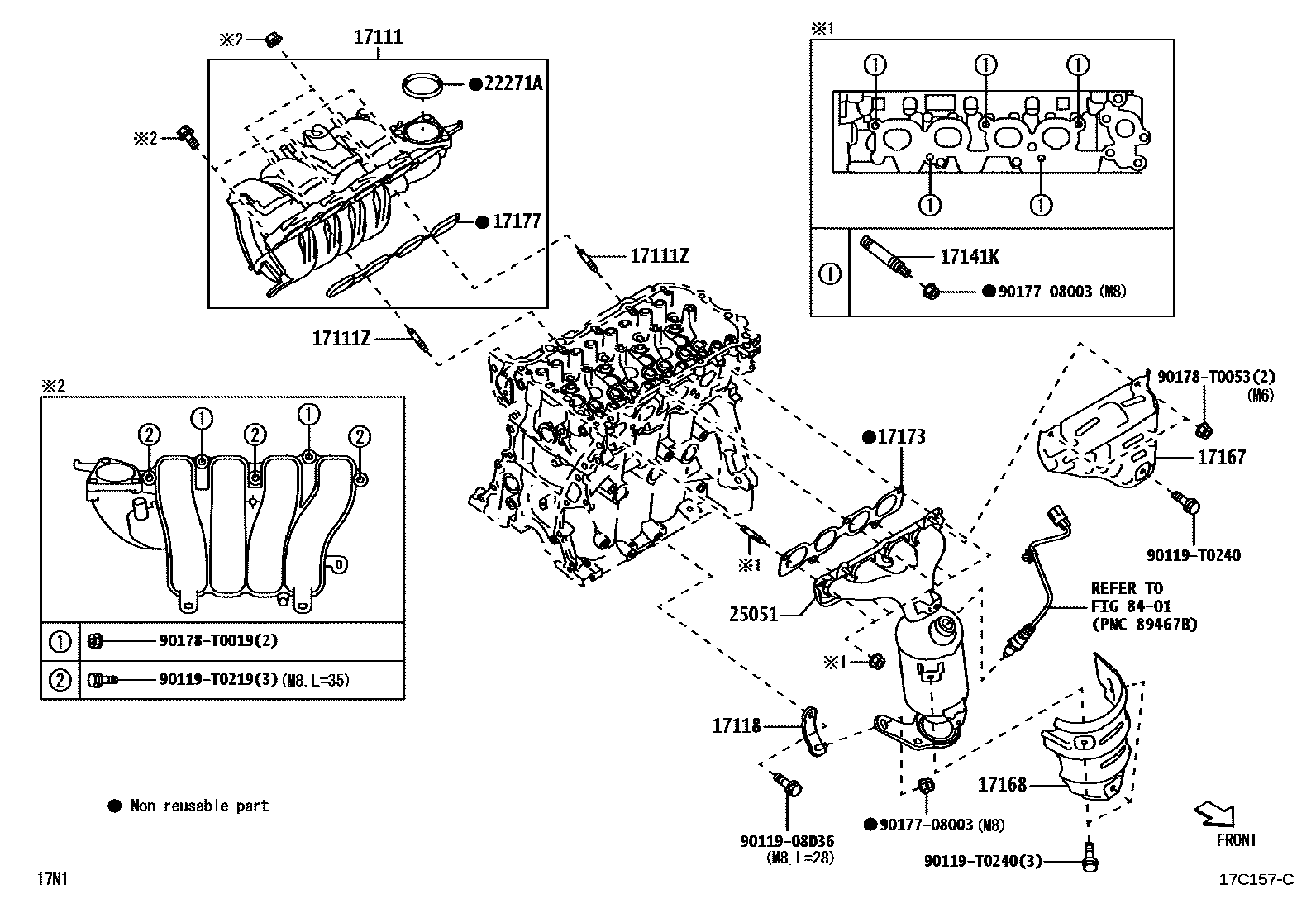

Toyota YARIS Manifold EPC diagram — 17C157C
Manifold — 17C157C (202208 – 999999)

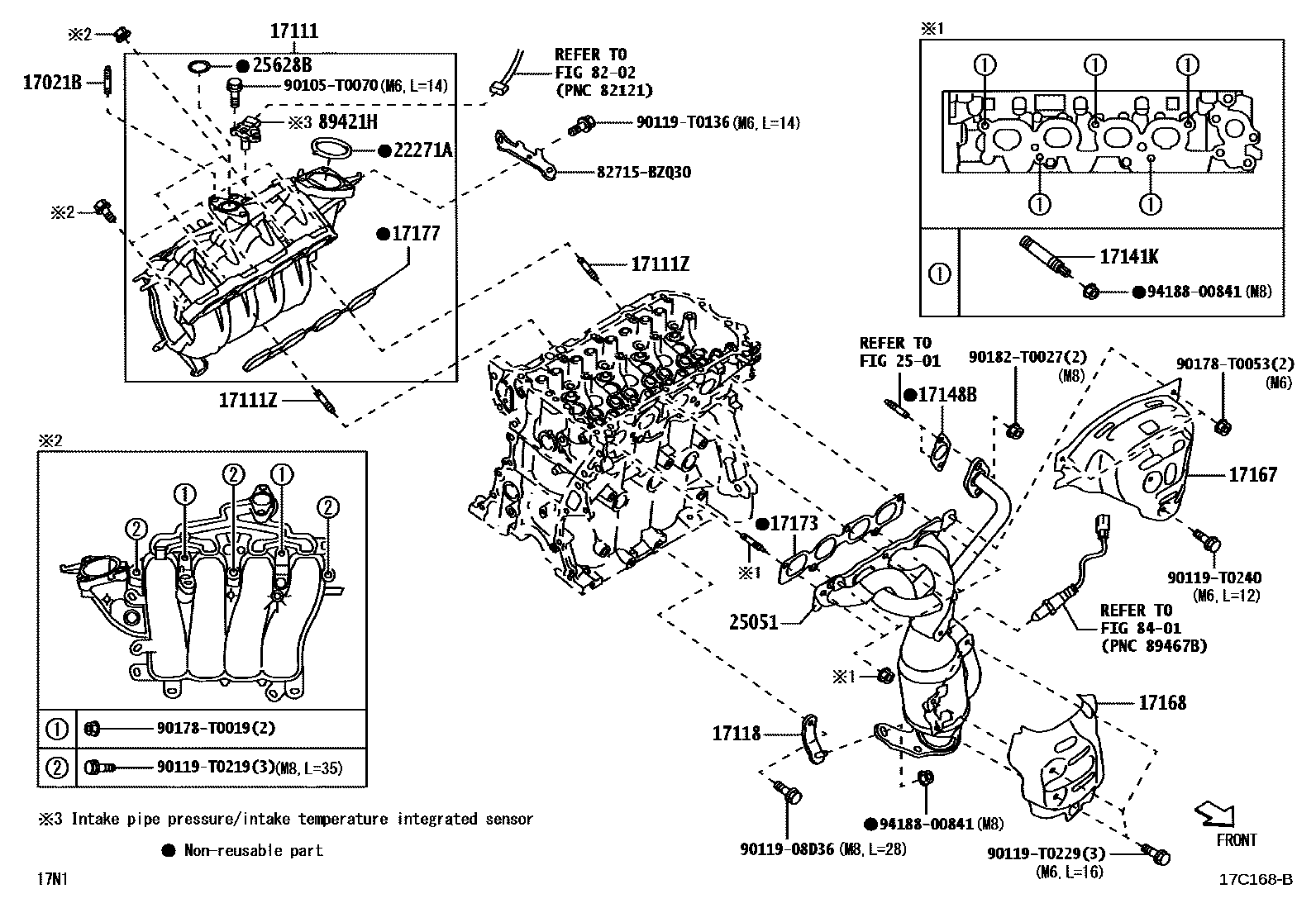

Toyota YARIS Manifold EPC diagram — 17C168B
Manifold — 17C168B (202208 – 999999)
Toyota YARIS Manifold EPC diagram — 17C237A
Manifold — 17C237A (202303 – 999999)

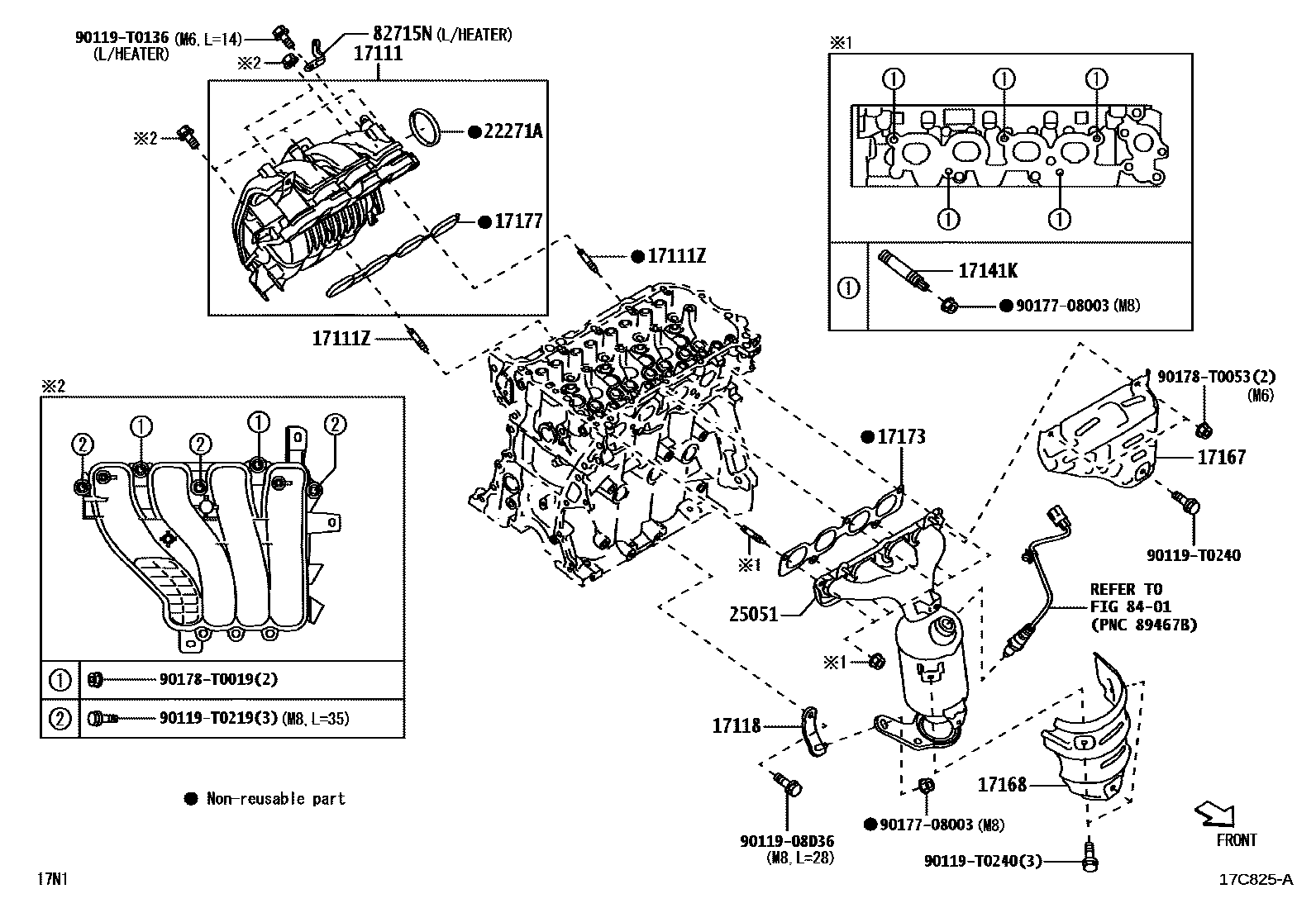

Toyota YARIS Manifold EPC diagram — 17C825A
Manifold — 17C825A (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
17021BStud bolt90126-T0015
17111Intake Manifold17120-0Y040 · 17120-0Y071 · 17120-BZ130 · 17120-BZ210
17111ZStud bolts (for intake manifold to cylinder head)9004A-12004 · 90126-T0019
17118Manifold stays17118-0Y031 · 17118-0Y061
17141KStud bolts (for exhaust manifold to cylinder head)90126-08063
17148BEGR air intake gasket25685-0Y060
17167Exhaust manifold No. 1 heat shield17167-0Y020 · 17167-0Y050 · 17167-0Y060
17168Exhaust manifold No.2 insulation pad17168-0Y020 · 17168-0Y050 · 17168-0Y100
17173Gasket (exhaust manifold to cylinder head)17173-0Y030 · 17173-0Y060 · 17173-47021
17177No. 1 gasket (intake manifold to cylinder head)17177-0Y030
22271AThrottle body gasket22271-0Y030
25051Exhaust manifold three-way catalytic converter sub-assembly25051-BZ140 · 25051-BZ150 · 25051-BZ200 · 25051-BZ260
25628BEGR air intake gasket25628-0Y010
82715NWire harness clamp bracket82715-BZR70
89421Hvacuum sensor89421-47010
