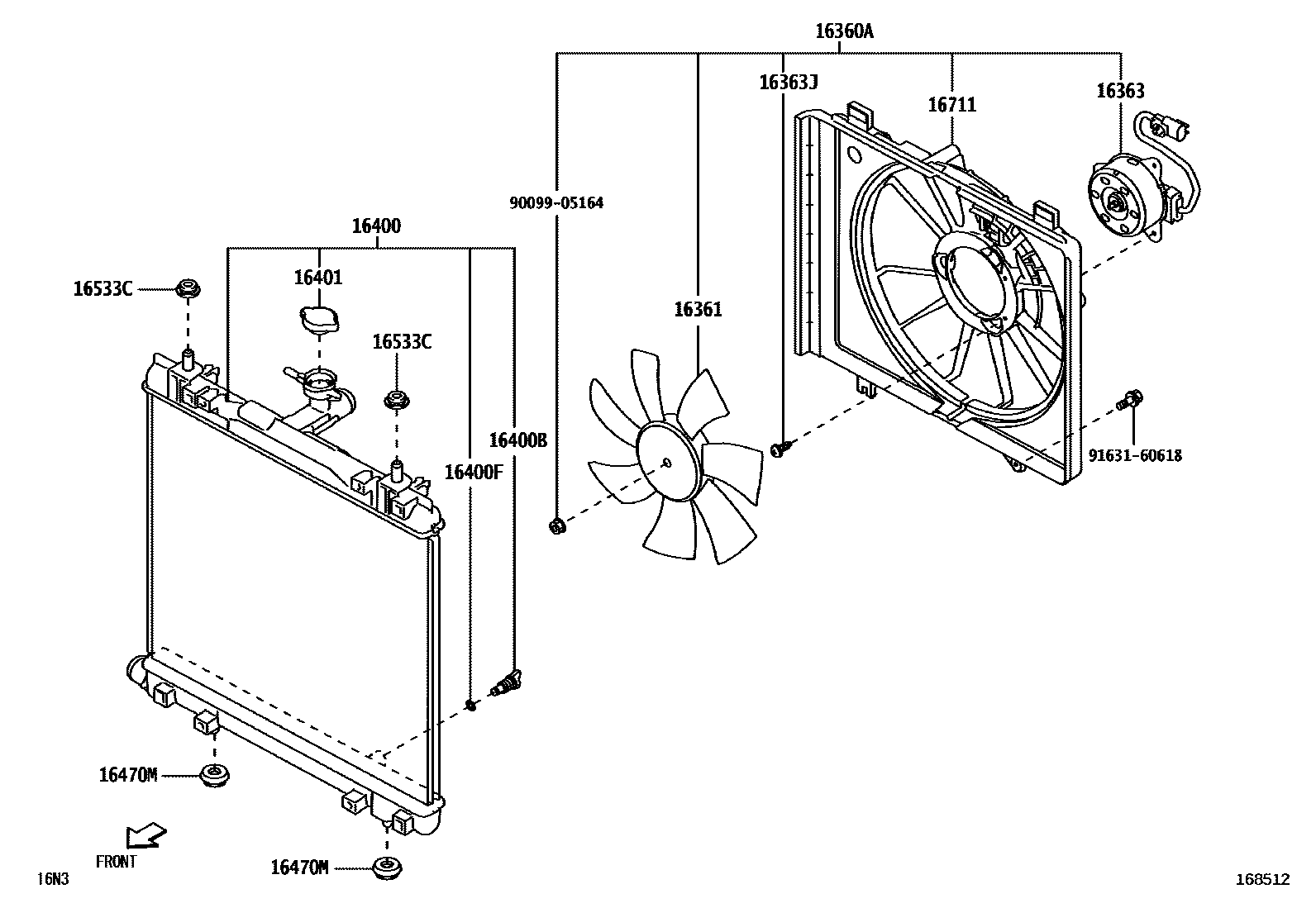

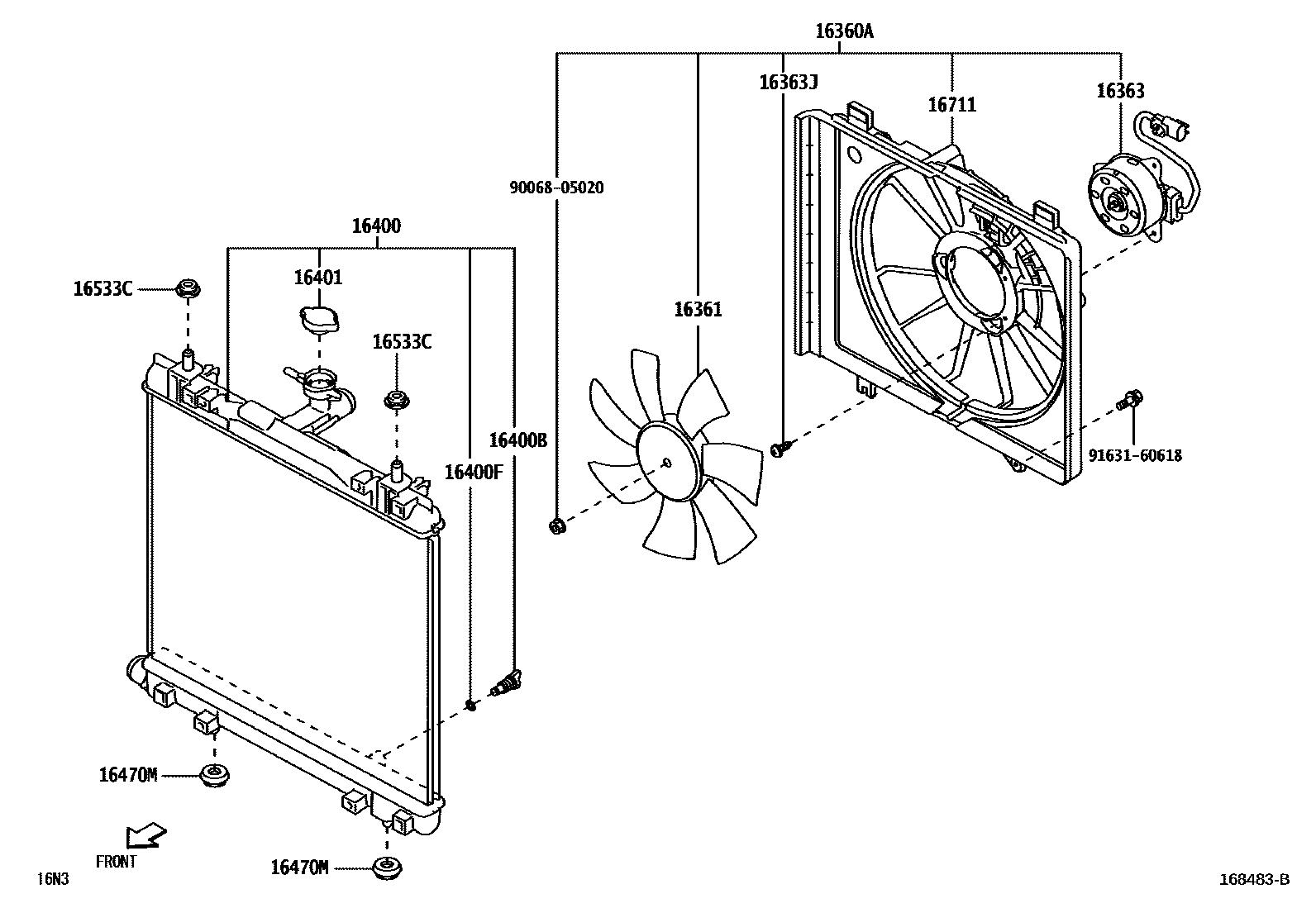

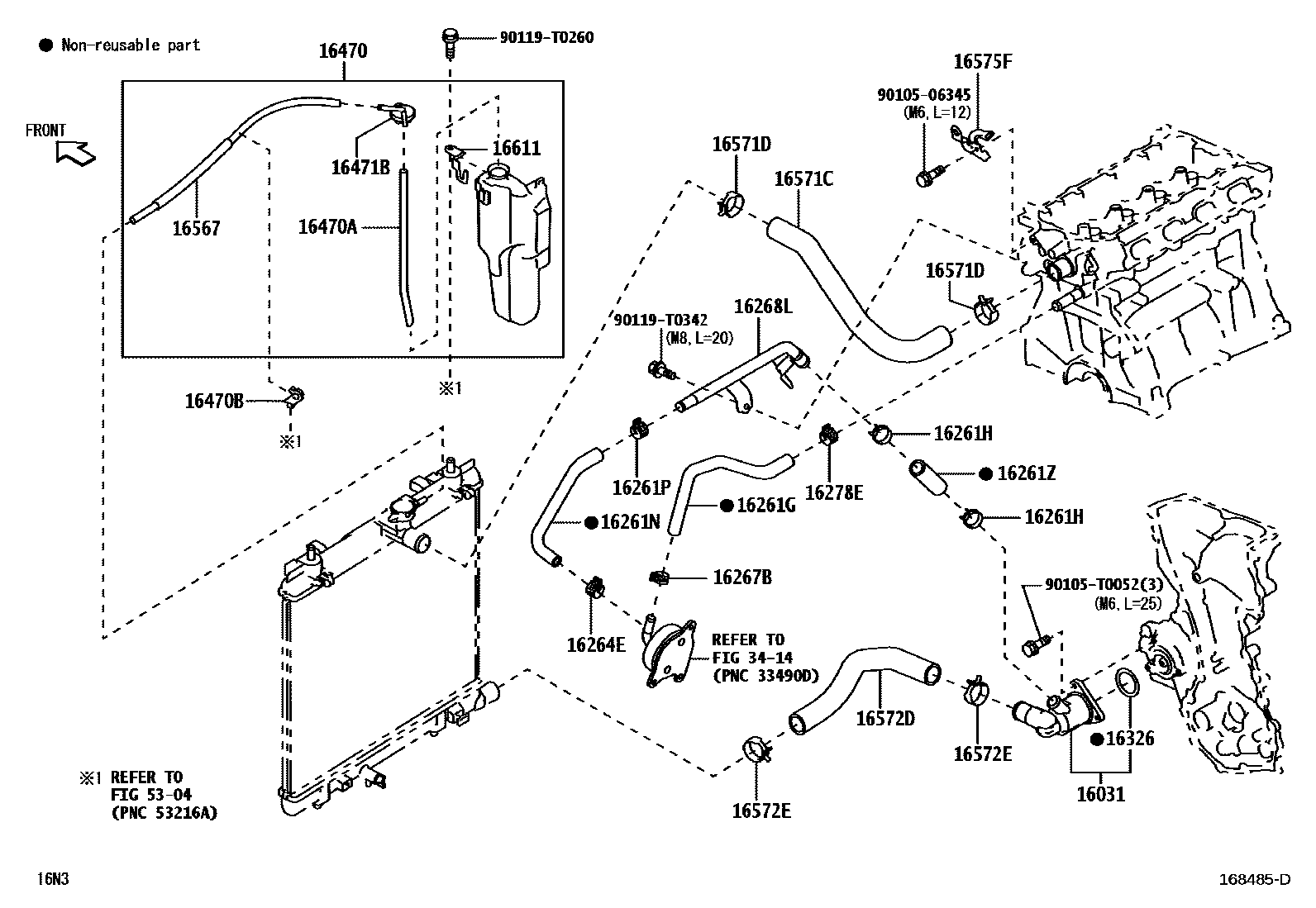

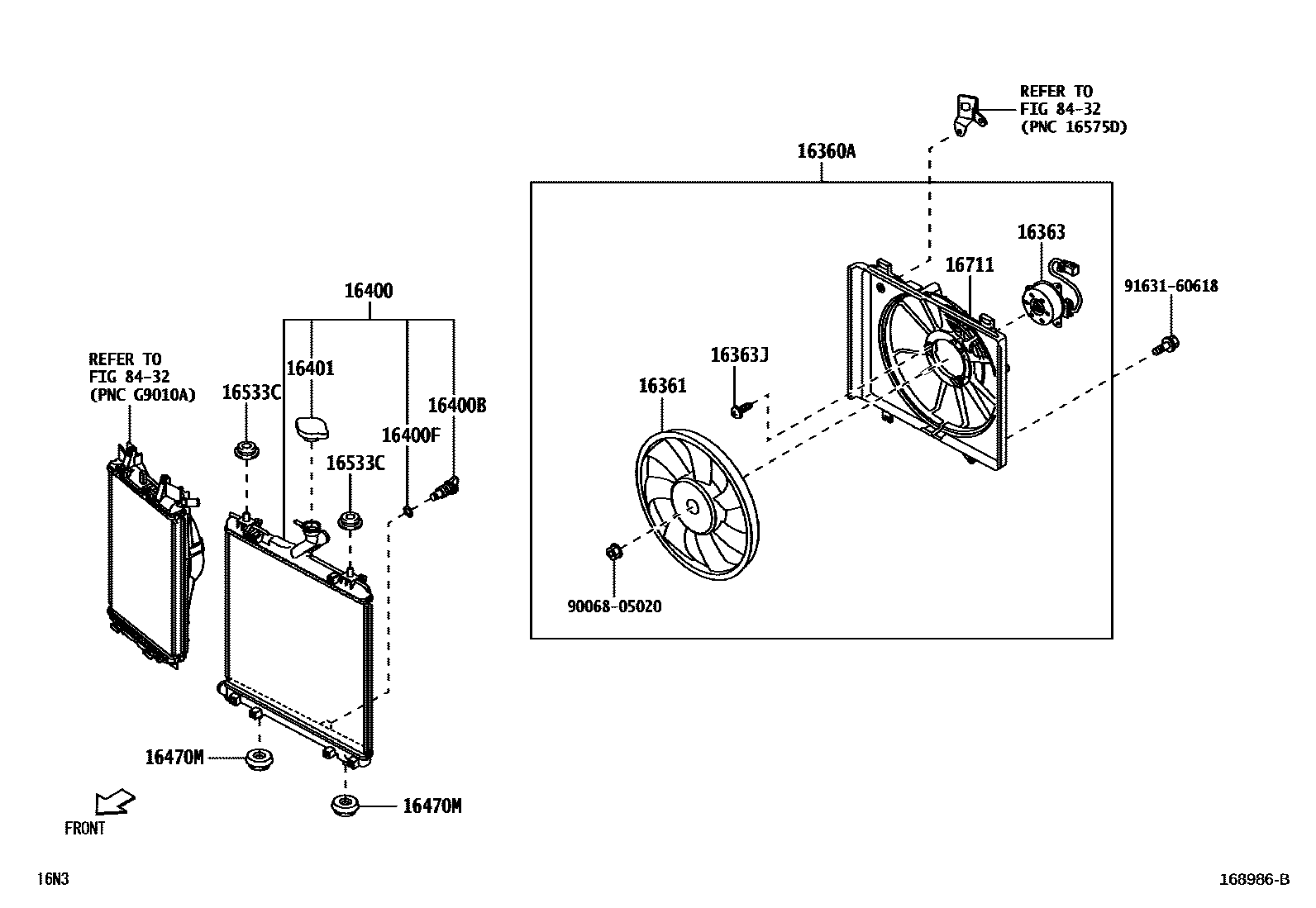

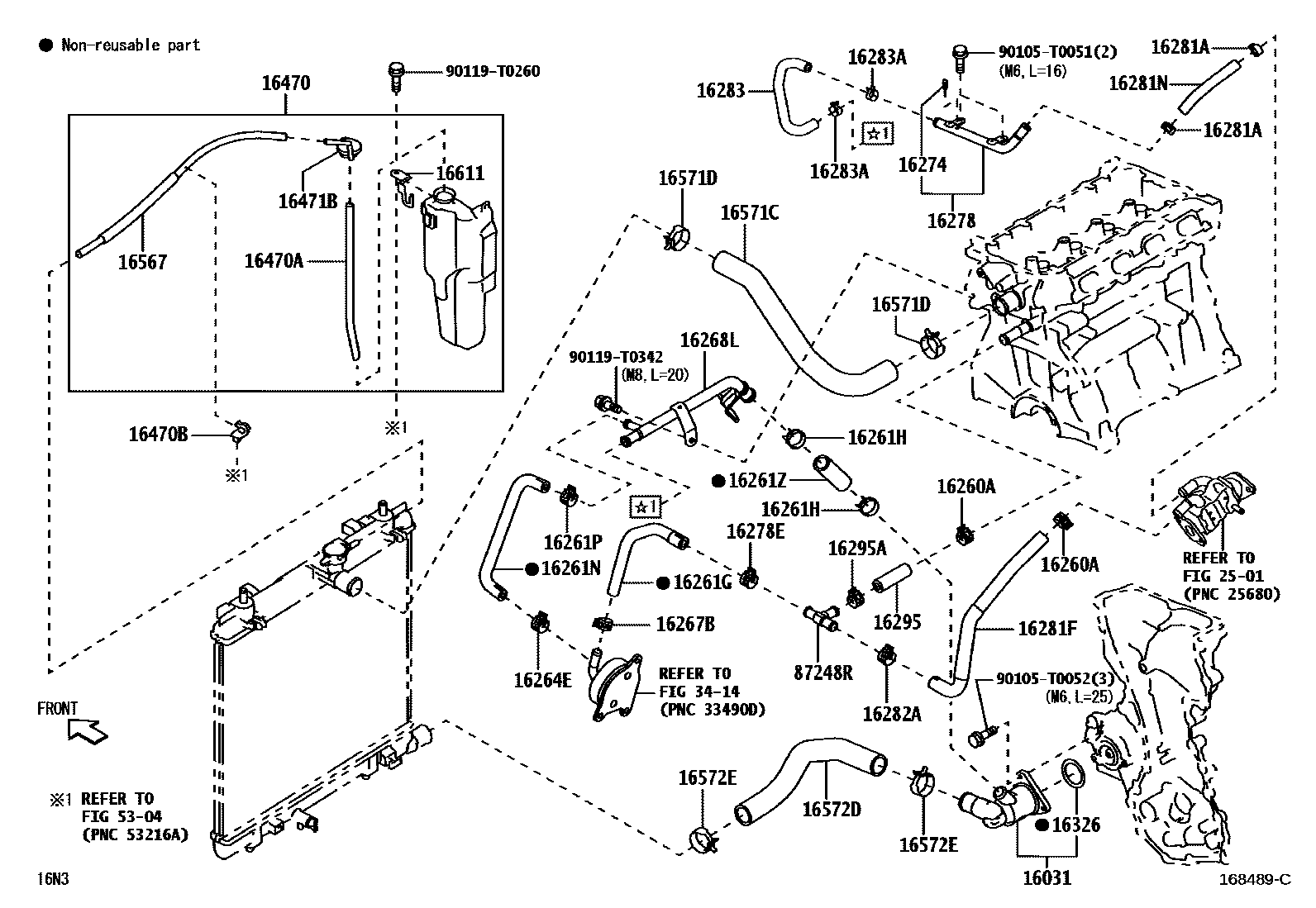

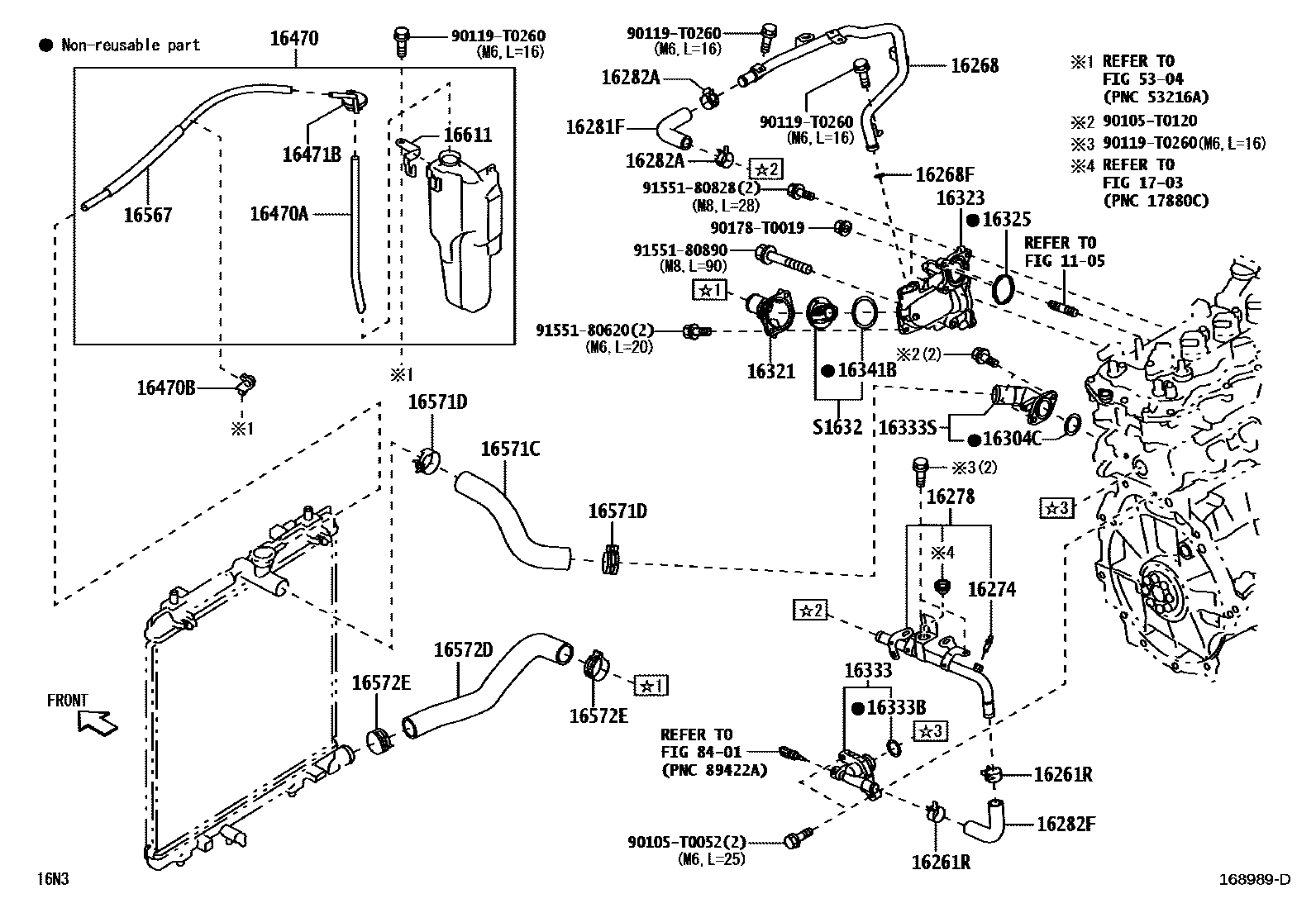

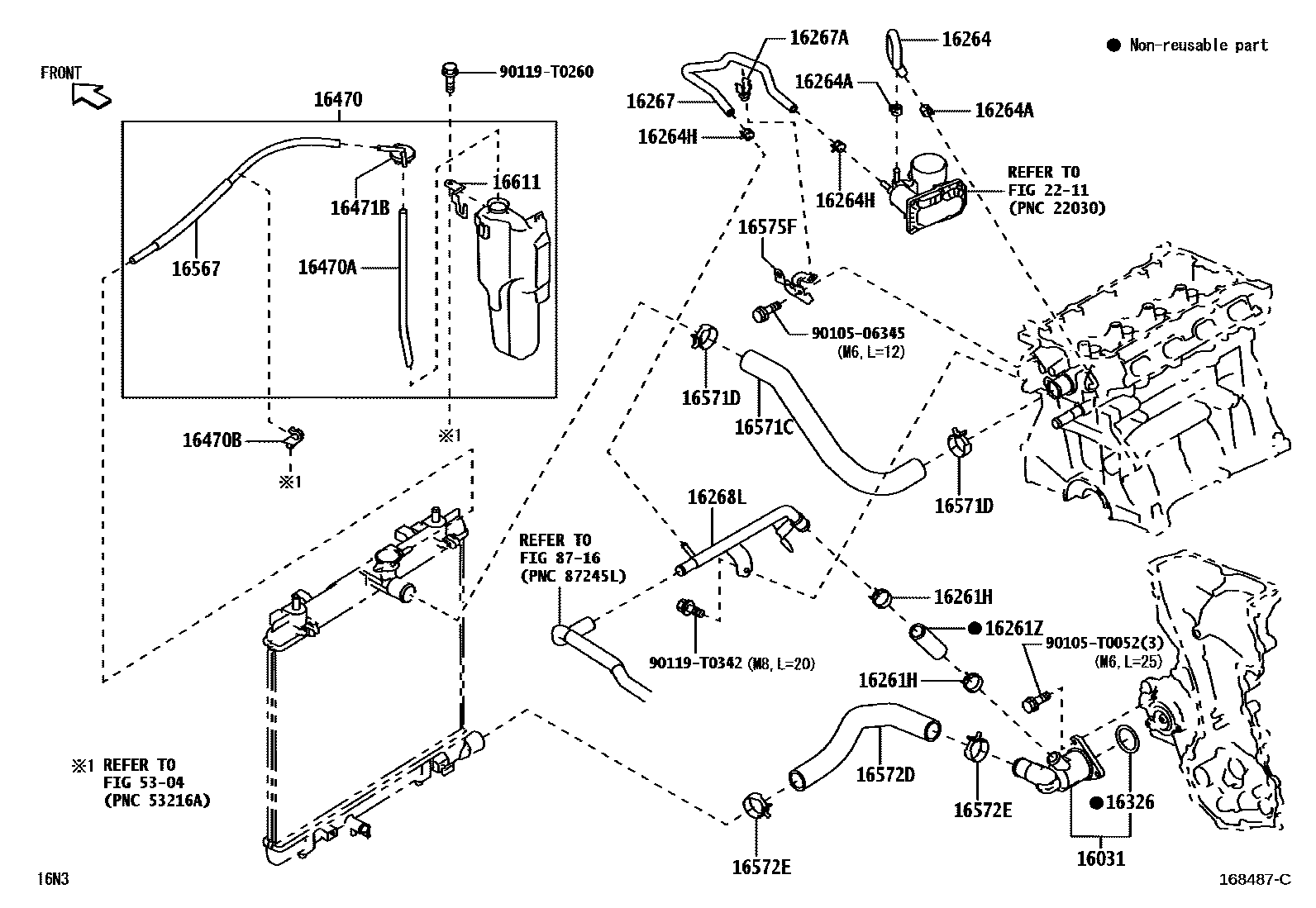

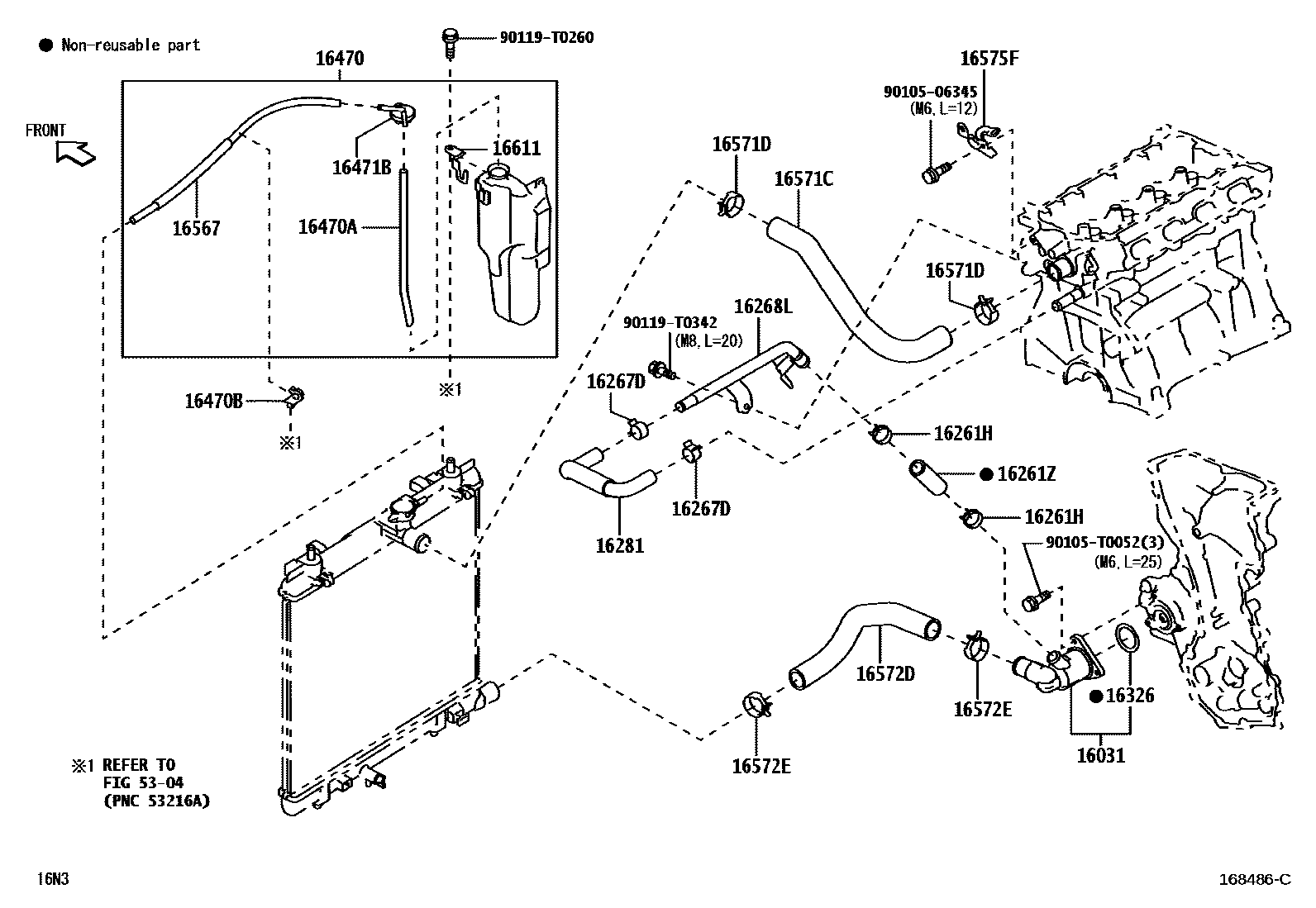

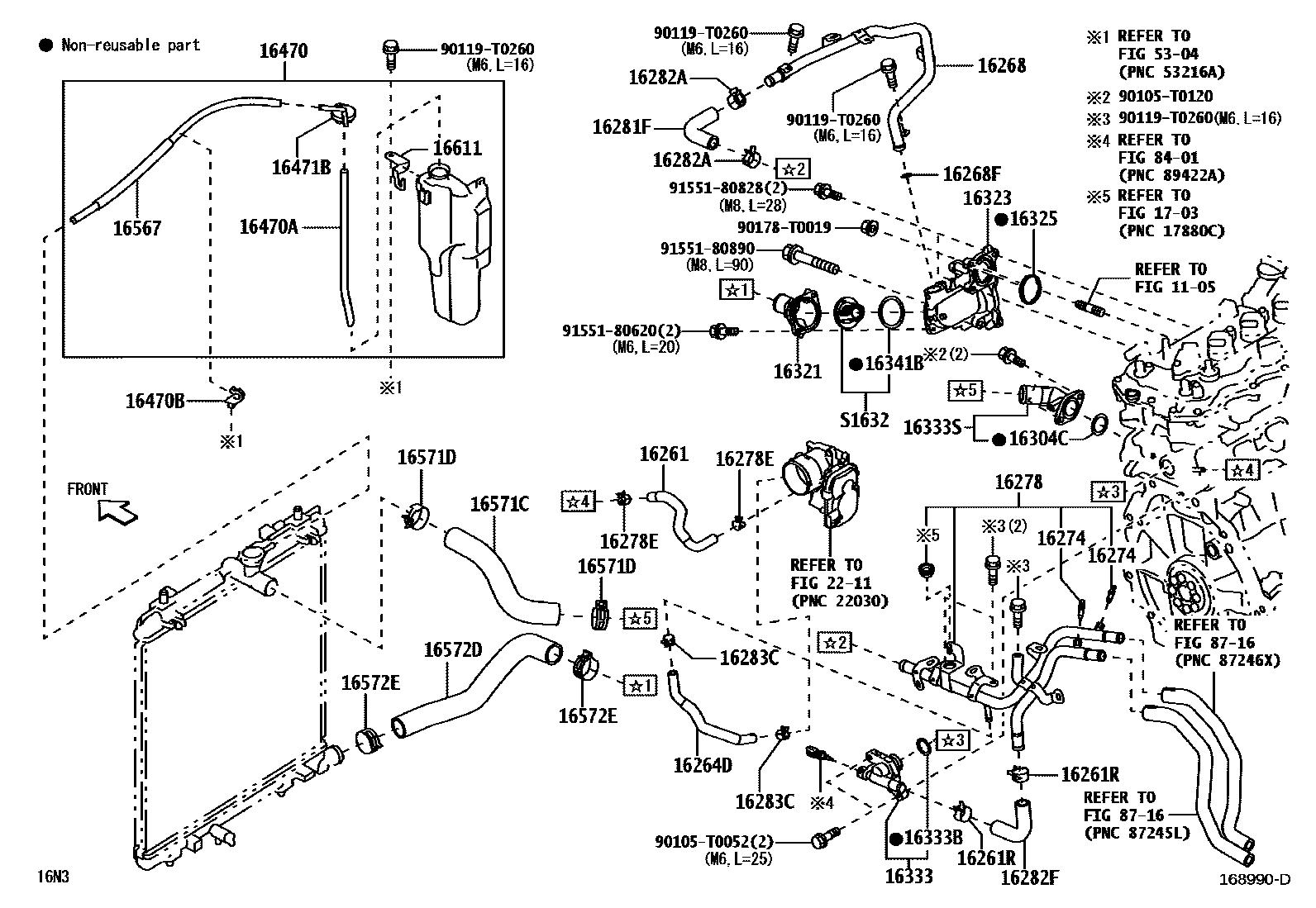

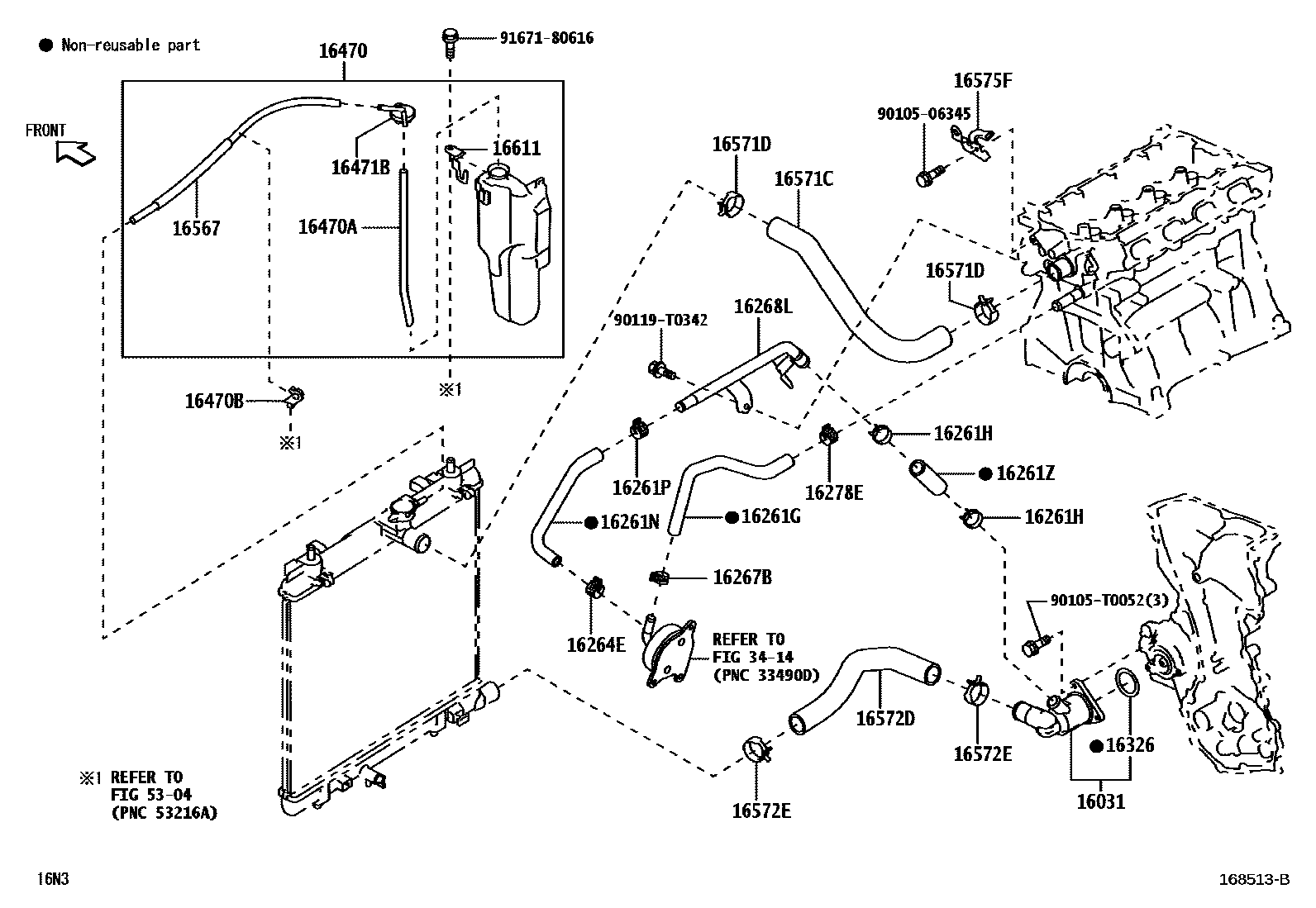

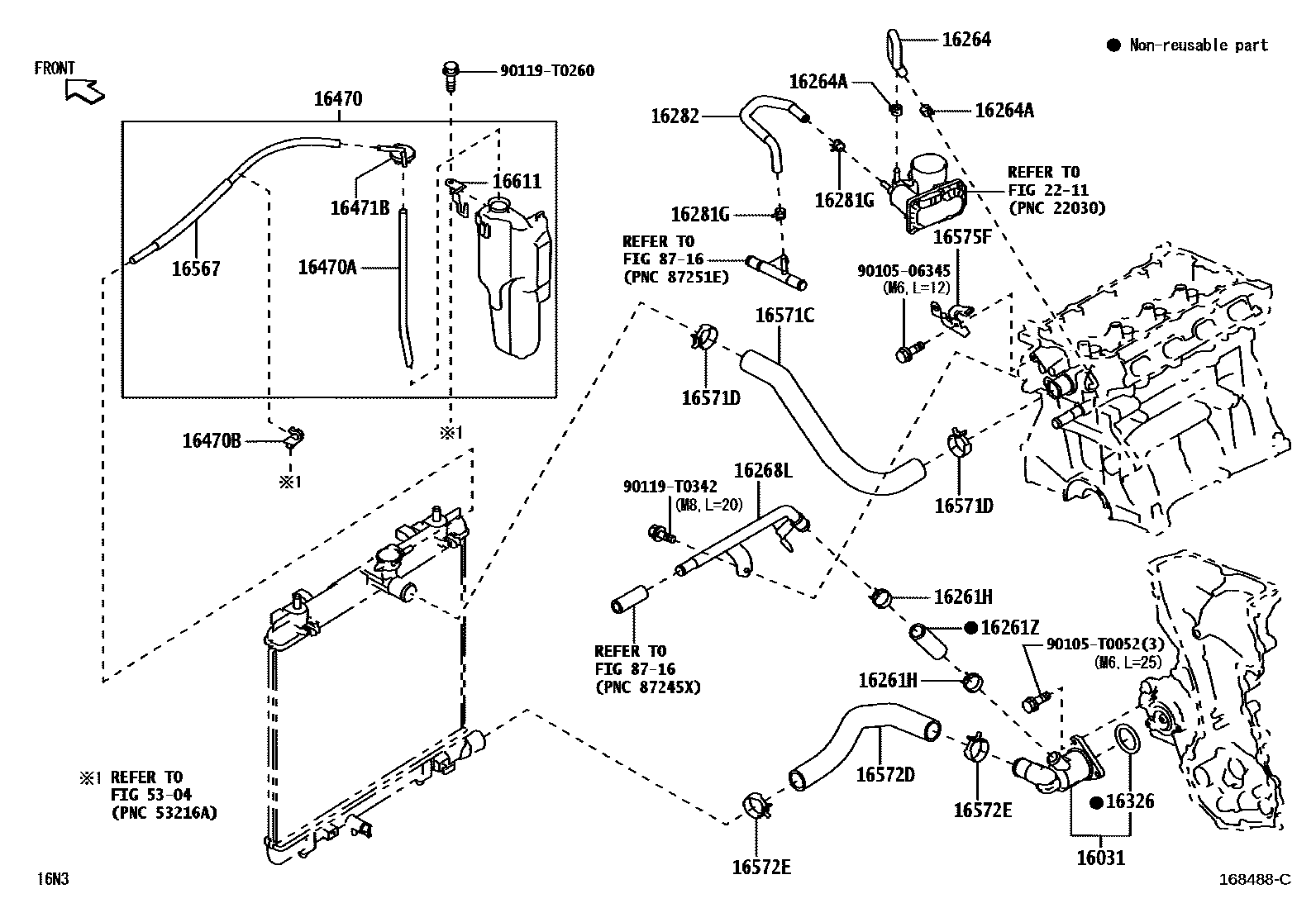

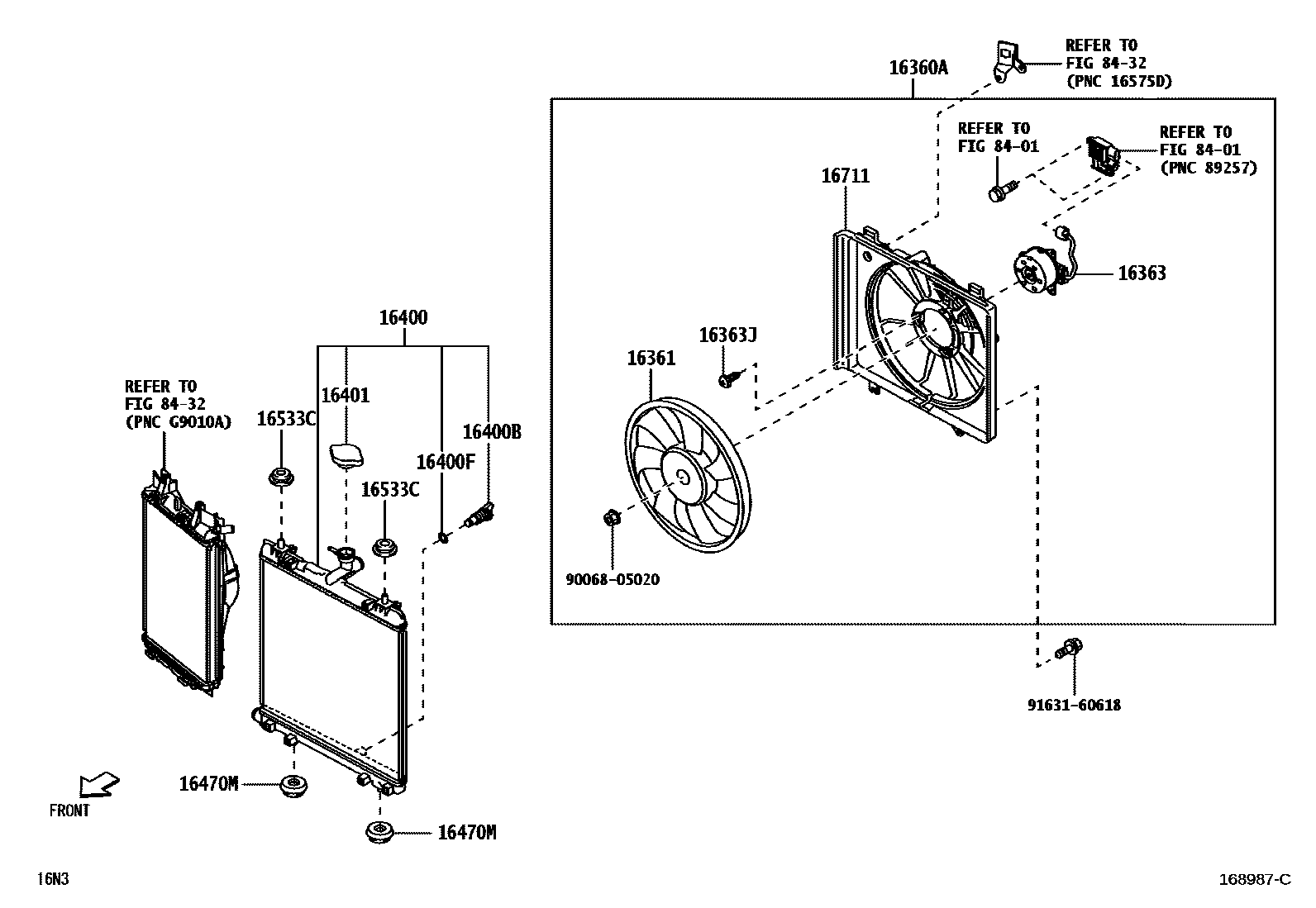

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 13 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-0Y030 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-T0020 |
| 16261 | HOSE, WATER BY-PASS | 16261-BZ750 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-BZ430 · 16261-BZ670 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90044-66054 · 90466-T0050 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16264-BZ230 · 16264-BZ270 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0017 · 90466-T0020 |
| 16261R | Clip or clip (for water bypass hose) | 90466-T0020 |
| 16261Z | HOSE, WATER BY-PASS, NO.1 | 16261-0Y100 · 16261-BZ270 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0Y110 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0015 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-BZ380 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0017 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90466-T0015 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-BZ180 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90469-T0015 |
| 16267B | Clip (for water bypass hose) | 90466-T0017 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0020 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-BZ190 |
| 16268F | O-ring (for water bypass pipe) | 9004A-30076 |
| 16268L | PIPE, WATER BY-PASS | 16268-0Y040 · 16268-0Y140 · 16268-0Y150 · 16268-0Y180 |
| 16274 | Water bypass pipe screw plug | 47547-20010 · 9004A-93005 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16270-BZ020 · 16270-BZ030 · 16270-BZ040 |
| 16278E | Clip (for water bypass hose) | 90466-T0015 · 90466-T0020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-BZ150 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0020 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-BZ080 · 16282-BZ110 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-T0015 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-0Y180 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-BZ070 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-T0020 |
| 16282F | HOSE, WATER BY-PASS, NO.5 | 16282-BZ110 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0Y041 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-T0020 |
| 16283C | Clip or clip (for water bypass hose) | 90466-T0015 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0Y020 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-T0020 |
| 16304C | O-ring (for water outlet pipe) | 9004A-30075 |
| 16321 | water inlet | 16321-BZ130 |
| 16323 | HOUSING, WATER INLET | 16323-BZ040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-BZ050 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0Y010 |
| 16333 | Water outlet shell | 16303-BZ030 |
| 16333B | O-ring (for outlet housing) | 9004A-30074 |
| 16333S | LOG, SORTIE D'EAU, NO.1 | 16303-BZ040 |
| 16341B | water inlet gasket | 16341-B2020 |
| 16360A | Fan assembly with motor | 16360-BZ390 · 16360-BZ460 · 16360-BZ500 · 16360-BZ501 · 16360-BZ570 · 16360-BZ580 |
| 16361 | Fan | 16361-BZ180 · 16361-BZ190 · 16361-BZ200 |
| 16363 | cooling fan motor | 16363-BZ190 · 16363-BZ191 · 16363-BZ210 · 16363-BZ260 · 16363-BZ270 |
| 16363J | Bolt (for cooling fan motor) | 90068-04056 · 90099-04119 |
| 16400 | Radiator assembly | 16400-BZB70 · 16400-BZB80 · 16400-BZC20 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-0L060 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-BZ190 · 16401-BZ200 |
| 16470 | Radiator reservoir assembly | 16470-BZ350 · 16470-BZ430 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16472-BZ190 · 16472-BZ210 |
| 16470B | Clip or clip (for radiator reservoir hose) | 9004A-46408 |
| 16470M | gasket | 90044-80592 · 9004A-48033 |
| 16471B | Reservoir tank cover | 16471-BZ120 · 16471-BZ140 |
| 16533C | Gasket (for radiator bracket) | 9004A-48017 |
| 16567 | Hoses (for radiator reservoir) | 16472-BZ180 · 16472-BZ200 |
| 16571C | Radiator hose No. 1 | 16571-BZ470 · 16571-BZ471 · 16571-BZ540 |
| 16571D | No. 1 radiator hose clip | 96136-43901 |
| 16572D | Radiator hose No. 2 | 16572-BZ410 · 16572-BZ460 |
| 16572E | No. 2 radiator hose clip | 96136-43901 |
| 16575F | No. 3 water hose clamp bracket | 16575-BZ090 |
| 16611 | Radiator reservoir bracket | 16611-BZ030 · 16611-BZ070 |
| 16711 | fan cover | 16711-BZ230 · 16711-BZ240 · 16711-BZ290 · 16711-BZ300 |
| 87248R | water pipe | 87248-26880 |
| S1632 | thermostat assembly | 16340-B0020 |
