Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 3 images and 3 PNC and OE references.

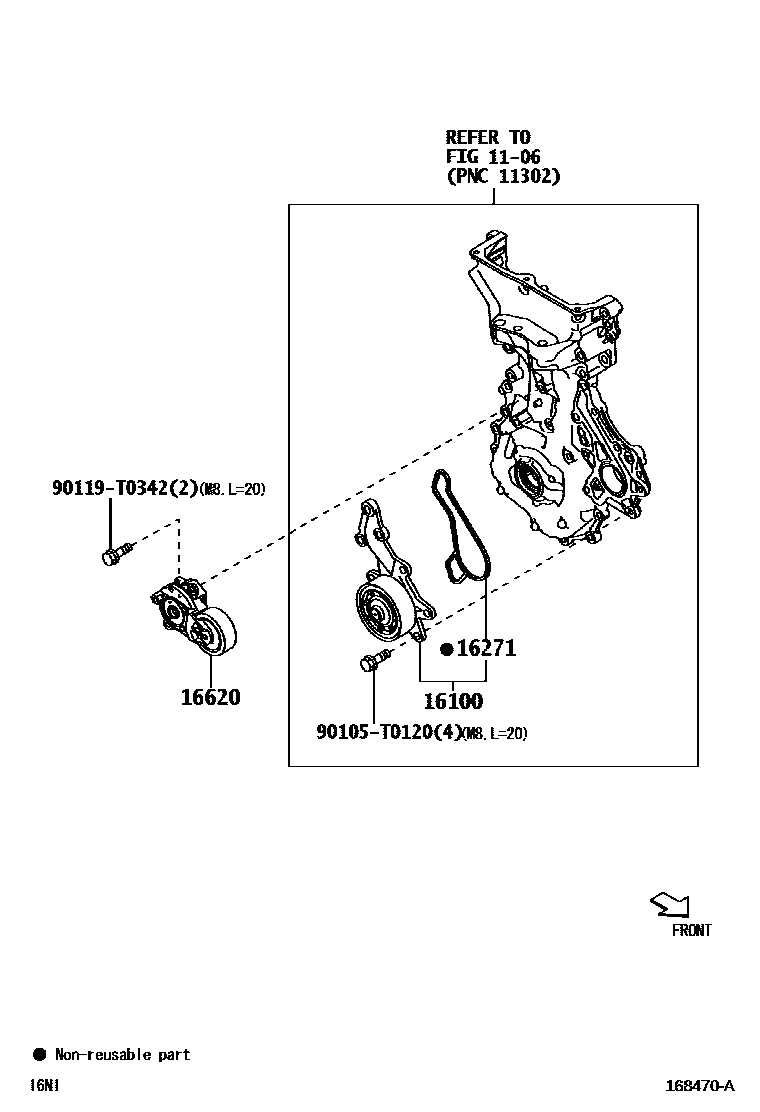

Toyota YARIS Water Pump EPC diagram — 168470A
Water Pump — 168470A (202208 – 999999)

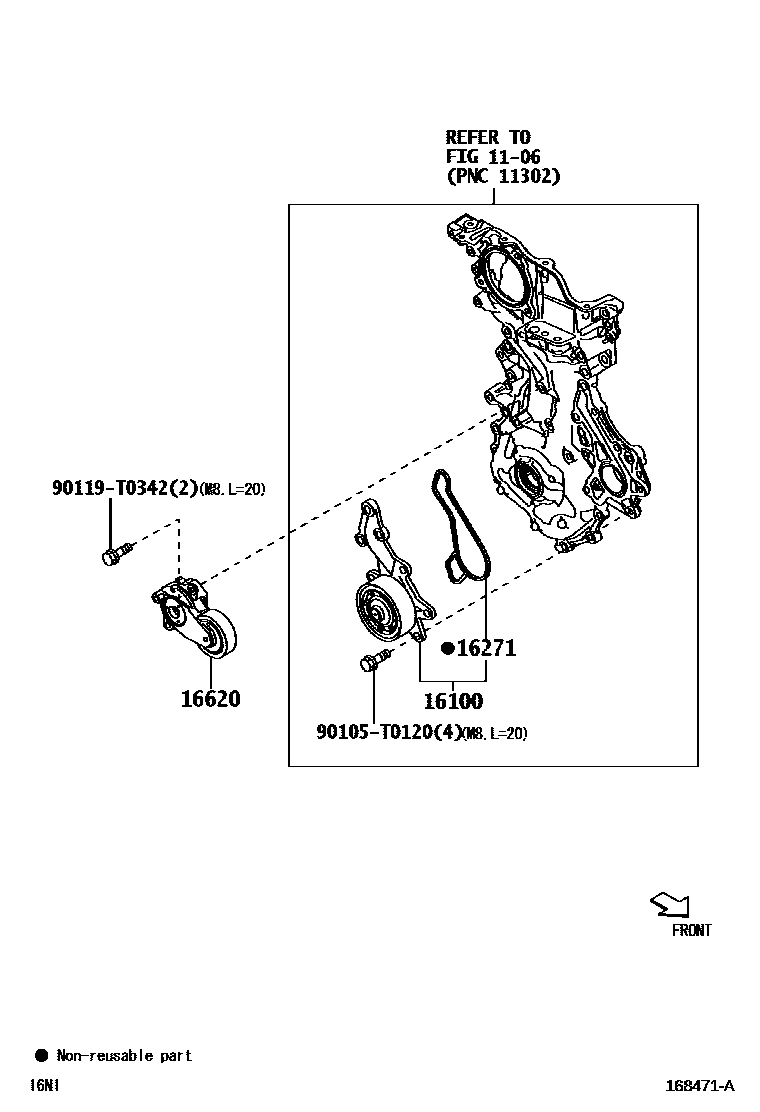

Toyota YARIS Water Pump EPC diagram — 168471A
Water Pump — 168471A (202208 – 999999)

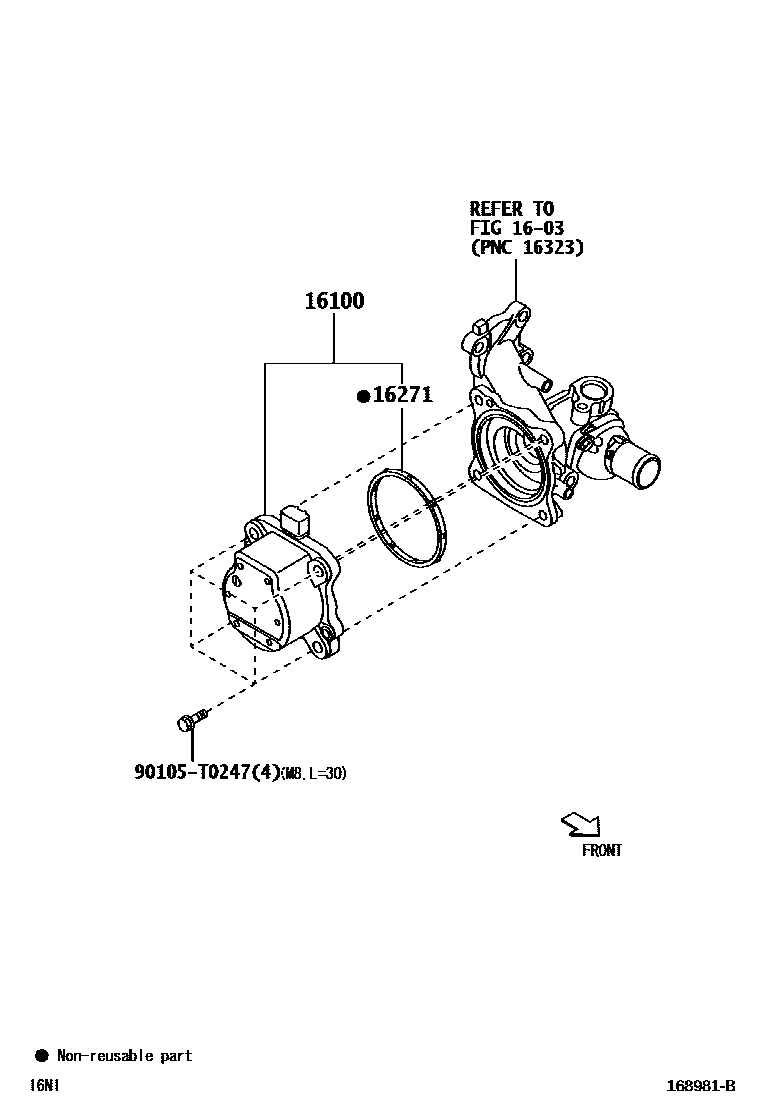

Toyota YARIS Water Pump EPC diagram — 168981B
Water Pump — 168981B (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09770 · 16100-B9490 · 161A0-B0010
16271water pump gasket16271-0Y030 · 16271-0Y040 · 16271-BZ090
16620Poly V-belt tensioner assembly16620-0Y043 · 16620-0Y061 · 16620-0Y100
