Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 3 images and 10 PNC and OE references.

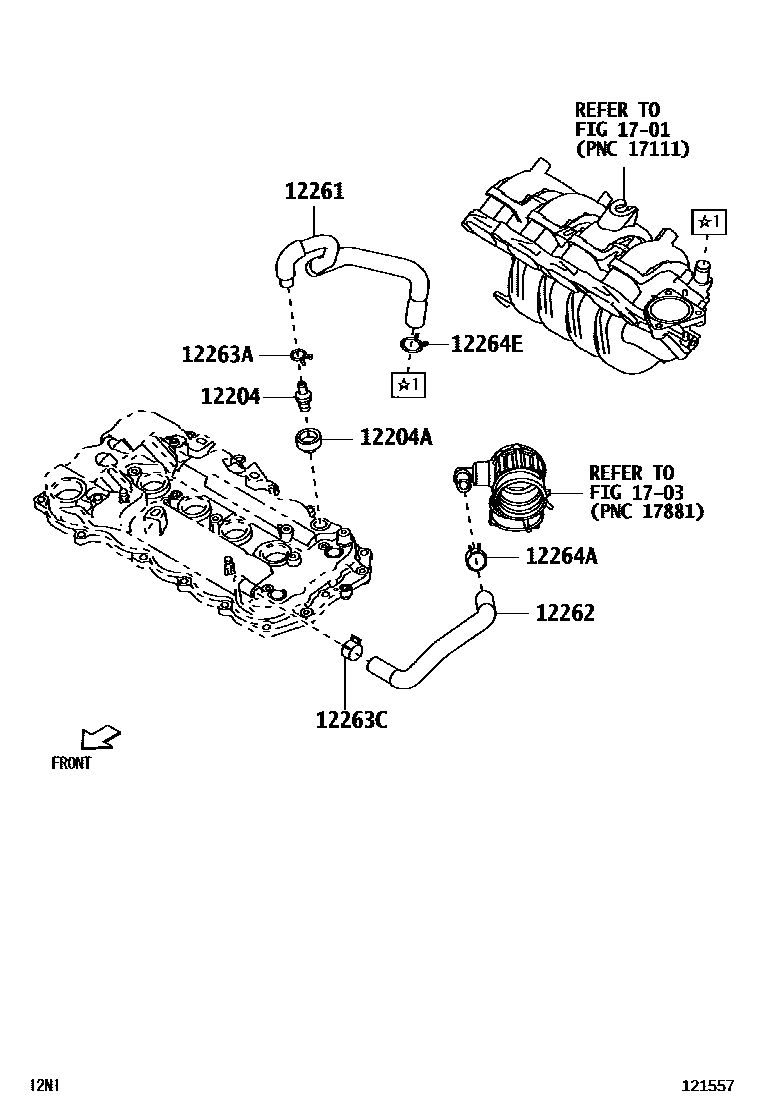

Toyota YARIS Ventilation Hose EPC diagram — 121557
Ventilation Hose — 121557 (202208 – 999999)

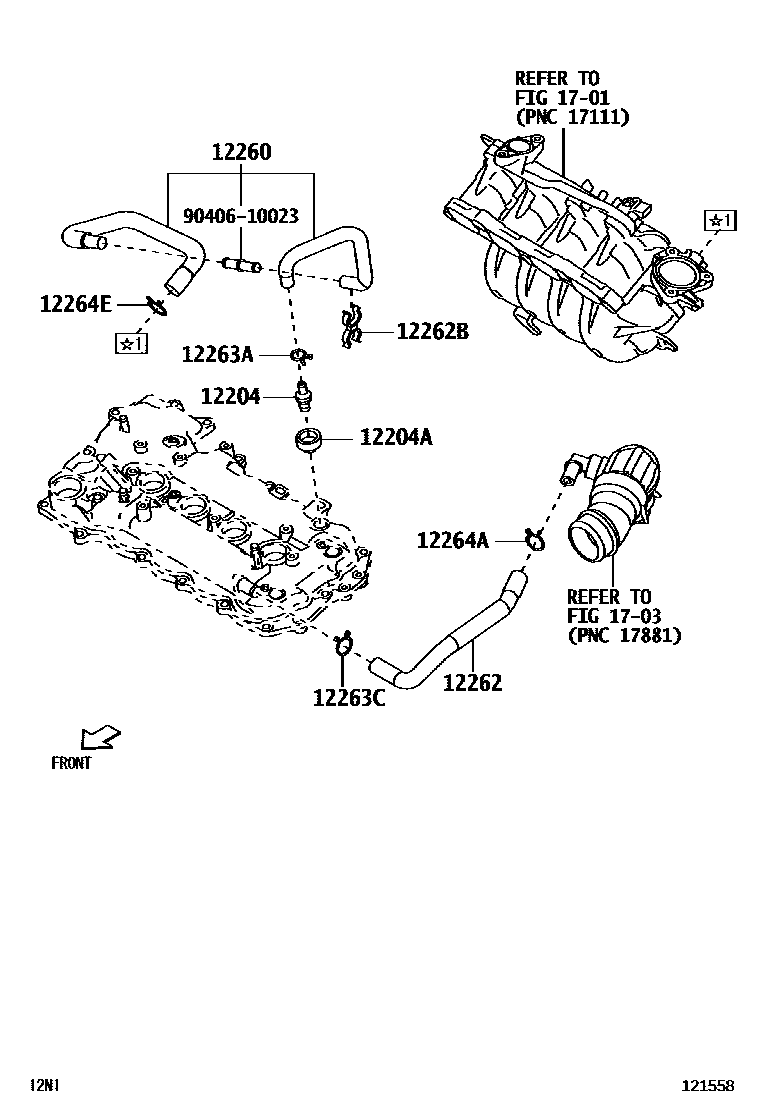

Toyota YARIS Ventilation Hose EPC diagram — 121558
Ventilation Hose — 121558 (202208 – 999999)

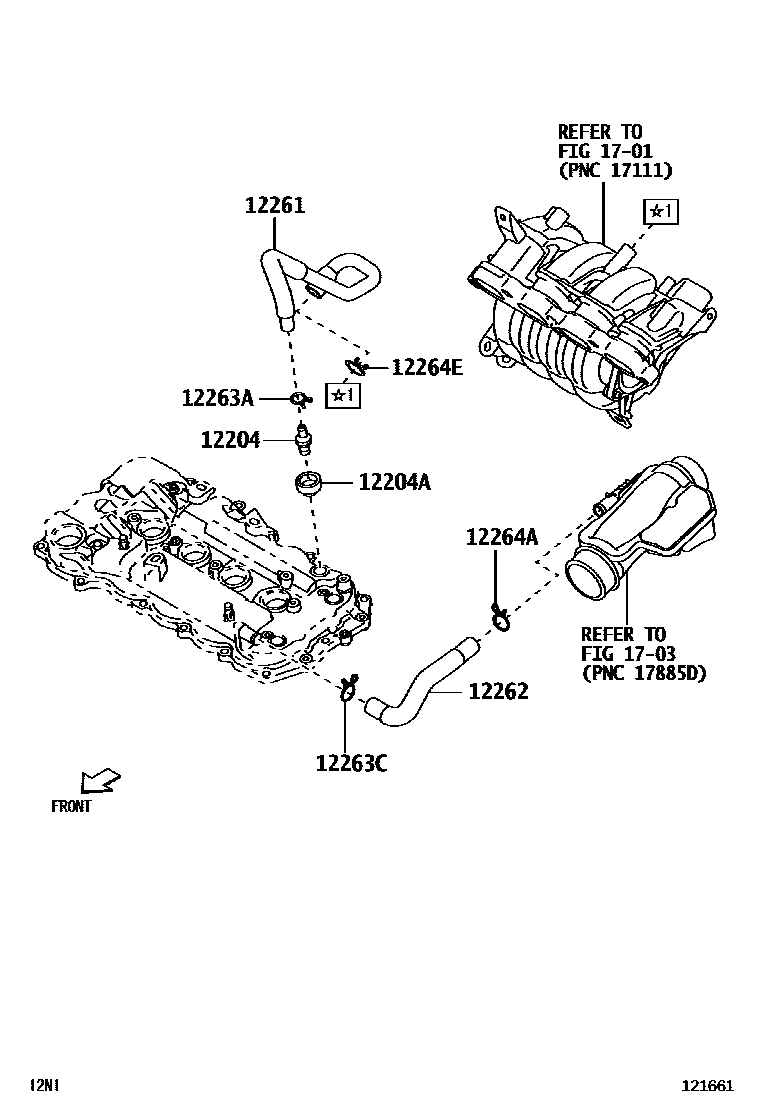

Toyota YARIS Ventilation Hose EPC diagram — 121661
Ventilation Hose — 121661 (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0Y020 · 12204-0Y040 · 12204-BZ070
12204AGasket (for ventilation system)90480-T0013
12260Ventilation hose assembly12260-0Y010
12261Ventilation Hose12261-BZ210 · 12261-BZ310
12262Ventilation hose No. 212262-BZ190 · 12262-BZ210 · 12262-BZ220
12262BClamp (for ventilation hose)90464-00801
12263AClip (for ventilation hose)90466-T0060 · 90466-T0061 · 90467-15021
12263CClip (for ventilation hose)90466-T0020 · 90466-T0063
12264AClip (for ventilation hose)90466-T0020 · 90466-T0027 · 90466-T0063
12264EClip (for ventilation hose)90466-T0032 · 90466-T0062
