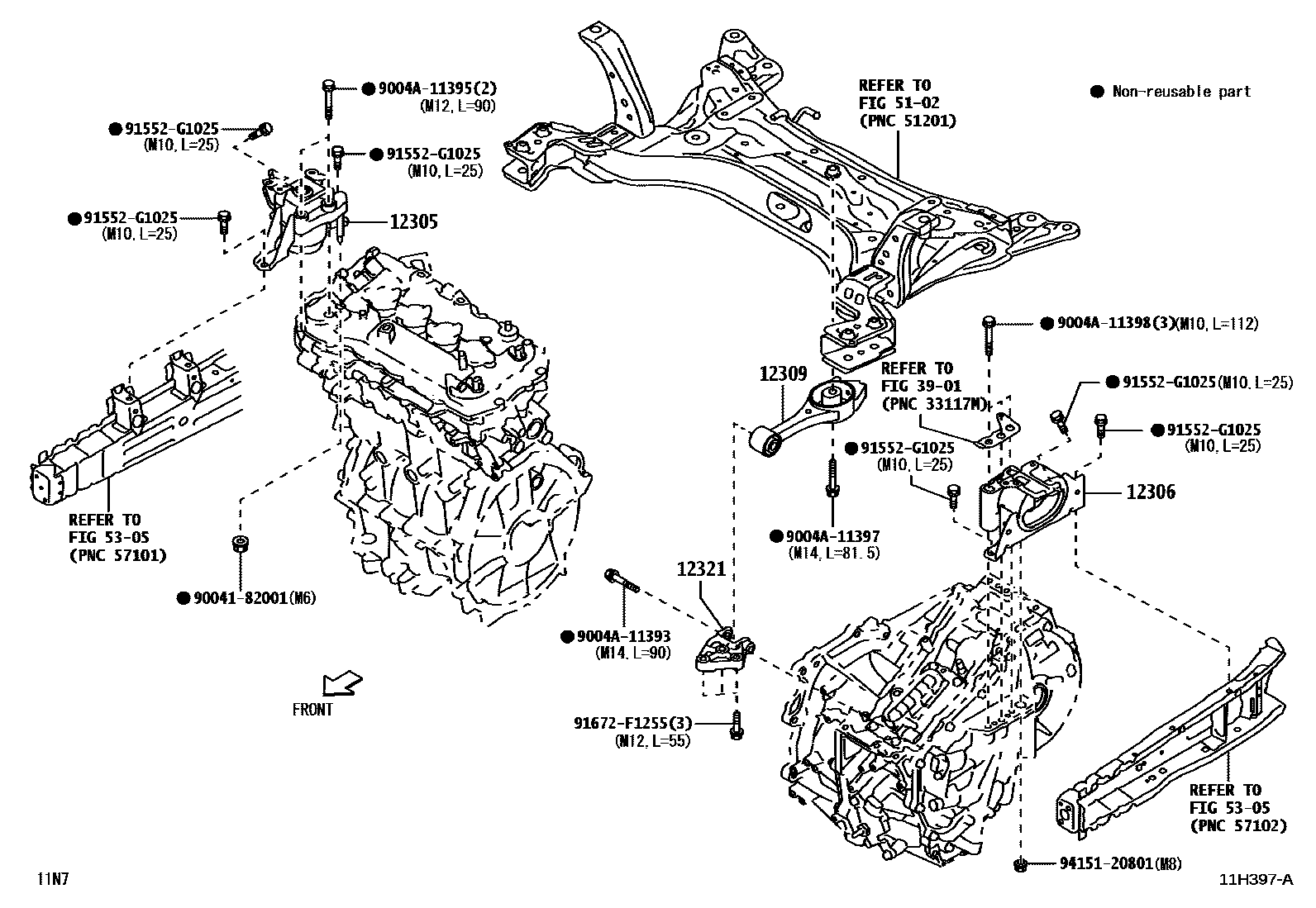

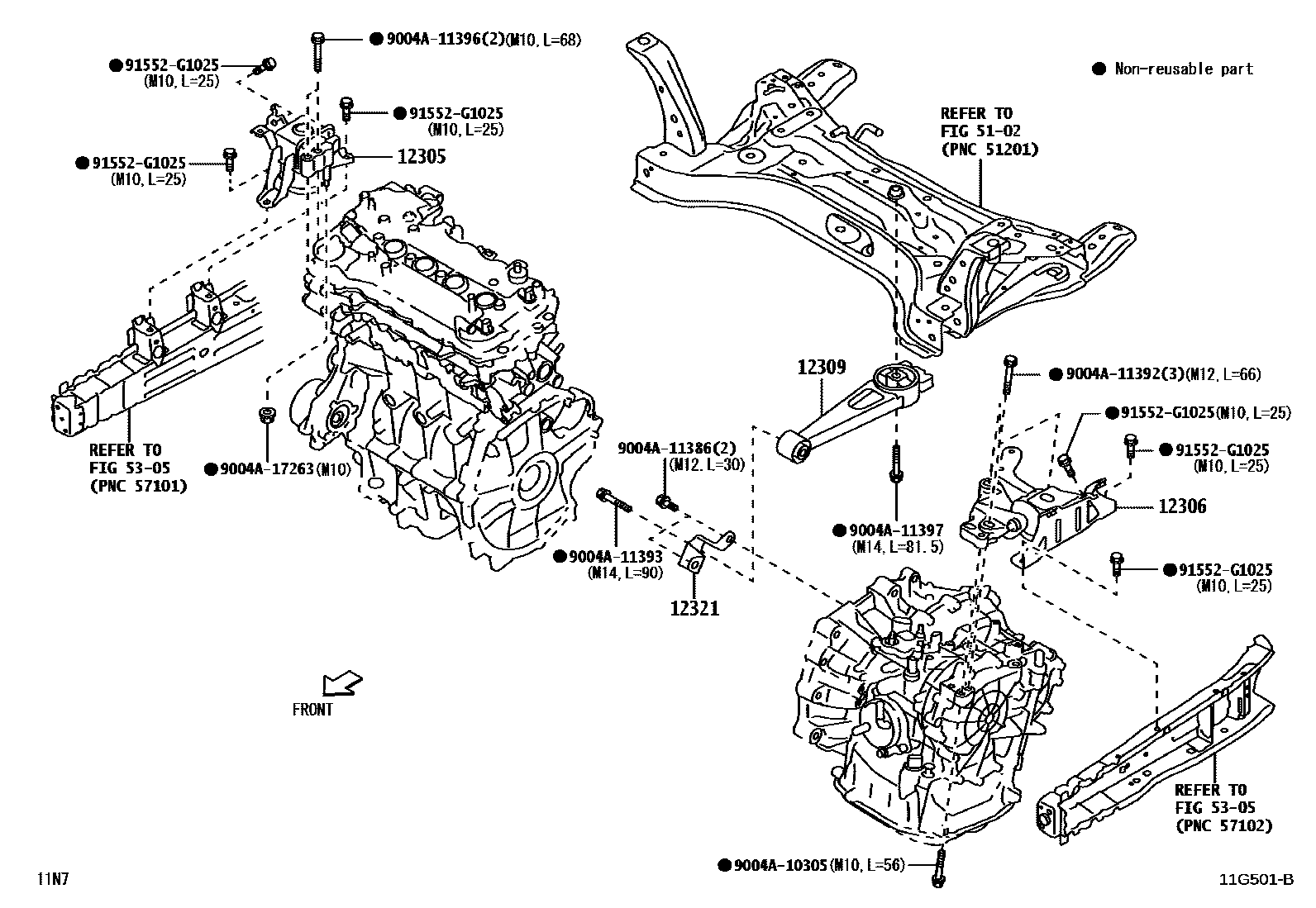

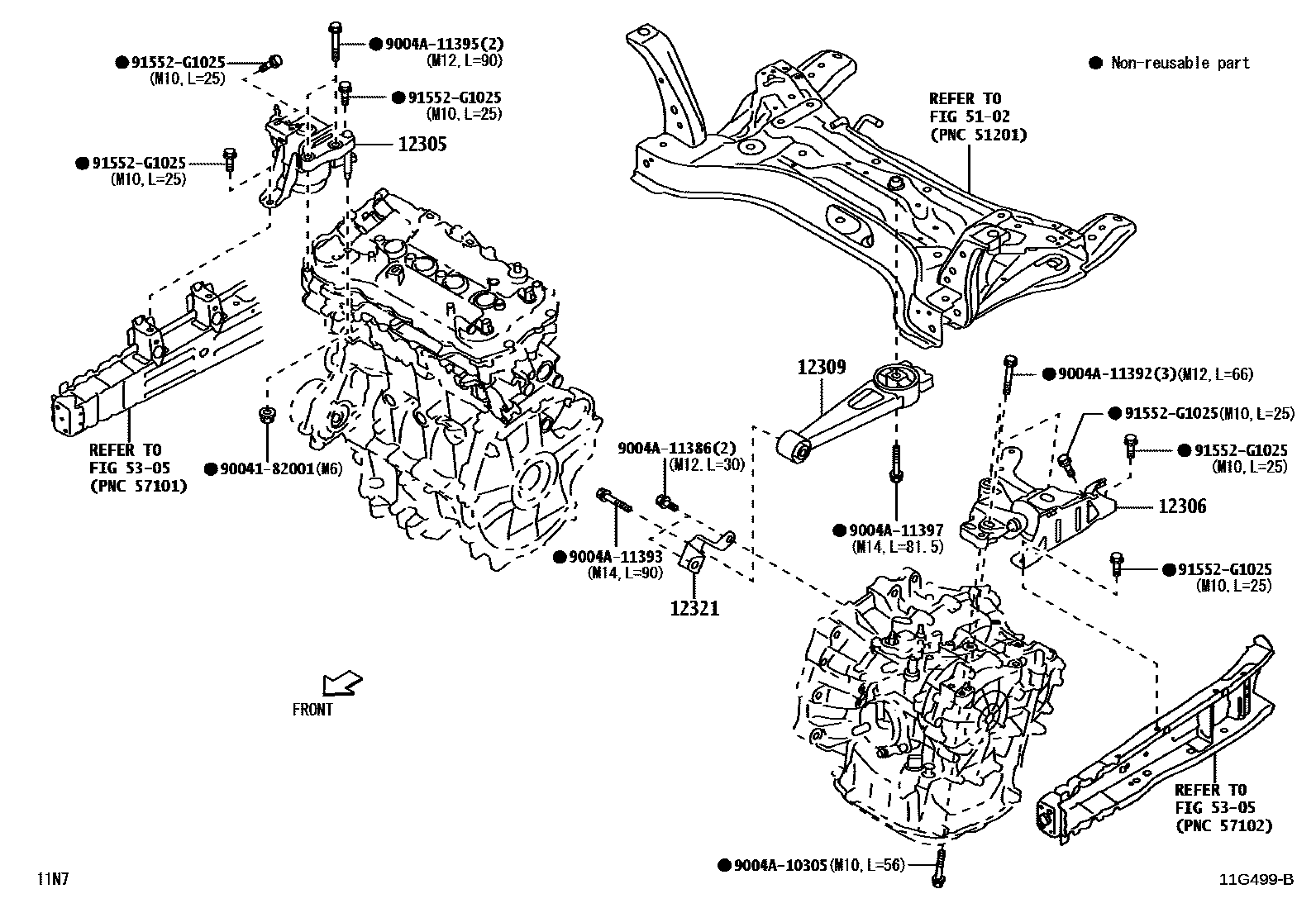

Toyota YARIS Engine Mounting — Figure 1107
Toyota YARIS EPC diagram 1107, Engine Mounting, with 4 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-BZ370 · 12305-BZ400 · 12305-BZ410 · 12305-BZ420 · 12305-BZ510 |
| 12306 | Engine left mounting vibration isolation pad sub-assembly | 12306-BZ410 · 12306-BZ430 · 12306-BZ440 · 12306-BZ450 · 12306-BZ520 |
| 12309 | Engine motion control lever sub-assembly | 12309-BZ310 · 12309-BZ320 · 12309-BZ330 · 12309-BZ340 · 12309-BZ420 |
| 12321 | Engine No. 1 rear suspension bracket | 12321-BZ380 · 12321-BZ390 |
