Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 6 PNC and OE references.

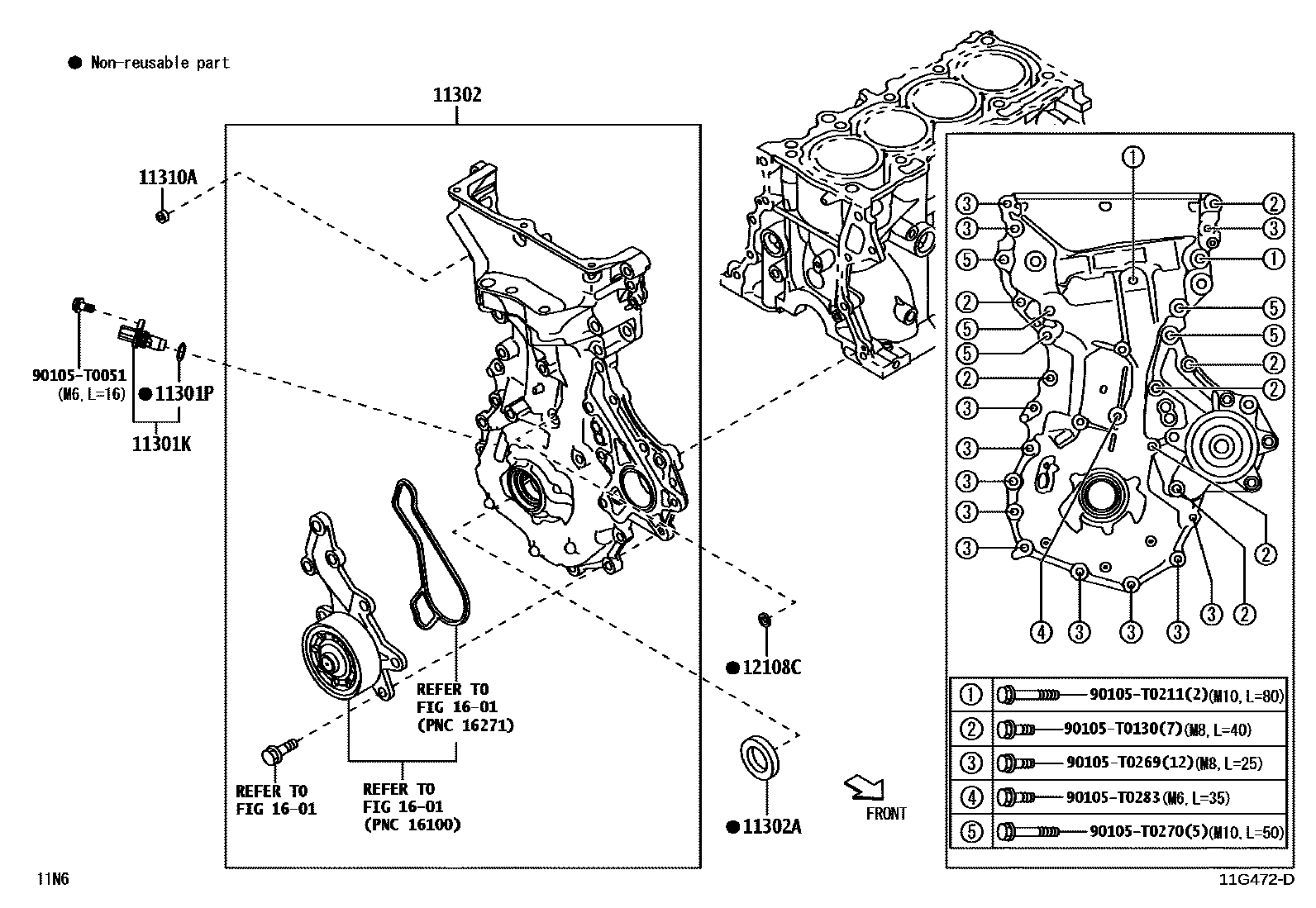

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11G472D
Timing Gear Cover & Rear End Plate — 11G472D (202208 – 999999)

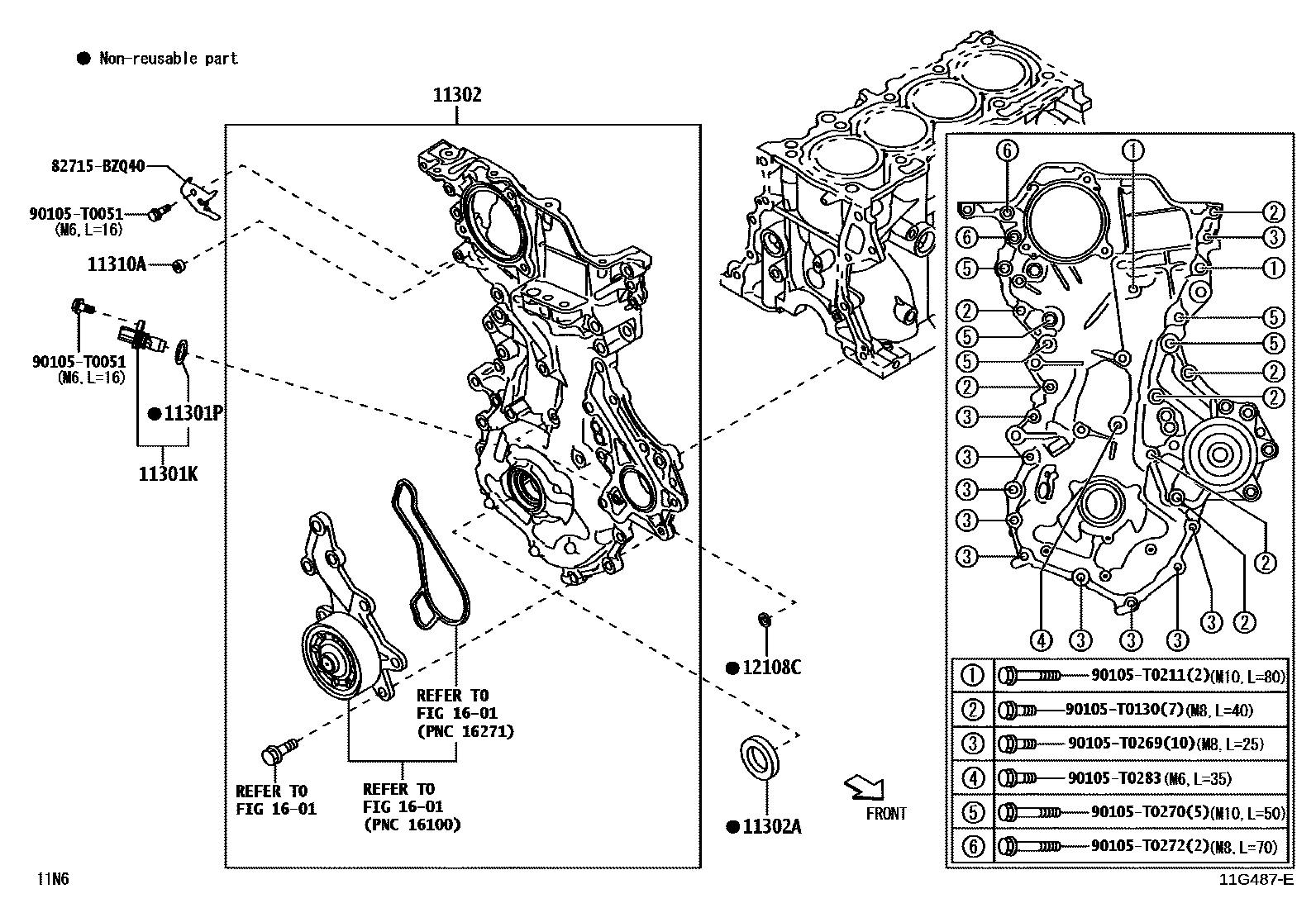

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11G487E
Timing Gear Cover & Rear End Plate — 11G487E (202208 – 999999)

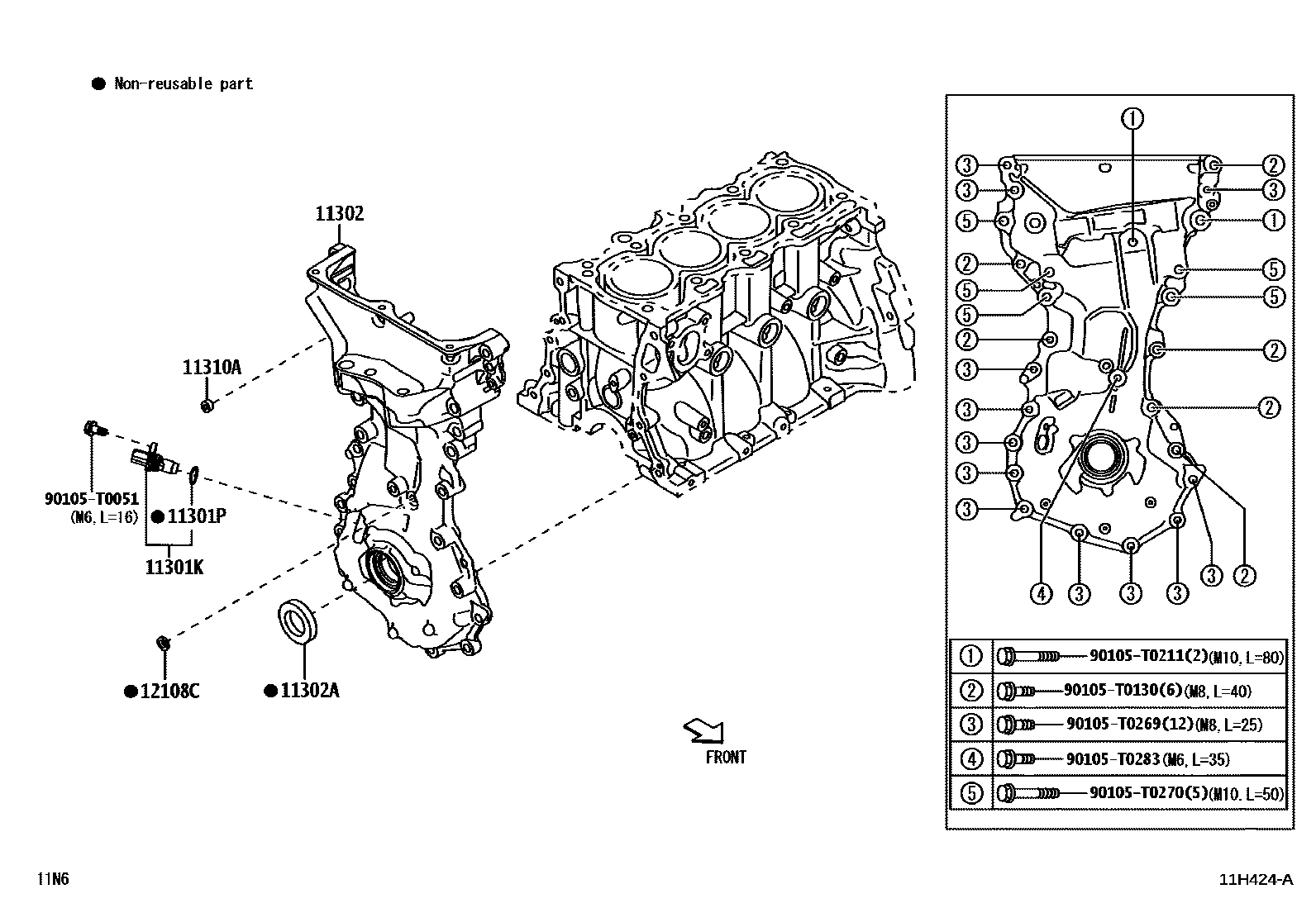

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11H424A
Timing Gear Cover & Rear End Plate — 11H424A (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor9004A-19006 · 90919-05079 · 90919-T5001
11301PCrankshaft position sensor O-ring9004A-30059
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0Y061 · 11310-BZ200 · 11310-BZ201 · 11310-BZ250 · 11310-BZ251 · 11310-BZ270
11302AOil seal (for timing chain or timing belt cover)90311-T0075 · 90311-T0076
11310ATapered thread plug (for timing chain cover)90043-44022 · 90344-53008
12108Cpadding16258-0T020 · 16258-0Y010
