Toyota YARIS Cylinder Block — Figure 1105

Toyota YARIS EPC diagram 1105, Cylinder Block, with 7 images and 26 PNC and OE references.

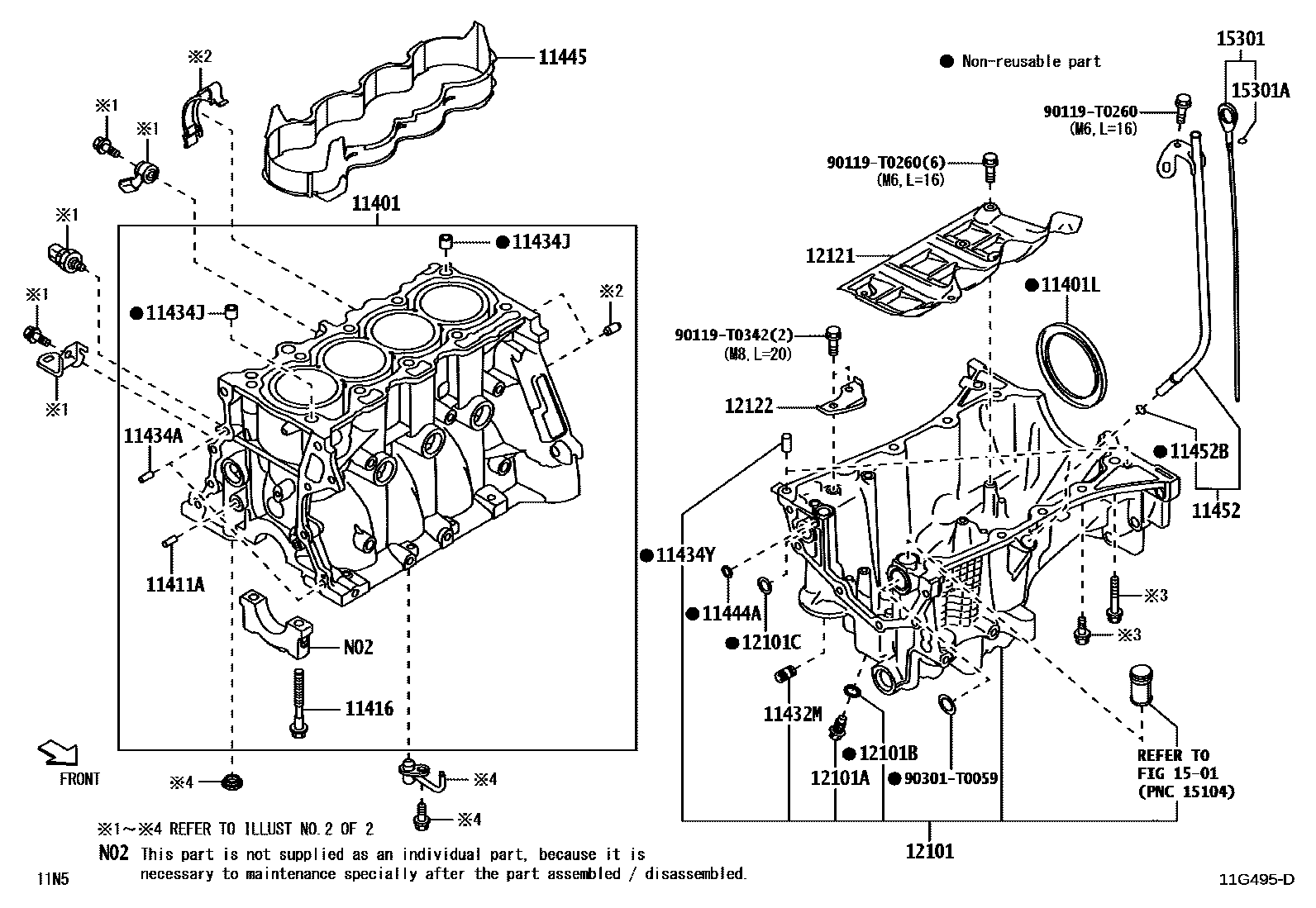

Toyota YARIS Cylinder Block EPC diagram — 11G495D — Cylinder Block — 11G495D (202208 – 202310)

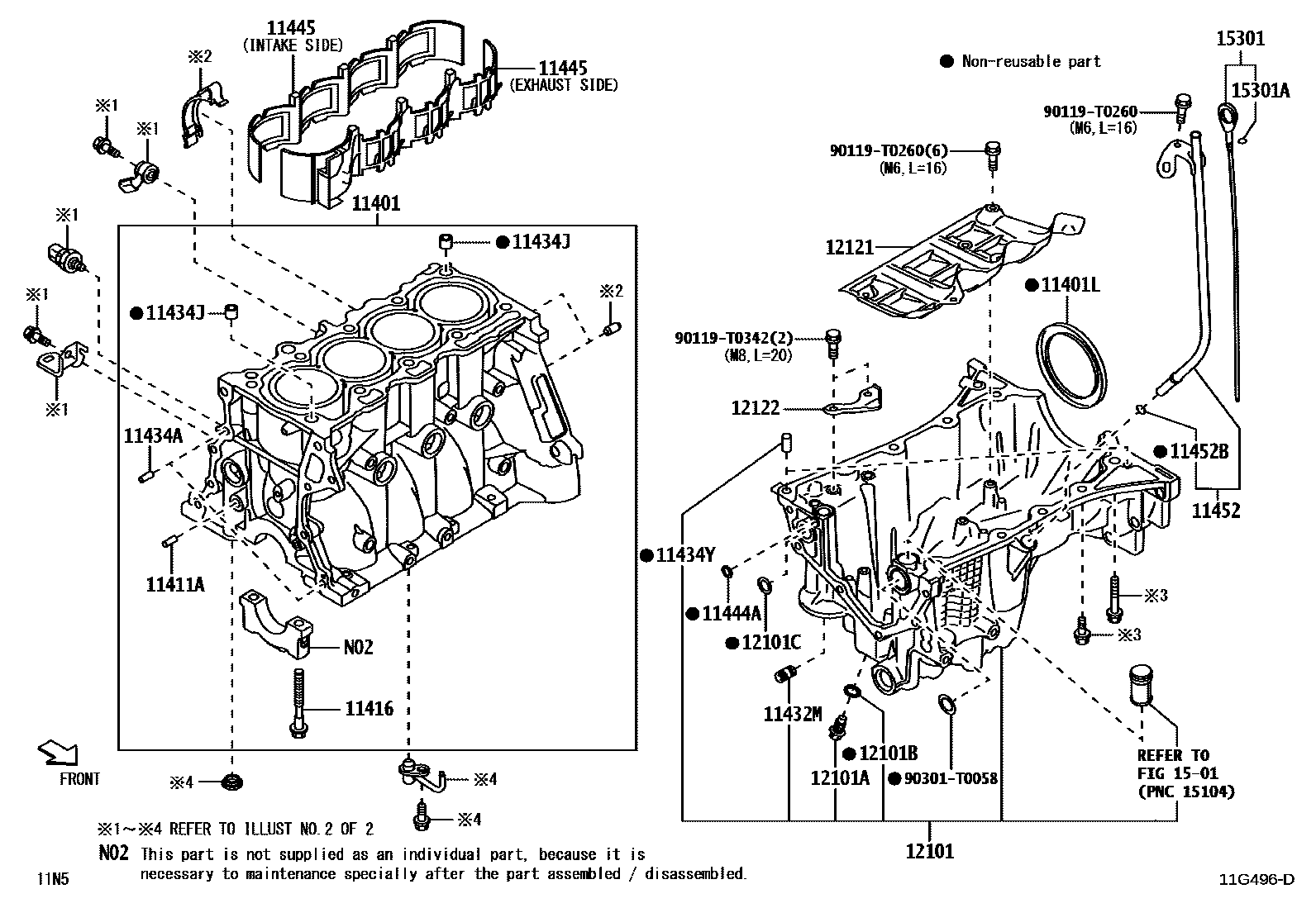

Toyota YARIS Cylinder Block EPC diagram — 11G496D — Cylinder Block — 11G496D (202208 – 202210)

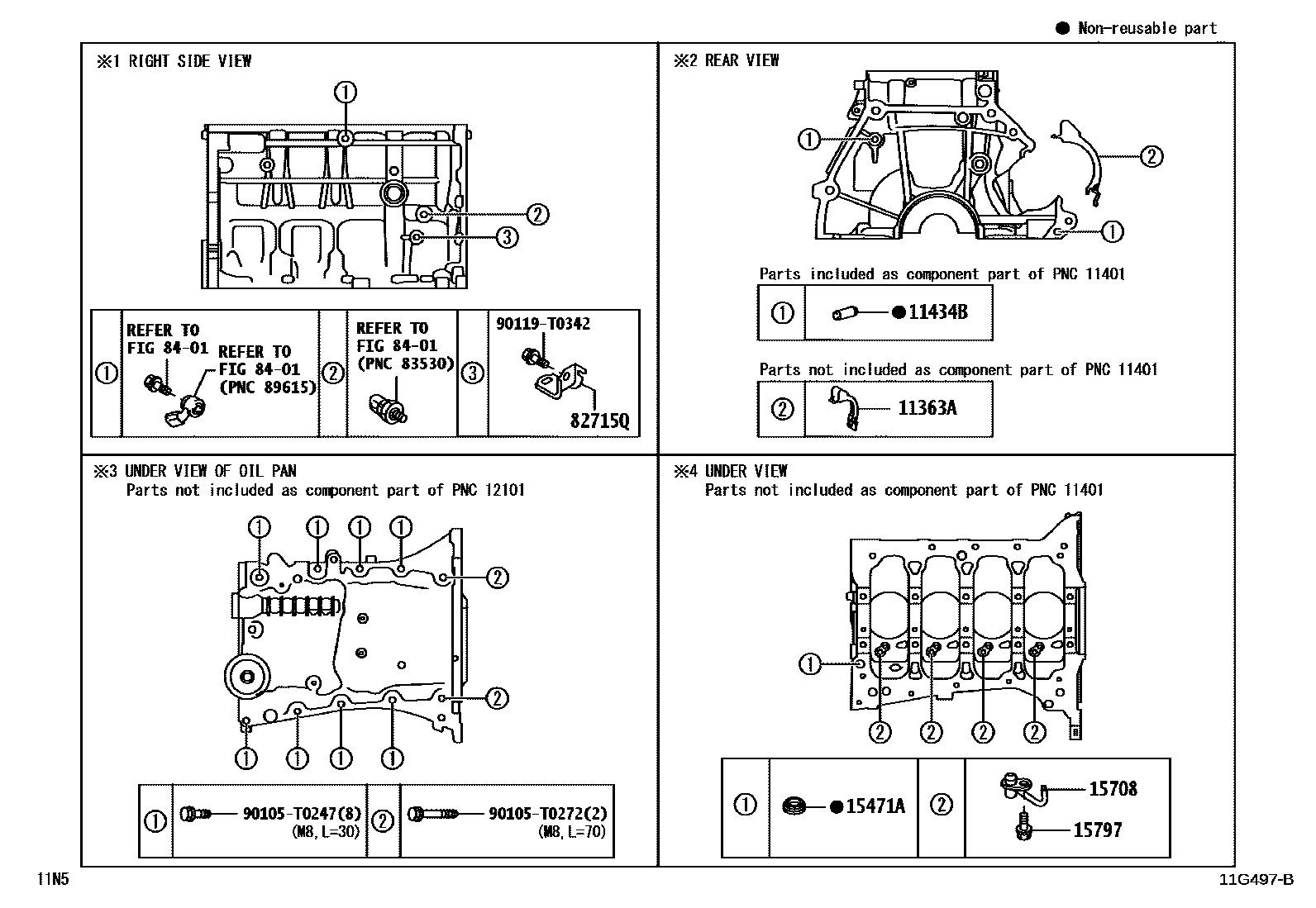

Toyota YARIS Cylinder Block EPC diagram — 11G497B — Cylinder Block — 11G497B (202208 – 999999)

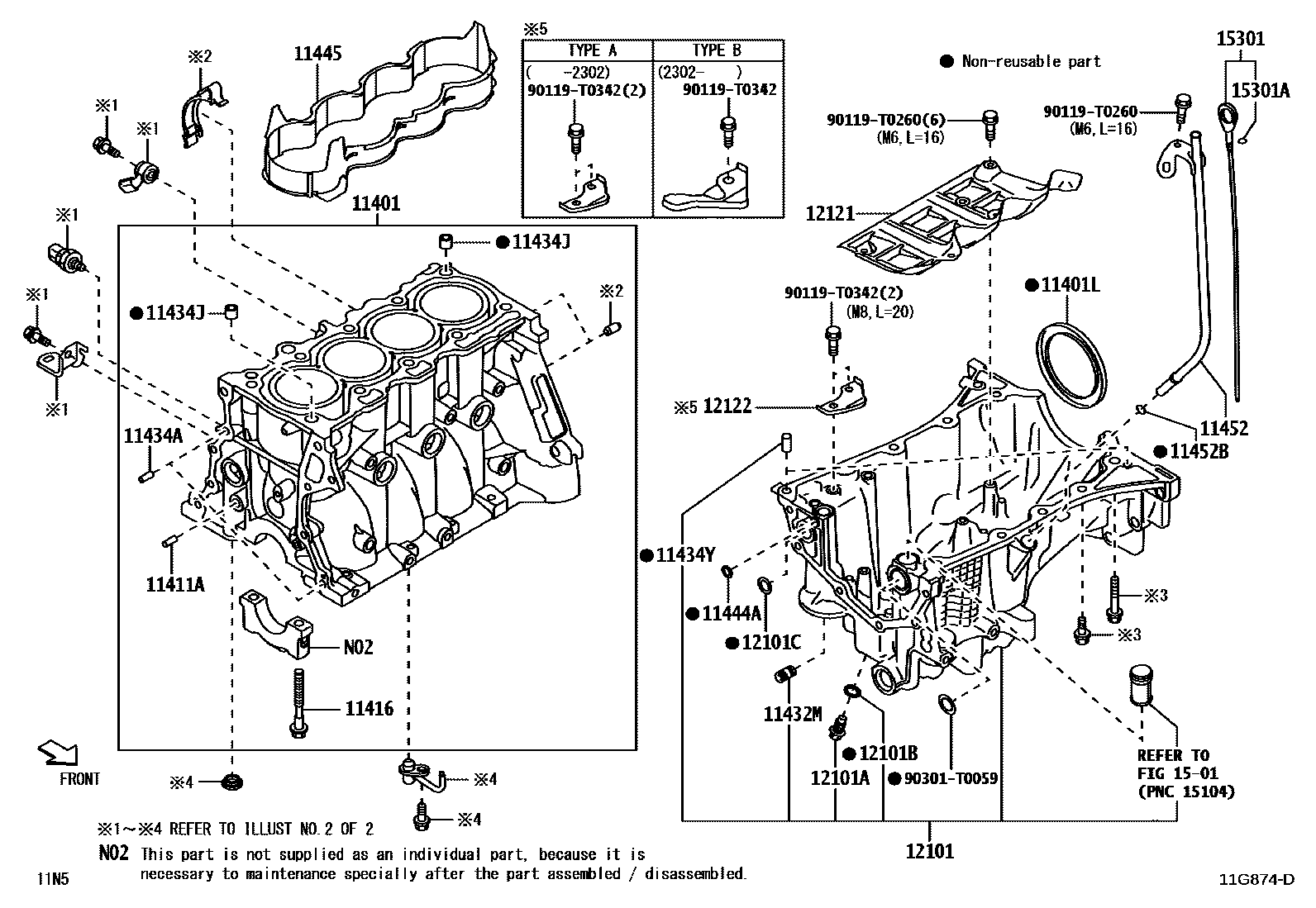

Toyota YARIS Cylinder Block EPC diagram — 11G874D — Cylinder Block — 11G874D (202210 – 999999)

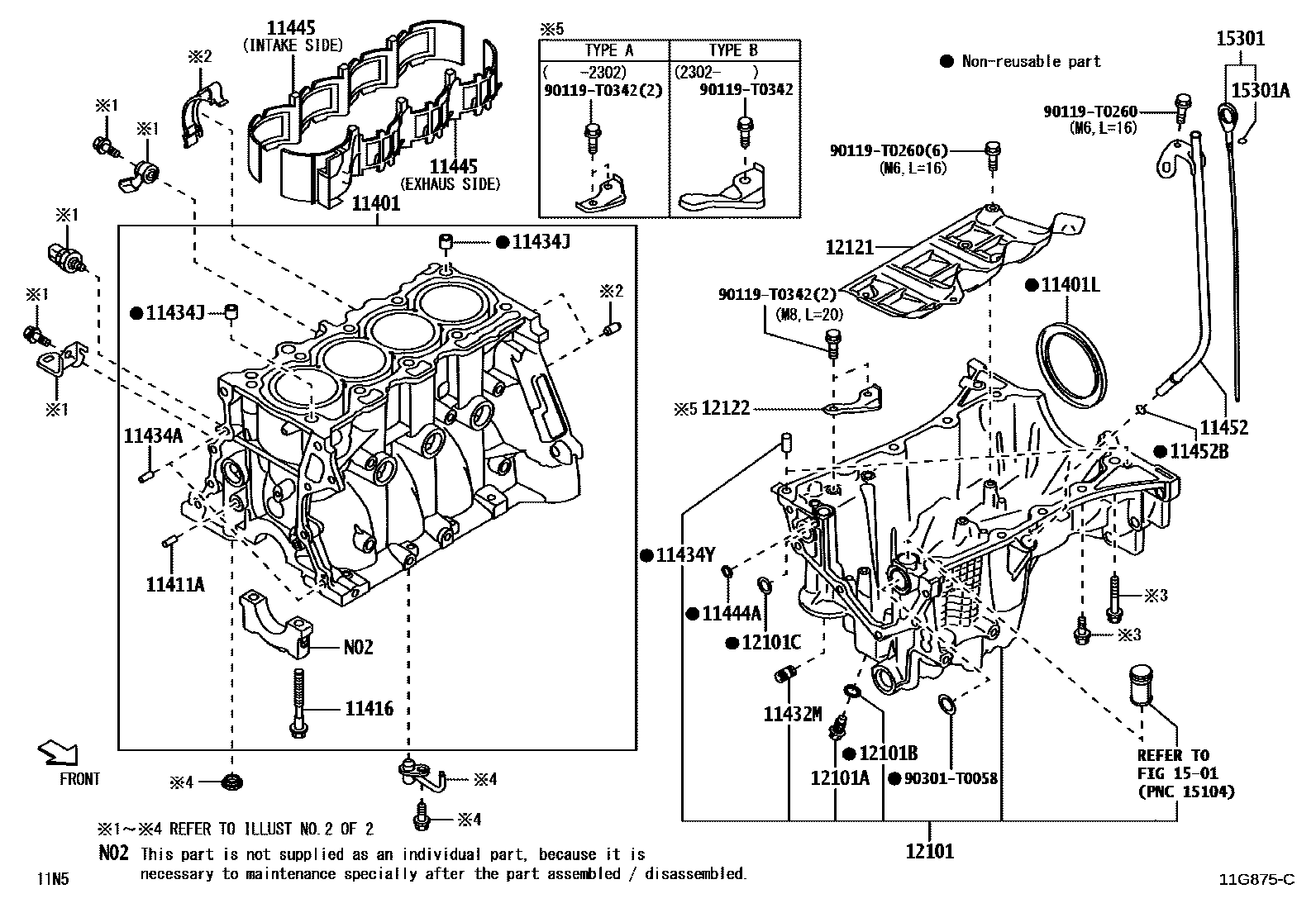

Toyota YARIS Cylinder Block EPC diagram — 11G875C — Cylinder Block — 11G875C (202210 – 999999)

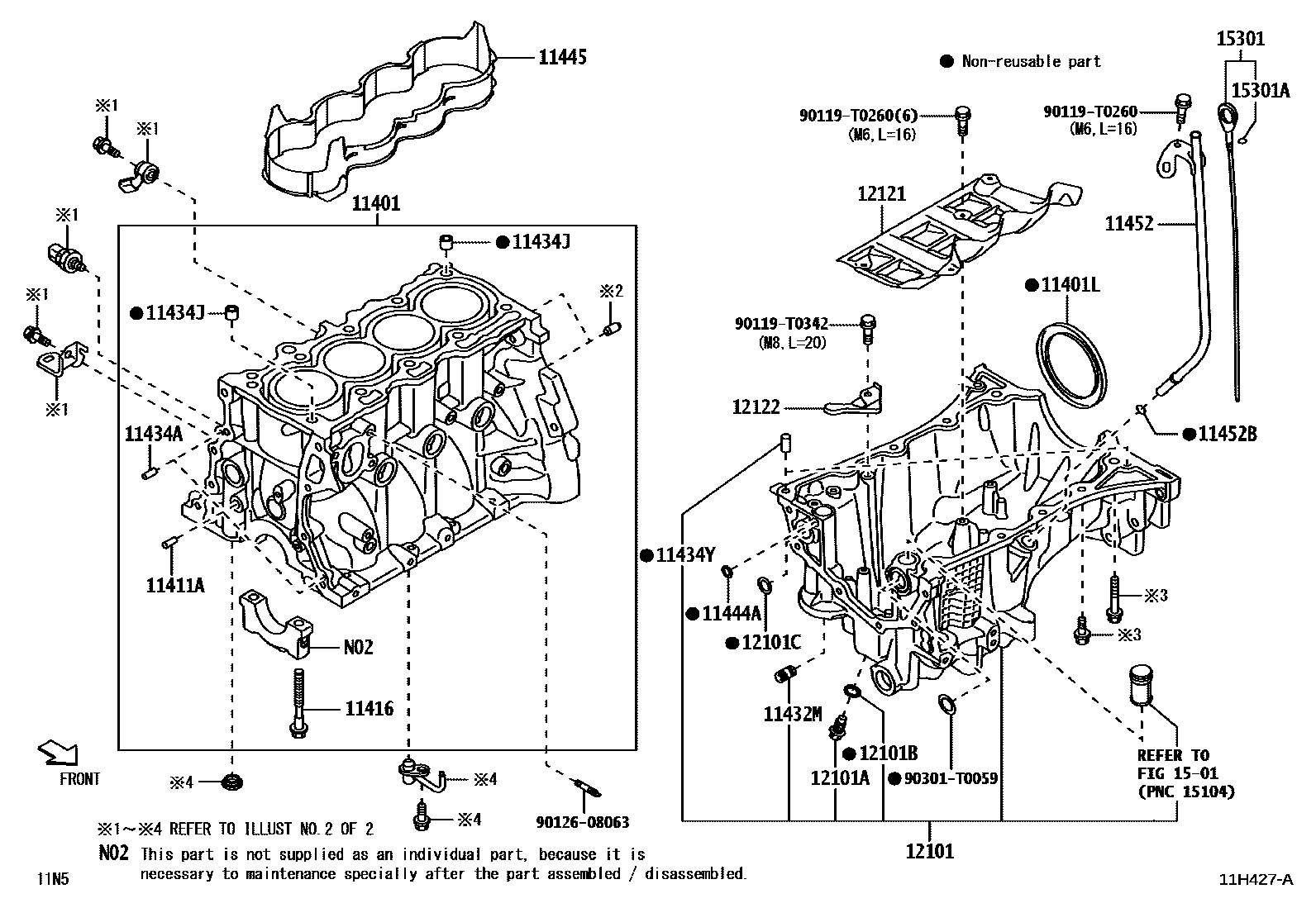

Toyota YARIS Cylinder Block EPC diagram — 11H427A — Cylinder Block — 11H427A (202508 – 999999)

Toyota YARIS Cylinder Block EPC diagram — 11H429A — Cylinder Block — 11H429A (202508 – 999999)

PNC and OE references

PNC	Part name	OE numbers
11363A	Flywheel housing side cover	11363-0Y020
11401	Cylinder block sub-assembly	11410-09740 · 11410-09750 · 11410-09760 · 11410-B9050 · 11410-B9130
11401L	SEAL, ENGINE REAR OIL	90311-T0073 · 90311-T0074
11411A	Ring pin (for cylinder block No. 1)	90250-10030 · 90250-T0019
11416	Bolts (for crankshaft bearing cap assembly)	90910-T2013
11432M	Connector (for cylinder block)	90404-19011 · 90404-T0005
11434A	Direct sales (for timing gear cover assembly)	90250-04097
11434B	Direct sales (for clutch housing assembly)	90250-10113 · 90250-T0018
11434J	Ring pin (for cylinder head assembly)	90253-13017
11434Y	Direct sales (for oil pan)	90250-08120
11444A	O-ring	9004A-30060 · 90301-T0054 · 90301-T0055
11445	Cylinder block water jacket spacer	11445-0Y020 · 11445-47050 · 11445-47060
11452	Engine oil level gauge guide	11409-BZ150 · 11452-BZ150
11452B	O-ring (for oil level gauge guide)	9004A-30058 · 90301-T0025
12101	Oil pan sub-assembly	12101-BZ140 · 12101-BZ170 · 12101-BZ200
12101A	Screw plug (for draining oil from the oil pan)	9004A-34015 · 90341-12032
12101B	Gasket (for oil pan drain plug)	9004A-43022 · 90430-T0024
12101C	O-ring (for oil pan)	9004A-30061 · 90301-T0056 · 90301-T0057
12121	No. 1 oil pan baffle	12121-0Y060 · 12121-BZ090
12122	No. 2 oil pan baffle	12122-0Y011 · 12122-0Y020 · 12122-BZ020 · 12122-BZ040
15301	Engine oil level scoring assembly	15301-0Y070 · 15301-BZ150
15301A	O-ring (for engine oil level gauge)	9004A-30048 · 90301-T0018
15471A	Gasket (for cylinder block)	90430-T0022 · 90430-T0023
15708	No. 1 oil nozzle sub-assembly	15708-0Y040 · 15708-BZ020
15797	Oil nozzle connector bolt	90110-06040 · 90110-T0002
82715Q	Wire harness clamp bracket	82715-BZK80
