Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

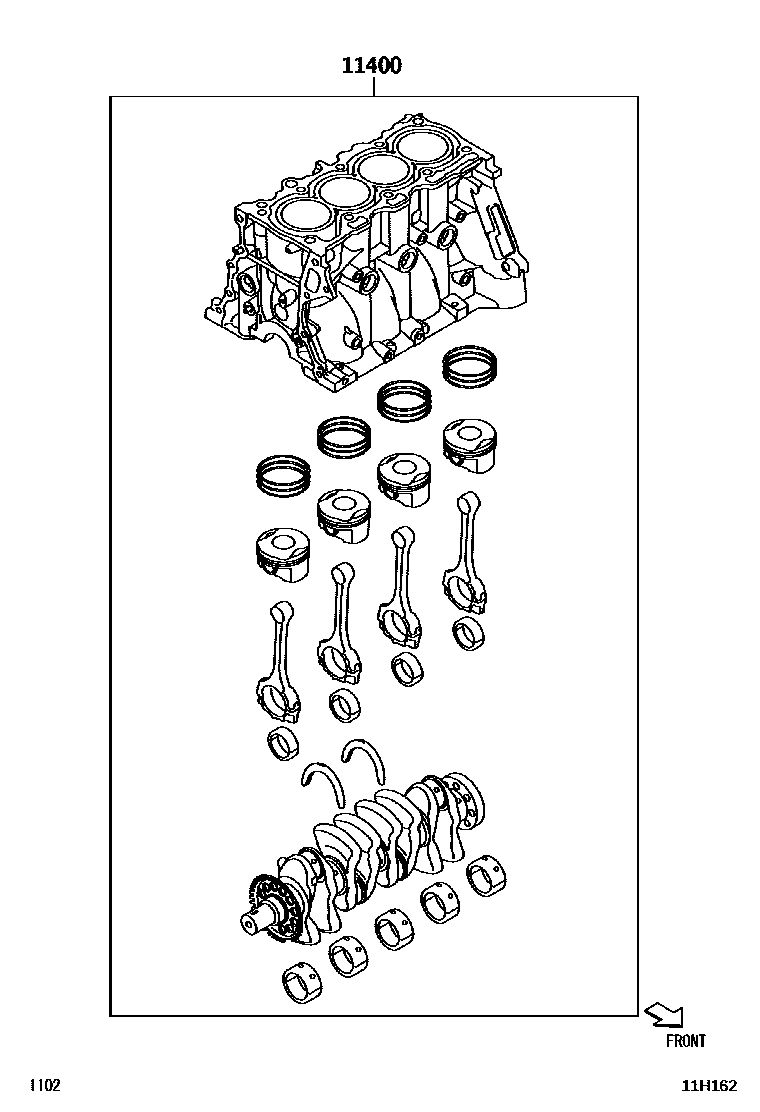

Toyota YARIS Short Block Assembly EPC diagram — 11H162
Short Block Assembly — 11H162 (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-BZA21 · 11400-BZB01 · 11400-BZB11 · 11400-BZB31 · 11400-BZB61
