Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 3 images and 1 PNC and OE references.

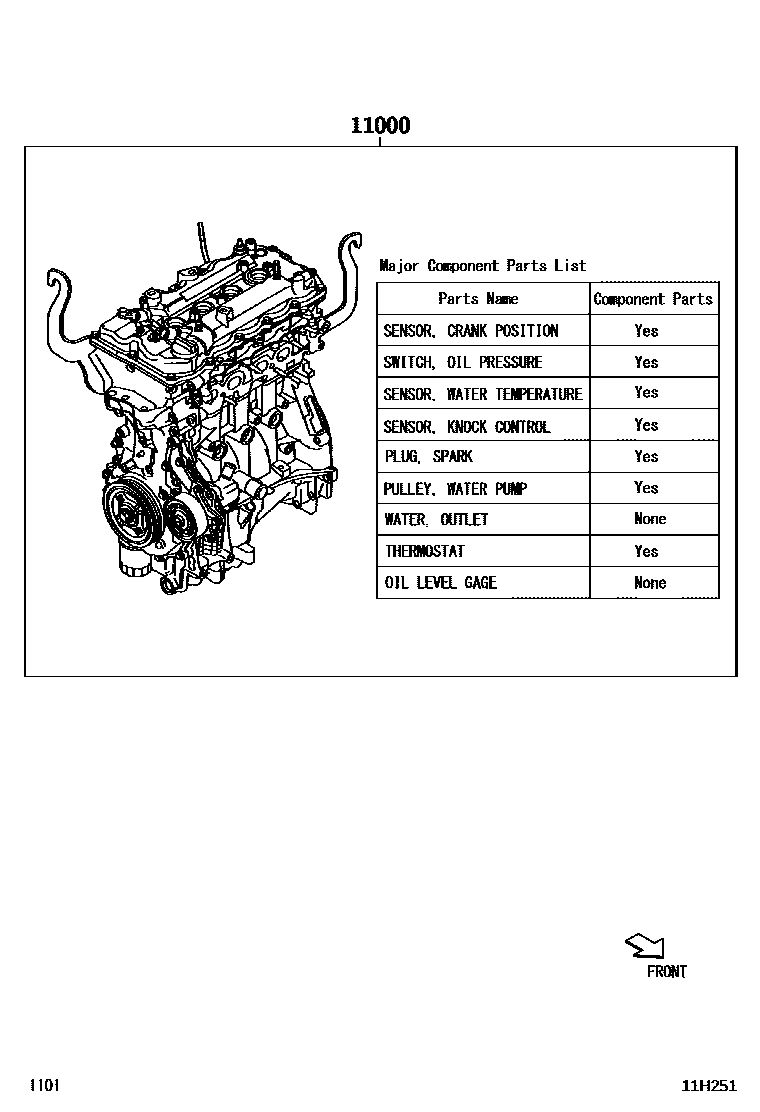

Toyota YARIS Partial Engine Assembly EPC diagram — 11H251
Partial Engine Assembly — 11H251 (202208 – 999999)

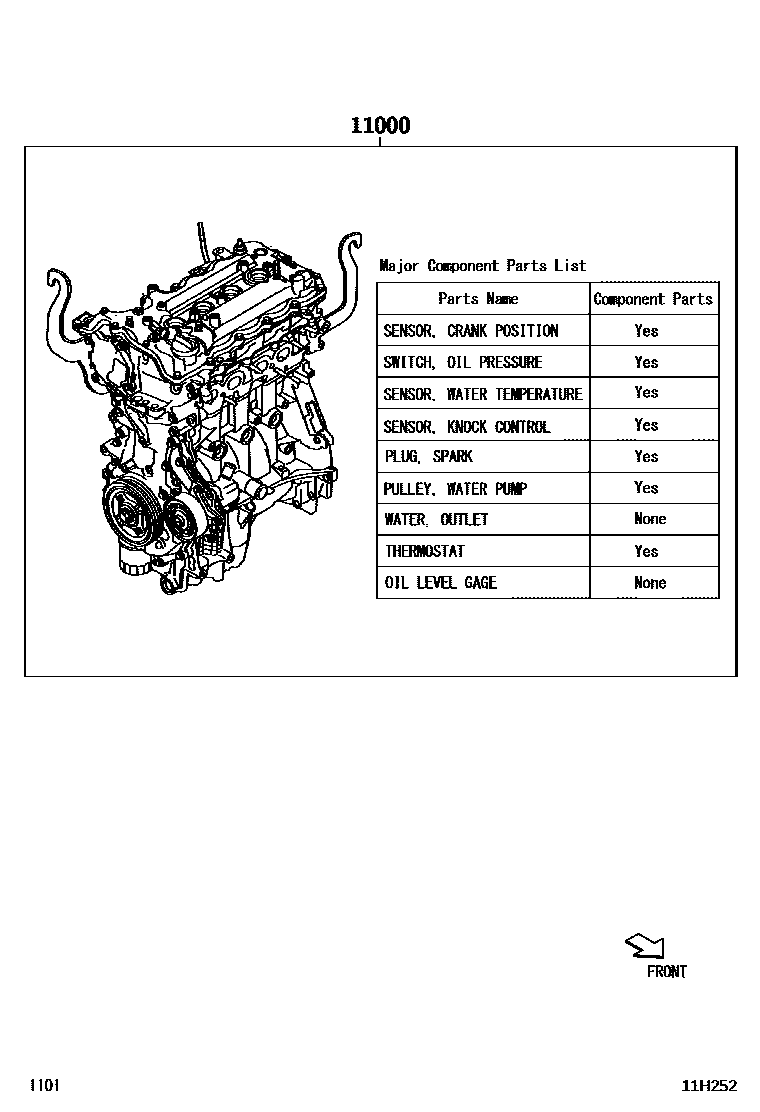

Toyota YARIS Partial Engine Assembly EPC diagram — 11H252
Partial Engine Assembly — 11H252 (202208 – 999999)

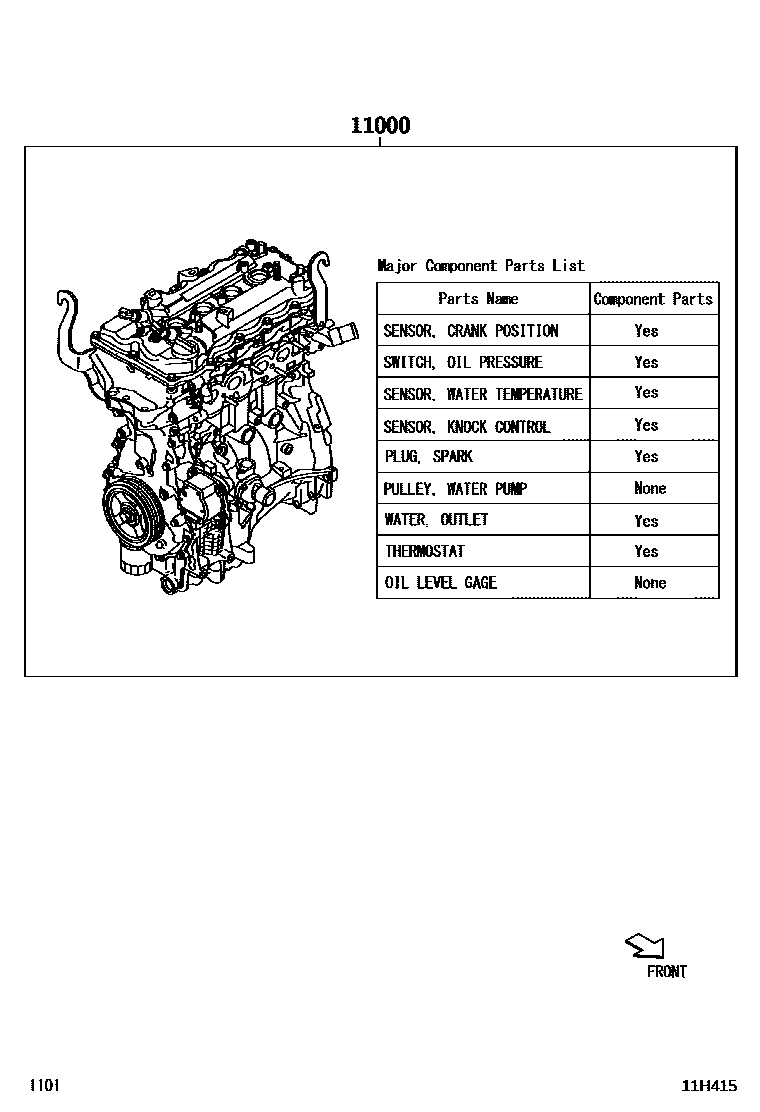

Toyota YARIS Partial Engine Assembly EPC diagram — 11H415
Partial Engine Assembly — 11H415 (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-BZB01 · 19000-BZB11 · 19000-BZB21 · 19000-BZB31 · 19000-BZB41 · 19000-BZB51 · 19000-BZB61 · 19000-BZB71
