Toyota YARIS Standard Tools — Figure 0901

Toyota YARIS EPC diagram 0901, Standard Tools, with 5 images and 12 PNC and OE references.

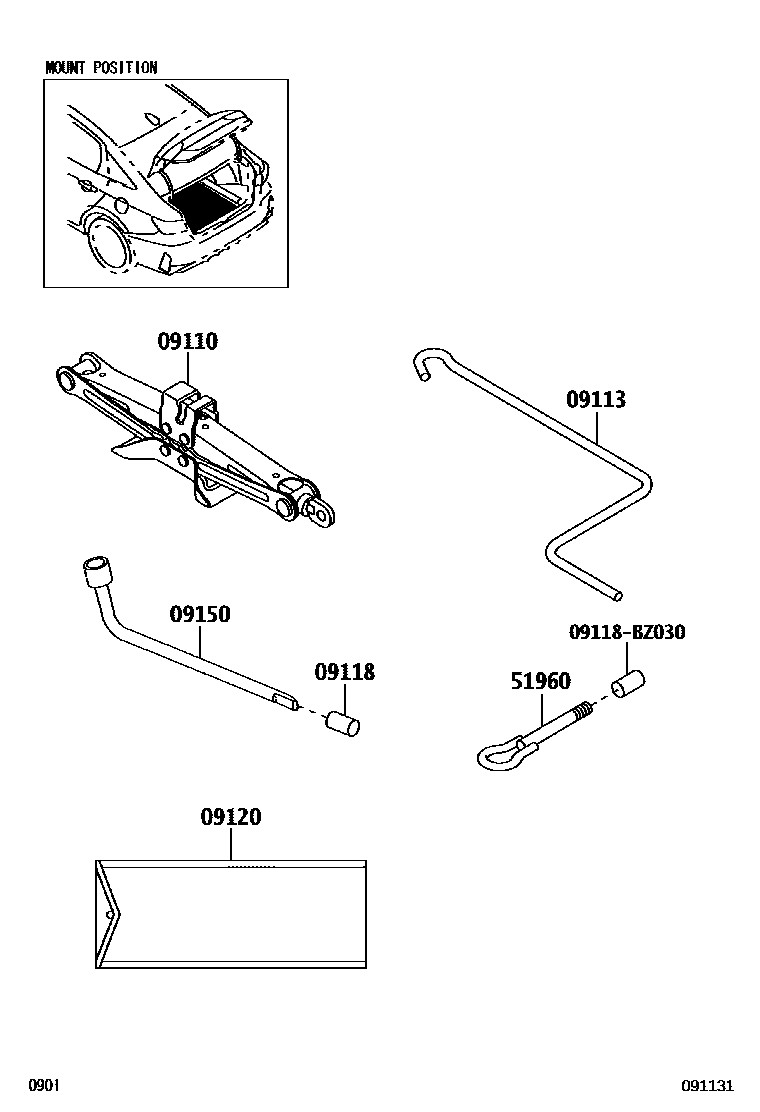

Toyota YARIS Standard Tools EPC diagram — 091131
Standard Tools — 091131 (202208 – 999999)

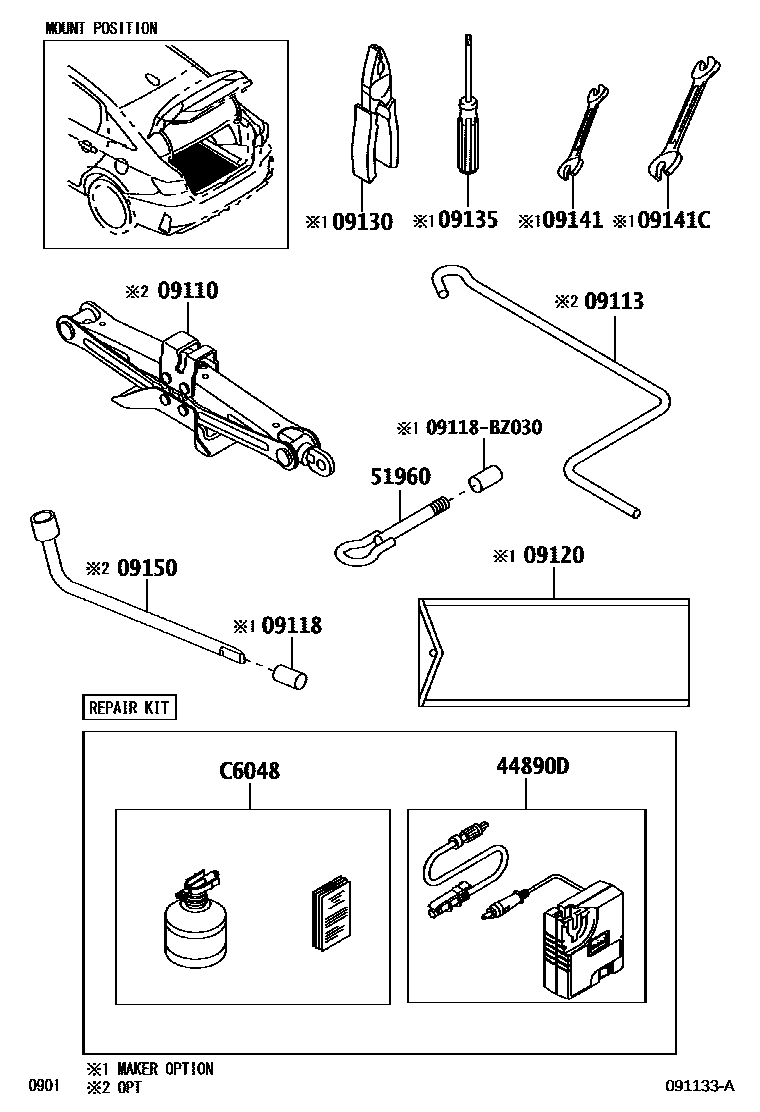

Toyota YARIS Standard Tools EPC diagram — 091133A
Standard Tools — 091133A (202208 – 999999)

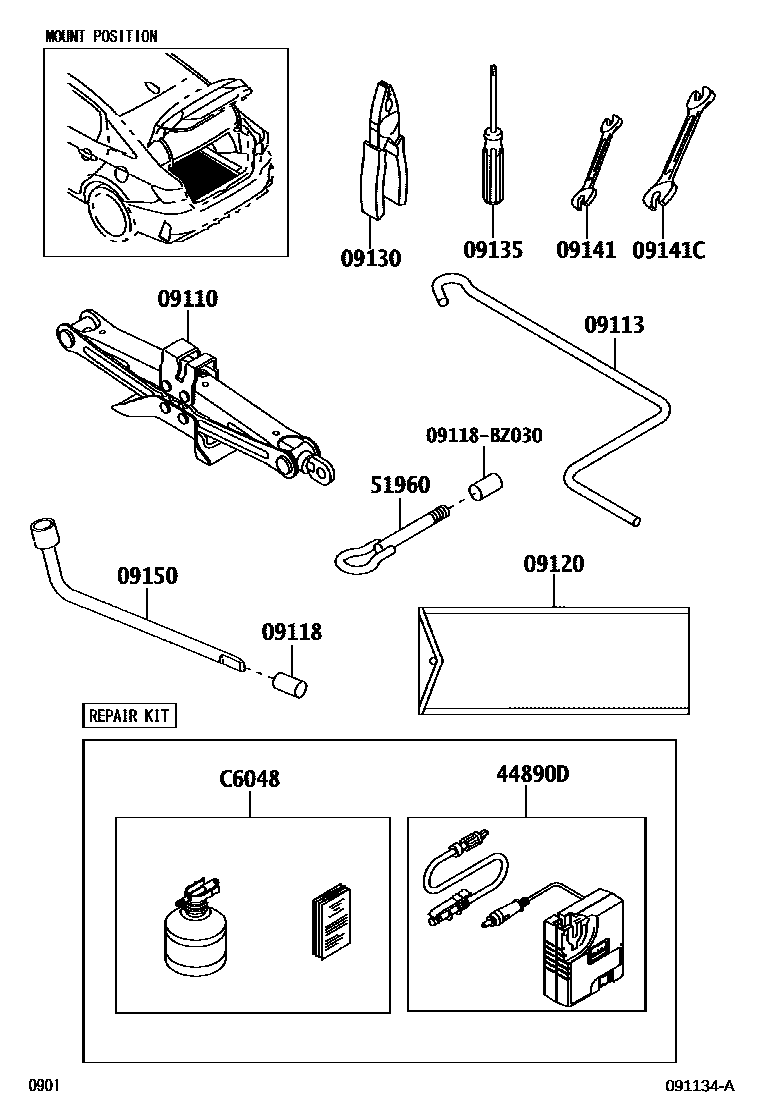

Toyota YARIS Standard Tools EPC diagram — 091134A
Standard Tools — 091134A (202303 – 999999)

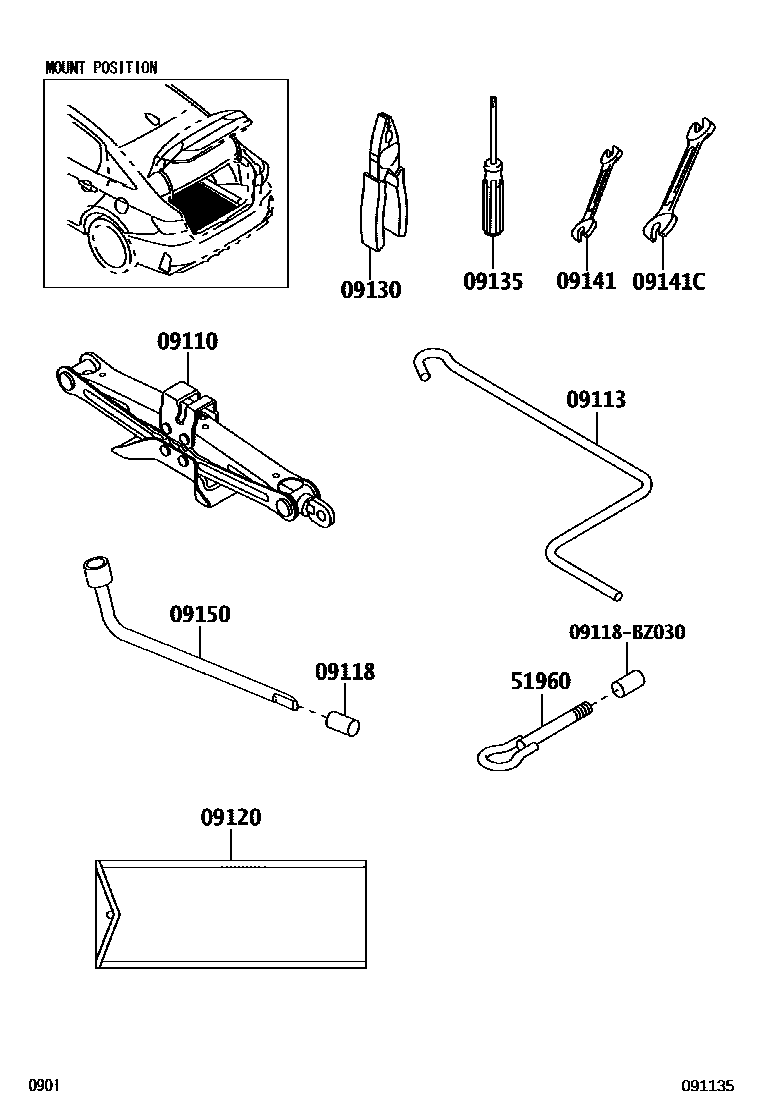

Toyota YARIS Standard Tools EPC diagram — 091135
Standard Tools — 091135 (202208 – 999999)

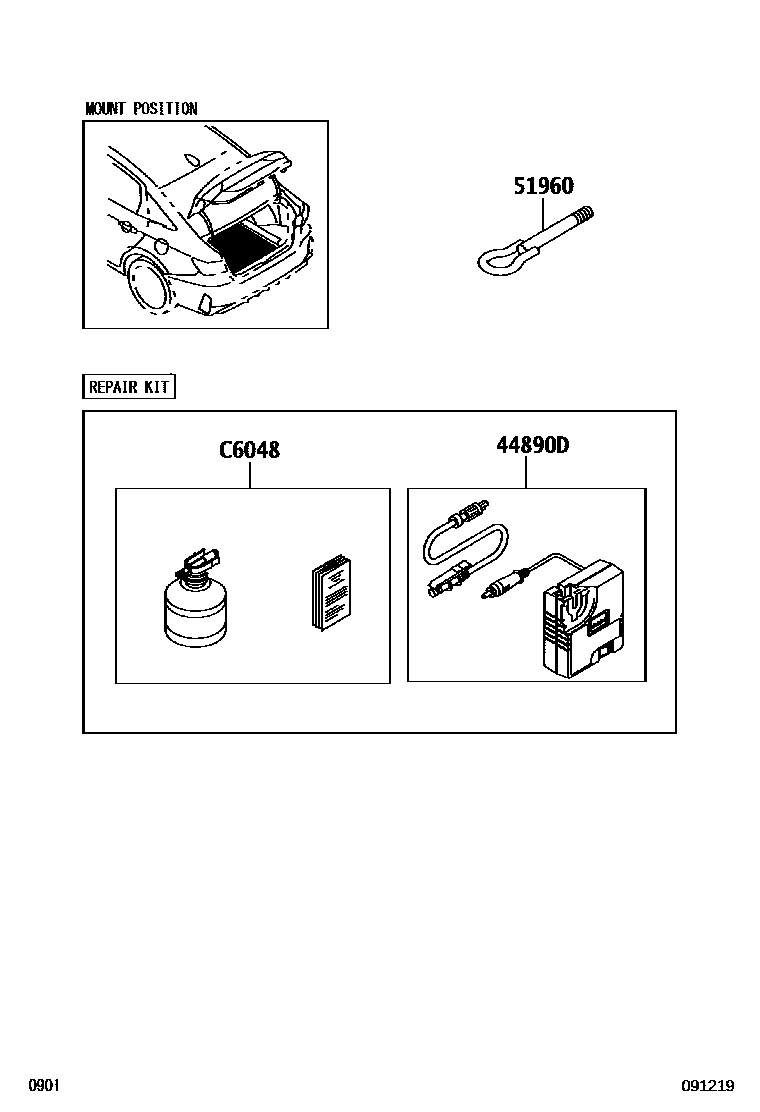

Toyota YARIS Standard Tools EPC diagram — 091219
Standard Tools — 091219 (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-0D220 · 09111-BZ320
09113Jack Handle09113-0D100 · 09113-0D110
09118jack cover09118-0D030
09120Tool Bag09120-0D160 · 09120-0D190 · 09120-0D220
09130Pliers90089-99010 · 99913-11500
09135Screwdriver90089-99009 · 99915-10700
09141Wrench09141-0K030 · 99914-10810
09141CNo. 2 wrench09141-0K040 · 99914-11214
09150Wheel Nut Wrench Case09150-0A010
44890DAir Compressor Assembly44890-BZ050 · 44890-BZ060
51960Front Towing Hook Assembly51960-BZ240 · 51960-BZ260
C6048Tire Repair KitC6048-BZ030 · C6048-BZ060
