Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

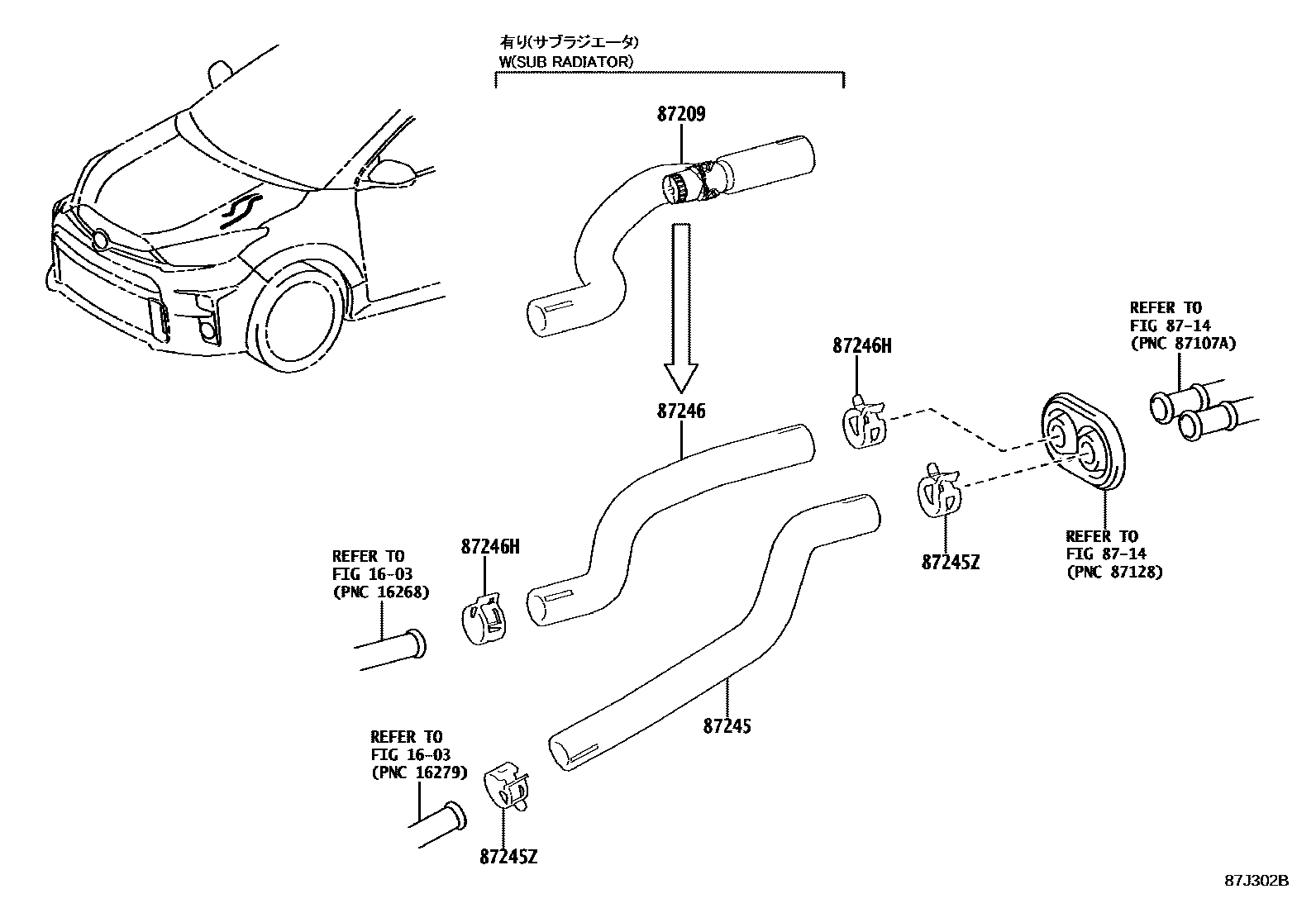

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209 | Water hose sub-assembly | 87209-52390 |
| 87245 | Heater water inlet hose | 87245-52320 |
| 87245Z | Clip or clip (for heater water hose) | 96138-42501 |
| 87246 | Heater outlet hose | 87245-52370 |
| 87246H | Clip or clip (for heater water hose) | 96138-42501 |
