Toyota YARIS 预碰撞安全系统 — Figure 8617

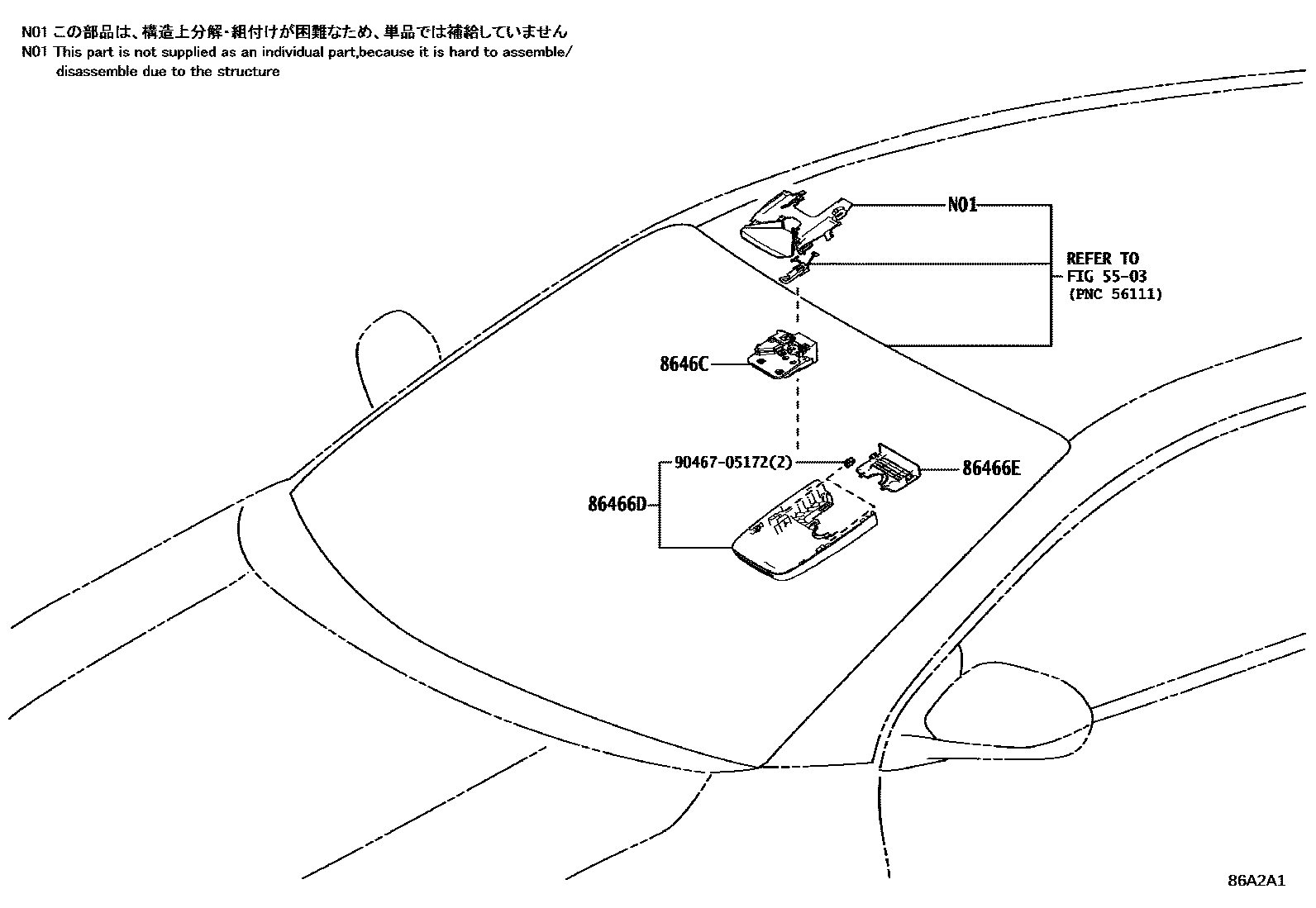

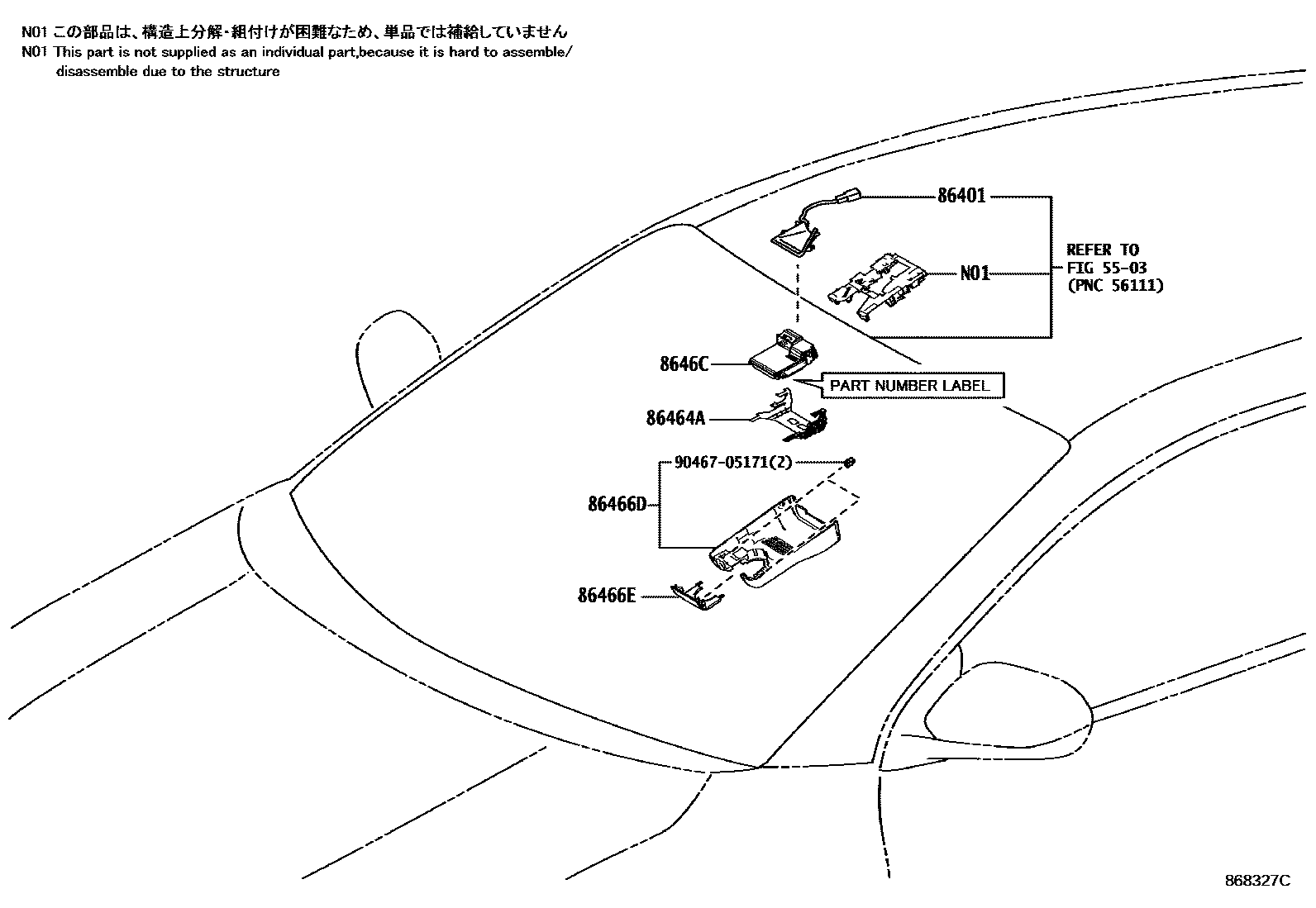

Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-K0010 |
| 86464A | Front identification lock | 86464-K0010 |
| 86466D | Front identification cover No. 1 | 86466-52030 · 86466-52160 |
| 86466E | Front identification cover No. 2 | 86466-52040 · 86467-52040 |
| 8646C | front recognition camera | 8646C-0W020 · 8646C-52040 · 8646C-52440 |
