Toyota YARIS 倒车影像和摄像头 — Figure 8606

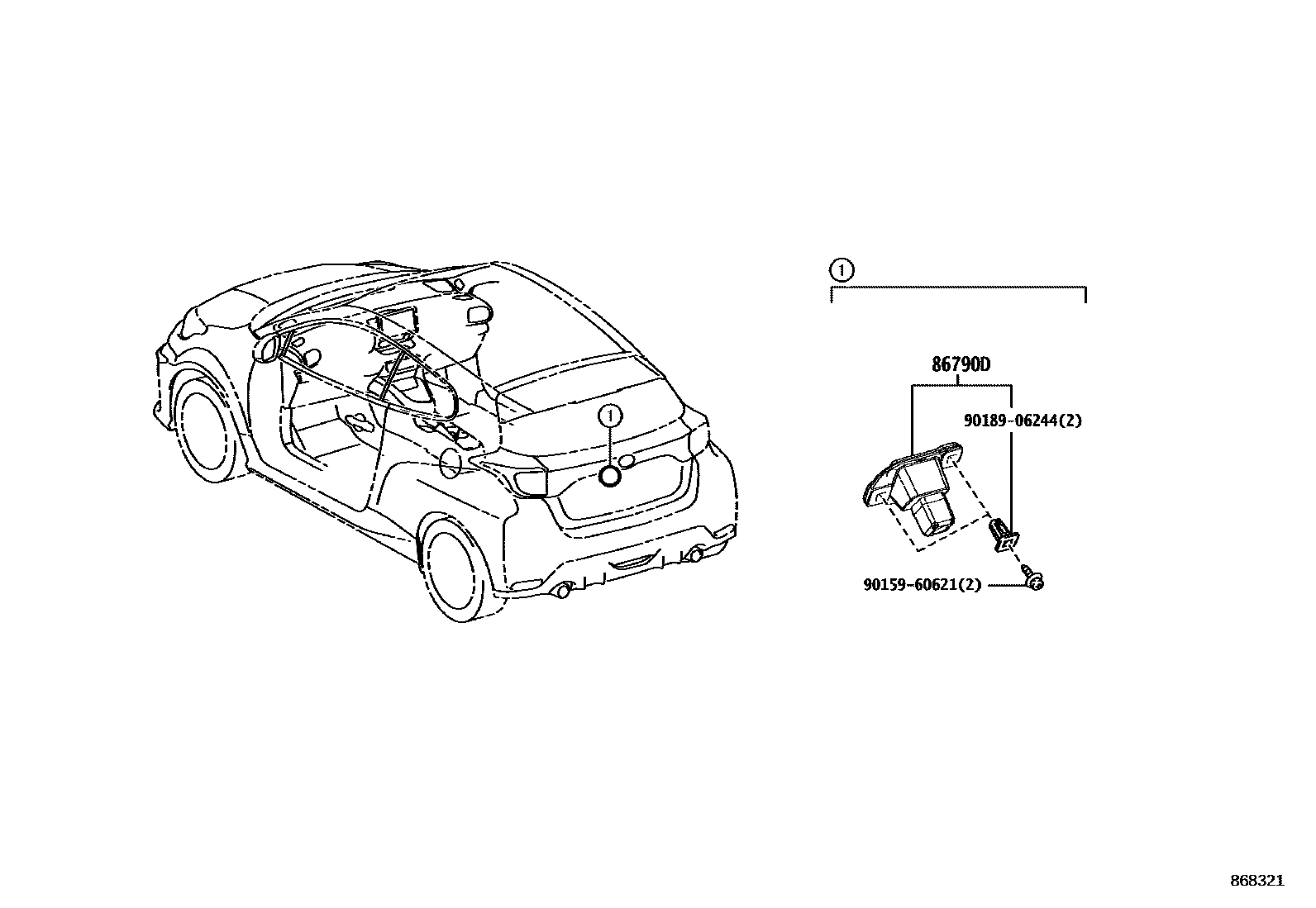

Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790D | Rear reversing image camera assembly | 86790-52330 · 86790-52331 · 867B0-52030 · 867B0-52090 |
