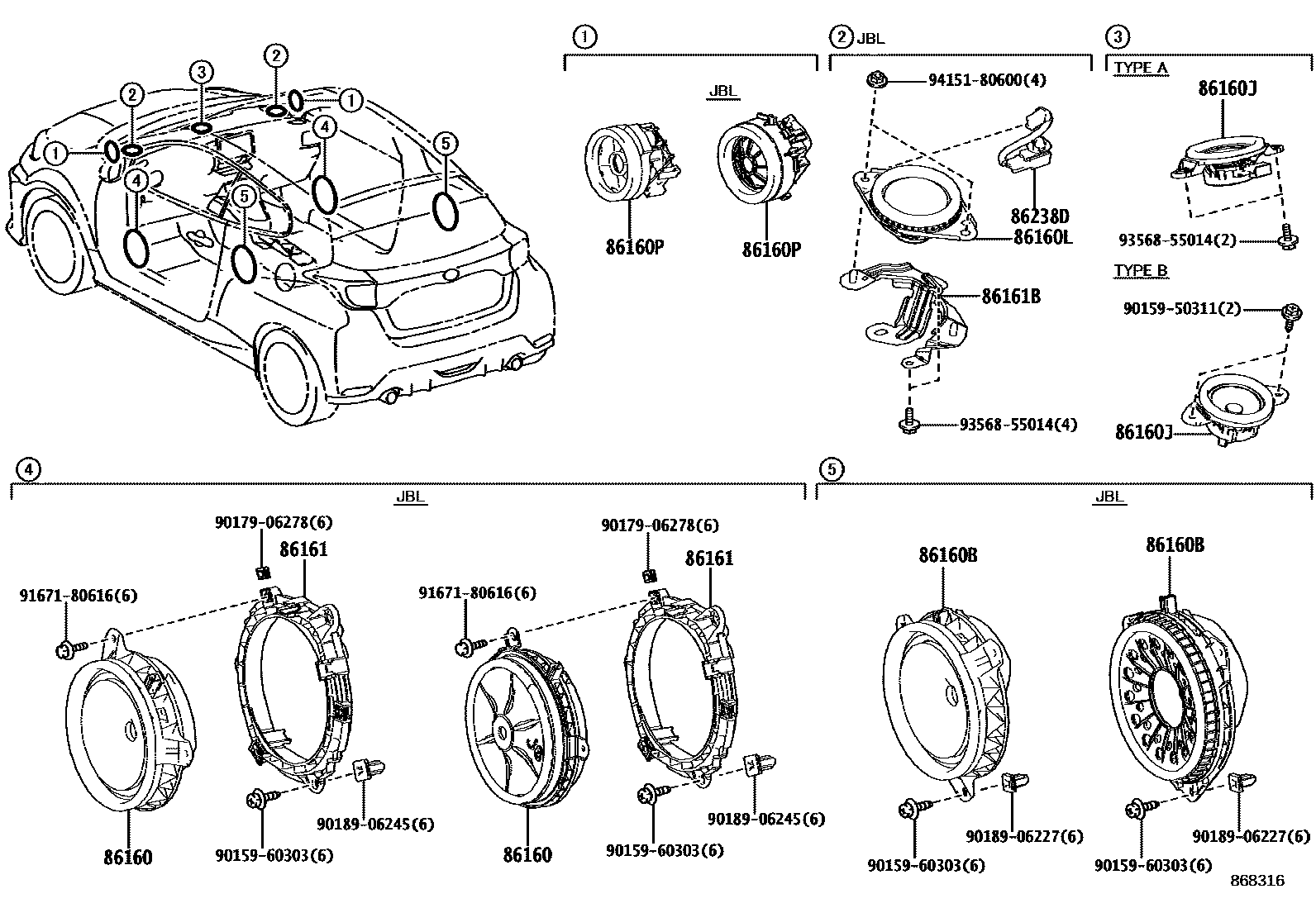

Toyota YARIS 扬声器 — Figure 8602
Toyota YARIS EPC diagram 8602, 扬声器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86150-K0010 · 86160-30E00 |
| 86160B | Rear speaker assembly | 86160-02B70 · 86160-30E00 |
| 86160J | No. 3 front speaker assembly | 86150-52100 · 86150-52120 · 86150-62130 |
| 86160L | No. 4 front speaker assembly | 86160-42200 · 86160-K0010 |
| 86160P | No. 2 front speaker assembly | 86150-K0020 · 86160-52170 |
| 86161 | Front speaker bracket No. 1 | 86161-52030 |
| 86161B | No. 2 front speaker bracket | 86161-K0010 · 86163-K0010 |
| 86238D | speaker harness | 86238-52010 · 86238-52020 |
| 86240A | Stereo component equalizer assembly | 86240-30140 · 86240-52010 · 86240-52020 · 86240-52040 |
| 86244A | Stereo component bracket No. 1 | 86244-52010 |
| 86244B | Stereo component bracket No. 2 | 86244-52020 |
| 86734D | Active Noise Control Amplifier | 86734-11030 |
| 86796A | Stereo component tuner cover | 86183-52010 · 86796-K0010 |
