Toyota YARIS 超速档和电子控制变速器 — Figure 8410

Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 5 PNC and OE references.

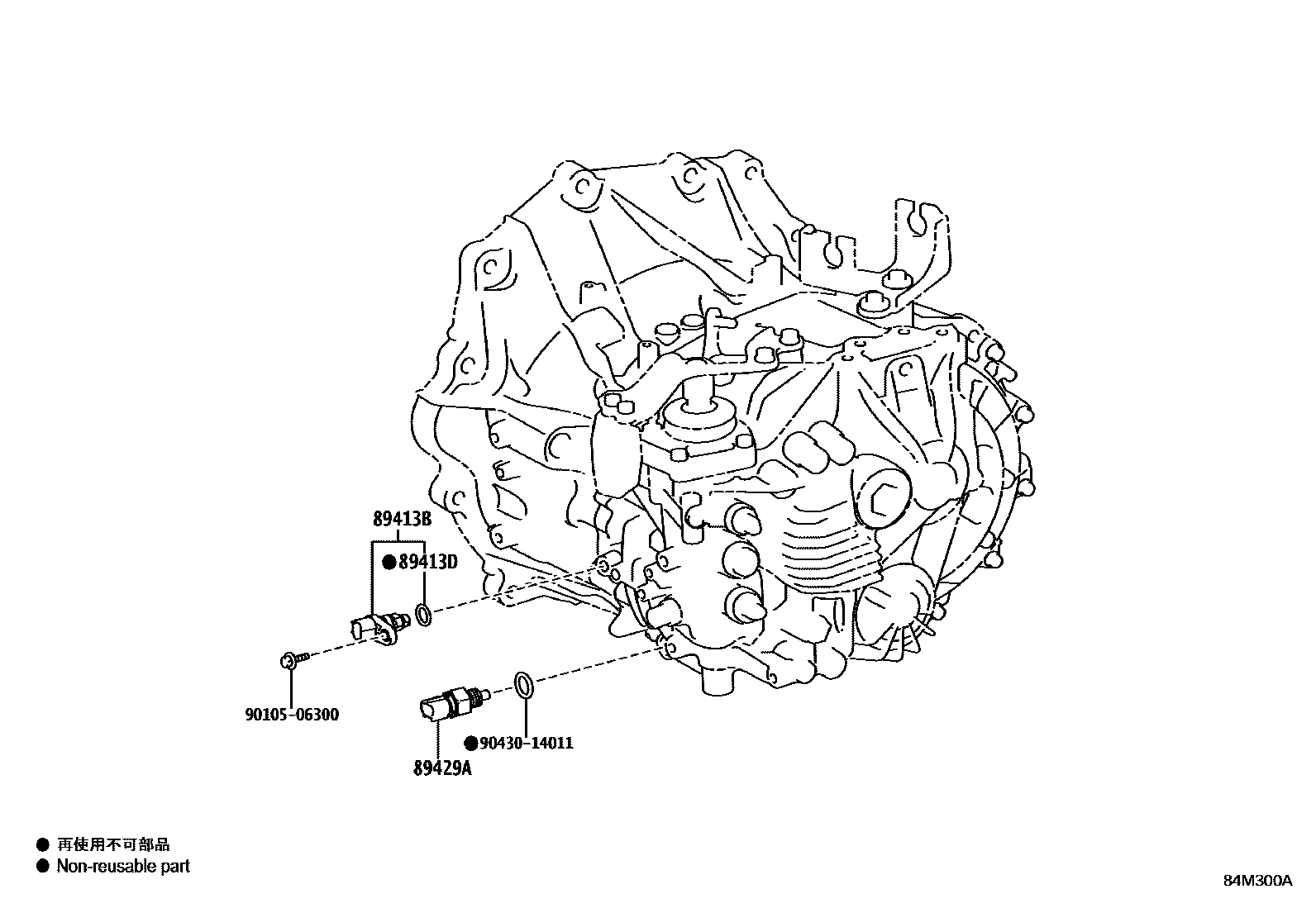

Toyota YARIS 超速档和电子控制变速器 EPC diagram — 84M300A
超速档和电子控制变速器 — 84M300A (202008 – 999999)
Toyota YARIS 超速档和电子控制变速器 EPC diagram — 84R3RG
超速档和电子控制变速器 — 84R3RG (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
89413BTransmission speed sensor89413-28011
89413DO-ring (for transmission speed sensor)90301-11008
89413NTransmission speed sensor (NT)89413-33041
89413STransmission speed sensor (NC)89413-33051
89429Atemperature sensor89429-53010
